Clark Forklift CY100-140 CHY100-140 English O-153 Operator’s Manual
Video Preview:
Image Preview:
Description:
Clark Forklift CY100-140 CHY100-140 English O-153 Operator’s Manual
- SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS ? mm:mm Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided.
- Maintenance and inspection of all powered industrial trucks should be performed in conformance with the recommendation in this manual and the following practices. 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed. 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks.
- 3. Before leaving The Truck: A. Stop truck. B. Fully lower the load engaging means. c. Place directional controls in neutral. D. Apply the parking brake. E. Stop the engine or F. lock the control or G. Block the wheels if 4. Before Working On Truck: turn off ignition truck is power. circuit. on a ramp, or being worked on. A. Raise wheels free of floor or disconnect power source.
- B. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed. Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system is depleted and engine stops running.
- Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area. 5. Before Starting To Operate The Truck; A. Be in operating position.
- B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral. 0. Start engine or turn on power. E. Before operating truck, check functioning of I ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.
Table Of Contents:
Clark Forklift CY100-140 CHY100-140 English O-153 Operator’s Manual
Instructions On Use Of Manual
Table of Contents

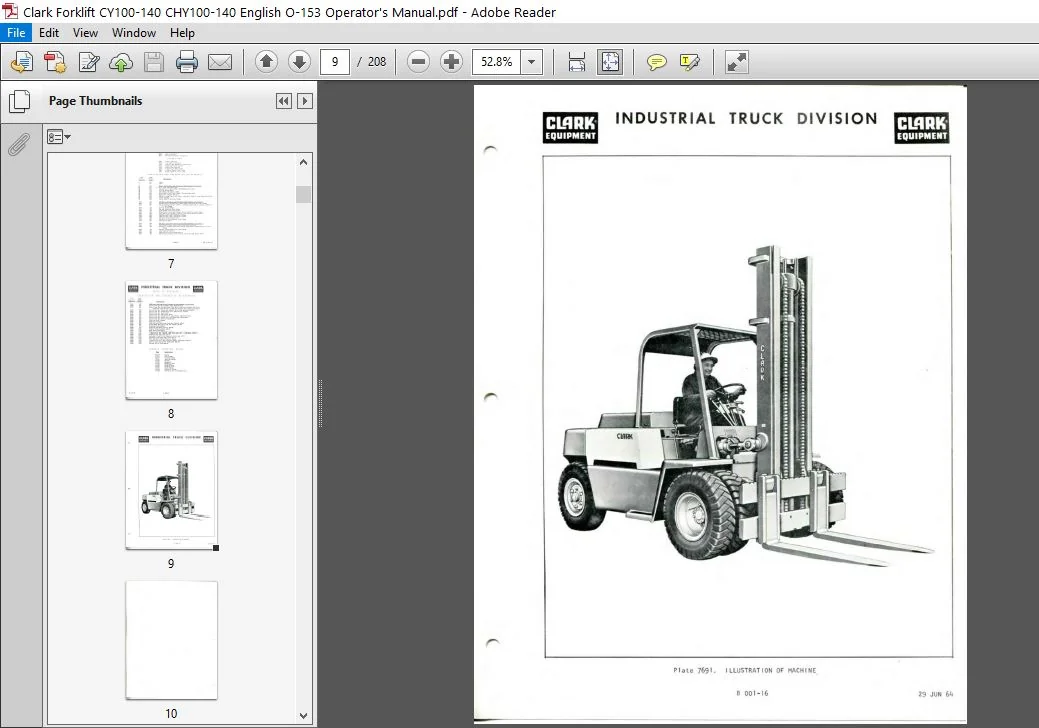

1 l lustration of Machine
Post Printing Note

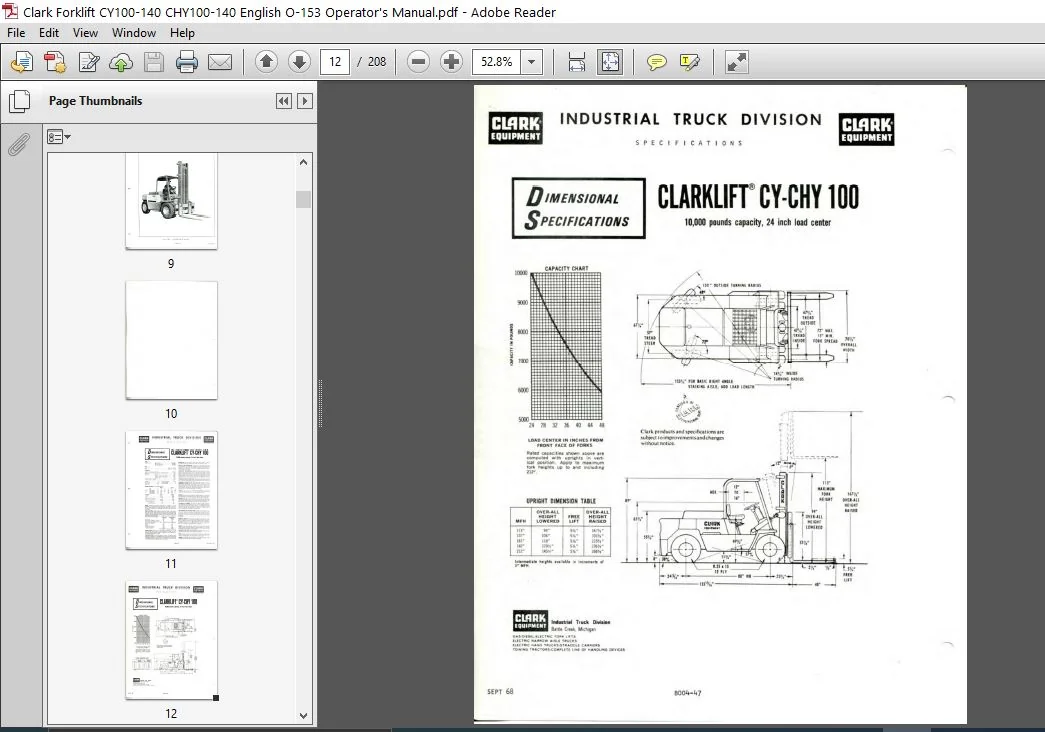

Specifications
New Machine 50 Hour Inspection
O PE RAT 0 N S ·
C002 Overal I Controls
C003 Instrument Indicators
Cl03 Starting and Operating Instructions
Cl30 Diesel Cold Starting Aid
C134 Engine Stop Controls
C253 Transmission Shock Valve
C303 To Move, Stack, Lower Loads
C401 Proper Handling of L.P. Gas
Please Note:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
