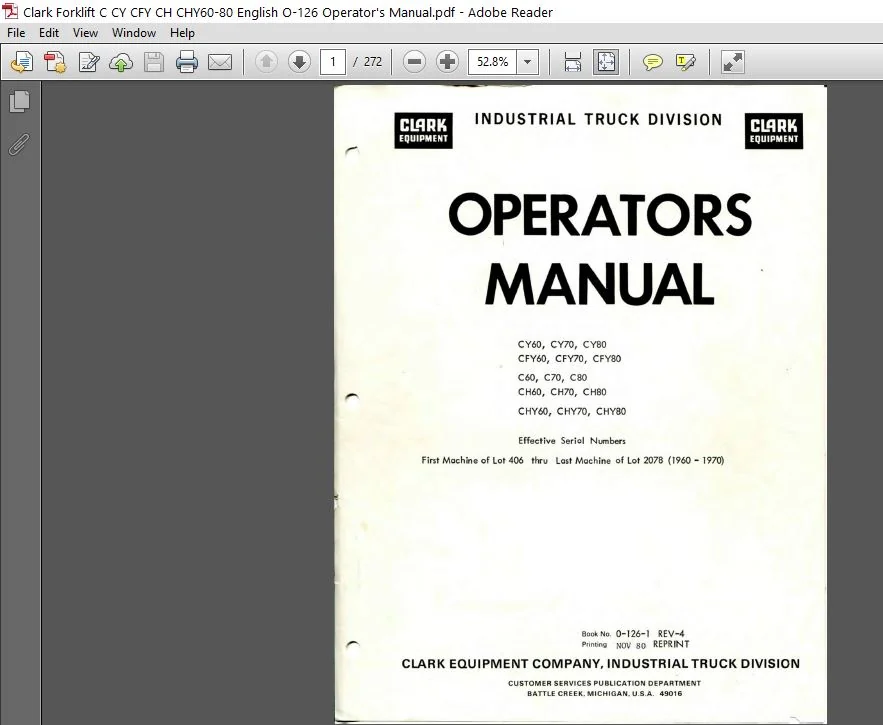

Clark Forklift C CY CFY CH CHY60-80 English O-126 Operator’s Manual
Video Preview:
Image Preview:
Description:
Clark Forklift C CY CFY CH CHY60-80 English O-126 Operator’s Manual
- Powered industrial trucks may become hazardous if adequate maintenance is neglected.
- Therefore, adequate maintenance facilities, personnel and procedures should be provided. Maintenance and inspection of all powered industrial trucks should be performed in conformance with the reconvnendation in this manual and the following practices.
- 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed.
- 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. J. Before Leaving The Truck: A. Stop truck. B. Fully lower the load engaging means. C, Place directional controls in neutral. D. Apply the parking brake. E. Stop the engine or turn off power. F. Lock the control or ignition circuit. G. Block the wheels if truck is on a ramp, or being worked on.
- 4. Before Working On Truck: A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them, Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed. Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system is depleted and engine stops running. Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area.
- 5. Before Starting To Operate The Truck; A. Be in operating position. B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of 1 ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment.
- (I f used) F. Release parking brake. – continued – 1023-Z REV OC T 68 (FR ONT) INDUSTRIAL TRUCK DIVISION SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS 6. Avoid fire hazards and have fire protection equipment present. Do not use an open flame to check level, or for leakage, of fuel, electrolyte or coolant. Do not use open pans of fuel or flammable cleaning fluids for cleaning parts. 7. Properly ventilate work area, vent exhaust fumes and keep shop clean and floor dry. 8. Handle LP gas cylinders with care.
- Do not drop, dent, or damage in any way. 9. Brakes, steering mechanisms, control mechanisms, warning devices, lights, governors, 1 ift overload devices, guards and safety devices should be inspected regularly and maintained in a safe operating condition. 10. All parts of I ift and tilt mechanisms and frame members should be carefully and regularly inspected and maintained in a safe operating condition.
- 11. Special trucks or devices designed and approved for hazardous area operation should receive special attention to ensure that maintenance preserves the original, approved safe operating features. 12. Fuel systems should be checked for leaks and condition of parts.
- Extra special consideration should be given in the case of a leak in the fuel system. Action should be taken to prevent the use of the truck until the leak has been corrected. 13. All hydraulic systems should be regularly inspected and maintained in conformance with good practice.
- Tilt cylinders, valves, and other similar parts should be checked to assure that “drift” has not developed to the extent that it would create a hazard. 14. Capacity, operation and maintenance instructions plates, tags, or decals should be maintained in legible condition. 15. Batteries, motors, controllers, I imit switches, protective devices, electrical conductors and connections should be inspected and maintained in conformance with good practice.
- Special attention should be paid to the condition of electrical insulation. 16. Industrial trucks should be kept in a clean condition to minimize fire hazards and facilitate detection of loose or defective parts.
- 17. Modifications and additions which affect capacity and safe truck operation should not be performed by the customer or user without manufacturers prior written approval. Capacity, operation and maintenance instruction plates, tags or decals should be changed accordingly. 18. Care should be taken to assure that all replacement parts are interchangeable with the original parts and of a quality equal to that provided in the original equipment.
Table Of Contents:
Clark Forklift C CY CFY CH CHY60-80 English O-126 Operator’s Manual
T A B L E
Description
0 F C O N T E N T S
Instructions on use of manual
Instructions on use of manual
Table of contents
Table of contents

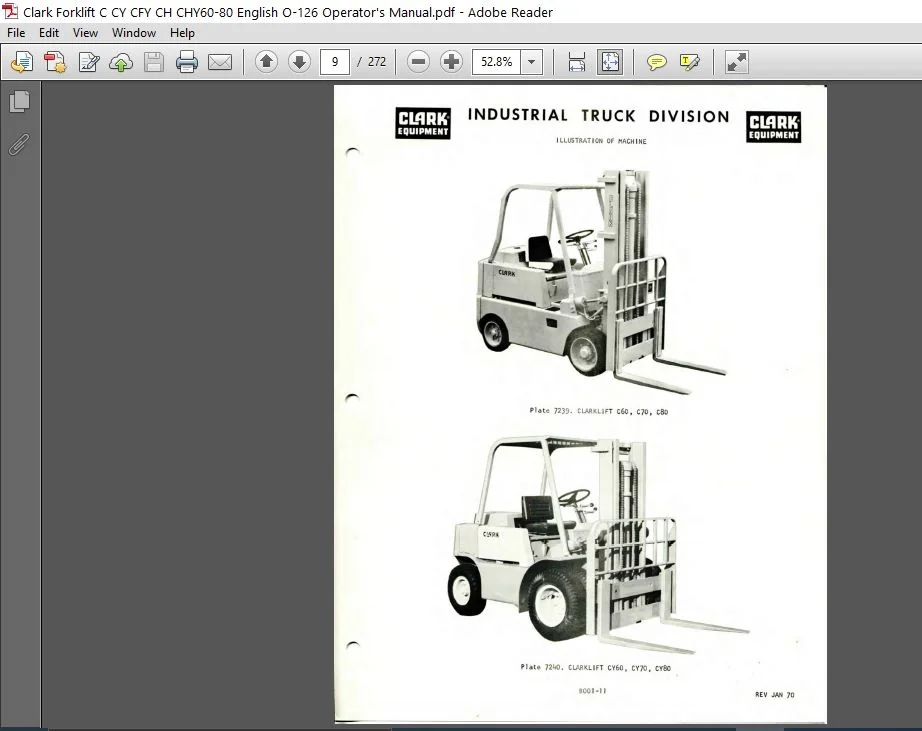

Illustration of machine

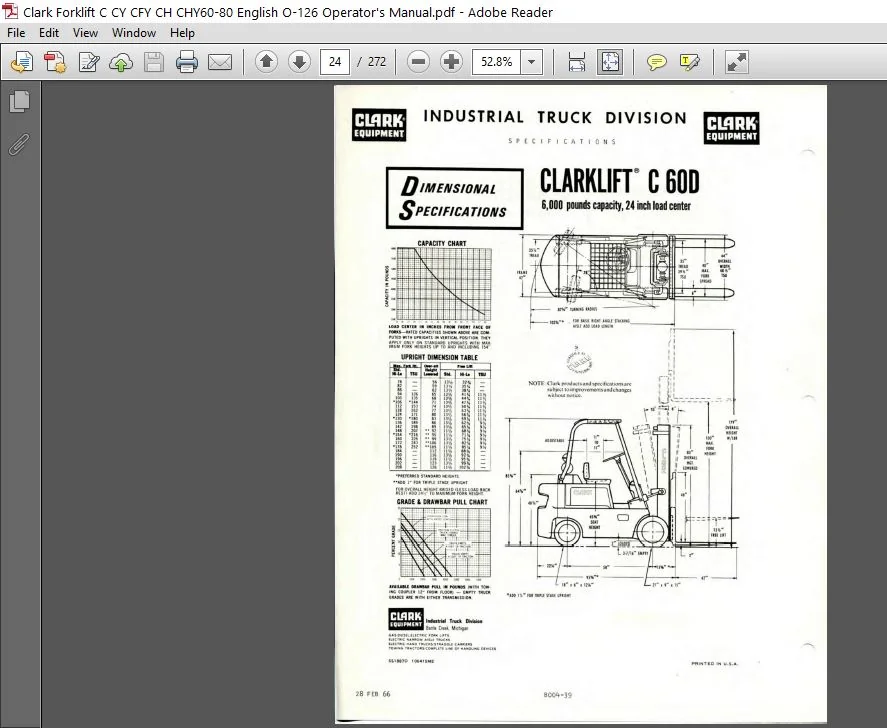

Specifications
Specifications
Specifications
Spec i f i cations
Specifications
Specifications
0 P E R A T I O N S
Overall controls
Instrument indicators
Instrument indicators
Starting instructions
Diesel starting aid
Diesel shut-down proceedures
Reserve fuel cut-in valve
Transmission shock valve
Safety precautions
Proper handling of L.P. gas
Proper handling of L.P. gas
Proper handling of L.P. gas
Proper handling of L.P. gas
L U B R I C A T I O N A N D PR EV ENTIV E M A I N T E N A N C E
Description
Index
Index
8 Hour Lubrication and Preventive Maintenance Illustration
Engine crankcase check
Engine cooling system check
Instrument indicators check
Instrument indicators check
Brake pedal free travel, parking brake check
Air cleaner check
Air filter element clean
Hydraulic sump and control levers check
Tire and rim maintenance
Tire and rim maintenance
Directional tread tires
Power steering pump
100 Hour Lubrication and Preventive Maintenance Illustration
Engine crankcase and oi 1 filter check
Cooling system check
Fan and generator drive belt check
Brake pedal free travel check
Brake system check
Master cylinder check
Lifting mechanisms check
Hydraulic sump tank breather
Steering gear and battery check
Battery check
Lubrication chart
A003-
