Yale B860 MC 10-15 Service manual – PDF DOWNLOAD
FILE DETAILS:
Yale B860 MC 10-15 Service manual – PDF DOWNLOAD
Size: 36 MB
Pages :271
Format: PDF
Language: English
Brand: Yale
Format: PDF
Language: English
Brand: Yale
DESCRIPTION:
Yale B860 MC 10-15 Service manual – PDF DOWNLOAD
This manual is addressed to the skilled technicians of Yale service network.
B860
MC10
MC12
MC15
- Always use the personal protective equipment when it is required. Pay attention to the squashing risks due to moving parts, oscillations, not correctly fastened materials when lllting operations are carried out or when the loads are moved. Do not wear rings. watches. jewels. unbuttoned or hanging clothes such as scarves, unbuttoned jackets or smacks with open zips that can get entangled in the moving parts.
- Never carry out cleaning, lubrication or maintenance operations when the battery is connected. If you use compressed air to clean the parts, wear glasses with lateral guards. The maximum air pressure must not exceed 1 bar. Make sure that all working tools are perfectly efficient and ready to use. Keep the working surfaces clean and tree from the deposits that settle on the truck parts and cause damage. Keep sparks, free flames and cigarettes at a distance from fuels orflammable materials such as the gas of the batteries.
- Make sure that the working area is well ventilated, illuminated, dry and clean. Remove any water puddles or oil spots. Make sure that the lifting equipment, devices or machines can bearthe load. Never use petrol, gas oil or other flammable liquids as detergents: use commercial non-toxic and non- flammable solvents. In case the interventions are carried out of the workshop, lay the truck flat and block it. If it is necessary to carry out the work on slopes, block the truck and bring it in a flat area as soon as possible within a certain safety limit.
- Disconnect the batteries and label all controls in order to indicate that an intervention is in progress. Block the truck and any equipmentto be lifted. Do not carry out any intervention on the truck when the operators are controlfing it, exceptthatthey are qualified operators and help to carry out the intervention. Du ring towing operations use only the prescribed attachment points and make sure th atthe pins andI or bolts are tightly secured. Lift and move all heavy components by means of a lifting device of proper carrying capacity.
- Use the proper eyeballs. Make sure that nobody stays near the load to be lifted. Do not twist chains or metal ropes. Do not use damaged or bent chains or ropes: do not use them during lifting ortowing operations. While handling them always wear safety gloves. Do not accumulate cloths soaked with grease or oil: they represent a risk of fire. Always put them in a closed metal container. The oil must be collected and not be let off in the drain pipes; the industrial oils must be disposed of by specialized companies underthe protection of the law in force in every Country.
TABLE OF CONTENTS:
Yale B860 MC 10-15 Service manual – PDF DOWNLOAD
Introduction
Installation and settings
Diagnostic and measures
Electric system
Hydraulic system
Frame mechanics
Mast mechanics
Reduction gear
Braking system
Ordinary maintenance
VIDEO PREVIEW OF THE MANUAL:

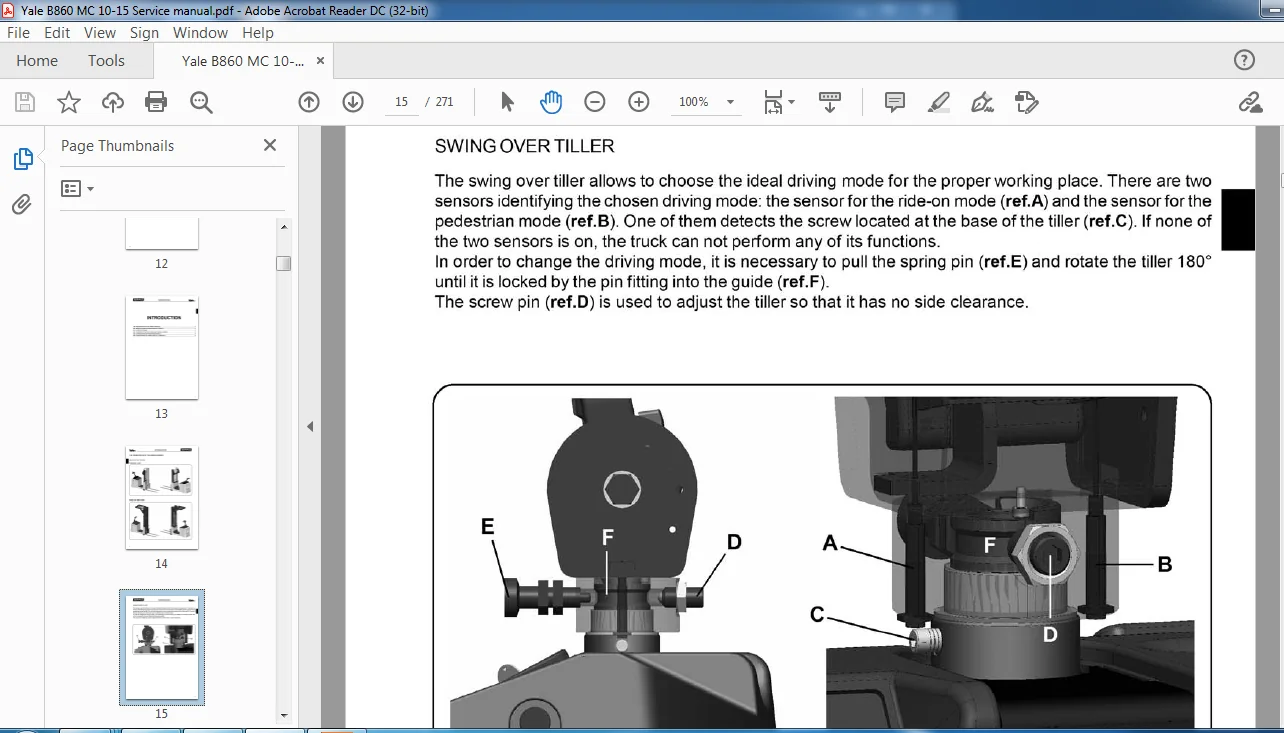

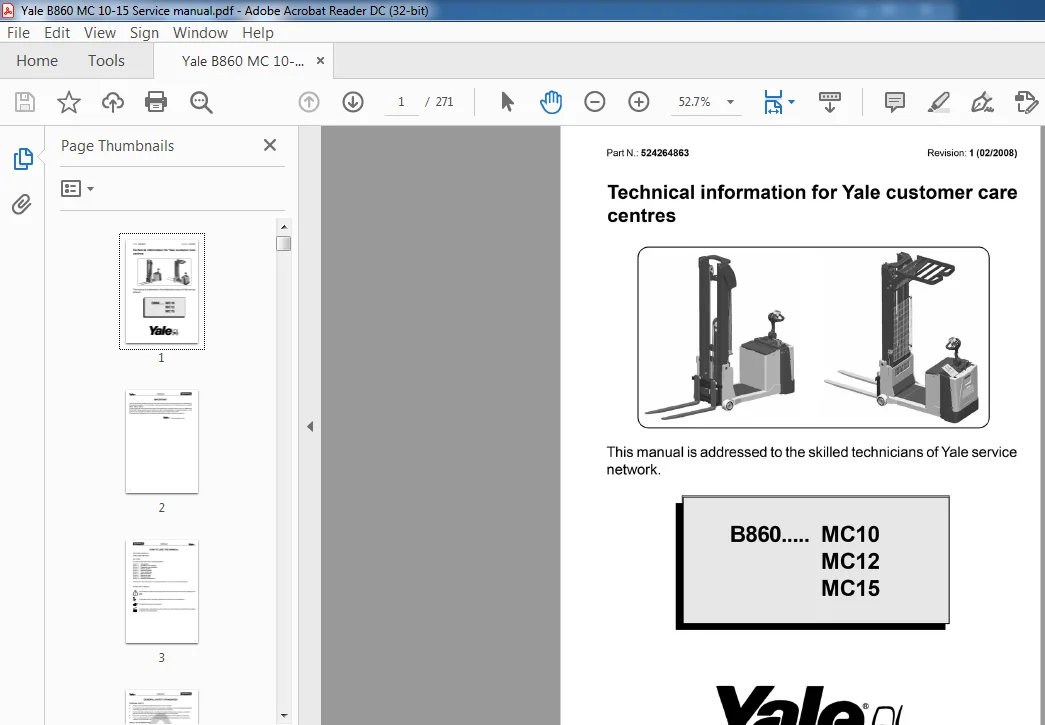

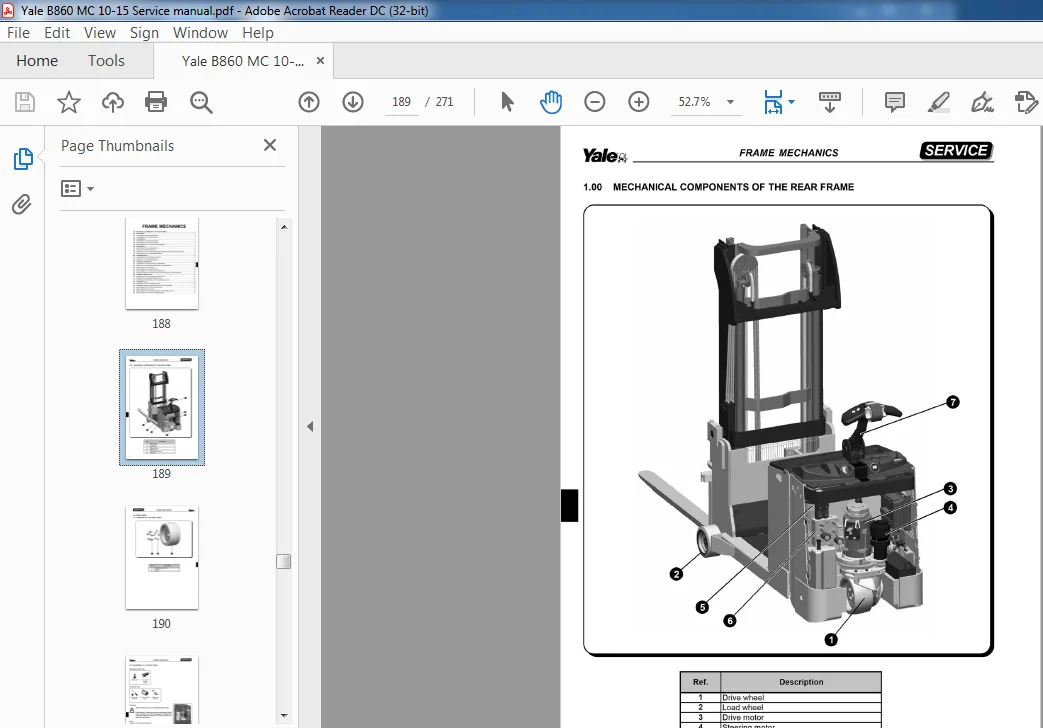

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
