Yale D807 ERP 16-20 ATF Diabolo Service Manual – PDF DOWNLOAD
FILE DETAILS:
Yale D807 ERP 16-20 ATF Diabolo Service Manual – PDF DOWNLOAD
Size: 12.1MB
Pages :299
Format: PDF
Language: English
Brand: Yale
Format: PDF
Language: English
Brand: Yale
DESCRIPTION:
Yale D807 ERP 16-20 ATF Diabolo Service Manual – PDF DOWNLOAD

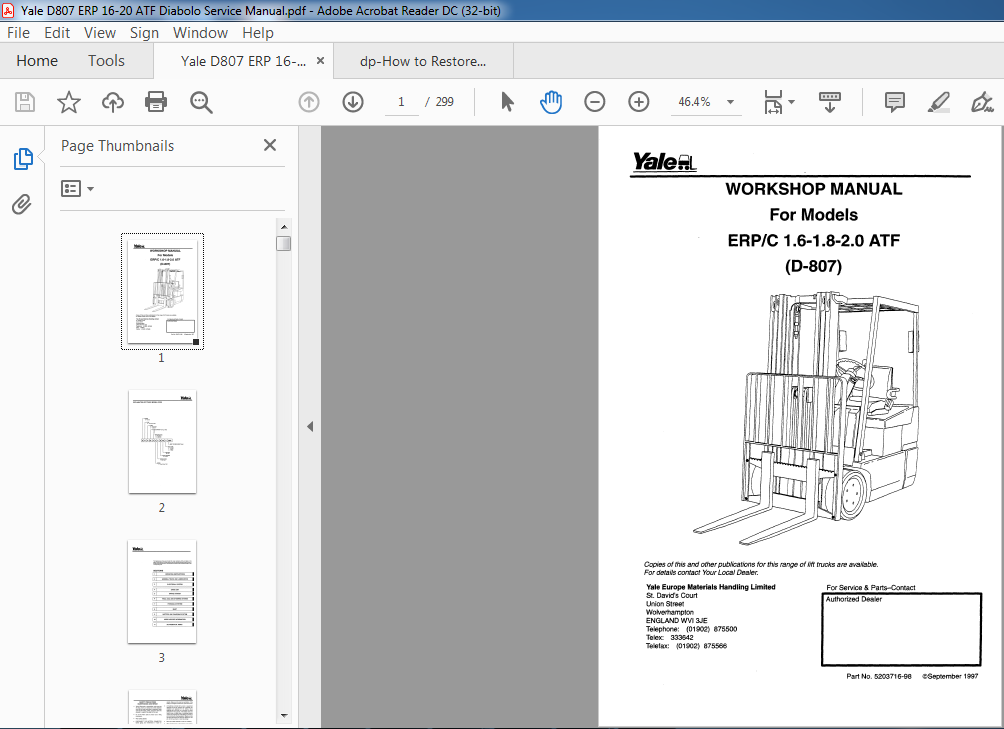

WORKSHOP MANUAL
For Models
ERP/C 1.6-1.8-2.0 ATF (D-807)
- When lifting parts or assemblies, make sure that all slings, chains, or cables are correctly fastened and that the load being lifted is balanced. Make sure that the crane, cables, and chains have the capacity to support the weight of the load. Do not lift heavy parts by hand. Use a lifting mechanism. Wear safety glasses. DISCONNECT THE BATTERY CONNECTOR before doing any maintenance or repair on electric lift trucks. Always use correct blocks to prevent the unit from rolling or falling. See “How to Put the Lift Truck on Blocks” in the OPERATING MANUAL or SECTION 2 – GENERAL TRUCK AND LUBRICATION.
- Keep the unit and working area clean and in order. Use the correct tools for the job. Keep the tools clean and in good condition. Always use YALE APPROVED parts when making repairs. Replacement parts must meet or exceed the specifications of the original equipment manufacturer. Make sure that all nuts, bolts, circlips, and other fastening devices are removed before using force to remove parts. Always fasten a DO NOT OPERATE sign to the controls of the unit when making repairs or if the unit needs repairs.
- Make sure you follow the WARNINGS, and CAUTIONS in the instructions. Wear a rubber apron, gloves, boots, and goggles or a face shield when doing maintenance on batteries. Batteries generate hydrogen gas when they are being charged. Keep open fire away from batteries. Do not check the electrolyte level with a match or lighter. Do not smoke and do not create sparks. Make sure the area has ventilation. If the battery is charged in the lift truck, open the bonnet. Lift batteries correctly with a crane or equipment designed for the job. Always use a spreader bar designed and adjusted for the battery.
- Move batteries with a lift truck, or a conveyor or rollers designed for that purpose. If the battery does not have a cover, a rubber mat or insulating material must be put over the top of the battery to prevent a short-circuit with other equipment. Make sure the the lifting equipment has enough capacity for the job. Do not use chain or wire rope slings. Never put metal materials or tools on a battery. When maintenance on the battery or the battery charger is required, disconnect both the AC and DC power.
- If new battery connectors must be installed, make sure the positive and negative terminals and cables are kept separate and insulated from each other. Even a momentary short-circuit can cause an explosion and damage the battery. Keep water readily available to flush spilled electrolyte. Electrolyte in the eyes must be flushed with water immediately and then quickly get medical attention. Special showers and eye wash systems are required in areas where battery maintenance is done.
- If electrolyte is spilled on a work surface or the floor, flush the area with water, use a solution of soda (sodium bicarbonate) to make the acid neutral. Only trained persons are permitted to do maintenance on batteries and battery chargers. Make sure that the regulations by government safety agencies, government insurers, private insurers, and private organizations are followed when doing maintenance on batteries.
TABLE OF CONTENTS:
Yale D807 ERP 16-20 ATF Diabolo Service Manual – PDF DOWNLOAD

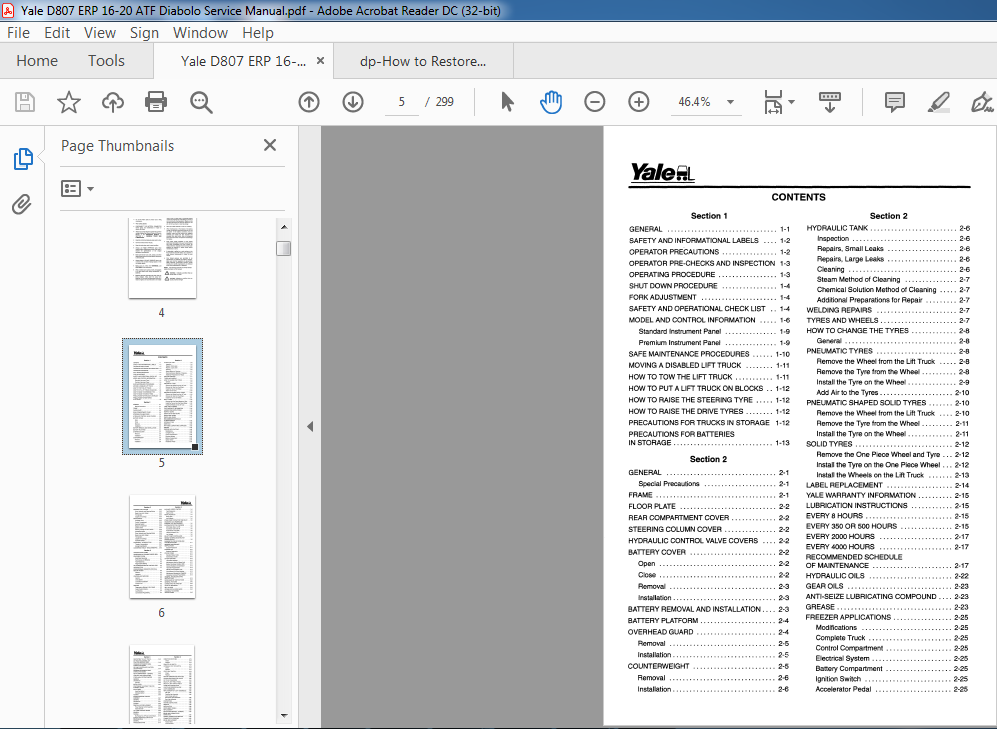

OPERATING INSTRUCTIONS
GENERAL TRUCK AND LUBRICATION
ELECTRICAL SYSTEM
DRIVE UNIT
BRAKE SYSTEM
TRAIL AXLE AND STEERING SYSTEM
HYDRAULIC SYSTEM
MAST
BATTERY AND CHARGING SYSTEM
USER SUPPORT INFORMATION
ALPHABETICAL INDEX
VIDEO PREVIEW OF THE MANUAL:

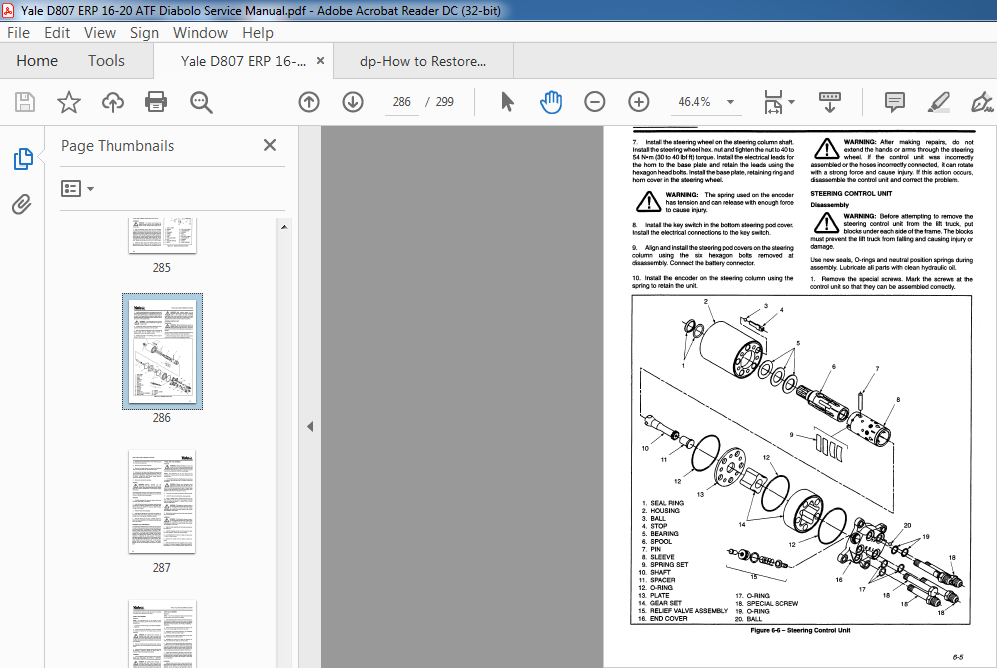

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
