O and K WHEEL LOADER MODEL 3500Z-TB117 PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
O and K WHEEL LOADER MODEL 3500Z-TB117 PARTS MANUAL – PDF DOWNLOAD
Format: PDF
Language: English
VIDEO PREVIEW OF THE MANUAL:
DESCRIPTION:
O and K WHEEL LOADER MODEL 3500Z-TB117 PARTS MANUAL – PDF DOWNLOAD
INTRODUCTION:
- This manual illustrates and identifies maintenance parts for the Model L3500 loader, to enable you to determine the part number and name assigned to the part you wish to order. Ordering by proper part number and name will help ensure the receipt of the proper part for the first time without time-consuming exchanges of correspondence or other annoying delays.
- An index is provided in the front of this manual to help you determine which illustration contains the part you want to order. Determine the basic system or assembly in which the part is used, and find this system or assembly in the Index. It will reference the pages which illustrate and list the part.
- This manual contains the latest information available at the time of printing. However, at the discretion of O & K Trojan Industries. its contents are subject’ to change .without notice. This reservation is in keeping with the Company’s policy of constant progressive improvement and refinement of all of our products. As a result of such policy, certain changes may be made from time to time which will not be covered in this manual.
- This manual has been indexed by group numbers, which identifies the « area of the machine that requires servicing. The first two digits in the group numbers indicates the area of the machine.
Example: Group 32 05 01
32 – Indicates – Hydraulic System
05 – Indicates — Hydraulic Tank Assembly
01 – Indicates – Hydraulic Filter
These group numbers are for easy reference only.
The group numbers are provided for easy access to the area in which the part is used. Find the basic group number, turn to the illustration and find the part (item number) you want to order.
TABLE OF CONTENTS:
O and K WHEEL LOADER MODEL 3500Z-TB117 PARTS MANUAL – PDF DOWNLOAD
Frame Group
0000 – Frame Assembly – Front
0100 – Frame Assembly – Rear
2100 – Pivot, Main
Axle Group
3100 – Axle Assembly – Front
3101 – Differential Assembly
3102 – Differential Sub-Assy.
3103 – Housing a Shaft Assembly
3104 – Hub Assembly
3105 – Brake Assembly
3106 – No-Spin Assembly (Option)
No—Spin Assembly (N.Y.C.)
3200 – Axle Assembly – Rear
3201 – Differential Assembly
3202 – Differential Sub-Assy.
3203 – Housing a Shaft
3204 – Hub Assembly
3205 – Brake Assembly
3206 – No-Spin Assembly (Option) ,
No-Spin (N.Y.C.)
Group
1100 – Front
1200 – Rear with Cradle Assy.
Engine Controls & Filter Group
Transmission/Torque Converter Group
0000 – Transmission Assembly a Mounting
0100 – Hydraulic System
1001 – Engine Flange Assembly & Torque Converter
1003 – Damper Assembly
1004 – Housing a Related Parts
1005 – Lubrication, Transmission
1006 – Oil Fill Inlet, Transmission
1007 – Pressure Valve
1008 – Control Valve Mounting
1009 – Control Valve Assembly
1010 – Counter Shaft
1011 – Clutch Assembly – Forward & lst
1012 – Clutch Assembly – Reverse & 2nd
1013 – Clutch Assembly – 3rd & 4th
1015 – Final Drive
1016 – Parking Brake (Also See Group 140001)
1017 – Filter, Transmission
1018 – Emergency Pump Cover
1019 – Speedometer Drive
1020 – Power Take-Off – 1st
1021 – Power Take-Off – 2nd
Steering Group
0000 – Hydraulic System
0001 – Cylinder Assembly – Steer
0002 – Pump Assembly – Steer
0003 – Gear, Steering Hydraulic
0800 – Steer Valve Installation
0801 – Steer Valve Assembly
0900 – Emergency Steer Installation (Optional)
0901 – Valve, Emergency Steer (Optional)
0902 – Pump, Emergency Steer (Optional)
Drive Train Group
0000 – Propeller Shafts G Installation
Transmission Controls Group
0000 – Parking Brake
0100 – Brake Assembly – Disc
Gear Selector – See Group 170003
Bucket Leveler G Hoist Cutout Group
6200 – Auto. Bucket Leveler G Hoist Cut-out (Thru S/N 3155300)
6200 – Auto. Bucket Leveler (For S/N 3154410, 3154510,
3155301 G Higher)
6210 – Wiring Diagram (Thru S/N 3155300)
6220 – Bucket Leveler Hydraulics (For S/N 3154410, 3154510,
3155301 G Higher)
Brake System Group
2000 – Brake Controls G Lines
2001 – Brake Valve G Installation – 1 Pedal
2002 — Brake Valve G Installation — 2 Pedal
2100 – Alcohol Injector
Electrical System Group
0000 – Battery G Wiring (24V)
Battery G Wiring (12V)
0001 – Lights G Electrical Components
0002 – Battery/Installation
0003 – Instrunents G Switches
2700 – Ventilator, Roof
Sheetmetal
0200 – Hood Assembly – Engine
1300 – Accoustics, Engine Hood
1500 – Side Covers, Lower
0000 – Fenders G Mudflaps GroLp
Fuel Tank Group
2000 – Fuel Tank G Mountino
2000 – Fuel Tank a Mounting
Wheels & Tires Gram
Cab Group
0400 – Support, Cab
1600 – Cab Assembly
1601 – Accoustical Installation – Cab
2200 – Seat Assembly (0bs.)
2201 – Seat Mounting & Belt
2202 – Seat Assembly
Tools & Accessories Group
Covers Group
0000 – Console Assembly – Servo (Thru S/N 3155300)
Console Assembly – Servo ( S/N 3155301 & Higher)
0100 – Tank Covers
1500 – Headlight Mounts
Heater Group
0000 – Heater/Installation (Engine Oil)
1500 – Defroster System
Hydraulic System Group
0500 – Hydraulic Tank Assembly
0501 — Filter Assembly
3900 – Hydraulic System – Bucket (Thru S/N 3155300)
4000 – Hydraulic System – Main
4001 – Servo Hydraulic System
4002 – Control Valve Assembly (Thru S/N 3155300)
Control Valve Assembly (S/N 3155301 & Higher)
Also see Groups 324003 Thru 324010)
4011 – Unloading Valve Assembly
4012 – Pump Assembly ,
4013 ~ Servo Valve Assembly
4016 – Emergency Lowering System
Note: For Hoist & Bucket Cylinder – See Group 650000
0000 Counterweight Group
Lift Arm Group
0000 – Lift Arm Linkage
0001 – Cylinder Assembly – Bucket
0002 – Cylinder Assembly – Hoist
9000 – Bucket Assembly
9100 Attachments
Miscellaneous Group
1105 – Safety Walk Installation
1200 – Lubrication System

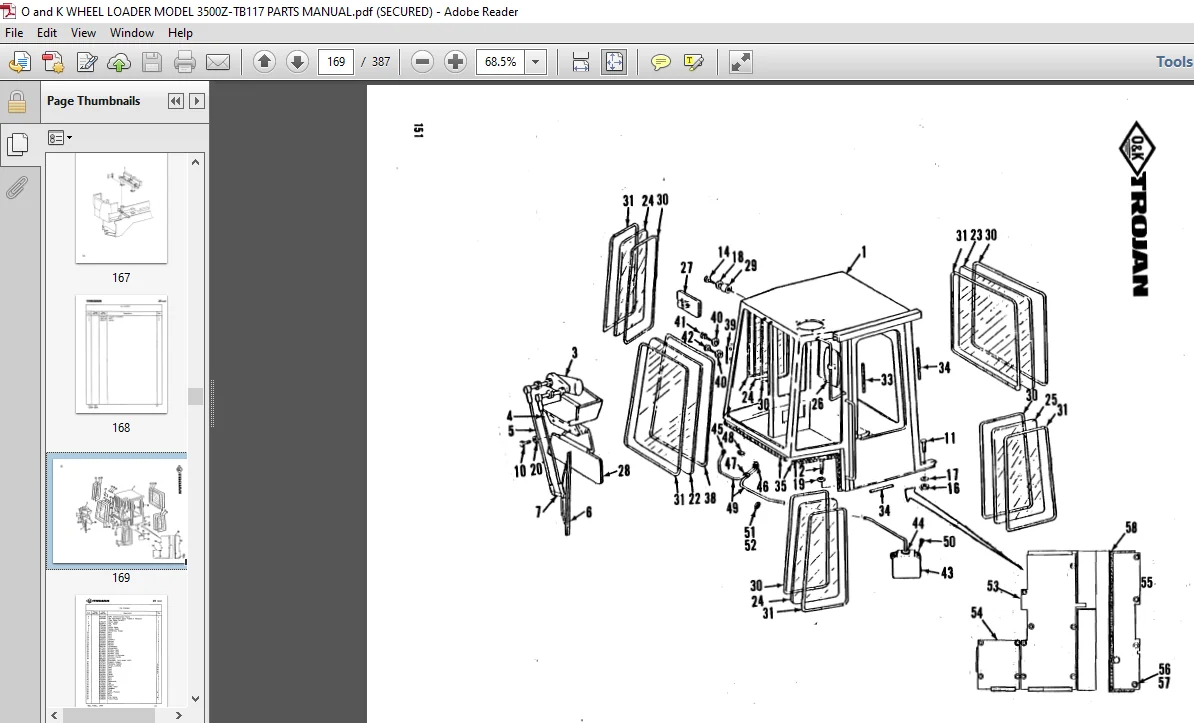

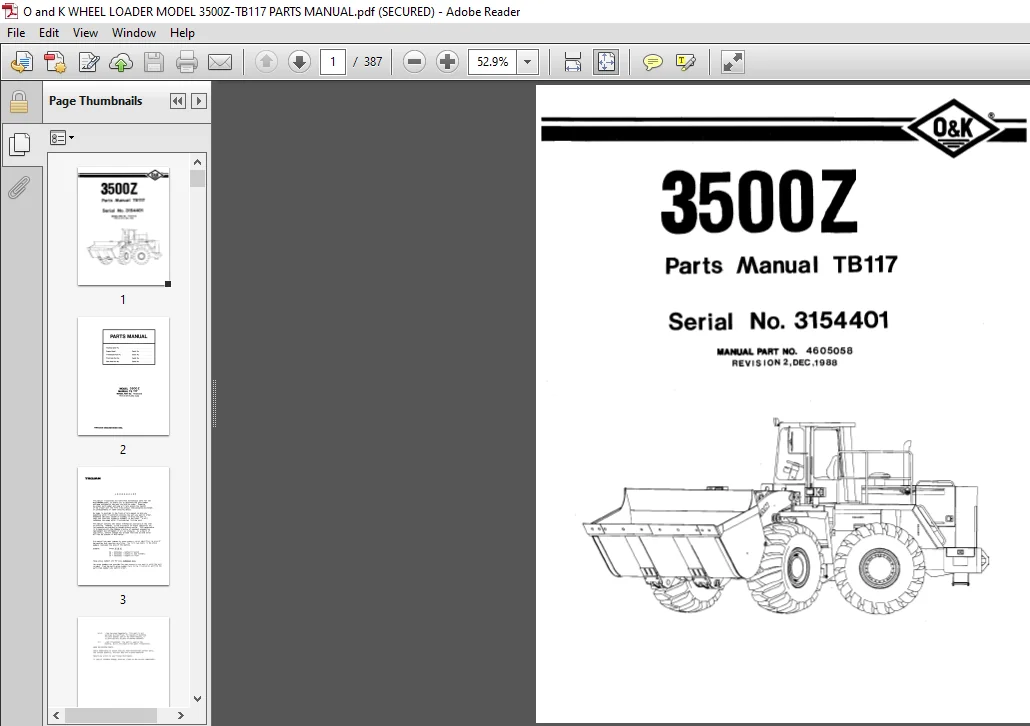

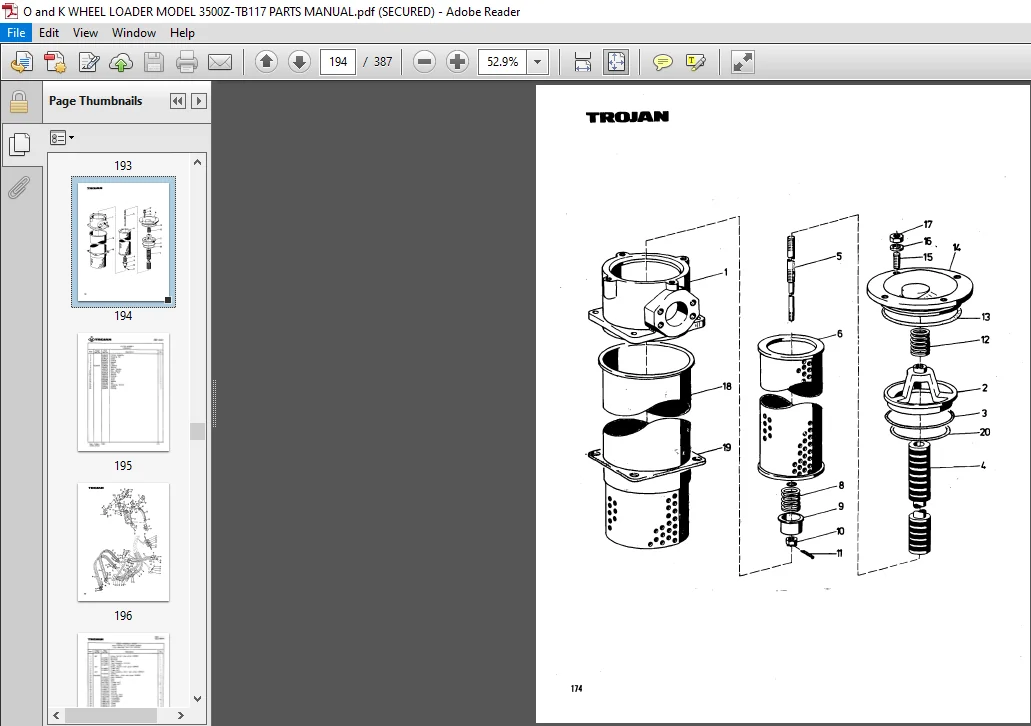

IMAGES PREVIEW OF THE MANUAL:
