Kubota Utility Vehicle RTV-X1140 Operator’s Manual – PDF DOWNLOAD
FOREWORD:
You are now the proud owner of a KUBOTA Tractor. This tractor is a product of KUBOTA quality engineering and manufacturing. It is made of fine materials and under a rigid quality control system. It will give you long, satisfactory service.
- To obtain the best use of your tractor, please read this manual carefully. If your tractor is provided with CAB, also read the CAB operator’s manual, which is a separate manual. It will help you become familiar with the operation of the tractor and contains many helpful hints about tractor maintenance.
- It is KUBOTA’s policy to utilize as quickly as possible every advance in our research. The immediate use of new techniques in the manufacture of products may cause some small parts of this manual to be outdated. KUBOTA distributors and dealers will have the most up-to-date information. Please do not hesitate to consult with them.
SAFE OPERATION:
Careful operation is your best insurance against an accident.
Read and understand this Operator’s Manual carefully before operating the vehicle.
All operators, no matter how much experience they may have, should read this and other related
manuals before operating the vehicle or any implement attached to it. It is the owner’s
obligation to instruct all operators in safe operation.
1. BEFORE OPERATING THE VEHICLE
1. Know your equipment and its limitations. Read this entire manual before attempting to
start and operate the vehicle.
2. Pay special attention to the Danger, Warning and Caution labels on the vehicle.
3. Do not remove Roll-Over Protective Structures (ROPS) for any application and fasten
seat belts at all times. This combination will reduce the risk of serious injury or death, should
the vehicle be upset.
If the ROPS is loosened or removed for any reason, make sure that all parts are reinstalled
correctly before operating the vehicle.
Never modify or repair a ROPS because welding, bending, drilling, grinding, or cutting may
weaken the structure.
If any structural member of the ROPS is damaged, replace the entire structure at your
local KUBOTA Dealer.
4. Always use the seat belts. Check the seat belts regularly and replace if frayed or
damaged.
5. Do not operate the vehicle or any implement attached to it while under the influence of
alcohol, medication, controlled substances or while fatigued.

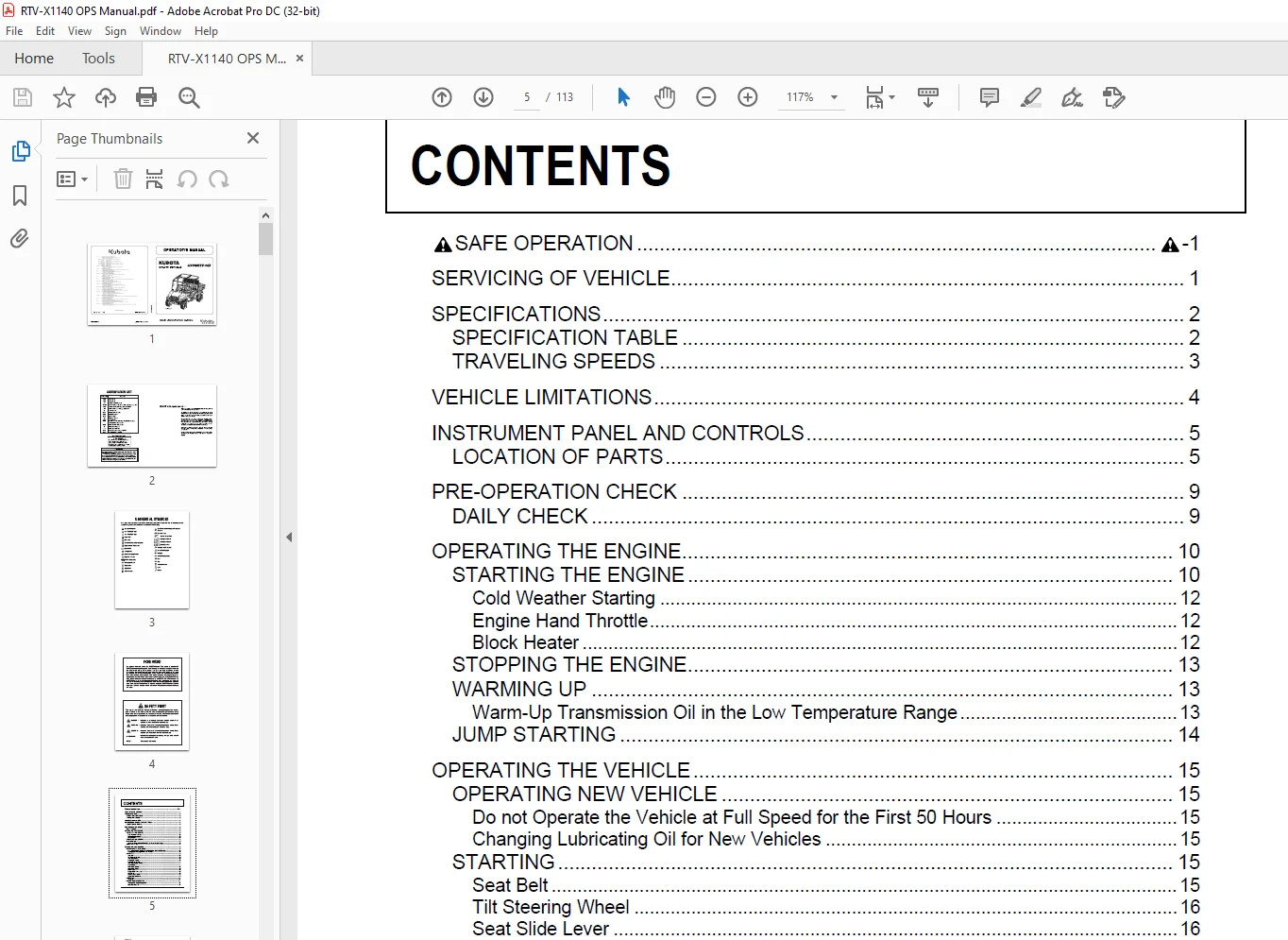

TABLE OF CONTENTS:
Kubota Utility Vehicle RTV-X1140 Operator’s Manual – PDF DOWNLOAD
SAFE OPERATION -1
SERVICING OF VEHICLE 1
SPECIFICATIONS 2
SPECIFICATION TABLE 2
TRAVELING SPEEDS 3
VEHICLE LIMITATIONS 4
INSTRUMENT PANEL AND CONTROLS 5

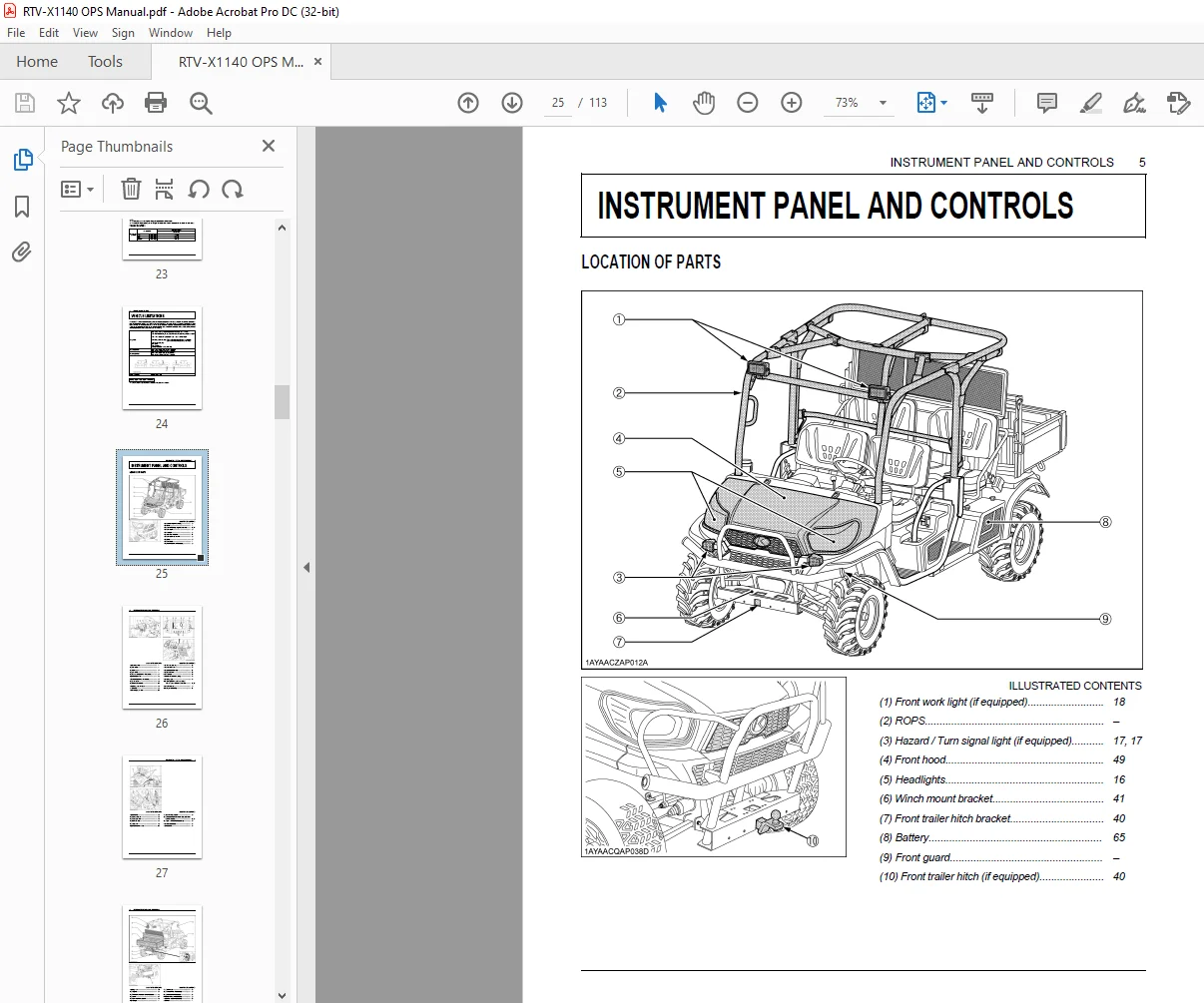

LOCATION OF PARTS 5
PRE-OPERATION CHECK 9
DAILY CHECK 9
OPERATING THE ENGINE 10
STARTING THE ENGINE 10
Cold Weather Starting 12
Engine Hand Throttle 12
Block Heater 12
STOPPING THE ENGINE 13
WARMING UP 13
Warm-Up Transmission Oil in the Low Temperature Range 13
JUMP STARTING 14
OPERATING THE VEHICLE 15
OPERATING NEW VEHICLE 15
Do not Operate the Vehicle at Full Speed for the First 50 Hours 15
Changing Lubricating Oil for New Vehicles 15
STARTING 15
Seat Belt 15
Tilt Steering Wheel 16
Seat Slide Lever 16
Head Light Switch 16
Hazard Light Switch 17
Turn Signal Light Switch 17
Horn Button 17
Work Light (Front) 18
Work Light (Rear) 18
Brake Pedal 18
Range Gear Shift Lever 19
4WD Lever 19
Parking Brake Lever 20
Speed Control Pedal 20
STOPPING 21
Stopping 21
CHECK DURING DRIVING 21
Immediately Stop the Engine if: 21
Easy Checker(TM) 21
CONTENTS
Fuel Gauge 22
Coolant Temperature Gauge 22
Hourmeter and Odometer 23
Speedometer 23
PARKING 24
Parking Brake Lever 24
ACCESSORY 24
12V Electric Outlet 24
Utility Box 24
Glove Box (Std ) and Glove Box Cover 25
OPERATING TECHNIQUES 25
Differential Lock 25
Directions for Use of Power Steering 26
Unfamiliar Terrain 26
Driving in Reverse 26
Driving in “4WD” 27
Turning the Vehicle 27
Hills 28
Traversing Hillsides 28
Sliding and Skidding 28
Driving through Water 29
OPERATING HAND THROTTLE 29
STATIONARY HYDRAULIC OUTLET 29
SEATING AND CARGO BED 30
CARGO BED 30
General Caution 30
Max Cargo Load 30
CHANGING SEATING AND CARGO BED 32
Cargo Bed Tailgate 34
Raising and Lowering the Cargo Bed 34
HYDRAULIC OUTLET 36
HYDRAULIC OUTLET 36
Hydraulic Outlet Lever 36
Hydraulic Outlet Valve Coupler Connecting and Disconnecting 37
TIRES AND WHEELS 38
TIRES 38
Inflation Pressure 38
Tire Type and Use 38
WHEELS 39
SHOCK ABSORBERS 39
Shock Absorber Spring Adjustment 39
TOWING AND TRANSPORTING 40
TOWING AND TRANSPORTING 40
Rear Trailer Hitch 40
Front Trailer Hitch 40
Winch Mount Bracket 41
Transport the Vehicle Safely 41
MAINTENANCE 42
CONTENTS
SERVICE INTERVALS 42
LUBRICANTS, FUEL AND COOLANT 45
PERIODIC SERVICE 49
HOW TO OPEN THE HOOD AND TILT THE SEAT 49
Hood 49
Seat 49
HOW TO RAISE THE CARGO BED 50
Raising and Lowering the Cargo Bed 50
JACK-UP POINT 50
Front End 50
Rear End 51
DAILY CHECK 51
Walk Around Inspection 51
Checking around Engine 51
Checking and Refueling 52
Checking Engine Oil Level 52
Checking Transmission Fluid Level 53
Checking Hydraulic Oil Tank Level 53
Checking Coolant Level 54
Cleaning Radiator Screen 54
Cleaning Oil Cooler Net 55
Checking Brake Fluid Level 55
Checking Brake Pedal 56
Checking Parking Brake 56
Checking Easy Checker(TM) 56
Checking Head Light, Turn Signal Light (if equipped) etc 56
Checking Seat Belt and ROPS 56
Checking Joint Boot 57
Checking Tire Inflation Pressure 58
Checking Backup Beeper 58
EVERY 50 HOURS 59
Greasing 59
Checking Engine Start System 60
EVERY 100 HOURS 61
Checking VHT Neutral Spring 61
Checking VHT Pressure Release 61
Checking Wheel Fastener Torque 62
Cleaning Air Cleaner Primary Element 62
Adjusting Alternator Belt Tension 63
Checking Fuel Filter 64
Checking Battery Condition 65
Adjusting Toe-in 66
Cleaning Muffler 67
EVERY 200 HOURS 68
Adjusting Parking Brake 68
Greasing 69
Replacing Engine Oil Filter 69
Changing Engine Oil 70
Replacing Transmission Oil Filter [VHT] 71
Replacing Transmission Oil Filter [SUCTION] 71
Changing Hydraulic Tank Oil 72
CONTENTS
Checking Brake Pedal 73
Checking Front Brake Case 73
Checking Brake Light Switch 74
EVERY 300 HOURS 74
Checking Tire 74
EVERY 400 HOURS 75
Changing Front Knuckle Case Oil 75
Changing Transmission Fluid 75
Changing Front Axle Case Oil 76
Replacing Fuel Filter 76
EVERY 800 HOURS 77
Adjusting Engine Valve Clearance 77
EVERY 1000 HOURS or EVERY 1 YEAR 77
Replacing Air Cleaner Primary Element and Secondary Element 77
EVERY 1500 HOURS 77
Checking Fuel Injection Nozzle Injection Pressure 77
EVERY 2000 HOURS or EVERY 2 YEARS 77
Flushing Cooling System and Changing Coolant 77
Anti-Freeze 78
EVERY 3000 HOURS 79
Checking Injection Pump 79
EVERY 1 YEAR 79
Checking Fuel Lines 79
Checking Hydraulic Oil Line 79
Checking Radiator Hose, Pipe and Clamp 80
Checking Intake Air Line 81
Checking Engine Breather Hose 82
Checking Brake Hose and Pipe 82
EVERY 2 YEARS 83
Changing Brake Fluid 83
EVERY 4 YEARS 83
Replacing Hydraulic Oil Line 83
Replacing Radiator Hose 83
Replacing Fuel Hose 83
Replacing Engine Breather Hose 83
Replacing Brake Master Cylinder (Inner Parts) 83
Replacing Front Brake Seal 83
Replacing Rear Brake Cylinder Seal 83
Replacing Intake Air Line 83
Replacing Brake Hose and Pipe 83
SERVICE AS REQUIRED 84
Bleeding Fuel System 84
Cleaning around Engine 84
Replacing Fuse 84
Replacing Slow-Blow Fuses 86
Replacing Light Bulb 86
Checking Hydraulic Tank Suction Strainer 86
STORAGE 87
VEHICLE STORAGE 87
REMOVING THE VEHICLE FROM STORAGE 87
CONTENTS
TROUBLESHOOTING 88
ENGINE TROUBLESHOOTING 88
