Kubota La703 Front End Loader Service Repair Manual
FILE DETAILS:
FILE TYPE:PDF
MANUAL LANGUAGE:ENGLISH
PAGES:46
DOWNLOADABLE:YES
DESCRIPTION:
SAFETY WORKING
- Do not work on the machine while under the influence of alcohol. medication, or other substances or whfle fatigued. Wear close fitting clothing and safety equipment appropriate to the job. Use tools appmpriate to the work.
- Makeshift tools. parts. and procedures are not recommended. When servicing is performed together by two or more persons. take care to perform all work safely.
- Do not touch the rotating or hot parts while the engine is running. Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise. hot water will spout out from radiator.
- Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely.
- Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure.
- Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises.

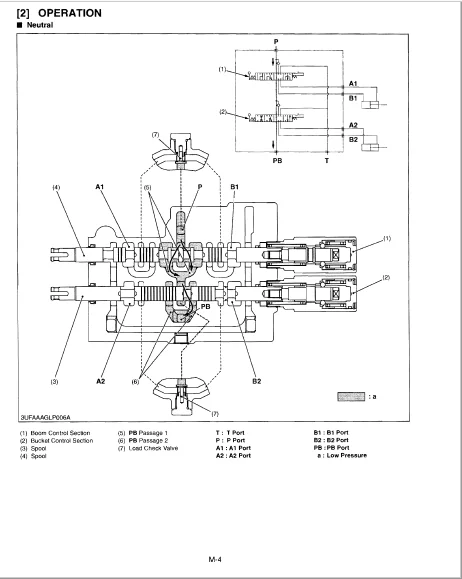

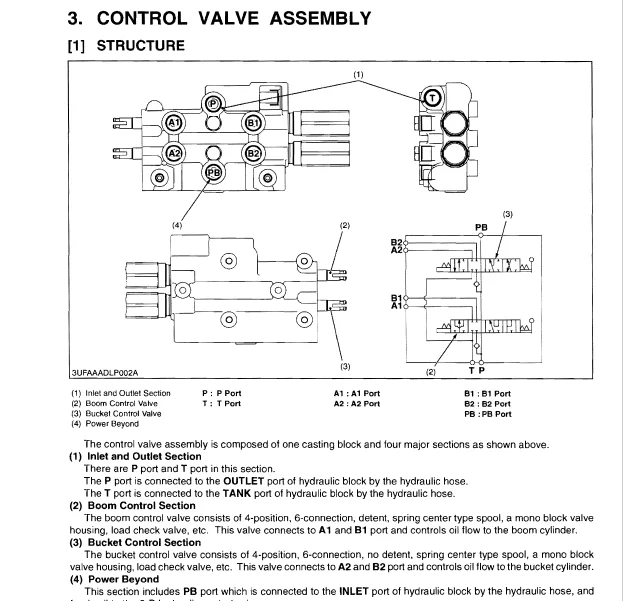

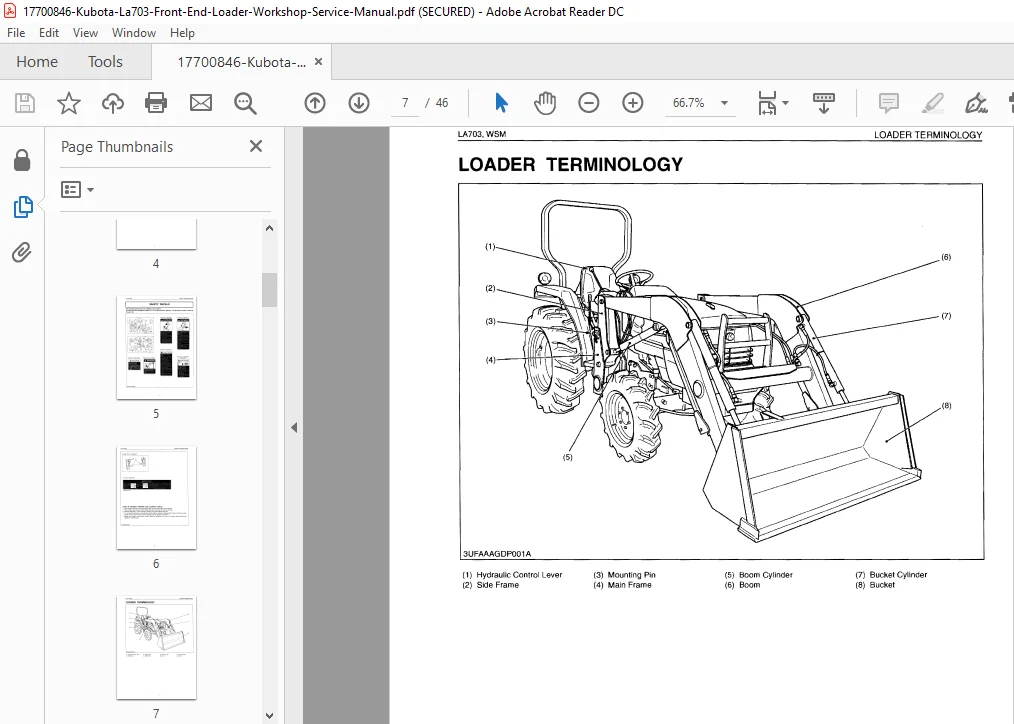

SCREENSHOT OF THE MANUAL:
TABLE OF CONTENTS:
- Kubota La703 Front End Loader Service Repair Manual
[1] IDENTIFICATION
[2] GENERAL PRECAUTION
[3] LUBRICANTS
[4] MAINTENANCE CHECK LIST
[5] CHECK AND MAINTENANCE
(1) Check Points of Each Use or Daily
(2) Check Points of Every 10 Hours
2 TROUBLESHOOTING
3 SERVICING SPECIFICATIONS
4 TIGHTENING TORQUES
[1] GENERAL USE SCREWS, BOLTS AND NUTS
[2] HYDRAULlC FITTINGS
[3] TIGHTENING TORQUE
5 DISMOUNTING FRONT LOADER FROM TRACTOR
6 CHECKING, DISASSEMBLING AND SERVICING
[1] CONTROL VALVE
(1) Checking and Adjusting
(2} Disassembling and Assembling
[2] BUCKET, BOOM AND HYDRAULIC CYLINDERS
(l) Disassembling and Assembling
(2) Servicing
[8] SIDE FRAME, MAIN FRAME AND OTHERS
(i) Disassembling and Assembling
VIDEO PREVIEW:
PLEASE NOTE:
⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
