Kubota L2250 L2550 L2850 L3250 Tractor Operator Manual
FILE DETAILS:
Kubota L2250 L2550 L2850 L3250 Tractor Operator Manual
LANGUAGE:ENGLISH
PAGES:68
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
SAMPLE PAGE FROM THE MANUAL:
Kubota L2250 L2550 L2850 L3250 Tractor Operator Manual
(1) Bring helper vehicle with a battery of the same vol— tage as disabled tractor within easy cable reach. “THE VEHICLES MUST NOT TOUCH.
(2) Engage the parking brakes of both vehicles and put all Shift levers in neutral. Turn both key switches off.
(3) Put on safety goggles and rubber gloves.
(4) Remove the vent caps from both batteries.
(5) Cover vent holes with clamp rags. Do not allow the rags to touch the battery terminals.
(6) Attach the red clamp to the positive (red, 69 or pos.) terminal of the dead battery and clamp the other end of the same cable to the positive (red, EB or pos.) ter- minal of the helper battery.
(7) Clamp the other cable to the negative (black, @ or neg.) terminal of the helper battery.
(8) Clamp the other end to the engine block or frame of the disabled tractor as far from the dead battery as possible.
(9) Start the helper vehicle and let its engine run for a few moments. Start the disabled tractor.
(10) Disconnect the jumper cables in the exact reverse order of attachment. (Steps 8, 7 and 6).
(11) Remove and discard the damp rags. Reinstall the vent caps. ‘
TABLE OF CONTENTS:
Kubota L2250 L2550 L2850 L3250 Tractor Operator Manual
1. Servican of Iractor
2_ Specifications
2.1 Specification Tab|e
2.2 Travelling Speeds
3. Specifications of lmplement Limitations
4. Operating New tractor
4.1 Loading and Unloading
5. Instrument Panel and Controls
5.1 Switches

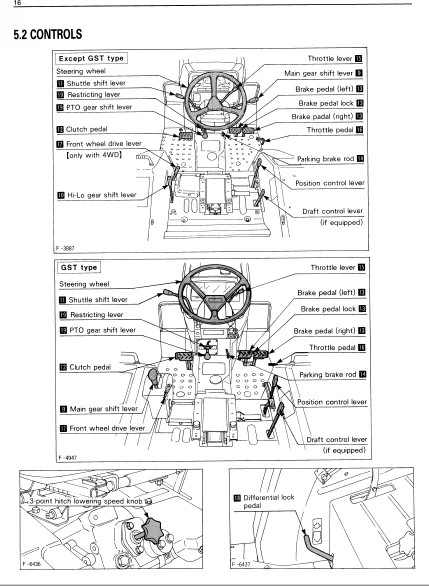

5.2 Contols
5.3 PTO Operation
6. Three-point Hitch & Drawbar
7_ Hydraulic Unit
8. Wheels, Tires and Ballast
8.1 Wheel Adjustment
82 Wheel Hub
84 Ballast
9. Operating Instructions
9.1 Operating the Engine
9.2 Operating the Tractor
9_3 Pulling
9.4 Check During Driving
10 Maintenance
10.2 Lubricants
10.3 Maintenance Check List
11 Check and Maintenance
11.1 FueL
11.2 Engine
11.3 Transmission F|Uid
11.4 Front Axle Case Oil [4WD]
115 Steel-ing Gear BOX Oil
11.6 Steering Gear Case Oil
11.8 Air Cleaner
11.9 Battery
11.10 FUSG and Light
11.11 Rubber Lines and Hoses
11:12 Greasing Point
12. Adjustments
12.1 Clutch Pedal Check and Adjustment
12.2 Brake Pedal Check and Adjustment
12.3 Toe—in Check and Adjustment
12.4 Fan Belt Adjustment
12.5 Front Axle Back-and-Forth Play Adjustment
13.1 Tractor Storage
13.2 Removing the Tractor from Storage
14. Engine Troubleshooting
15. LUbrication Specifications
16. Options

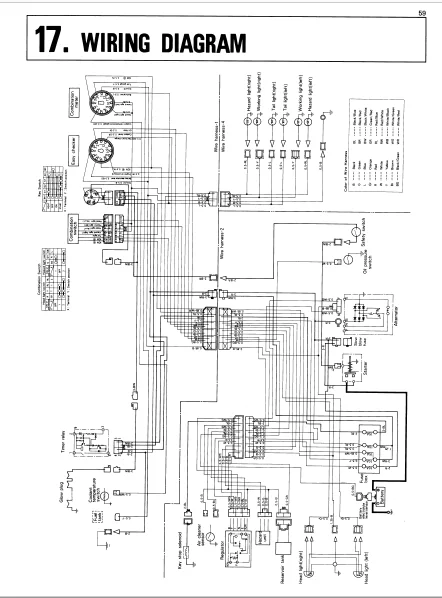

17. Wiring Diagram
Index
PLEASE NOTE:
⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
