Iveco Stralis AT AD Gearbox EuroTronic 12 AS 2301 DD OD Manual – PDF DOWNLOAD
FILE DETAILS:
Iveco Stralis AT AD Gearbox EuroTronic 12 AS 2301 DD OD Manual – PDF DOWNLOAD
Format: PDF
Language: English
Brand: Iveco
VIDEO PREVIEW OF THE MANUAL:

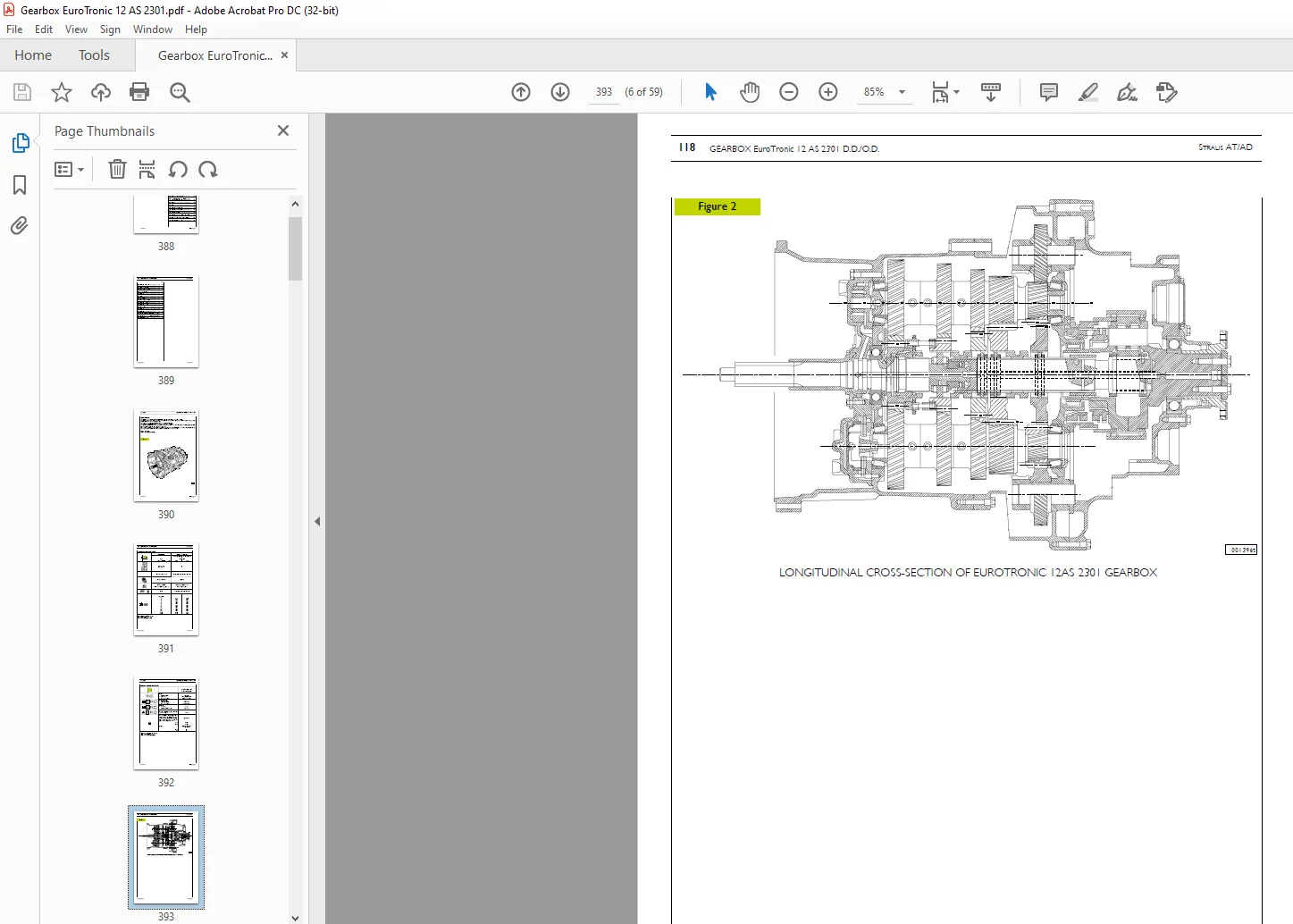

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Iveco Stralis AT AD Gearbox EuroTronic 12 AS 2301 DD OD Manual – PDF DOWNLOAD

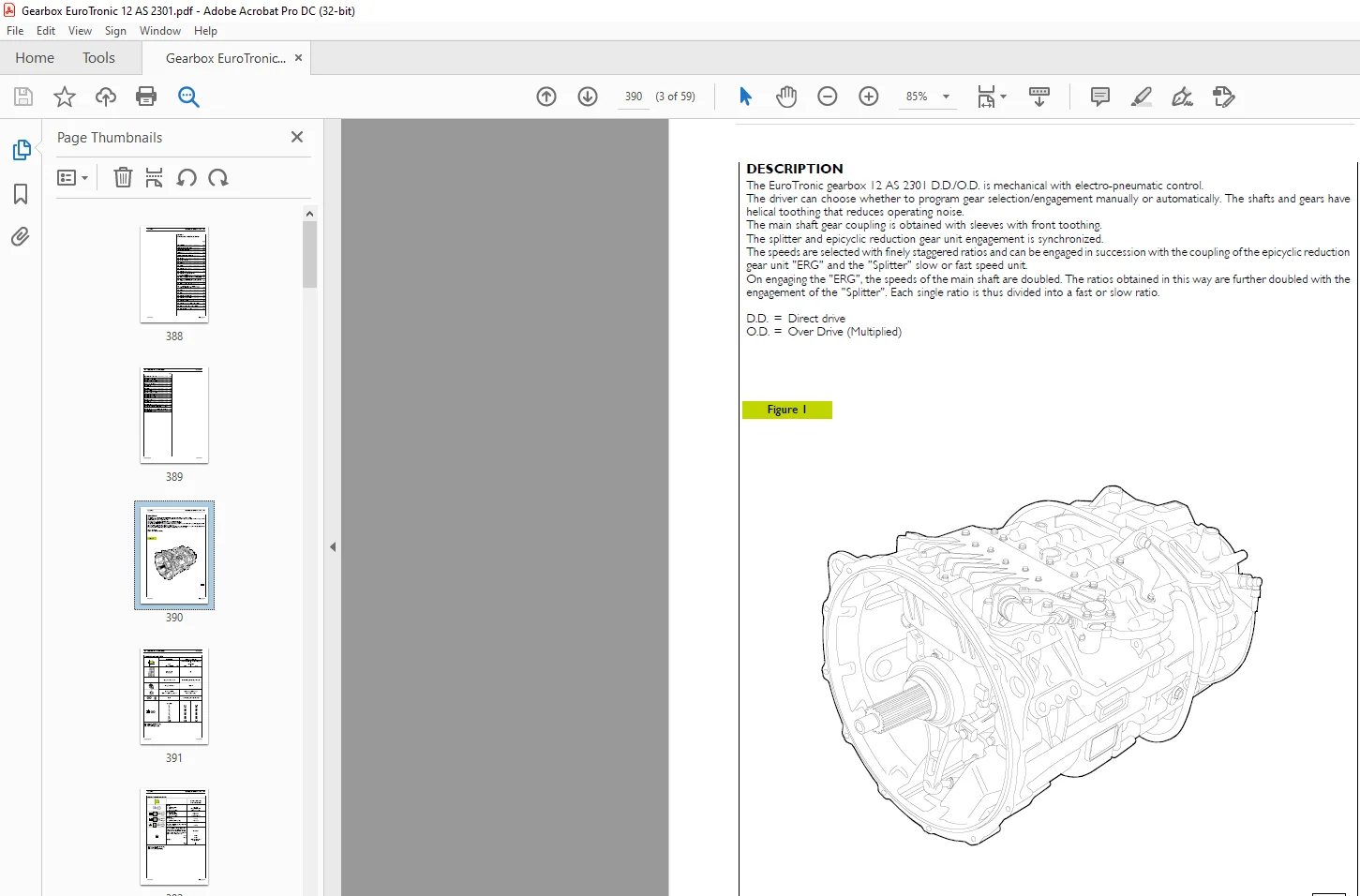

The EuroTronic gearbox 12 AS 2301 D.D./O.D. is mechanical with electro-pneumatic control. The driver can choose whether to program gear selection/engagement manually or automatically. The shafts and gears have helical toothing that reduces operating noise. The main shaft gear coupling is obtained with sleeves with front toothing. The splitter and epicyclic reduction gear unit engagement is synchronized. The speeds are selected with finely staggered ratios and can be engaged in successionwith the coupling of the epicyclic reduction gear unit ”ERG” and the ”Splitter” slow or fast speed unit. On engaging the ”ERG”, the speeds of the main shaft are doubled. The ratios obtained in this way are further doubled with the engagement of the ”Splitter”. Each single ratio is thus divided into a fast or slow ratio.
- D.D. = Direct drive
- O.D. = Over Drive (Multiplied)

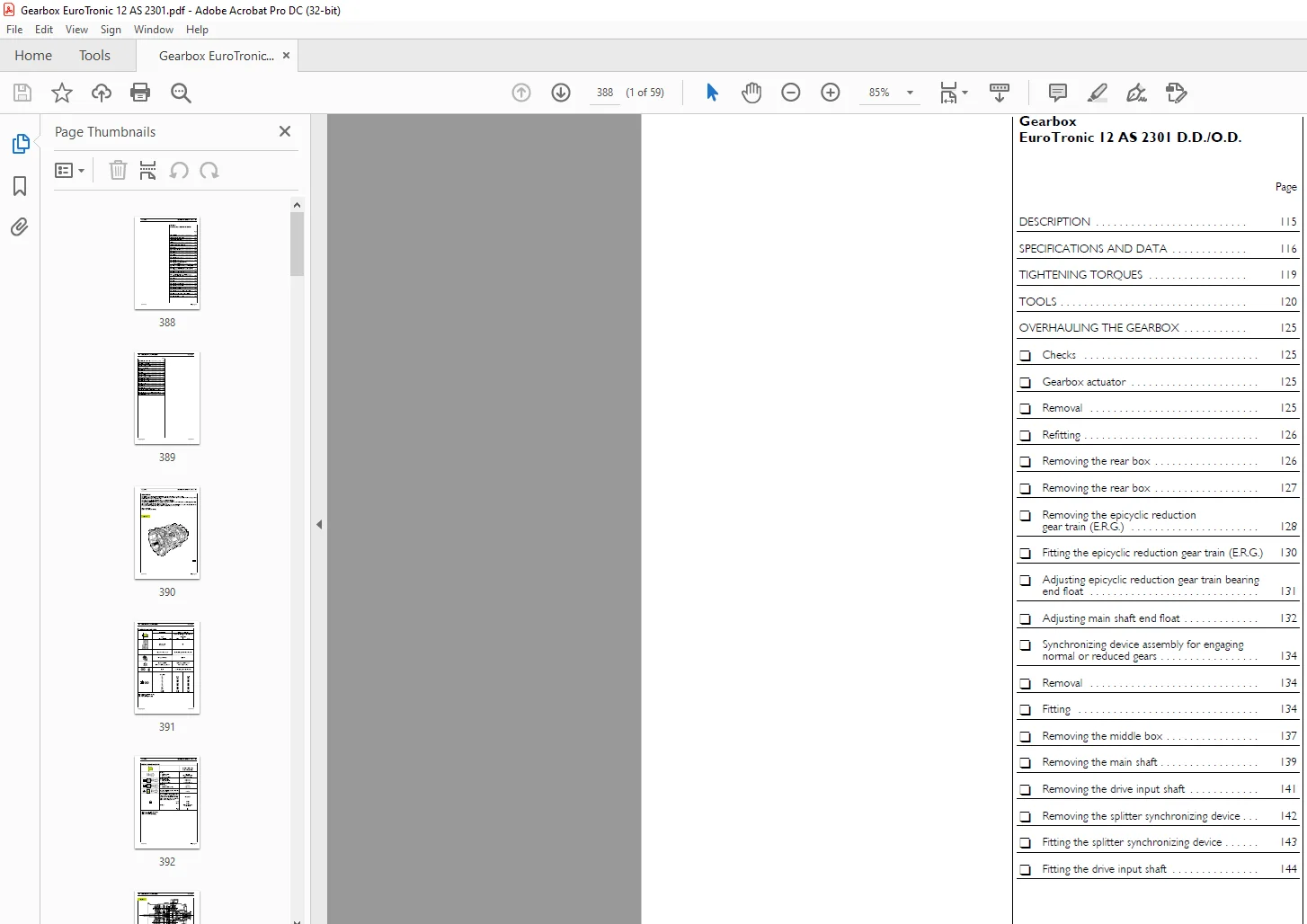

TABLE OF CONTENTS:
Iveco Stralis AT AD Gearbox EuroTronic 12 AS 2301 DD OD Manual – PDF DOWNLOAD
DESCRIPTION 115
SPECIFICATIONS AND DATA 116
TIGHTENING TORQUES 119
TOOLS 120
OVERHAULING THE GEARBOX 125
– Checks 125
– Gearbox actuator 125
– Removal 125
– Refitting 126
– Removing the rear box 126
– Removing the rear box 127
– Removing the epicyclic reduction
gear train (E R G ) 128
– Fitting the epicyclic reduction gear train (E R G ) 130
– Adjusting epicyclic reduction gear train bearing
end float 131
– Adjusting main shaft end float 132
– Synchronizing device assembly for engaging
normal or reduced gears 134
– Removal 134
– Fitting 134
– Removing the middle box 137
– Removing the main shaft 139
– Removing the drive input shaft 141
– Removing the splitter synchronizing device 142
– Fitting the splitter synchronizing device 143
– Fitting the drive input shaft 144
114 GEARBOX EuroTronic 12 AS 2301 D D /O D STRALIS AT/AD
Base – January 2003 Print 603 93 141
Page
– Fitting the main shaft 144
– Splitter control fork 147
– Disassembly – Assembly 147
– Gear control forks 147
– Removal 147
– Fitting 148
– Transmission shafts 149
– Disassembly – Assembly 149
– Fitting the middle box 149
– Fitting the front box 152
– Front cover 154
– Removal 154
– Fitting the front cover 154
– Adjusting drive input shaft bearing end float 154
– Adjusting transmission shaft bearing end float 155
– Clutch release lever 157
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
Collin Cullen –
Always good and I find what I need.
