Iveco Euro Trakker 4-5 Electric Repair Manual – PDF DOWNLOAD
FILE DETAILS:
Iveco Euro Trakker 4-5 Electric Repair Manual – PDF DOWNLOAD
Format: PDF
Language: English
Brand: Iveco
DESCRIPTION:
Iveco Euro Trakker 4-5 Electric Repair Manual – PDF DOWNLOAD
GENERALWARNINGS FOR ELECTRICAL/ELECTRONIC COMPONENTS:
– Before working on the vehicle, immobilise the wheels with chocks.
– Do not use fast chargers to start the engine. Engine starting can be performed either by means of separate batteries or by means of a special truck.
– Incorrect polarisation of the power supply voltage for the electronic control units (e.g. erroneous battery polarisation) may damage the components irreversibly.
– If you have to disconnect the batteries from the system, always disconnect the frame ground cable from the negative terminal of the batteries first.
– Before connecting the batteries to the system, make sure that the system is suitably insulated.
– Disconnect the batteries from the system before recharging them by means of an external unit.
– Disconnect the external recharging unit from the power mains before removing the units pliers from the battery terminals.
– At temperatures of over 80 C (drier ovens), take down the ECUs.
– At the connection stage, tighten the flanged nuts of the connectors (temperature and pressure sensors, etc.) to he required torque. Check the exact polarity of the battery terminals when starting the engine by means of the auxiliary truck.
– Before working on the vehicles electrical/electronic system disconnect the positive pole of the battery.
– Before disconnecting the connector from an electronic control unit, isolate the system.
– Do not cause sparks to check whether a circuit is live.
– Do not use a test bulb to check the continuity of a circuit. Only use the appropriate testing devices.
– Do not directly power the components associated with electronic control units with the nominal power rating of the vehicle.
– Make sure that thewirings of electronic devices (length, type of cable, location, grouping, connection of screen braiding, earthing, etc.) conform with the IVECO system and that they are carefully restored after repair or maintenance work. To avoid the possible malfunctioning of the electronic systems on board, the wirings of additional devices must follow a different path than that of the above-mentioned systems.
– Do not connect the negative terminals of additional systems to the negative terminals of electronic systems.
– In the event of electric welding on the vehicle, disconnect all the electronic control units and/or disconnect the power cable from the battery positive terminal and connect it to the frame earth.
– Connectors are viewed from the cable side.

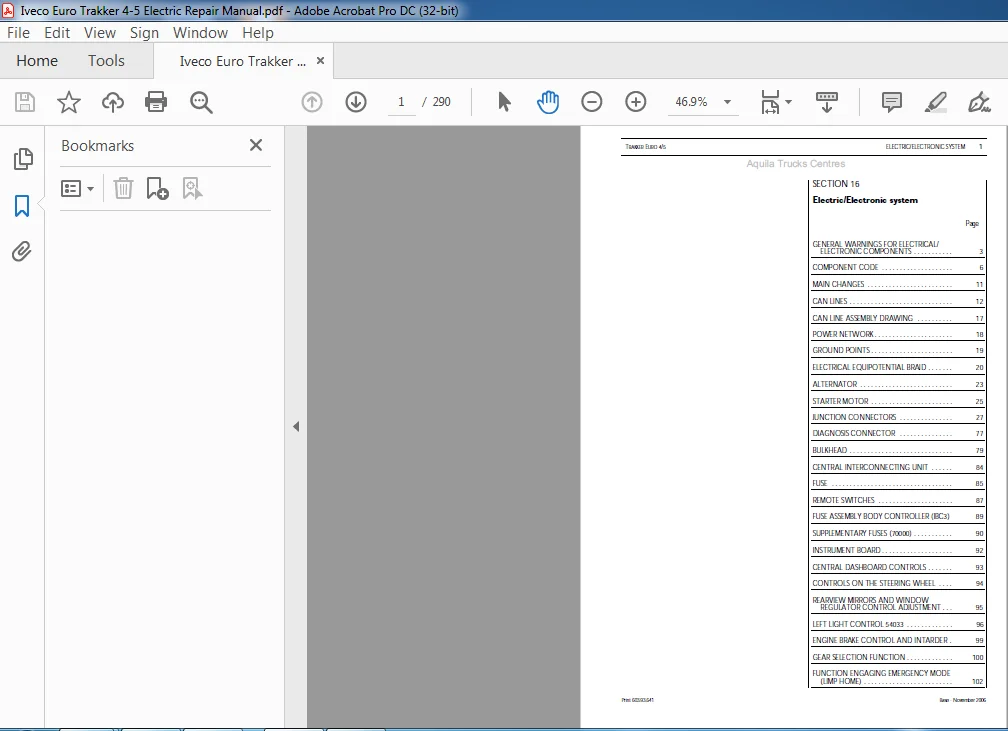

TABLE OF CONTENTS:
Iveco Euro Trakker 4-5 Electric Repair Manual – PDF DOWNLOAD
GENERAL WARNINGS FOR ELECTRICAL/
ELECTRONIC COMPONENTS 3
COMPONENT CODE 6
MAIN CHANGES 11
CAN LINES 12
CAN LINE ASSEMBLY DRAWING 17
POWER NETWORK 18

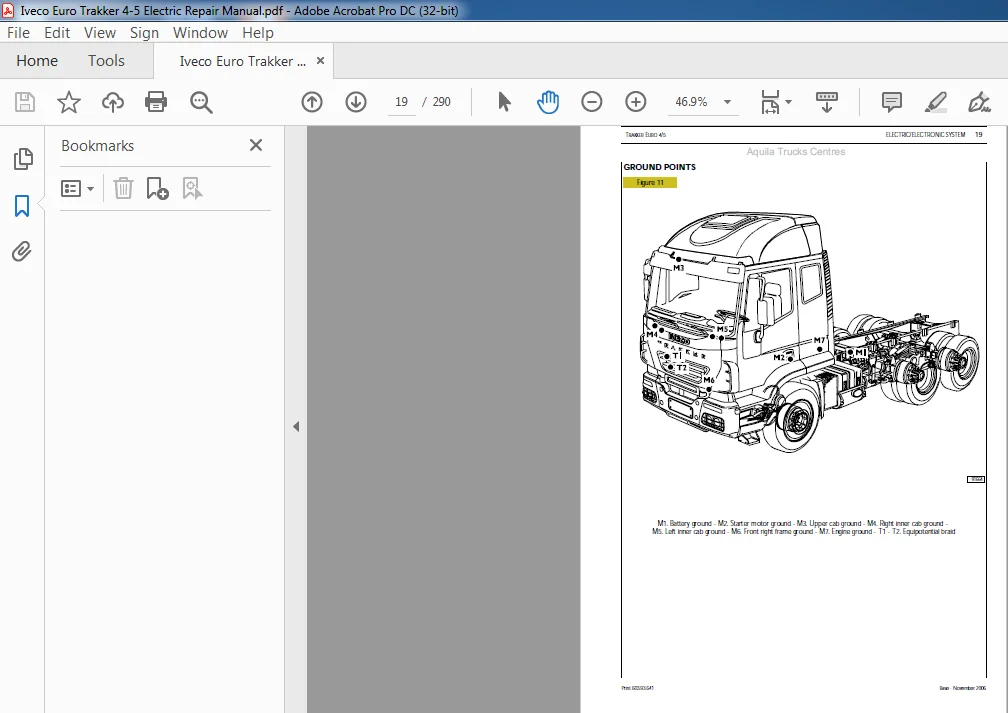

GROUND POINTS 19

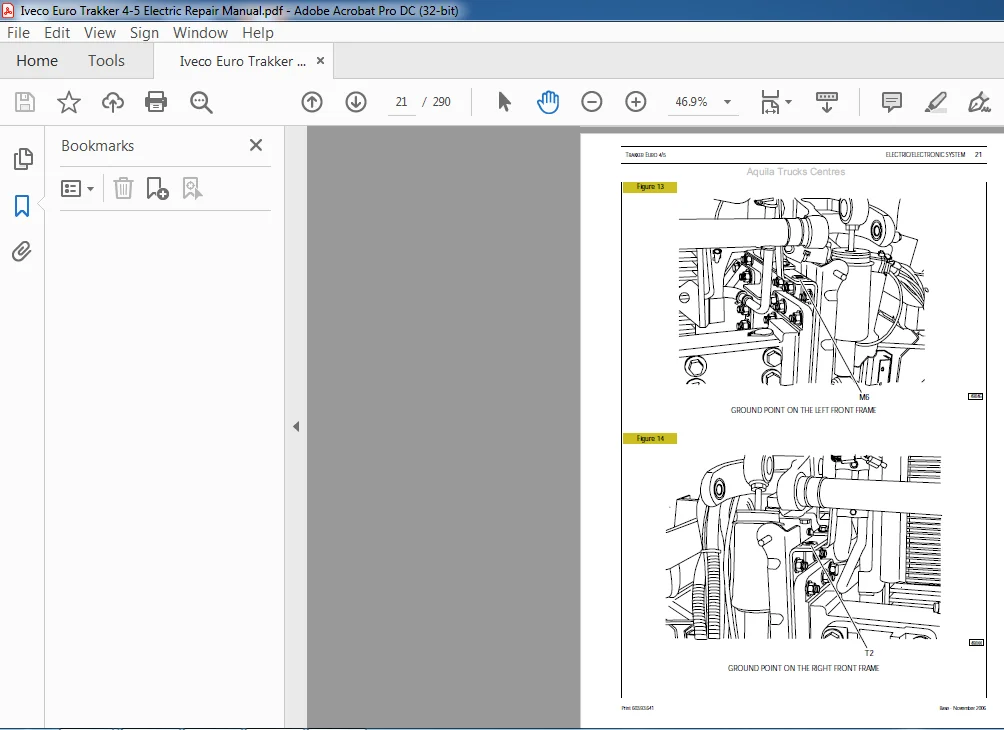

ELECTRICAL EQUIPOTENTIAL BRAID 20
ALTERNATOR 23
STARTER MOTOR 25
JUNCTION CONNECTORS 27
DIAGNOSIS CONNECTOR 77
BULKHEAD 79
CENTRAL INTERCONNECTING UNIT 84
FUSE 85
REMOTE SWITCHES 87
FUSE ASSEMBLY BODY CONTROLLER (IBC3) 89
SUPPLEMENTARY FUSES (70000) 90
INSTRUMENT BOARD 92
CENTRAL DASHBOARD CONTROLS 93
CONTROLS ON THE STEERING WHEEL 94
REARVIEWMIRRORS AND WINDOW
REGULATOR CONTROL ADJUSTMENT 95
LEFT LIGHT CONTROL 54033 96
ENGINE BRAKE CONTROL AND INTARDER 99
GEAR SELECTION FUNCTION 100
FUNCTION ENGAGING EMERGENCY MODE
(LIMP HOME) 102
2 ELECTRIC/ELECTRONIC SYSTEM TRAKKER EURO 4/5
Base – November 2006 Print 603 93 641
Page
CLUSTER 104
CLUSTER (PIN-OUT) 107
BODY CONTROLLER (IBC3) 113
BODY CONTROLLER 115
– Linking connectors 115
CHASSIS ELECTRONIC MODULE (M E T ) 119
S W I (STEERING WHEEL /
STEERVATOR INTERFACE) 122
SPIRALED CONTACT 125
STEERING COLUMN
(COMPONENT LOCATION) 126
B M (BED MODULE) 130
E B M (BED MODULE EASY) 131
TACHOGRAPH 133
EDC (ECM) SYSTEMS 135
SYSTEM COMPONENTS 139
VCM (VEHICLE CONTROL MODULE)
ELECTRONIC CONTROL UNIT 163
IMMOBILIZER 166
ABS-EBL 168
COMMON COMPONENTS 171
Page
ECAS SUSPENSIONS 178
EUROTRONIC AUTOMATIC TRANSMISSION 184
LIMP – HOME 189
ELECTRONIC CONTROL UNIT 192
TRANSMISSION ACTUATOR 194
CLUTCH ACTUATOR 196
INTARDER 200
EM (EXPANSION MODULE) ELECTRONIC
CONTROL UNIT (PTO) 206
AUTOMATIC AIR CONDITIONER 209
MANUAL AIR CONDITIONER 224
HYDRONIC D 10 WATER HEATER 228
SCR (SELECTIVE CATALYTIC REDUCTION)
SYSTEM – DENOX 2 235
CENTRAL LOCKING WITH REMOTE
CONTROL 238
DIAGNOSTIC 240
CIRCUIT CHARTS 245
