Fiat Allis FR15 Service Information Manual
FILE DETAILS:
Fiat Allis FR15 Service Information Manual
Size : 108 MB
Format : PDF
Language : English
Brand: Fiat
Type of machine: Wheel Loader
Type of document: Service Manuals
Model: Fiat Allis FR15 Wheel Loaders
Number of Pages: 176 pages
Serial Number: 80U00101-UP
RE-Print No.: 73127735
DESCRIPTION:
Fiat Allis FR15 Service Information Manual
FOREWORD:
This publication provides the approved Fiat allis procedures for removal, disassembly, reassembly, and installation of major machine components, and connection of diagnostic equipment. This manual is intended as a workshop guide, and for training of maintenance personnel, and includes descriptions of component functions. It is not within the scope of this publication to provide assistance with troubleshooting, or diagnosis of systems or components. The SERVICE SPECIFICATION MANUAL is also required for finding fits, tolerances, dimensions, and specifications.
GENERAL:
Study the Operation and Maintenance instruction Manual be- fore starting. operating, maintaining. fueling. or servicing machine. Read and heed all machine-mounted salety signs belore starting. operating. maintaining. fueling orserviclng machine. Machine-mounted safety signs have been ooiorcoded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head. body. limbs. hands and feet inside operator’s compartment at all times to reduce exposure to‘hazards outside the operator’s compartment.
- Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features. The lollow- ing are examples of dangerous work areas: slopes. over hangs. timber. demolitions. l ire. high walls. drop off. backfills. rough terrain. ditches, ridges. excavations. heavy traffic. crowded parking. crowded maintenance and closed areas. Use extreme care when in areas such as these.
- An operator must know the machine’s capabilities. When working on slopes or near drop 0th be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or oil machine. Keep two hands and one foot, or two test and one hand. in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or oh machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment. stepping points. grab<rails and handles clear of foreign objects. oil. grease. mud or snow accumulation to minimize the danger oi slipping or stumbling.
- Clean mud or grease from shoes betore attempting to mount or operate the machine. Be careful of sfippery conditions on stepping points, hand rails. and on the ground. Wear safety boots or shoesthat have a high slip resistant sole material. For your personal protection. 00 not attempt to climbon or oil machine while machine is in motion. Neverleavethemachine unattended with the engine running.
TABLE OF CONTENTS:
Fiat Allis FR15 Service Information Manual
- Engine Removal
- Engine Overhaul
- Engine Installation
- Engine Testing
- Transmission Removal
- Transmission Overhaul
- Transmission Installation
- Transmission Schematic
- Transmission Testing
- Axle Removal
- Wheel End Overhaul
- Differential Overhaul
- Axle Installation
- Optional Differential
- Brake Fluid Reservoir/ Brake Caliper
- Overhaul
- Articulation Joint
- Steering System
- Steering System Ground Drive
- Steering System Checks
- Steering Cylinder Removal
- Hydraulic System Implement
- Cylinder Removal (bucket)
- Cylinder Removal (boom)
- Cylinder Disassembly
- Kickouts
- Pump Removal
- Control Valve Removal
- Implement ZTesting
- Electrical Circuit
- Air System
VIDEO PREVIEW OF THE MANUAL:

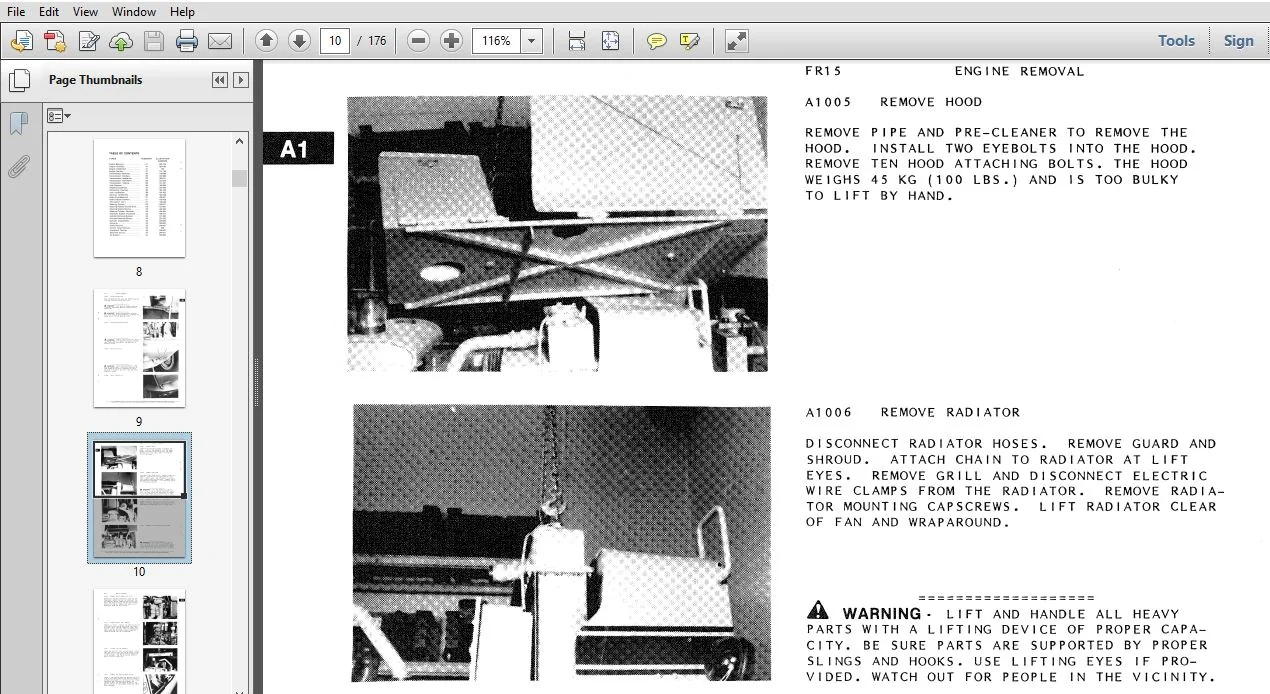

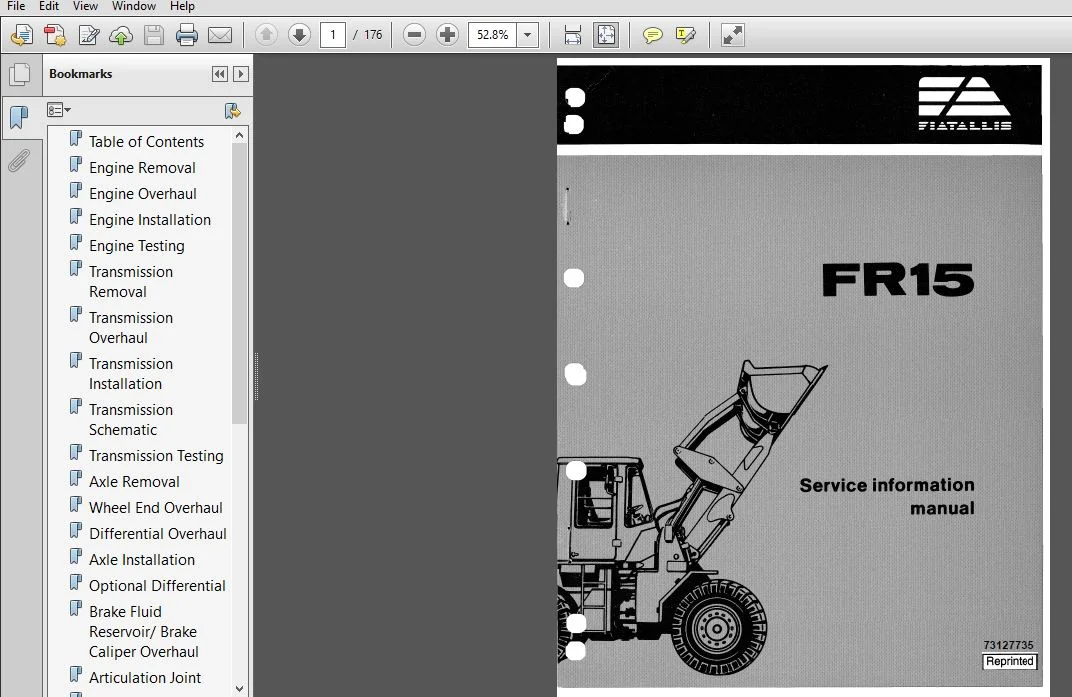

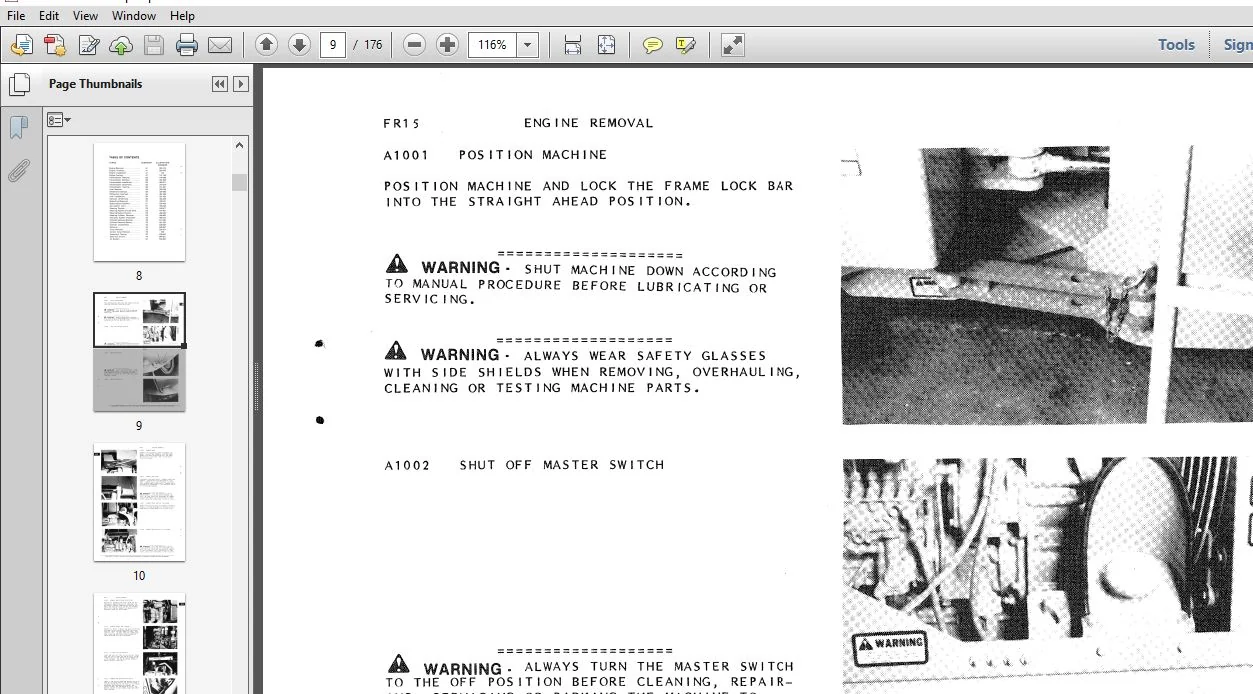

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
