Eaton Fuller Medium Heavy T-905 Transmissions TRSM0201 Service Manual – PDF DOWNLOAD
DESCRIPTION:
Eaton Fuller Medium Heavy T-905 Transmissions TRSM0201 Service Manual – PDF DOWNLOAD
- The T-905 model transmissions have five forward speeds and one reverse speed, and are designed for heavy duty vehicles. These models are of twin countershaft design which divides the torque equally between shafts and gears, providing a high capacity to weight ratio. The countershafts, identical except for the PTO gears, are short and bearings are of a relative low capacity due to the split torque principle.
- All gears have spur type teeth. The mainshaft floats free, receiving only minor radial loads. Mainshaft vertical displacement to conform to clutched gear position is allowed by rod-like springs which resist float to right or left. The mainshaft gears are not jounalled to the mainshaft, but are located axially by washers and held in position by rotation of the countershaft gears; this eliminates the need for bushings and sleeves.
- Because of equal tooth loading on each side of gear, pressure is reduced and gear face width can be narrowed. Gears are clutched by internal splines in hubs of gears. The sliding clutch gears with short, conical clutching teeth provide shorter and easier shifts. The input shaft and drive gear are not integral, thus they can be changed individually.
TABLE OF CONTENTS:
Eaton Fuller Medium Heavy T-905 Transmissions TRSM0201 Service Manual – PDF DOWNLOAD
Model Designations 2
Description 3
Specifications 4
Lubrication 5
Conversion to Overdrive 6
Clutch Shaft Replacement 6
General Precautions for Disassembly 6
Detailed Disassembly Instructions 7
Exploded Views
Drive Gear 8
Countershafts 11
Reverse Idler Shaft 11
Reverse Idler Gear and Shaft 14
Mainshaft 14
Tailshaft 14
Tailshaft and Rear Bearing Cover 17
Shifting Bar Housing 17
Inspection 17
Torque Ratings 21
Gasket Location 21
Preventative Maintenance Check Chart 25
General Precautions for Reassembly 25
Detailed Reassembly Instructions 25
Tool Reference 25
Gear Chart for Part Numbers 26
VIDEO PREVIEW OF THE MANUAL:

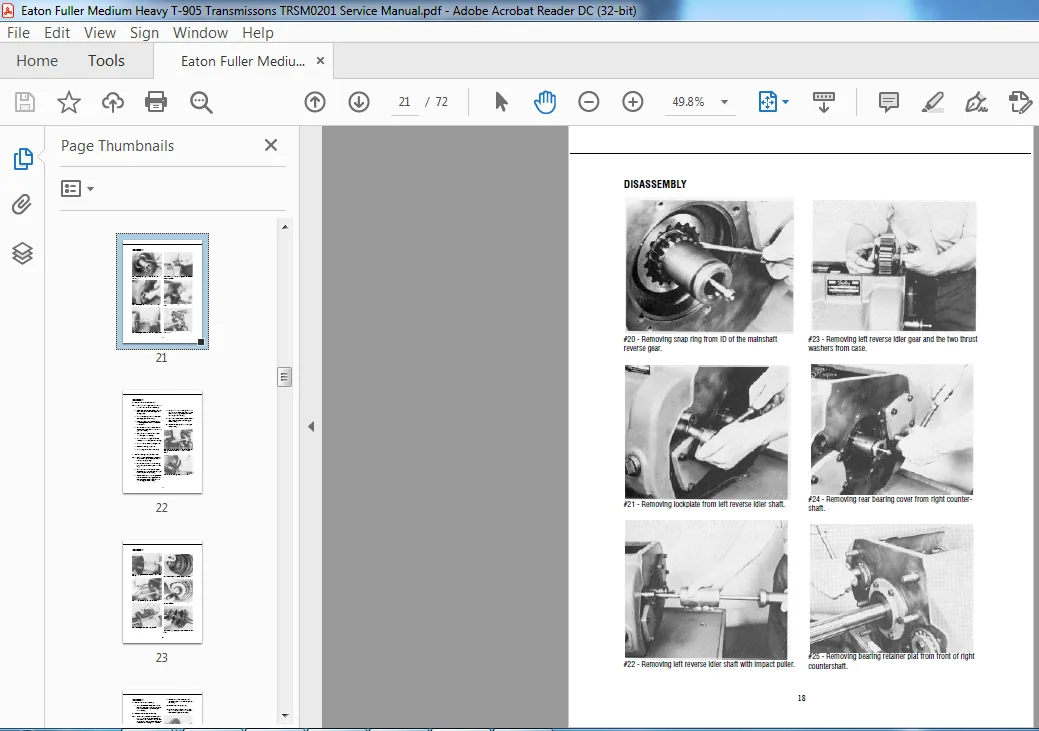

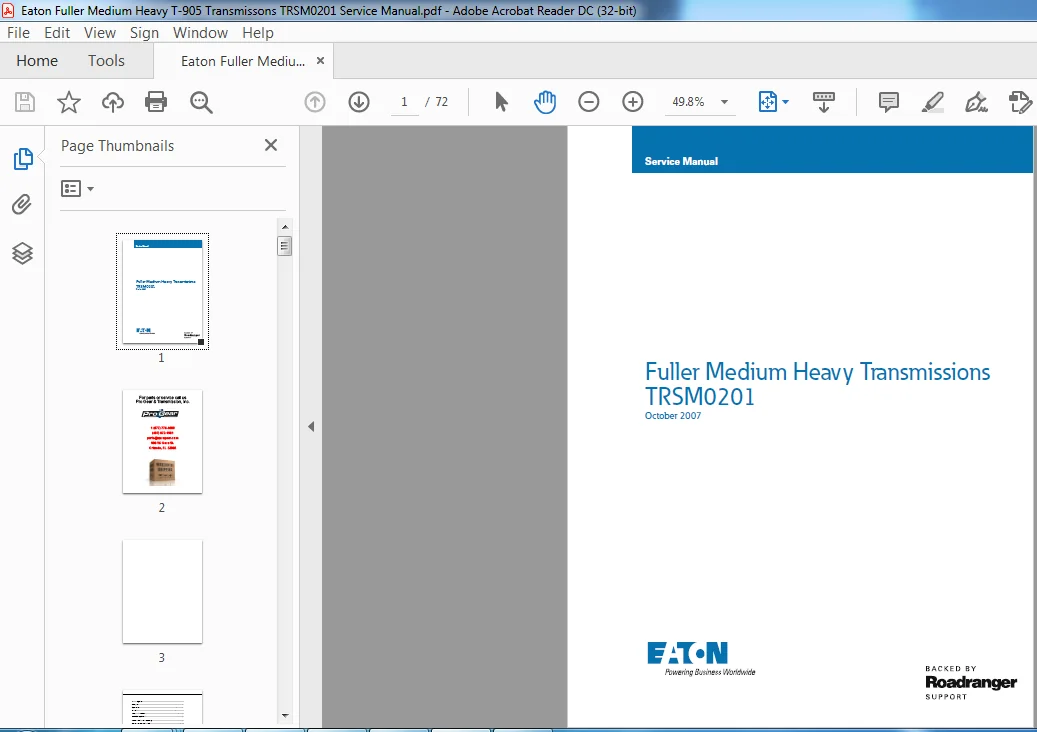

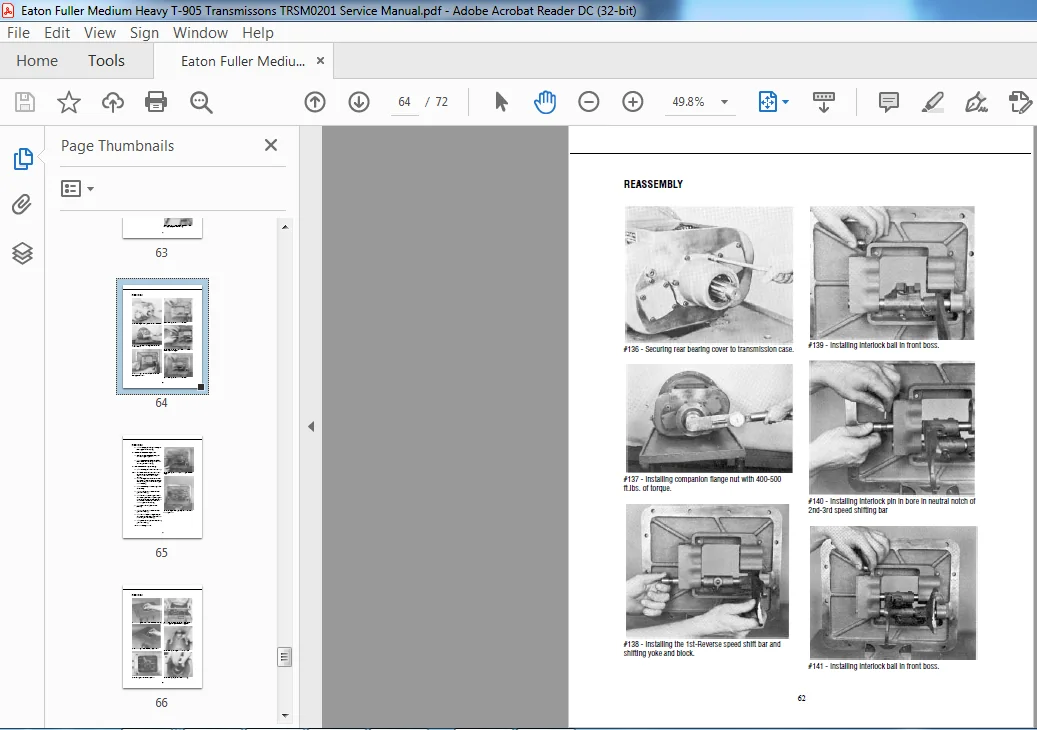

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
