Daewoo Doosan DL200 DL200TC Wheel Loader Shop Manual K1024538BE – PDF DOWNLOAD
DESCRIPTION:
Daewoo Doosan DL200 DL200TC Wheel Loader Shop Manual K1024538BE – PDF DOWNLOAD
K1024538BE
- Only trained and authorized personnel can operate and maintain the machine.
- Follow all safety rules, precautions and instructions when operating or performing maintenance on the machine.
- Do not operate the machine if you are not feeling well, if you are taking medication that makes you feel sleepy, if you have been drinking, or if you are suffering from emotional problems.
- These problems will interfere with your sense of judgement in emergencies and may cause accidents.
- When working with another operator or with a person on work site traffic duty, be sure that all personnel know the nature of the work and understand all hand signals that are to be used.
- Always observe strictly any other rules related to safety.
- Be sure that all guards and covers are installed in their proper position.
- Have guards and covers repaired immediately if damaged.
- Be sure that you understand the method of use of safety features such as transmission lever neutral lock and the seat belt, and use them properly.
- Never remove any safety features. Always keep them in good operating condition.
- Failure to use safety features according to the instructions in the Operation and Maintenance Manual could result in serious bodily injury.
Inside Operator’s Compartment:
- When entering the operator’s compartment, always remove all mud and oil from the soles of your shoes.
- If you operate the accelerator and brake pedals with mud or oil stuck to your shoes, your foot may slip and this may cause a serious accident.
- Clean grease and dirt from pedals and controls. This contributes to safe operation. Cleaning also provides an opportunity to inspect equipment.
- Minor damage can be repaired or corrected before major problems result. Keep cab floor and consoles free of tools and personal items. A
- fter using the ashtray, make sure that any matches or cigarettes are properly extinguished, and be sure to close the ashtray.
- If the ashtray is left open, there is danger of fire.
- Do not stick suction pads to the window glass. Suction pads act as a lens and may cause fire.
- Do not leave lighters laying around the operator’s compartment.
- If the temperature inside the operator’s compartment becomes high, there is danger that the lighter may explode.
- Do not use cellular telephones inside the operator’s compartment when driving or operating the machine.
- There is danger that this may lead to an unexpected accident. Never bring any dangerous objects such as flammable or explosive items into the operator’s cab.
- To ensure safety, do not use the radio or music headphones when operating the machine. There is danger that this may lead to a serious accident.
- When operating the machine, do not put your hands or head out of the window.
TABLE OF CONTENTS:
Daewoo Doosan DL200 DL200TC Wheel Loader Shop Manual K1024538BE – PDF DOWNLOAD
Safety
Wheel Loader Safety………………………………………………………………… SP000865
Specifications
Specification for DL200/ DL200TC…………………………………………….. SP001561
General Maintenance
General Maintenance Procedures ……………………………………………… SP001055
Standard Torques …………………………………………………………………….. SP000813
Drive Train
Transmission and Torque Converter………………………………………….. SP001011
Transmission Error Codes (ZF)…………………………………………………. SP001056
Axle…………………………………………………………………………………………. SP001018
Drive Shaft ………………………………………………………………………………. SP001019
Brake
Service Brake…………………………………………………………………………… SP001080
Brake Supply Valve………………………………………………………………….. SP001081
Parking Brake ………………………………………………………………………….. SP001082
Brake Pedal Valve……………………………………………………………………. SP001083
Accumulator……………………………………………………………………………… SP001084
Steering
Steering …………………………………………………………………………………… SP001085
Cushion Valve………………………………………………………………………….. SP000328
Emergency Steering …………………………………………………………………. SP001086
VIDEO PREVIEW OF THE MANUAL:

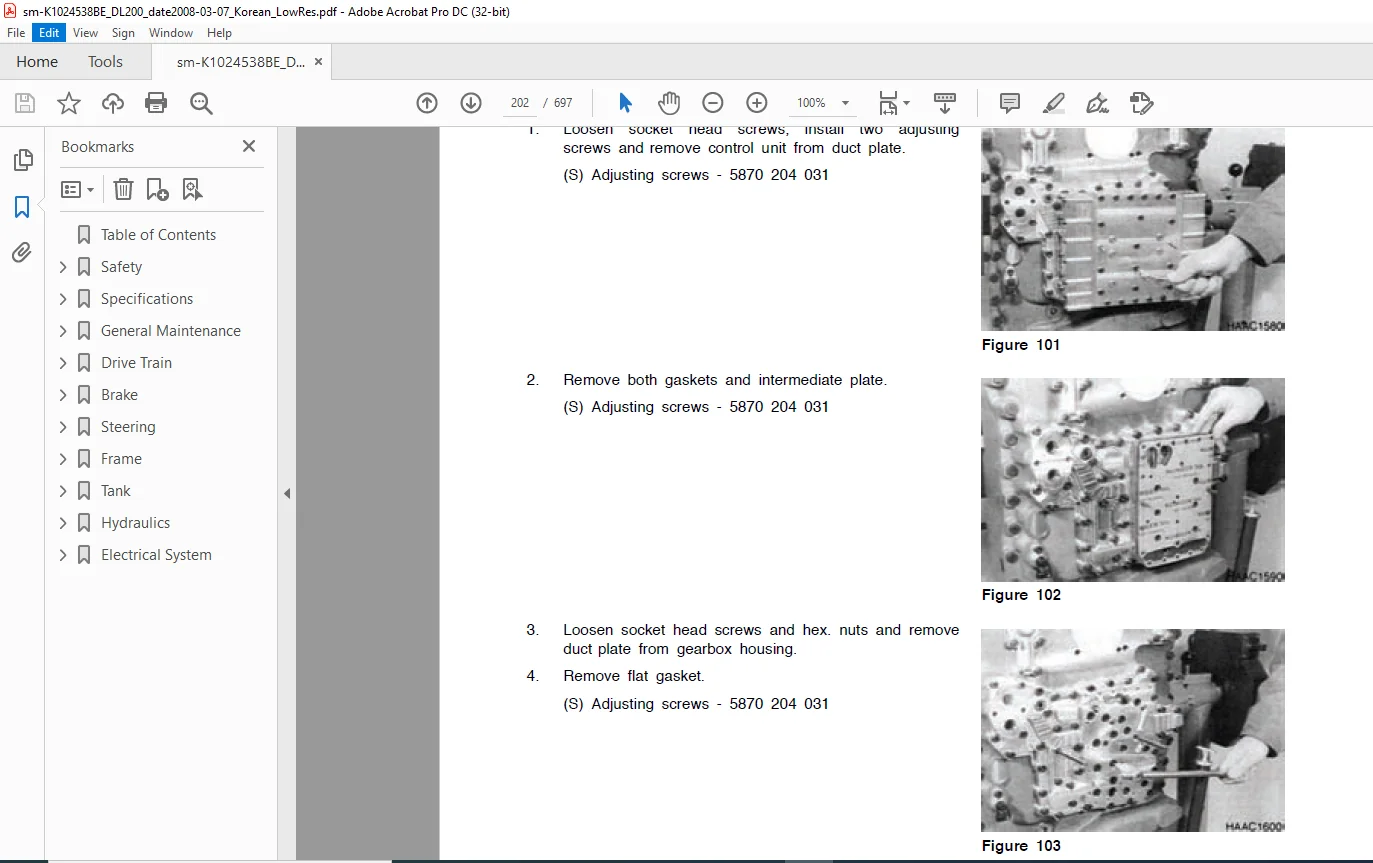

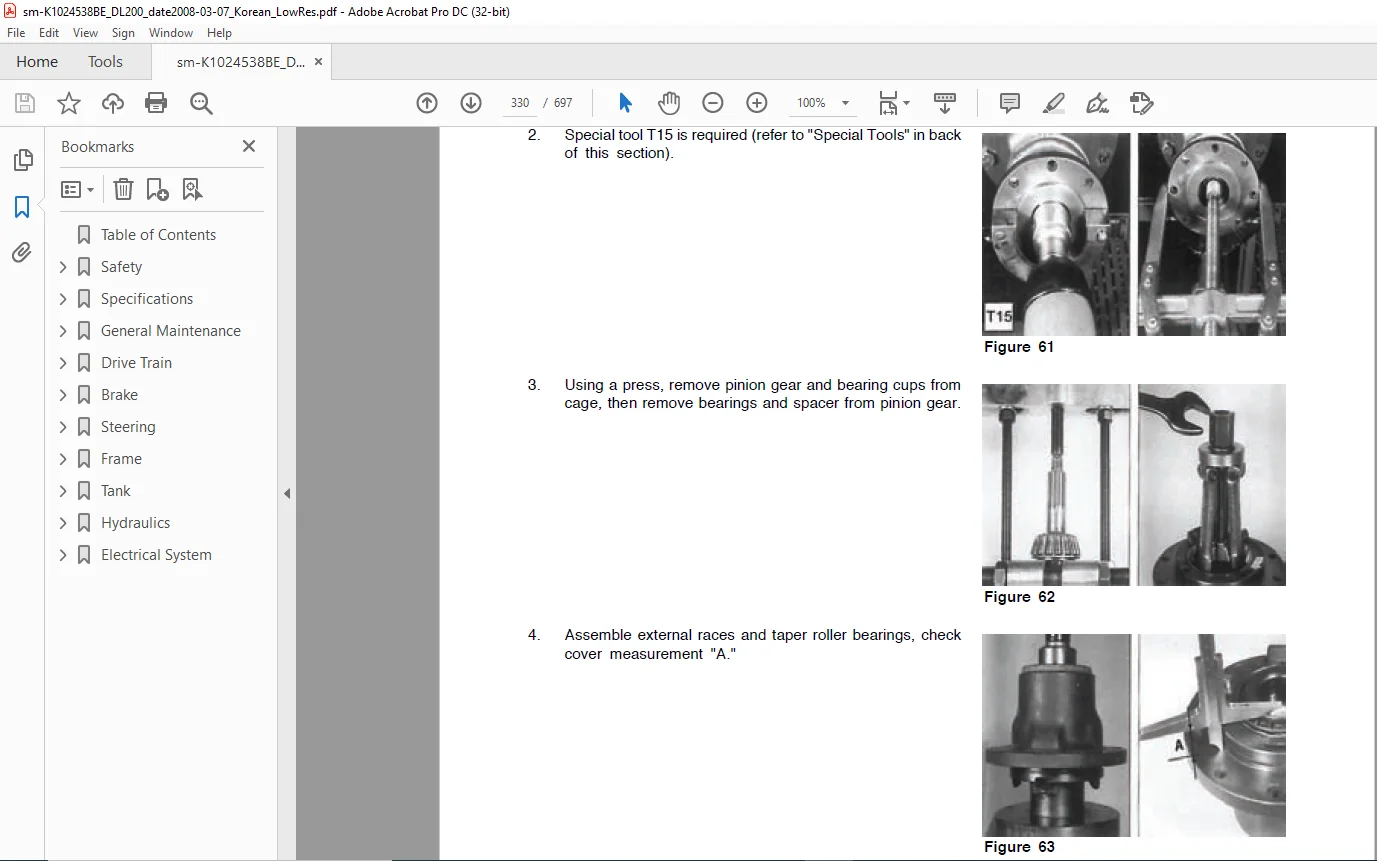

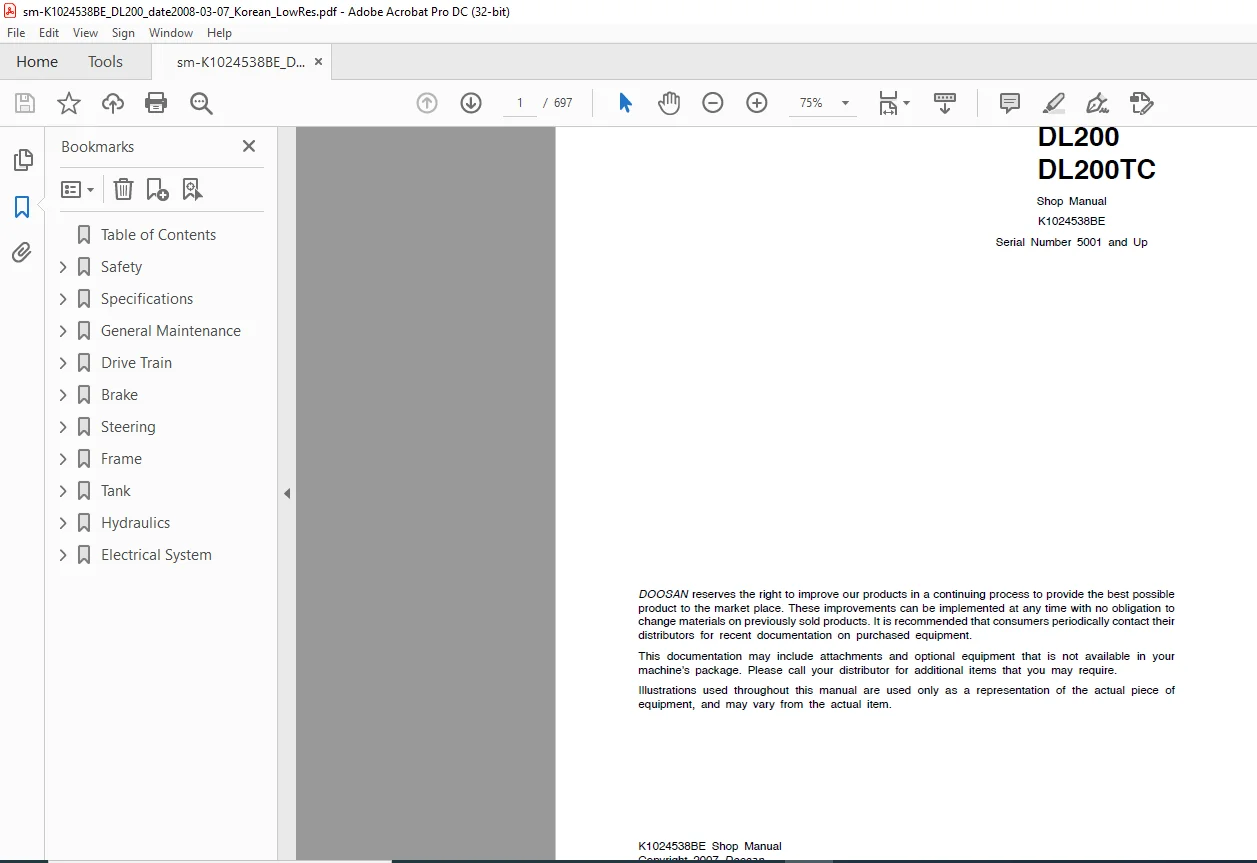

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
