Case IH Tractor Mccormick #15 Tractor Plow Operator’s Manual
FILE DETAILS:
Case IH Tractor Mccormick #15 Tractor Plow Operator’s Manual_1011684R2
Size : 20.3 MB
Format : PDF
Language : English
Number of Pages : 48 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Operator’s Manual
Model: 15
Part No: 1011684R2
VIDEO PREVIEW OF THE MANUAL:

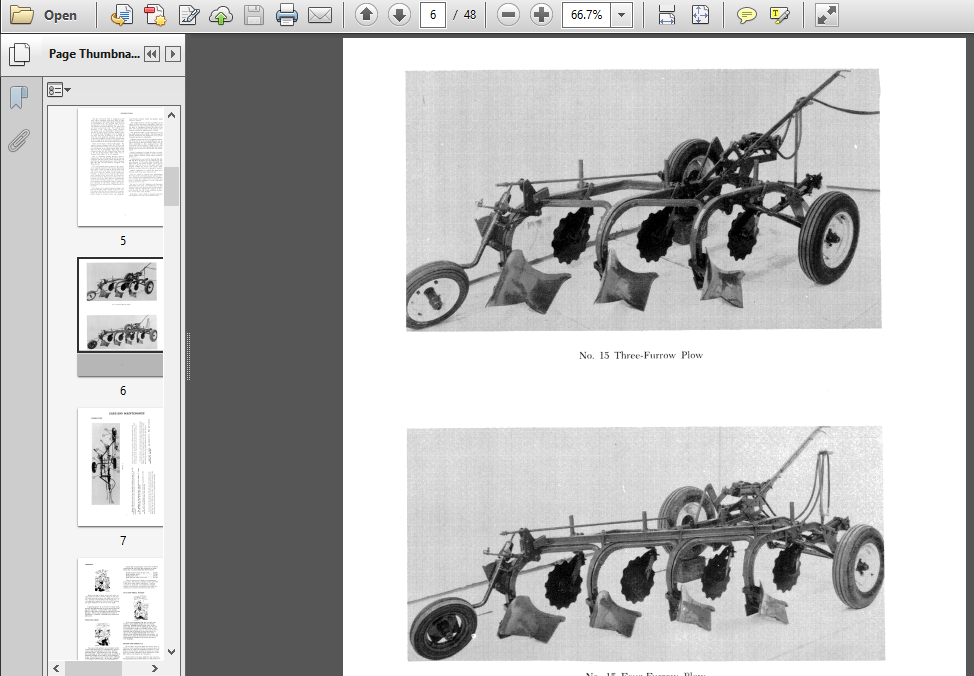

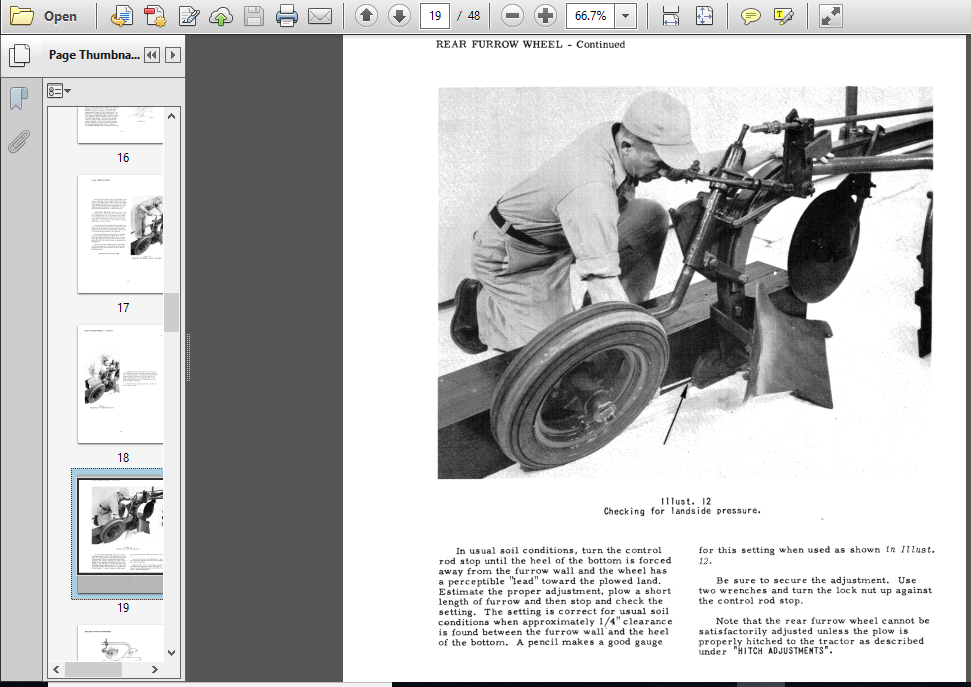

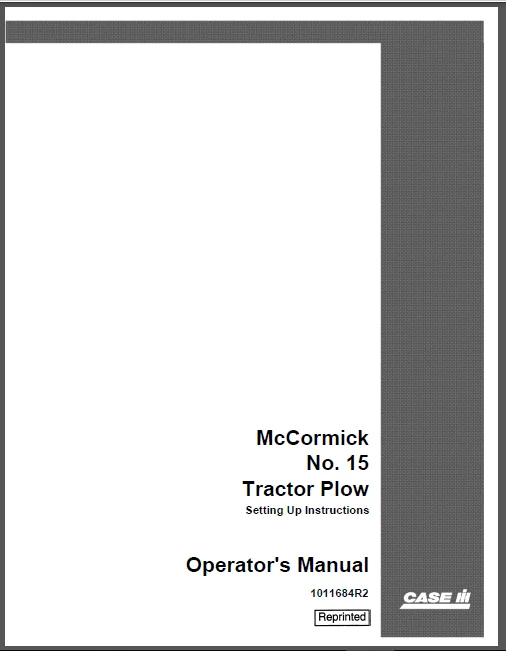

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Case IH Tractor Mccormick #15 Tractor Plow Operator’s Manual_1011684R2
TO THE OWNER:
- The purpose of this manual is to assist you in realizing the benefits you anticipated when you purchased this International Harvester product. Literally thousands of people have contributed to the design and. production of this product and its delivery to you.
- They have an interest in its successful performance and have provided this manual to give you the benefit Of the experience they have gained through years of field testing and normal usage of this and similar products. The way yOu operate and the care you give this product will have much to do with its successful performance.
- This manual has been carefully prepared and the information arranged and illustrated to make it as easy as possible for you to find the information you wish. It will pay you to read the entire manual carefully before operating and keep it handy for future reference. Your International Harvester Dealer will be glad to answer any further questions yOu may have on the Operation or care of this product.
INTRODUCTION:
- The No. 15 Tractor Flow is designed for the farm where conditions range from those of light, spring plowing to the. hardest kind of fall plowing; it is available in 1:2″, 14″, and, 16” sizes. . it is an excellent plow where the depth is up to 9″ or 10″.
- The bottoms are spaced about 25′ {14″ plow} from one share, point to the next. The vertical, beam clearance is 24″. This gives ample clearance for turning over and thoroughly covering heavy growths of stalks, woods, or green manure crops.
- It is sturdily built throughout, easy to handle in any field, and easy to adjust to do the kind of work the most particular plowman can ask for. As regularly supplied, it meets all the requirements of the average farm and can be. equipped to meet special conditions or unusual plowing requirements.
- There are two basic versions of this plow. The. smaller version is known as the No. 15 Two and Three Fiu‘row Plow which may be obtained either as a two-furrow or as a three—furrow plow having either 12″, 14″ or 16″ bottoms. The larger version is known as the No. lS-L Three-Furrow Plow and as the No. 15 Four~l~hrrrow Plow which may be obtained with either 14″ or 16″ bottoms.
- This is a hydraulic cylinder lift plow which is designed for use with F armall ti and M Tractors equipped with the remote control attachment and the l‘iydraulic Lift-All attachment. and for Farmall 300, 850, 400 and 450 Tractors equipped with Hydra-Tmch. ‘
- The two hydraulic hoses connect to the break- away coupling mounted on the tractor. Should the. plow strike a rock or stump in the field the hitch will release and, at the. same time the hoses will pull away from the tractor at the breakaway coupling. A release lever is built into the break- away coupling so the hoses may he released by hand when desired.
- Oil passages in the breakaway ct‘mpling and in the hose ends are automatically covered when the hoses pull away This prevents oil escaping or dirt (Putt-firing the system. A hose sup- port, mounted on the hitch, supports the l’ioses; keeps them clean and provides a lifting hamllc for the hitch.
CASE TECHNICAL MANUALS:
- Manuals are available from your Dealer for the operation, service and repair of your machine. For prompt convenient service, contact your Dealer for assistance in obtaining the manuals for your machine. Your Dealer can expedite your order for operators manuals, parts catalogs, service manuals and maintenance records.
- Always give the Machine Name, Model and P.|.N. (product identification number) or S.N. (serial number) of your machine so your Dealer can provide the correct manuals for your machine.
