BT SWE100 SWE120 SWE140 Quality Parts Manual – PDF DOWNLOAD
FILE DETAILS:
BT SWE100 SWE120 SWE140 Quality Parts Manual – PDF DOWNLOAD
Language : English
Pages : 223
Downloadable : Yes
File Type : PDF
Size: 19.0 MB
TABLE OF CONTENTS:
BT SWE100 SWE120 SWE140 Quality Parts Manual – PDF DOWNLOAD
Valid for machine number – 6102416-
Ordering number – 7513631
Date – 2009-11-27 / TP
Language – en sv de fr
0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Motors 5
Motorer; Motoren; Moteurs 5
2000 Transmission/Drive gear 5
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 5
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 6
Styrsystem; Steuer-/Lenksystem; Système de direction 6
5000 Electrical system 6
Elektriskt system; Elektroanlage; Système électrique 6
6000 Hydraulic/pneumatic system 8
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 8
7000 Work function – lifting masts 9
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 9
9000 Options/attachments 10
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 10
0340-00701 P0032962 12

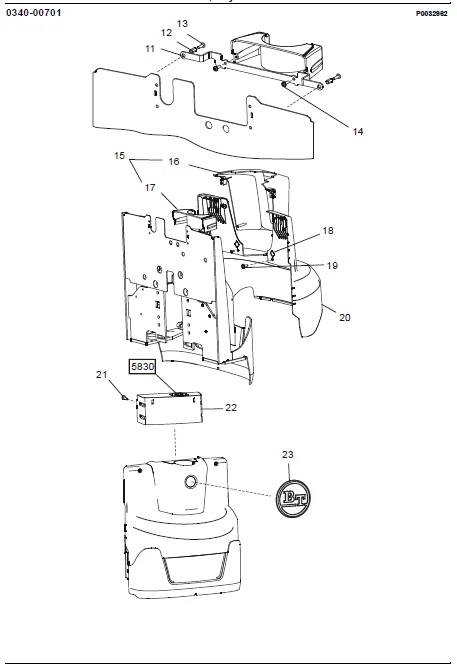

0340-00701 Inspection covers [2009-09-24] 13
0340-00706 P0033111 14
0340-00706 Inspection covers [2009-11-27] 15
0340-00776 P0034945 16
0340-00776 Inspection covers [2009-09-23] 17
0340-00780 P0035051 18
0340-00780 Inspection covers [2009-11-26] 19
0390-00484 P0032352 20
0390-00484 Battery compartment parts [2008-10-21] 21
0390-00485 P0032354 22
0390-00485 Battery compartment parts [2009-09-23] 23
0390-00486 P0032355 24
0390-00486 Battery compartment parts [2009-09-23] 25
0390-00572 P0034916 26
0390-00572 Battery compartment parts [2009-11-19] 27
0390-00573 P0034917 28
0390-00573 Battery compartment parts [2009-09-23] 29
0390-00574 P0034918 30
0390-00574 Battery compartment parts [2009-09-23] 31
0390-00604 P0035824 32
0390-00604 Battery compartment parts [2009-11-24] 33
0410-00003 P0031523 34
0410-00003 Boom/mast fixing points [2009-09-15] 35
0450-00102 P0034083 36
0450-00102 Motor fixing points [2009-06-11] 37
0450-00103 P0034084 38
0450-00103 Motor fixing points [2009-06-11] 39
0450-00104 P0034085 40
0450-00104 Motor fixing points [2009-06-11] 41
0560-00244 P0035797 42
0560-00244 Platform incl fixing points [2009-11-27] 43
0820-00291 P0031510 44
0820-00291 Finger/foot guards [2009-09-23] 45
0820-00292 P0031511 46
0820-00292 Finger/foot guards [2009-09-23] 47
0820-00293 P0031513 48
0820-00293 Finger/foot guards [2009-09-23] 48
0820-00294 P0031514 50
0820-00294 Finger/foot guards [2009-09-23] 51
0820-00295 P0031515 52
0820-00295 Finger/foot guards [2009-09-23] 53
0850-00508 P0033011 54
0850-00508 Signs, warnings, decals [2009-09-23] 55
1710-00148 P0033994 56
1710-00148 Electric pump motor [2009-02-19] 57
1760-00177 P0034035 58
1760-00177 Electric drive motor [2009-06-08] 59
1760-00178 P0034036 60
1760-00178 Electric drive motor [2009-09-23] 61
2550-00100 P0031391 62
2550-00100 Mechanical drive gear unit [2009-09-23] 63
3180-00024 P0030567 64
3180-00024 Electrically controlled travel brake [2009-09-23] 64
3530-00140 P0030540 65
3530-00140 Drive wheel [2009-09-23] 65
3540-00126 P0035820 66
3540-00126 Support/castor wheels [2009-11-27] 67
3550-00461 P0031383 68
3550-00461 Fork/support arm wheels [2008-10-21] 68
3550-00471 P0032080 69
3550-00471 Fork/support arm wheels [2008-10-21] 69
4110-00543 P0031394 70
4110-00543 Steering arm/wheel/lever [2008-10-21] 71
4110-00544 P0031395 74
4110-00544 Steering arm/wheel/lever [2008-10-21] 75
4110-00545 P0031396 78
4110-00545 Steering arm/wheel/lever [2008-11-10] 79
4110-00546 P0031397 82
4110-00546 Steering arm/wheel/lever [2008-11-10] 83
4110-00549 P0031406 86
4110-00549 Steering arm/wheel/lever [2008-11-10] 87
4110-00550 P0031407 90

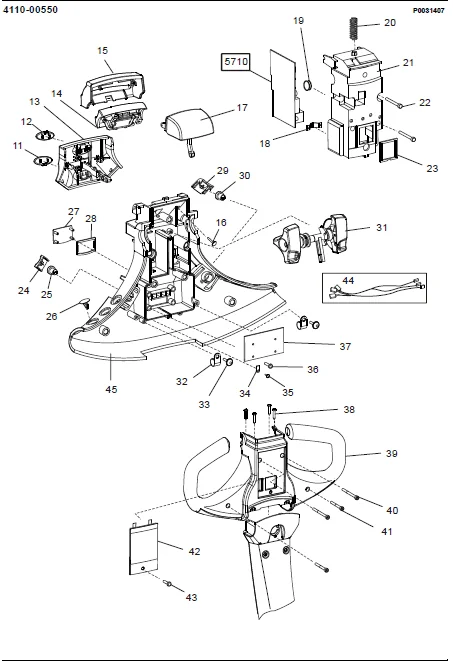

4110-00550 Steering arm/wheel/lever [2008-11-10] 91
4110-00570 P0032117 94
4110-00570 Steering arm/wheel/lever [2009-10-07] 95
4110-00591 P0032963 96
4110-00591 Steering arm/wheel/lever [2009-09-23] 97
5160-00154 P0032411100
5160-00154 General alarm signals (audible/visual) [2009-09-23]100
5190-00137 P0030586101
5190-00137 Battery cut out connector/contactor [2009-09-23]101
5390-00300 P0030580102
5390-00300 Driving function harnesses/fuse [2009-09-23]102
5390-00312 P0032964103
5390-00312 Driving function harnesses/fuse [2009-09-23]103
5460-00091 P0032391104
5460-00091 Transistor panel [2009-05-13]104
5460-00093 P0032393105
5460-00093 Transistor panel [2009-09-23]105
5590-00447 P0034043106
5590-00447 Work function harnesses/fuse [2009-02-19]107
5590-00448 P0034044108
5590-00448 Work function harnesses/fuse [2009-02-19]109
5610-00033 P0030587110
5610-00033 Pump contactor [2009-05-13]110
5680-00185 P0034081112
5680-00185 Battery/motor cables, fuse [2009-11-20]113
5680-00186 P0034082114
5680-00186 Battery/motor cables, fuse [2009-11-20]115
5710-00134 P0030669116
5710-00134 Drive/multi-function PCBs [2009-09-23]116
5820-00301 P0033124118
5820-00301 Lift/lowering/reach movement probes/sensors [2008-11-10]119
5820-00302 P0033127120
5820-00302 Lift/lowering/reach movement probes/sensors [2009-09-23]121
5820-00303 P0033129122
5820-00303 Lift/lowering/reach movement probes/sensors [2009-09-23]123
5820-00304 P0033130124
5820-00304 Lift/lowering/reach movement probes/sensors [2009-09-23]125
5820-00305 P0033132126
5820-00305 Lift/lowering/reach movement probes/sensors [2009-09-23]127
5830-00200 P0030581128
5830-00200 Safety probes/sensors [2009-09-23]128
5830-00211 P0032079129
5830-00211 Safety probes/sensors [2009-09-23]129
6100-00309 P0033995130
6100-00309 Hydraulic unit [2009-02-19]131
6230-00222 P0031677132
6230-00222 Hydraulic lines chassis [2008-11-10]132
6320-00427 P0031462133
6320-00427 Mast hydraulic lines [2009-09-23]133
6320-00553 P0034583134
6320-00553 Mast hydraulic lines [2009-09-23]135
6320-00554 P0034584136
6320-00554 Mast hydraulic lines [2009-09-23]136
6320-00555 P0034586138
6320-00555 Mast hydraulic lines [2009-09-23]139
6610-00260 P0031454141
6610-00260 Main lift cylinders [2008-11-10]141
6610-00261 P0031455142
6610-00261 Main lift cylinders [2008-11-10]143
6610-00262 P0031471144
6610-00262 Main lift cylinders [2009-09-23]145
6610-00263 P0031472146
6610-00263 Main lift cylinders [2009-09-23]147
6610-00265 P0031475148
6610-00265 Main lift cylinders [2009-09-23]149
6610-00266 P0031476150
6610-00266 Main lift cylinders [2009-09-23]151
6610-00267 P0031477152
6610-00267 Main lift cylinders [2009-09-23]153
6610-00385 P0034977154
6610-00385 Main lift cylinders [2009-09-23]155
7120-00555 P0031463156
7120-00555 Main lift chain system [2009-09-23]157
7120-00556 P0031464158
7120-00556 Main lift chain system [2009-09-23]159
7120-00557 P0031465160
7120-00557 Main lift chain system [2009-09-23]161
7120-00560 P0031485162
7120-00560 Main lift chain system [2009-09-23]163
7130-00313 P0032780164
7130-00313 Main mast fork carriage [2009-09-23]165
7150-00034 P0031460166
7150-00034 Main mast guidance/dampers [2009-06-15]167
7150-00035 P0031461168
7150-00035 Main mast guidance/dampers [2008-10-21]168
7150-00038 P0031469169
7150-00038 Main mast guidance/dampers [2009-09-23]169
7150-00047 P0034582170
7150-00047 Main mast guidance/dampers [2009-09-23]171
7150-00048 P0034941172
7150-00048 Main mast guidance/dampers [2009-09-23]173
7150-00050 P0034943174
7150-00050 Main mast guidance/dampers [2009-09-23]175
7410-00120 P0015872176
7410-00120 Fork, carpet boom, lift hook [2009-09-23]176
7420-00724 P0031564178
7420-00724 Fork carriage unit, integrated sideshift, fork spread [2009-06-15]179
7420-00725 P0031565180
7420-00725 Fork carriage unit, integrated sideshift, fork spread [2009-06-15]181
7420-00726 P0031567182
7420-00726 Fork carriage unit, integrated sideshift, fork spread [2009-09-23]183
7420-00727 P0031569184
7420-00727 Fork carriage unit, integrated sideshift, fork spread [2009-09-23]185
7420-00728 P0031571186
7420-00728 Fork carriage unit, integrated sideshift, fork spread [2009-09-23]187
7420-00729 P0031572188
7420-00729 Fork carriage unit, integrated sideshift, fork spread [2009-09-23]189
9370-00138 P0033086190
9370-00138 Extra warning lights/alarm [2009-11-27]191
9370-00142 P0033422192
9370-00142 Extra warning lights/alarm [2009-11-27]193
9380-00026 P0035819194
9380-00026 Charger attachment [2009-11-26]194
9400-00317 P0031234196
9400-00317 Extra electrical equipment [2009-09-23]197
9400-00318 P0031243198
9400-00318 Extra electrical equipment [2009-09-23]198
9400-00401 P0034924200
9400-00401 Extra electrical equipment [2009-09-23]201
9420-00015 P0012396202
9420-00015 Truck log device, code locking device [2009-09-23]202
9420-00098 P0026077203
9420-00098 Truck log device, code locking device [2009-09-23]203
9420-00138 P0033140204
9420-00138 Truck log device, code locking device [2009-09-23]205
9420-00139 P0033141206
9420-00139 Truck log device, code locking device [2009-09-23]206
9500-01074 P0031110207
9500-01074 Other extra equipment [2009-09-23]207
9500-01075 P0031111208
9500-01075 Other extra equipment [2009-09-23]208
9500-01179 P0032686209
9500-01179 Other extra equipment [2009-09-23]209
9500-01199 P0033099210
9500-01199 Other extra equipment [2009-11-27]210
9500-01200 P0033101212
9500-01200 Other extra equipment [2009-11-27]213
9500-01201 P0033103214
9500-01201 Other extra equipment [2009-11-27]214
9500-01202 P0033104216
9500-01202 Other extra equipment [2009-11-27]217
9500-01213 P0033424218
9500-01213 Other extra equipment [2009-11-27]218
9500-01214 P0033425220
9500-01214 Other extra equipment [2009-11-27]220
9500-01215 P0033429221
9500-01215 Other extra equipment [2009-11-24]221
9500-01271 P0034762222
9500-01271 Other extra equipment [2009-09-23]222

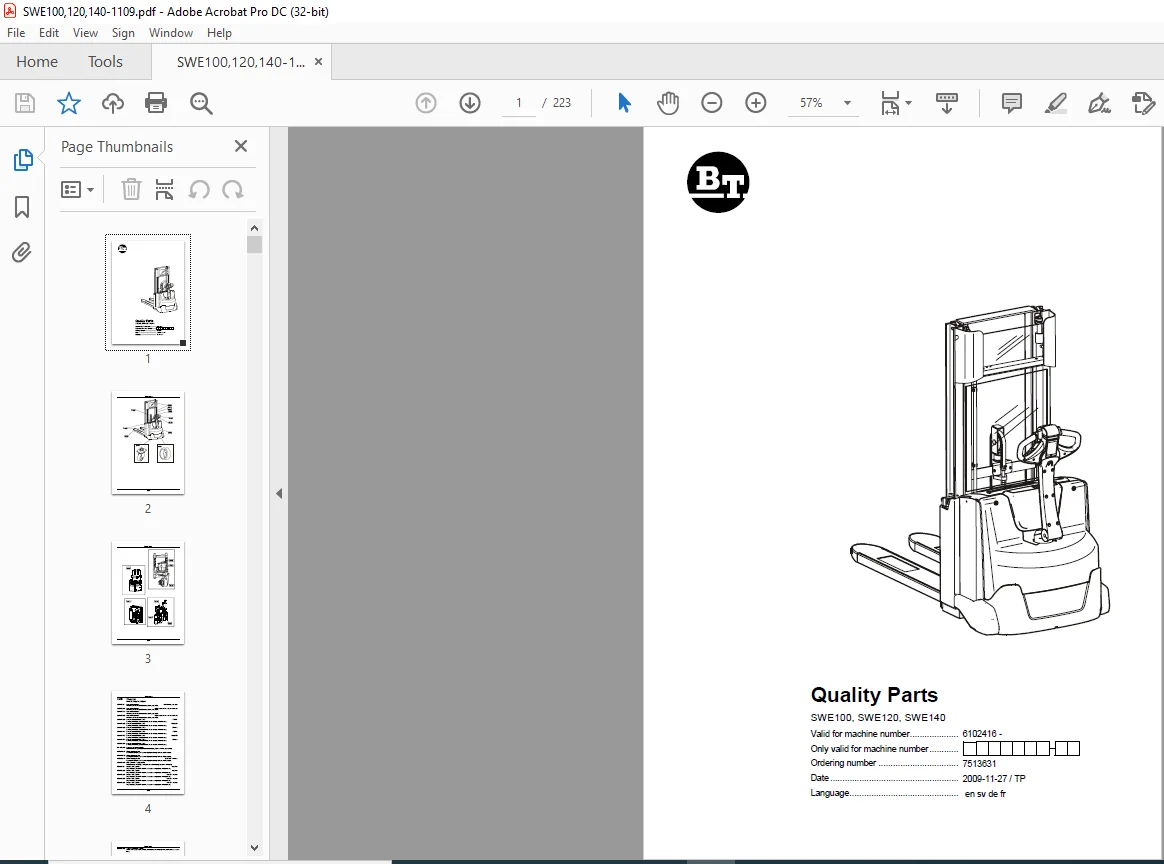

IMAGES PREVIEW OF THE MANUAL:
