Bobcat Digger 12S 12 16 25 30 36 Operation & Maintenance Manual 6900948 (05-17) – PDF DOWNLOAD
FILE DETAILS:
Bobcat Digger 12S 12 16 25 30 36 Operation & Maintenance Manual 6900948 (05-17) – PDF DOWNLOAD
Language : English
Pages : 80
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Bobcat Digger 12S 12 16 25 30 36 Operation & Maintenance Manual 6900948 (05-17) – PDF DOWNLOAD
FOREWORD
This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your Bobcat attachment
SAFETY INSTRUCTIONS
Safe Operation Is The Operator’s Responsibility
Operator must have instructions before operating the machine. Untrained operators can cause injury or death
IMPORTANT
This notice identifies procedures which must be followed to avoid damage to the machine.
The Bobcat machine and attachment must be in good operating condition before use.
Check all of the items on the Bobcat Service Schedule Decal under the 8-10 hour column or as shown in the Operation & Maintenance Manual.
Safe Operation Needs A Qualified Operator
For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or co- ordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.
A Qualified Operator Must Do The Following:
Understand the Written Instructions, Rules and
Regulations
- • The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
- Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. For driving on public roads, the machine must be equipped as stipulated by the local regulations authorising operation on public roads in your specific country. Regulations may identify a hazard such as a utility line.
Have Training with Actual Operation
- Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
- The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
Know the Work Conditions
- Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
- The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
- Know the location of any underground lines.
- Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, hearing protection, Special Applications Kits or a Front Window Guard are required for some work. See your Bobcat dealer about Bobcat Safety equipment for your machine.
SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules
- • Read and follow instructions in the machine and the attachment’s Operation & Maintenance Manual before operating.
- Check for underground lines before operating attachment (if applicable).
- In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
- Check that the Bob-Tach™ levers are in the locked position and the wedges are fully engaged into the holes of the attachment (if applicable).
- Check that the attachment is securely fastened to the machine.
- Make sure all the machine controls are in the NEUTRAL position before starting the machine.
- Operate the attachment only from the operator’s position.
- Operate the attachment according to the Operation & Maintenance Manual.
- When learning to operate the attachment, do it at a slow rate in an area clear of bystanders.
- DO NOT permit personnel to be in the work area when operating the machine and attachment.
- The attachment must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments for each machine model.
- DO NOT modify equipment or add attachments that are not approved by the manufacturer.
- DO NOT make any adjustments or repairs on the machine or attachment while the engine is running.
- Keep shields and guards in place. Replace if damaged.

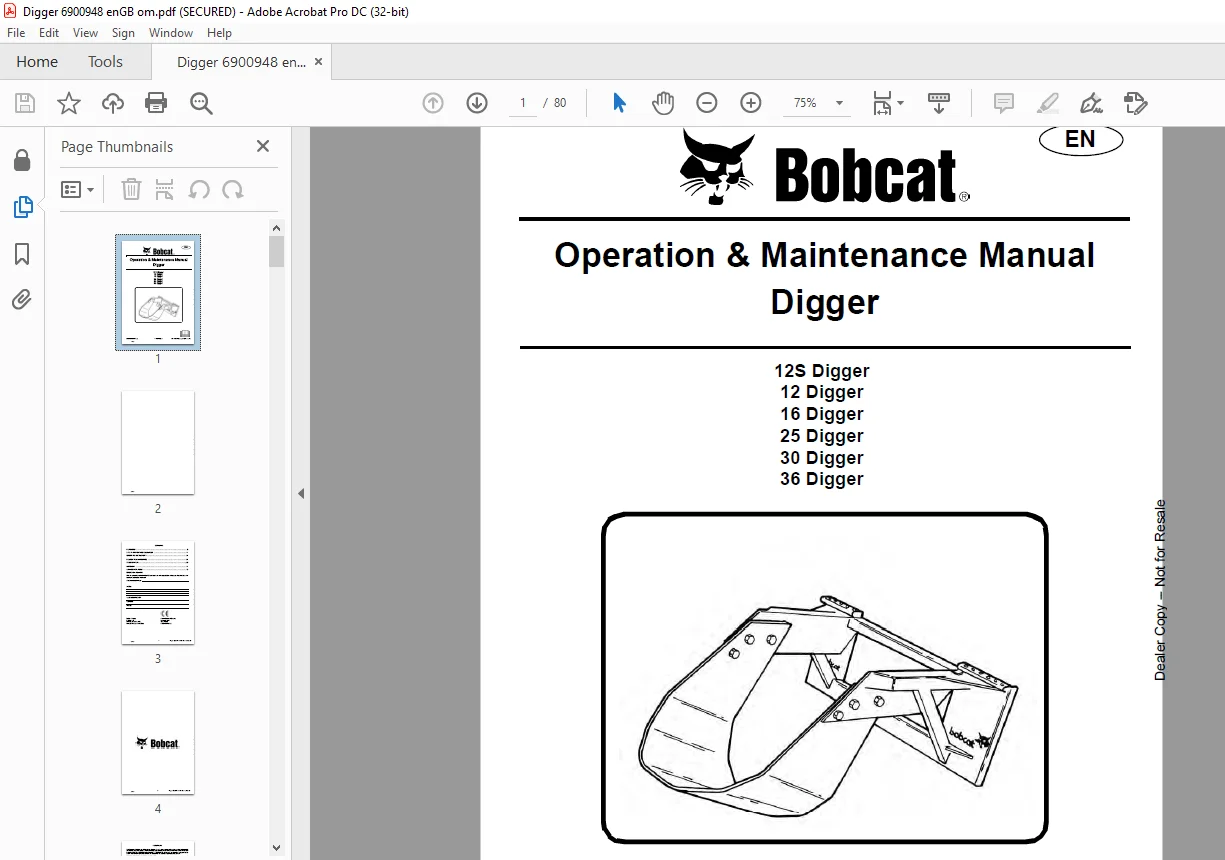

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Bobcat Digger 12S 12 16 25 30 36 Operation & Maintenance Manual 6900948 (05-17) – PDF DOWNLOAD

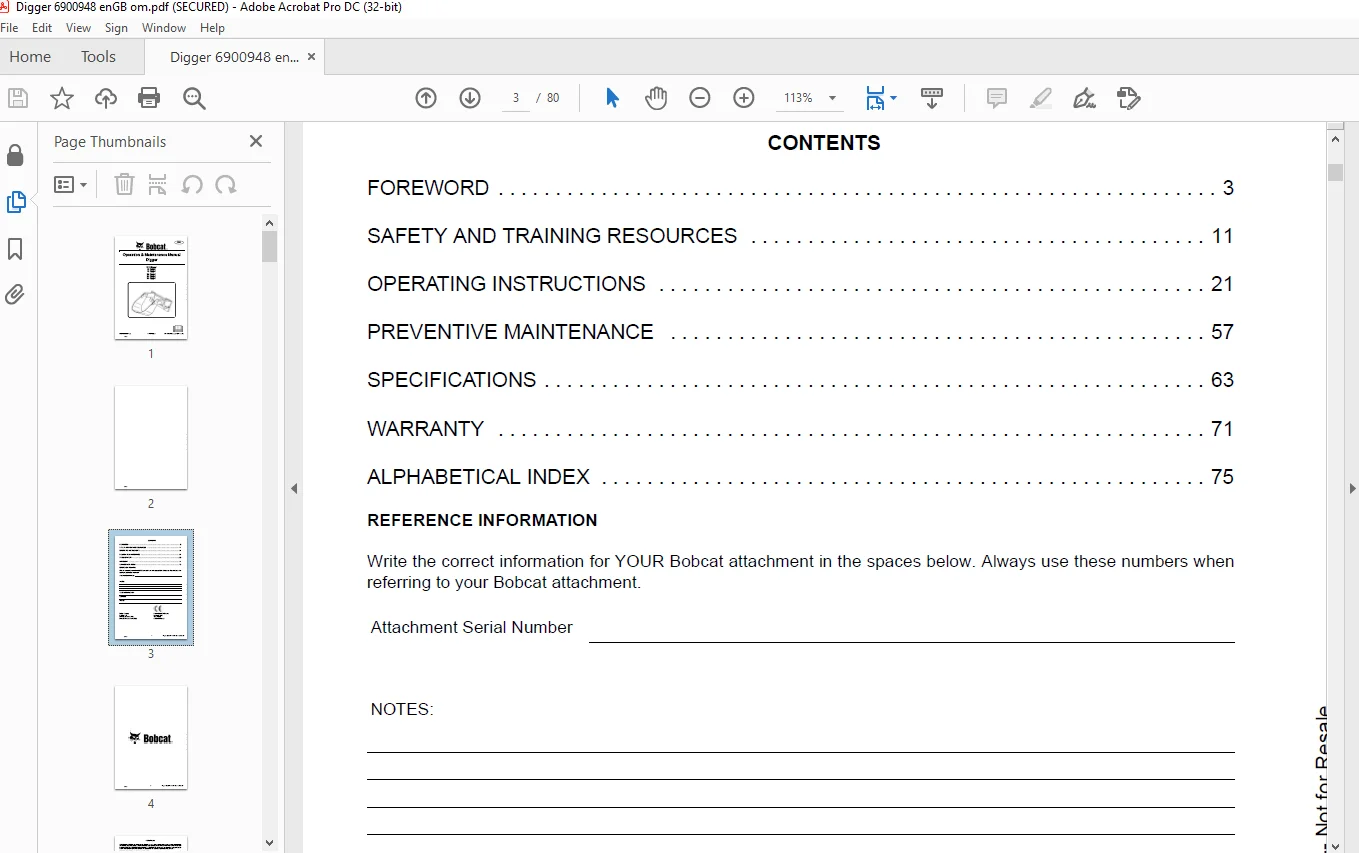

CONTENTS 3
FOREWORD 5
BOBCAT COMPANY IS IS0 9001 CERTIFIED 7
SERIAL NUMBER LOCATION 9
Attachment Serial Number 9
DELIVERY REPORT 9

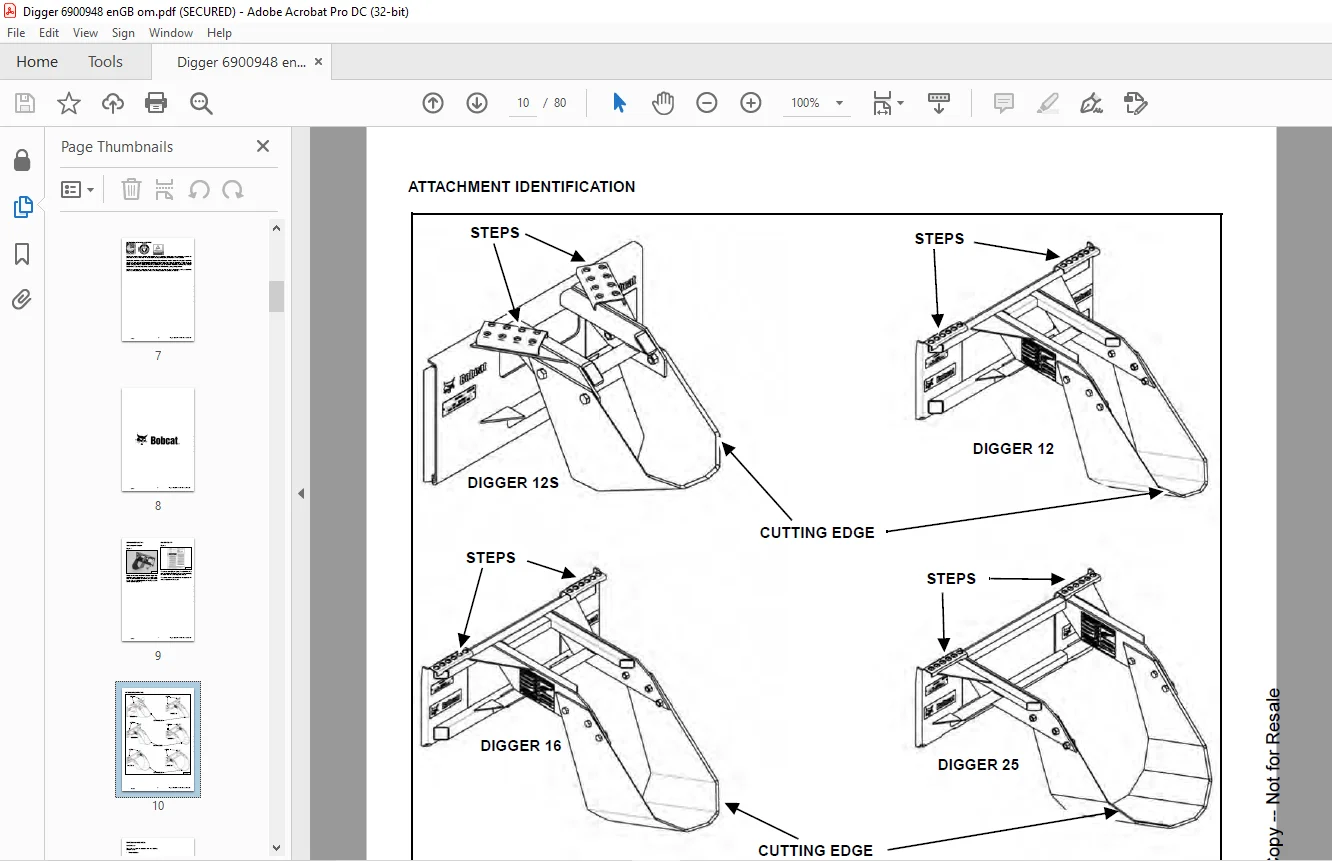

ATTACHMENT IDENTIFICATION 10
FEATURES AND ACCESSORIES 11
Standard Items 11
SAFETY AND TRAINING RESOURCES 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Avoid Silica Dust 16
FIRE PREVENTION 17
Maintenance 17
Operation 17
Electrical 17
Hydraulic System 17
Fueling 17
Starting 17
Spark Arrester Exhaust System 17
Welding And Grinding 18
Fire Extinguishers 18
PUBLICATIONS AND TRAINING RESOURCES 19
ATTACHMENT SIGNS (DECALS) 20
Pictorial Only Safety Signs 21
OPERATING INSTRUCTIONS 23
DAILY INSPECTION 25
Attachment Mounting Frame 25
Bob-Tach 26
OPERATING PROCEDURE WITH LOADERS 28
Approved Loader Models And Requirements 28
Entering And Exiting The Loader 29
Installation 31
Operation With The Loader 36
Removal 42
OPERATING PROCEDURE WITH MINI TRACK LOADERS 45
Approved Mini Track Loader Models And Requirements 45
Entering And Leaving The Operator’s Position 46
Installation 48
Operation With The Mini Track Loader 51
Removal 56
LIFTING THE ATTACHMENT 57
Procedure 57
TRANSPORTING THE ATTACHMENT ON A TRAILER 57
Fastening 57
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 58
Loading And Fastening 58
PREVENTIVE MAINTENANCE 59
MAINTENANCE SAFETY 61
REGULAR MAINTENANCE ITEMS 63
Blade Sharpening 63
ATTACHMENT STORAGE AND RETURN TO SERVICE 64
Storage 64
Return To Service 64
SPECIFICATIONS 65
(12s DIGGER) SPECIFICATIONS 67
Dimensions 67
Performance 67
(12 DIGGER) SPECIFICATIONS 68
Dimensions 68
Performance 68
(16 DIGGER) SPECIFICATIONS 69
Dimensions 69
Performance 69
(25 DIGGER) SPECIFICATIONS 70
Dimensions 70
Performance 70
(30 DIGGER) SPECIFICATIONS 71
Dimensions 71
Performance 71
(36 DIGGER) SPECIFICATIONS 72
Dimensions 72
Performance 72
WARRANTY 73
WARRANTY 75
ALPHABETICAL INDEX 77
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
