Yanmar 4TNV98-ZWBV2 Engine Parts Manual 50940213 – PDF DOWNLOAD
DESCRIPTION:
Yanmar 4TNV98-ZWBV2 Engine Parts Manual 50940213 – PDF DOWNLOAD
TO ORDER YOUR SPARE PARTS, ALWAYS STATE :
A – The reference of the catalogue (See cover)
B – Number of the figure
C – Item of the part and quantity desired
D – Type of the machine and its number in the serie
EXAMPLE OF ORDER :
Catalogue ref : 647 XXX
Figure : 6 BA 122
Item : 2
Quantity : 1
Type of the machine : —
Number in the serie : —
With the above information, your MANITOU dealer can identify
the number and proper part required.

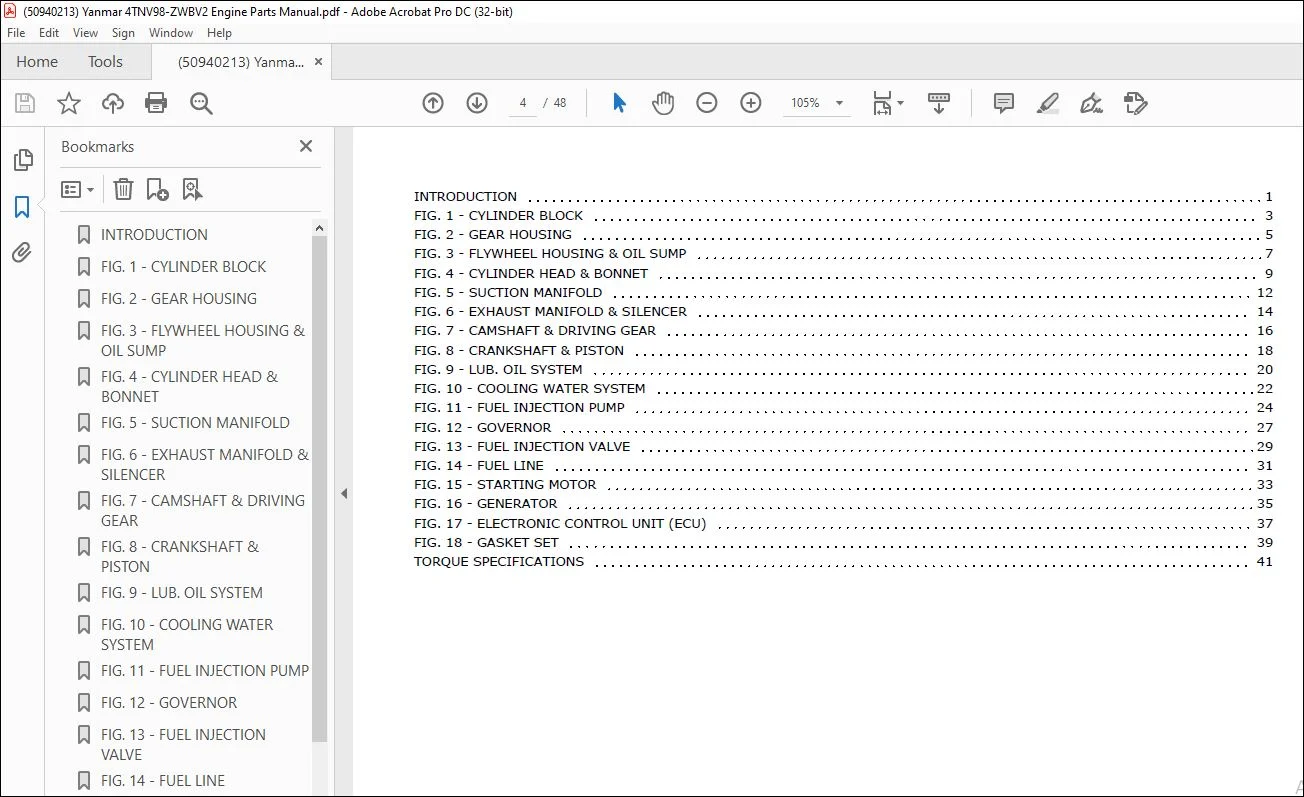

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Yanmar 4TNV98-ZWBV2 Engine Parts Manual 50940213 – PDF DOWNLOAD
INTRODUCTION 1
FIG. 1 – CYLINDER BLOCK 3
FIG. 2 – GEAR HOUSING 5
FIG. 3 – FLYWHEEL HOUSING & OIL SUMP 7
FIG. 4 – CYLINDER HEAD & BONNET 9
FIG. 5 – SUCTION MANIFOLD 12
FIG. 6 – EXHAUST MANIFOLD & SILENCER 14
FIG. 7 – CAMSHAFT & DRIVING GEAR 16
FIG. 8 – CRANKSHAFT & PISTON 18
FIG. 9 – LUB. OIL SYSTEM 20
FIG. 10 – COOLING WATER SYSTEM 22
FIG. 11 – FUEL INJECTION PUMP 24
FIG. 12 – GOVERNOR 27
FIG. 13 – FUEL INJECTION VALVE 29
FIG. 14 – FUEL LINE 31
FIG. 15 – STARTING MOTOR 33
FIG. 16 – GENERATOR 35
FIG. 17 – ELECTRONIC CONTROL UNIT (ECU) 37
FIG. 18 – GASKET SET 39
TORQUE SPECIFICATIONS 41
