Yale Msw 030 e Msw 040 e C820 Mrw 020 e Mrw 030 e C821 Lift Truck Parts Manual Download
VIDEO PREVIEW OF THE MANUAL:

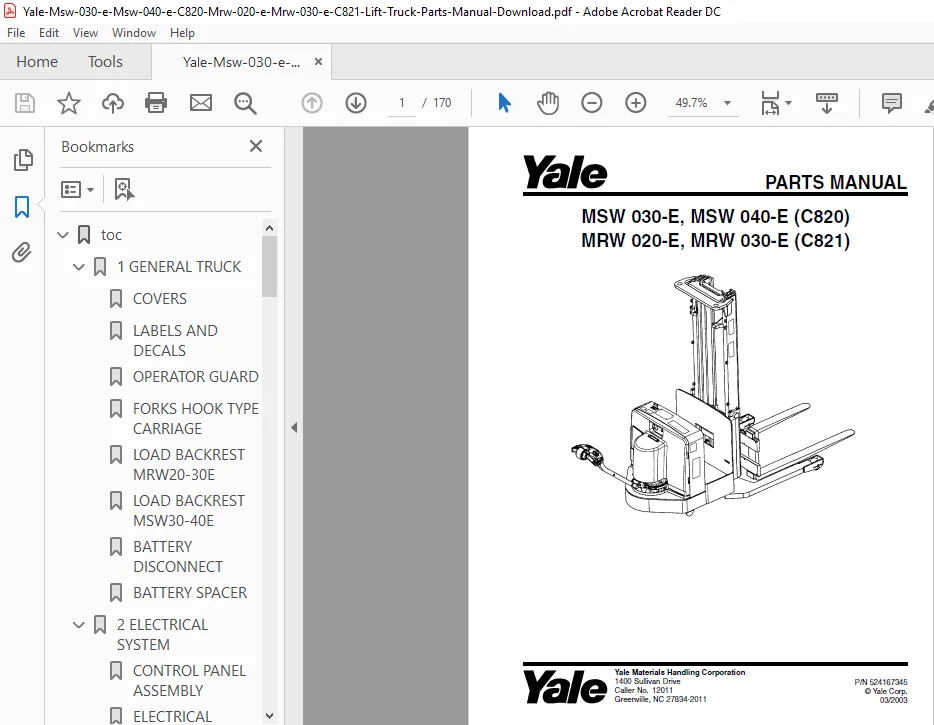

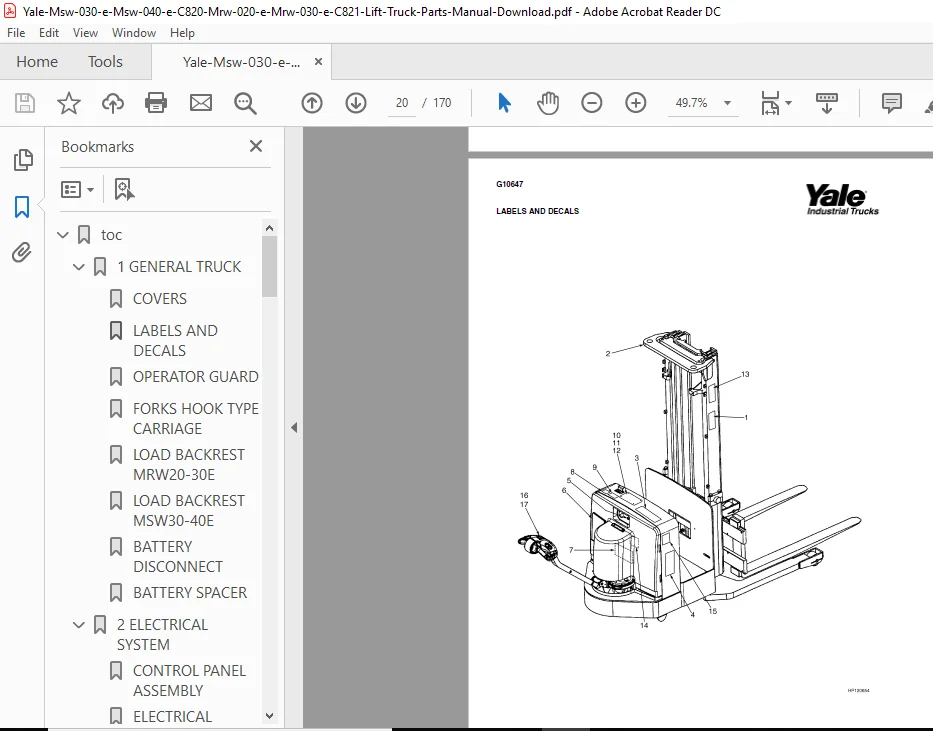

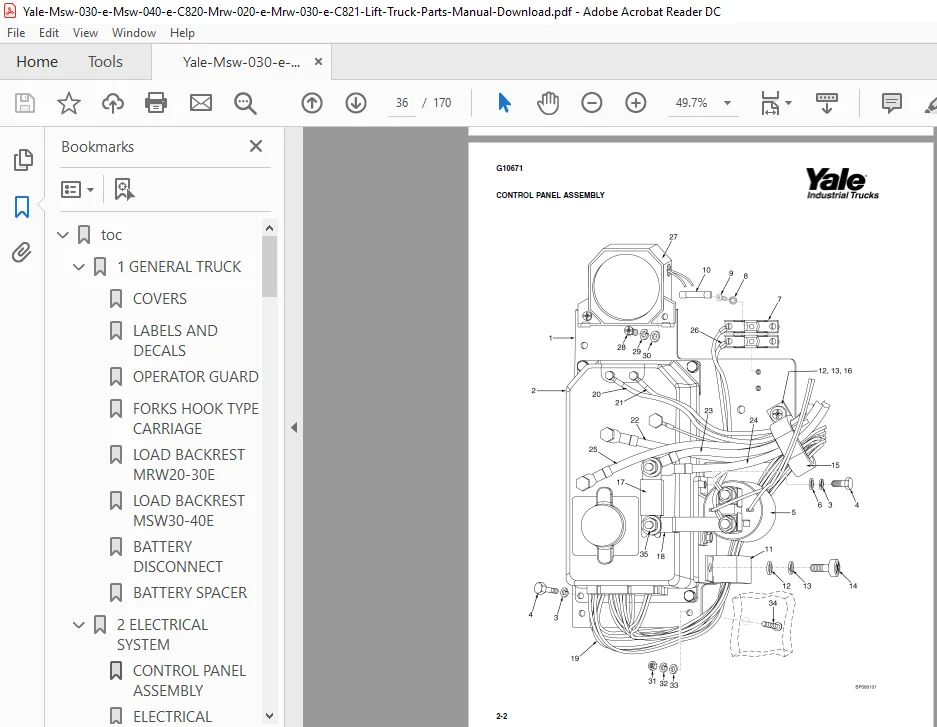

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
WHEN THE PART NUMBER AND THE NEXT HIGHER ASSEMBLY IS NOT KNOWN:
1. Determine the function and application of the part required. Turn to the Sections Page. Choose the general area of reference most likely to include the part.
2. Turn to the section you chose. Use the Section Table of Contents to determine the assembly which would normally contain the part required. Then locate the part on the assembly breakdown page.
3. Determine the assembly the required part is used on. Turn to the Alphabetical Index on Page i.
4. Locate the assembly the required part is used on and turn to the page indicated for that assembly. Then locate the part on the assembly breakdown page.
5. Use the Numerical Index on Page 9-1 to find the part number. Turn to the page listed and locate the part as indicated by the item number. GENERAL: The assembly breakdowns include part numbers, descriptions, quantities required, keys and footnotes to help in selecting correct parts.
6. Five periods in the PART NO. column (. . . . .) indicate that the part is either Not Serviced Separately or there is a reference to another figure. A figure reference is denoted by a pointing hand followed by a parts page number in the DESCRIPTION column (☞7A56)
7. Keys are used to show two or more similar assemblies, RH and LH assembly parts, etc. Select the appropriate key, “A”, “B”, “C”, “D”, or “E” and the corresponding quantity column to find the required parts. Two periods in the QTY column (..) indicate that the part is not used for that assembly. 8. Indented descriptions under the DESCRIPTION column are used to indicate assemblies and subparts of assemblies. In the example on the previous page, BEARING CAP (Item 2) is a subpart of the major assembly CASE. 9. Quantities shown are for one assembly. The quantities of the subpart BEARING CAP are indicated as two and two. This means two per CASE assembly. 10. Serial number breaks identify the most current parts information and are shown as follows: ⇒ S/N A810N-2639 Indicates last serial number affected. S/N A810N-2640 ⇒ Indicates the first serial number affected. S/N A810N-1553 ⇔ S/N A810N-3291 Indicates a range of serial numbers affected.
TABLE OF CONTENTS:
Yale Msw 030 e Msw 040 e C820 Mrw 020 e Mrw 030 e C821 Lift Truck Parts Manual
1)GENERAL TRUCK
2 )ELECTRICAL SYSTEM
3 )DRIVE UNIT AND BRAKE ASSEMBLY
4 )CONTROL HANDLE
5 )LOAD WHEEL
6 )HYDRAULIC SYSTEM
7 )LIFTING MECHANISM
8 )OPTIONS
9 )NUMERICAL INDEX
10 )USER SUPPORT INFORMATION
INDEX DETAILS:
Yale Msw 030 e Msw 040 e C820 Mrw 020 e Mrw 030 e C821 Lift Truck Parts Manual
ABBREVIATIONS QUICK REFERENCE SHEET iv
ALPHABETICAL INDEX i
B
BATTERY DISCONNECT 1-14
BATTERY ROLLER 8-2
BATTERY SPACER 1-16
C
CHAINS, PINS, AND ANCHORS
THREE STAGE FULL FREE-LIFT
MRW020-030E 7-10
MSW 030-040E 7-12
TWO STAGE LIMITED FREE-LIFT
MRW020-030E 7-14
MSW030-040E 7-16
CONTROL HANDLE ARM ASSEMBLY 4-2
SEMI-ROTARY 8-4
CONTROL HANDLE ASSEMBLY 4-4
OPTIONAL 8-6
CONTROL PANEL ASSEMBLY 2-2
COVERS 1-2
E
ELECTRIC BRAKE 3-2
ELECTRICAL ARRANGEMENT 2-4
EXTENDED CYLINDER ASSEMBLY
MRW020-030E 7-18
F
FORK CARRIAGE
MSW 030-040E 7-42
FORKS
HOOK TYPE CARRIAGE 1-8
FREE-LIFT CYLINDER ASSEMBLY
MRW020-030E 7-20
MSW 030-040E
THREE STAGE FULL FREE-LIFT 7-22
H
HEADER HOSE GROUP
MRW020-030E 7-24
HOW TO FIND THE DESIRED PART NUMBER vi
HOW TO USE THE ILLUSTRATED PARTS MANUAL vi
HYDRAULIC POWER UNIT
REACH 6-2
i
GENERAL INFORMATION
DESCRIPTION PAGE NO
H (continued)
WITH AUXILIARY 6-4
WITHOUT AUXILIARY
S/N C820N-0152Z⇒ 6-8
⇒S/N C820N-0152Z 6-6
HYDRAULIC SYSTEM 6-10
I
IDENTIFICATION OF MAST SERIAL NUMBER viii
IDENTIFICATION OF TRUCK SERIAL NUMBER vii
INNER CARRIAGE
MRW020-030E 7-44
INTEGRAL TILT ASSEMBLY
MRW020-030E 7-26
WITH SIDESHIFT
MRW020-030E 7-28
L
LABELS AND DECALS 1-4
LIFT CYLINDER ASSEMBLY
MRW020-030E 7-30
MSW 030-040E
THREE STAGE FULL FREE-LIFT 7-32
TWO STAGE LIMITED FREE-LIFT 7-34
LIFT CYLINDER INSTALLATION
MRW020-030E 7-36
MSW 030-040E
THREE STAGE FULL FREE-LIFT 7-38
TWO STAGE LIMITED FREE-LIFT 7-40
LOAD BACKREST
MRW20-30E 1-10
MSW30-40E 1-12
LOAD WHEEL 5-2
FIXED TANDEM 8-12
M
MASTER DRIVE UNIT 3-8
MASTER DRIVE UNIT ASSEMBLY 3-4
MASTER PART SHEET CROSS-REFERENCE ix
O
OPERATOR GUARD 1-6
THREE STAGE FULL FREE-LIFT 8-14
TWO STAGE LIMITED FREE-LIFT 8-16
ii
GENERAL INFORMATION
DESCRIPTION PAGE NO
S
SCISSOR CARRIAGE
MRW020-030E 7-48
SIDE-SHIFT ASSEMBLY
HANG-ON TYPE 8-8
SIDE-SHIFT CYLINDER
HANG-ON TYPE 8-10
T
TRACTION MOTOR 2-6
U
UPRIGHTS
THREE STAGE FULL FREE-LIFT 7-2
TWO STAGE LIMITED FREE-LIFT 7-6
Z
ZAPI-HANDSET KIT 8-18
ZAPI-LAPTOP/PC KIT (WINDOWS) 8-19
iii
FILE DETAILS:
LANGUAGE:ENGLISH
PAGES:170
DOWNLOADABLE:YES
FILE TYPE:PDF
