White WC 30thru60 Forklift Trucks Parts Catalog Manual – PDF DOWNLOAD
FILE DETAILS:
White WC 30thru60 Forklift Trucks Parts Catalog Manual – PDF DOWNLOAD
Format: PDF
Language: English
DESCRIPTION:
White WC 30thru60 Forklift Trucks Parts Catalog Manual – PDF DOWNLOAD
Serial Numbers
WC30- 35000001
WC35-36700001
WC40-35100001
WC45-36800001
WC50-35200001
WC55-36900001
WC60-35300001
FOREWORD:
This catalog contains a complete list of parts for the lift truck. To assist in determining the part numbers and descriptions, the parts in this catalog are grouped according to their location on the lift truck. Reference numbers only are shown in each illustration. These numbers correspond to those in the reference number column in the list of parts which follows each “exploded view”. TYPICAL PARTS ARE SHOWN, AND MAY NOT ALWAYS BE IDENTICAL WITH CURRENT PARTS. REFER TO THE TEXT. “RIGHT OR LEFT” IS DETERMINED BY FACING TOWARD THE UPRIGHT FROM THE LIFT TRUCK SEAT.
- To further assist in locating repair parts, the part numbers are arranged in numerical sequence and indexed at the rear of this catalog. Component parts of assemblies are listed following the assembly itself and are identified as being part of the assembly by this notation following the description: Consists of the following … parts or Includes the following … parts: Part numbers only make up an assembly. Hardware items are not to be included. Parts such as standard bolts, nuts, screws, washers, etc., are listed under the respective individual parts with which they are used. The quantity for many of the shims,listed is shown as A.R. (as required).
- The correct amount of shims should be determined in order to get the proper clearance. Bolts and nuts listed are standard Grade 5, special grades will be shown in text. Order hardware thru Standard Fastner Program or purchase locally. Occasionally new part numbers replace old numbers in the Part No. column. In those cases where the new number substitutes for the old number, the old number will be enclosed in parenthesis and it will appear at the end of the text in the description column. When in need of repair parts, order from your local dealer.
- All parts orders should plainly specify your name, post office address, and whether shipment is to go by parcel post, express, or freight. Claims of shortage or breakage should be made to the transportation company on receipt of goods. Before returning repair parts to the factory or parts depot, it is necessary to secure written permission from the Company authorizing the return of such parts. In the returning of repair parts be sure the package is tagged with your name and address. Prepay transportation charges. It is the policy of the Company to improve its products whenever it is possible and practical to do so. We reserve the right to make changes or add improvements in the design or construction of parts at any time without incurring the obligation to install such changes on products previously delivered.
TABLE OF CONTENTS:
White WC 30thru60 Forklift Trucks Parts Catalog Manual – PDF DOWNLOAD
Accumulator D-4
Alternator F-2
Air Cleaner E-2,E-3
Auxiliary Valves D-13,D-14
Battery C-10
Battery Box C-10
Brakes A-23 thru A-24
Brake Linkage A-16 thru A-18
Cables for Battery C-10
Camshaft F-12
Carburetor, Gasoline Engine E-5,E-6
Carburetor, LP-Gas Engine E-11,E-12
Choke Control C-8
Clutch A-11
Clutch Pedal and Linkage A-16 thru A-18
Coil, Ignition F-2
Connecting Rod F-11
Control Valve, Lift and Tilt… D-13,D-15
Cooling System F-7
Counterweight C-3
Crankcase F-8
Crankshaft F-10
Cylinder Head F-8
Dead Man Seat C-7
Decals G-2
Differential and Cage A-7,A-8
Distributor F-2
Drive Axle and Wheels A-9
Drag Link, Steering, 30-50 B-12
Engine Oil G-3
Fan F-7
Flywheel and Housing F-9,F-10
Foot Accelerator ..C-9
Frame C-2
Fuel Filler E-4
Fuel Pump E-4
Gas Manifold F-9
Gasket Sets A-6
Generator, UL GS Equipped F-4
Governor F-14 thru F-15
Hood C-4
Horn C-8
Horn Button B-2
Hydra-Lizer and Wheels B-13 thru B-15
Hydraulic Oil Lines D-2,D-3
Hydraulic Pumps D-5 thru p-12
Page
Ignition Lock Vacuum Switch C-8
Ignition System F-2
Instrument Panel C-5
Lamps C-11
LP-Gas Equipment E-7 thru E-13
Master Cylinder A-18,A-19
Muffler F-5
Oil-Transmission and Hydraulic G-3
Oil Filter, Engine F-13
Oil Filter, Transmission A-20
Oil Pump, Engine F-13
Overhead Guard C-3
Oxy Catalyst Muffler F-5
Paint G-2
Pistons and Rings F-11
Positive Crankcase Breather F-3
Power Steering Booster, 55-60 B-11
PTX Muffler F-5
Quick Disconnect Coupling, Hyd D-4
Quick Disconnect Coupling, LP-Gas E-9
Radiator F-7
Rings for Pistons F-11
Seats C-6
Spark Plug F-2
Starting Motor F-2
Steering Cylinder, 55-60 B-11 –
Steering Gear, 30-50 B-3 thru B-6
Steering Linkage B-12
Steering Motor, 55-60 B-7 thru B-10
Steering Wheel B-2
Tilt Cylinder D-16,D-17
Thermostat F-7
Transmission A-12,A-13
Transmission Case A-10
Transmission Controls A-14 thru -A-18
Transmission Oil G-3
Transmission Control Linkage….A-16 thru A-19
Valves F-12
Voltage Regulator F-2,F-4
Water Pump F-6
Wheels, Drive A-9
Wheels, Steering B-15
Wiring Harness C-10,F-4
NUMERICAL INDEX G-4 thru G-15
VIDEO PREVIEW OF THE MANUAL:

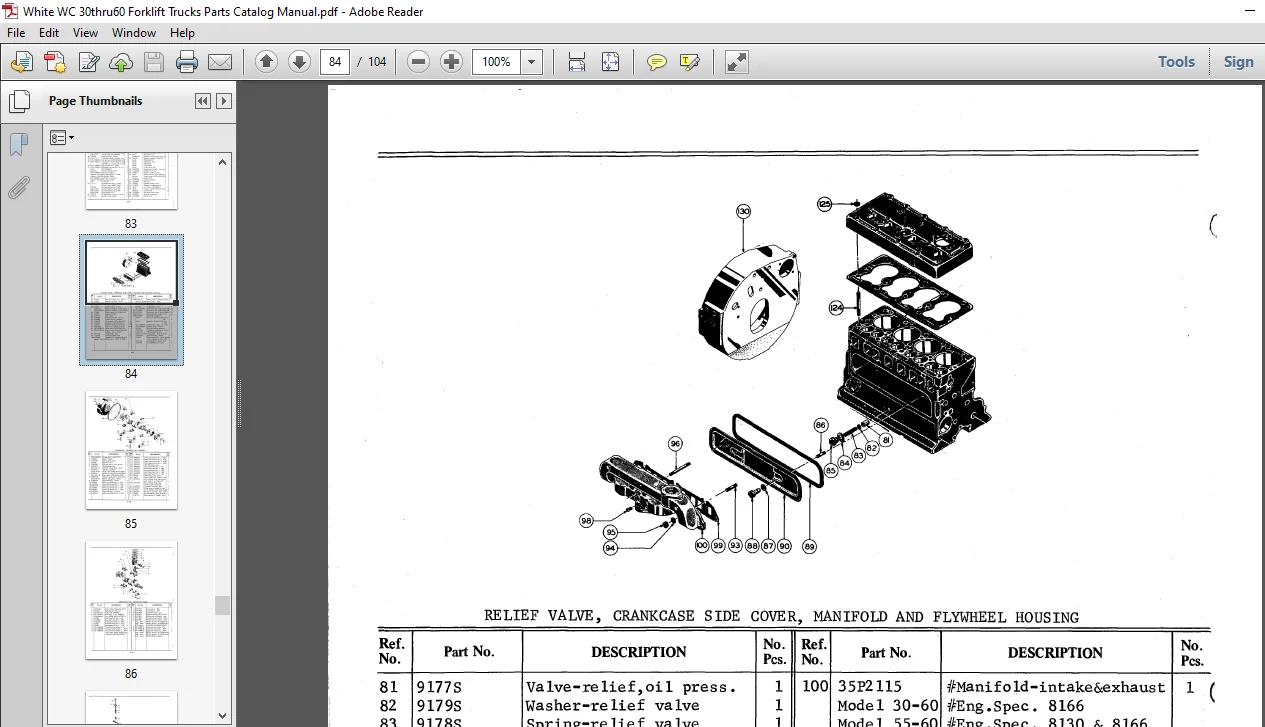

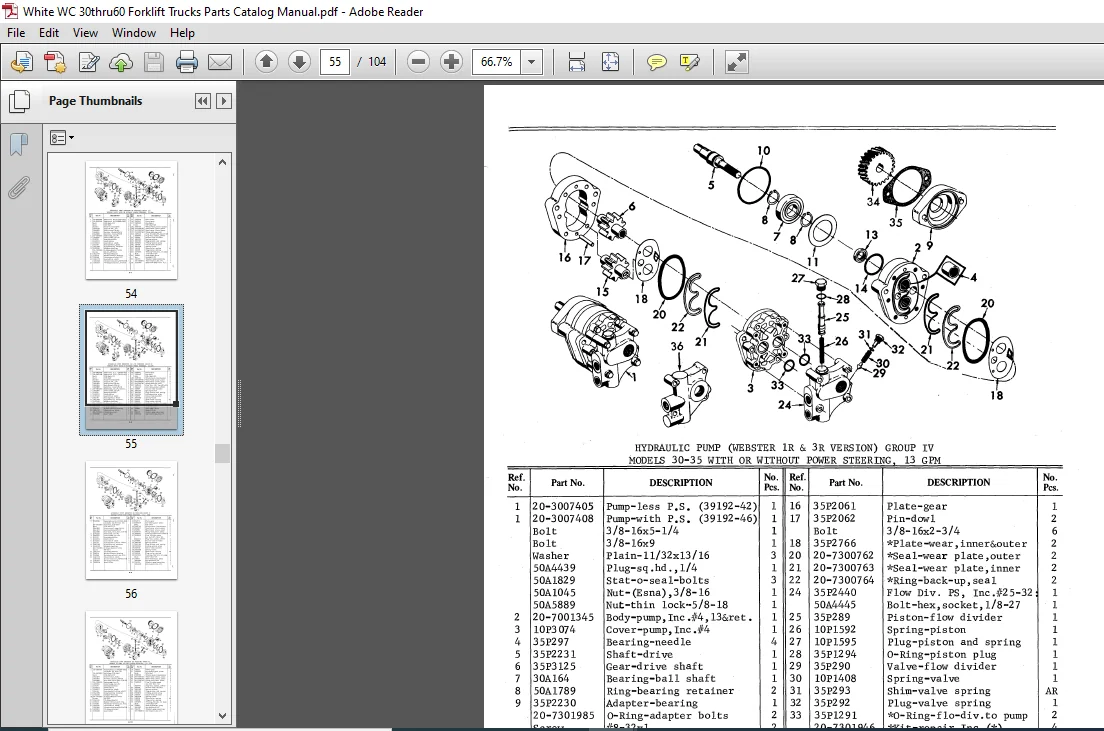

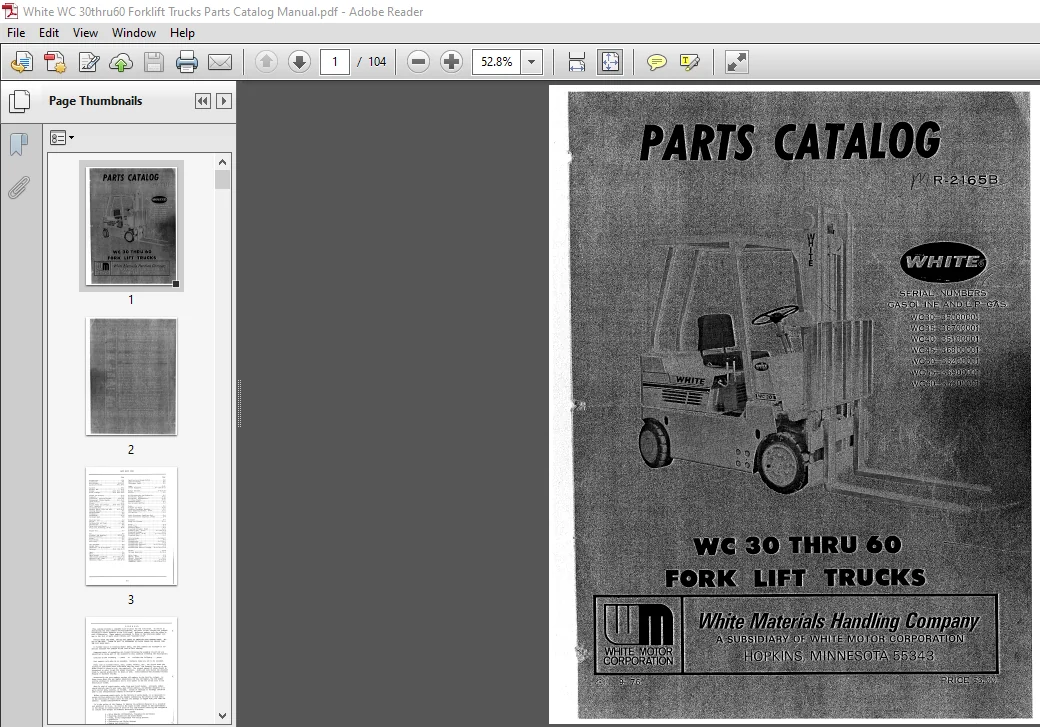

IMAGES PREVIEW OF THE MANUAL:
