VOLVO PENTA 3.0 GL GS (GS A B C also 3.0 GL A B C 1) Marine Engine Factory Repair Shop Manual
FILE DETAILS:
LANGUAGE:ENGLISH
PAGES:176
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:

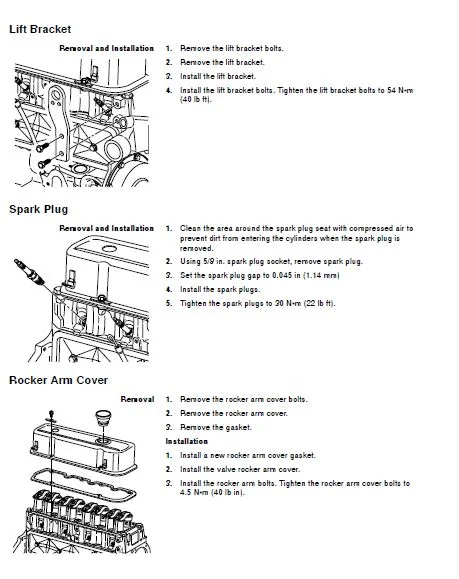

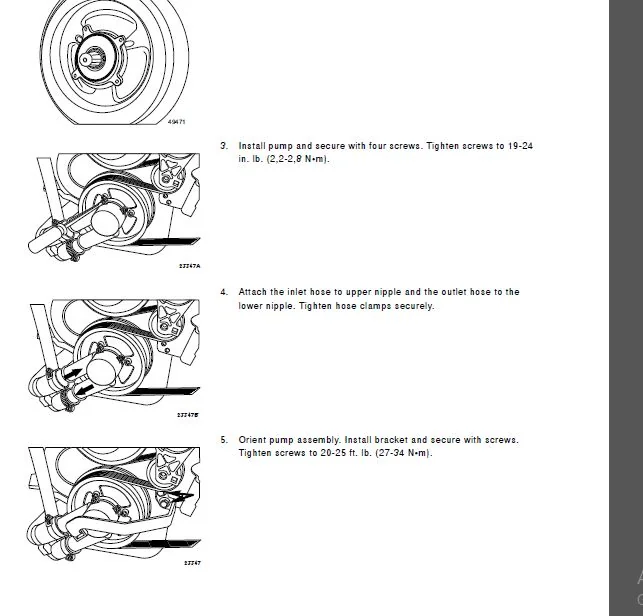

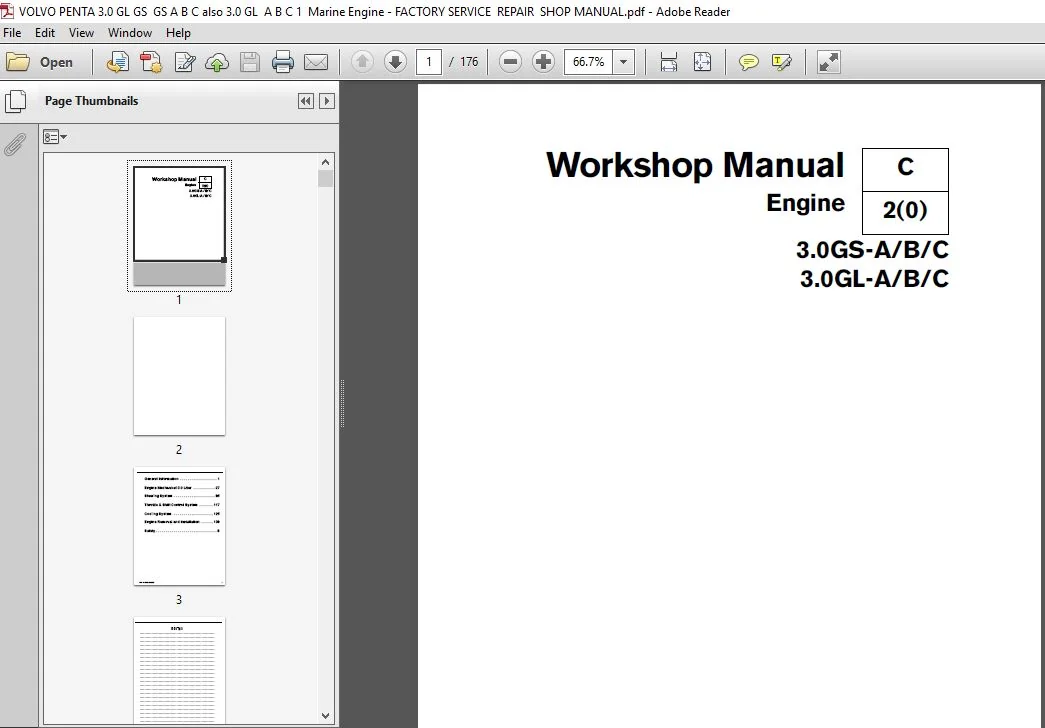

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
VOLVO PENTA 3.0 GL GS (GS A B C also 3.0 GL A B C 1) Marine Engine Factory Repair Shop Manual
FOREWORD:
This service manual is divided into sections concerning various systems and assemblies. Refer to the Contents to locate the section covering the system or assembly requiring service. Each section title page has an additional listing that will describe the sections contents in more detail. Be sure to read the Safety Section at the end of this manual, and pay special attention to all safety warnings as they appear throughout the text. Since models are subject to change at any time, some photos may not depict actual product. Good Service Practice Service required for stern drives is generally one of three kinds:
- Normal care and maintenance – which includes putting a new stern drive into operation, storing engines, lubrication, and care General Information 2 VPA 7743358 03-2003 under special operating conditions such as salt water and cold weather.
- Operating malfunctions – due to improper engine or drive mounting, propeller condition or size, boat condition, or the malfunction of some part of the engine. This includes engine servicing procedures to keep the engine in prime operating condition.
- Complete disassembly and overhaul – such as major service or rebuilding a unit.
It is important to determine before disassembly just what the trouble is and how to correct it quickly, with minimum expense to the owner. When repairing an assembly, the most reliable way to ensure a good job is to do a complete overhaul on that assembly, rather than just to replace the bad part. Wear not readily apparent on other parts could cause malfunction soon after the repair job. Repair kits and seal kits contain all the parts needed to ensure a complete repair, to eliminate guesswork, and to save time.
- Repair time can also be minimized by the use of special tools. Volvo Penta special tools are designed to perform service procedures unique to the product that cannot be completed using tools from other sources. They also speed repair work to help achieve service flat rate times. In some cases, the use of substitute tools can damage the part. Preparation for Service Proper preparation is extremely helpful for efficient service work.
- A clean work area at the start of each job will minimize tools and parts becoming misplaced. Clean an engine that is excessively dirty before work starts. Cleaning will occasionally uncover trouble sources. Obtain tools, instruments and parts needed for the job before work is started. Interrupting a job to locate special tools or repair kits is a needless delay.
TABLE OF CONTENTS:
VOLVO PENTA 3.0 GL GS (GS A B C also 3.0 GL A B C 1) Marine Engine Factory Repair Shop Manual
General Information 1 Engine Mechanical 3.0 Liter 27 Steering System 95 Throttle & Shift Control System 117 Cooling System 125 Engine Removal and Installation 139 Safety S
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
