SUZUKI GSX 1300R SUPPLEMENTARY SERVICE MANUAL – PDF DOWNLOAD
DESCRIPTION:
SUZUKI GSX 1300R SUPPLEMENTARY SERVICE MANUAL – PDF DOWNLOAD
FOREWORD
This manual describes service data, service specifications and servicing procedures which differ from those of the GSX1300RY (‘DO-model). NOTE: • Any differences between the GSX1300RY (2000-model) and GSX1300RK1 (2001- model) in specifications and service data are indicated with an asterisk mark (*). • Please refer to the service manual for details which are not given in this manual.
TABLE OF CONTENTS:
SUZUKI GSX 1300R SUPPLEMENTARY SERVICE MANUAL – PDF DOWNLOAD
SPECIFICATIONS 2
FUEL SYSTEM 4
THROTTLE BODY 13
CAM CHAIN TENSION ADJUSTER 14
WIRING DIAGRAM 15
WIRE HARNESS ROUTING 18

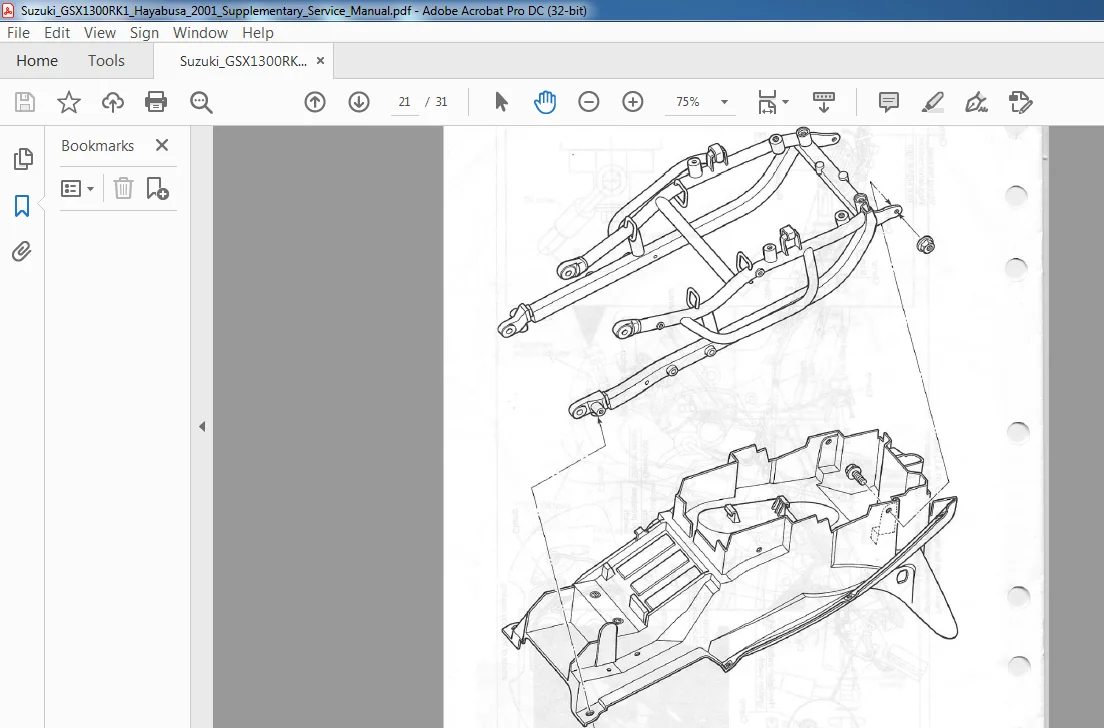

SEAT RAIL AND REAR FENDER 20
PILLION HANDLEBAR MOUNTING 21
SERVICE DATA 22
SPECIFICATIONS
DIMENSIONS AND DRY MASS
Overall length
Overall width :
Overall height
Wheelbase
Ground clearance
Seat height
Dry mass
ENGINE
2 140 mm (84 3 in)
740 mm (29 1 in)
1 155 mm (45 5 in)
1 485 mm (58 5 in)
120mm (4 7in)
805 mm (31 7 in)
218 kg ( 480 lbs) (For E-33)
217 kg ( 4 78 lbs) (For the others)
Type Four-stroke, Liquid-cooled, DOHC
Number of cylinders 4
Tappet clearance, IN 0 10 – 0 20 mm (0 004 – 0 008 in)
EX 0 20 – 0 30 mm (0 008- 0 012 in)
Bore 81 0 mm (3 189 in)
Stroke 63 0 mm (2 480 in)
Piston displacement , 1 299 cm3 (79 3 cu in)
Compression ratio 11 0 : 1
Fuel system Fuel injection system
Air cleaner Non-woven fabric element
Starter system Electric starter
Lubrication system Wet sump
TRANSMISSION
Clutch Wet multi-plate type
Transmission 6-speed constant, mesh
Gearshift pattern 1-down, 5-up
Primary reduction ratio 1 596 (83/52)
Gear ratios, Low 2 615 (34/13)
2nd 1 937 (31/16)
3rd , 1 526 (29/19)
4th 1 285 (27/21)
5th 1 136 (25/22)
Top 1 043 (24/23)
Final reduction ratio 2 352 (40/17)
Drive system RK GB50GSV Z3, 112 links
GSX1300RK1 (2001-M0DEL) 3
CHASSIS
Front suspension Inverted telescopic, coil spring, oil damped, spring
pre-load ful ly adjustable, compression damping
force 13-way adjustable, rebound damping force 14-
way adjustable
Rear suspension Link type system, gas/oil damped, coil spring,
spring pre-road fully adjustable, compression damping
force 22-way adjustable, rebound damping force
22-way adjustable
Front fork stroke 120 mm (4 7 in)
Rear wheel travel 140 mm (5 5 in)
Steering angle 30° (right & left)
Caster 24° 12′
Trail 97 mm (3 8 in)
Turning radius 3 3 m (10 8 ft)
Front brake Disc brake, twin hydraulically operated
Rear brake Disc brake, hydraulically operated
Front tire size 120/70 ZR17 (58 W), tubeless
Rear tire size 190/50 ZR17 (73 W), tubeless
ELECTRICAL
Ignition type Electronic ignition (Transistorized)
Ignition timing 4° B T D C at 1 200 r/min For E-03, 28, 33
11°8 T D C at 1150r/min(1 &4cylinders) ····: Forthe
3° B T D C at1150r/min(2&3cylinders) :··· others
Spark plug
Battery
Generator
Main fuse
Fuse
Headlight
Turn signal light
Position light
Brake lightffaillight
License plate light
Combination meter light
Neutral indicator light
High beam indicator light
Turn signal indicator light
Oil pressure indicator light
Fuel level indicator light
Engine coolant temp indicator light
FI indicator light
CAPACITIES
Fuel tank, including reserve
21 L (5 5/4 6 US/Imp gal) For the others
Engine oil, oil change
with filter change
overhaul
Coolant
Front fork oil (each leg)
VIDEO PREVIEW OF THE MANUAL:

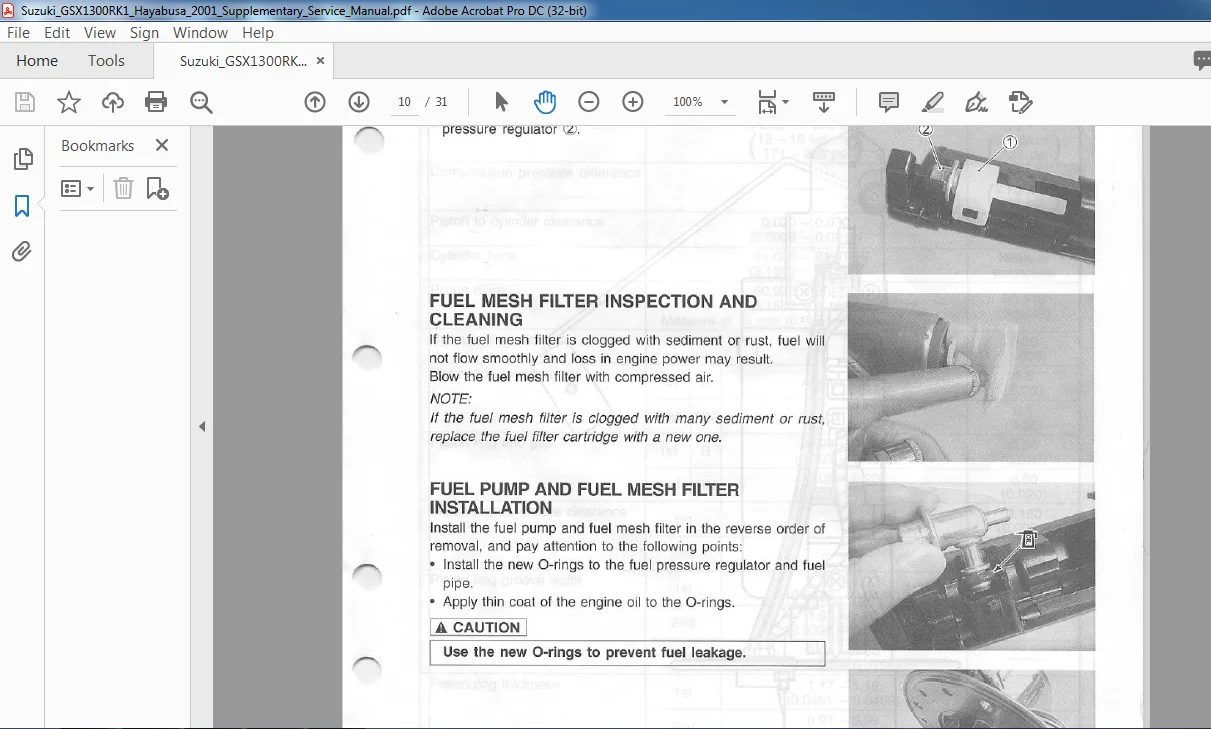

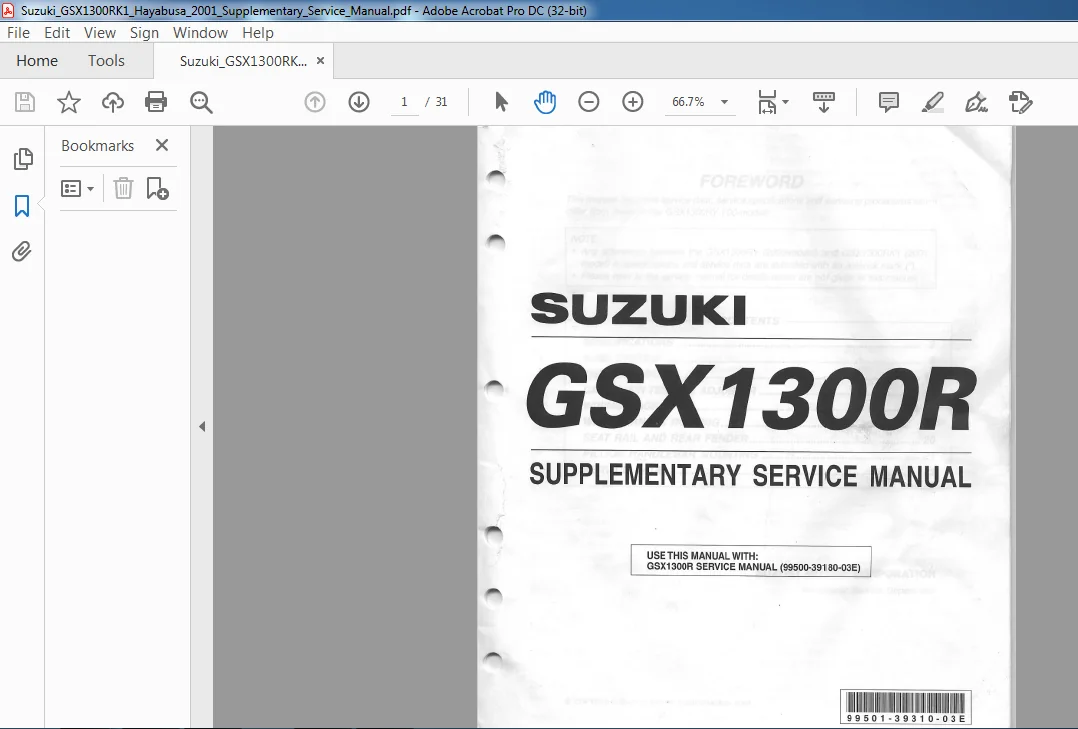

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
S.M
