Skyjack SJ12 SJ16 Vertical Mast Parts Manual 160606AE – PDF DOWNLOAD
FILE DETAILS:
Skyjack SJ12 SJ16 Vertical Mast Parts Manual 160606AE – PDF DOWNLOAD
Language : English
Pages : 110
Downloadable : Yes
File Type : PDF
IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Skyjack SJ12 SJ16 Vertical Mast Parts Manual 160606AE – PDF DOWNLOAD
SJ 12 / SJ 16: 14,001,630 to 14,002,153
Including Serial Numbers: 14,001,417 & 14,001,435
General:
The information contained in this section is designed to aid the user in locating and identifying
replacement parts. Component parts of various assemblies and sub-assemblies comprising the

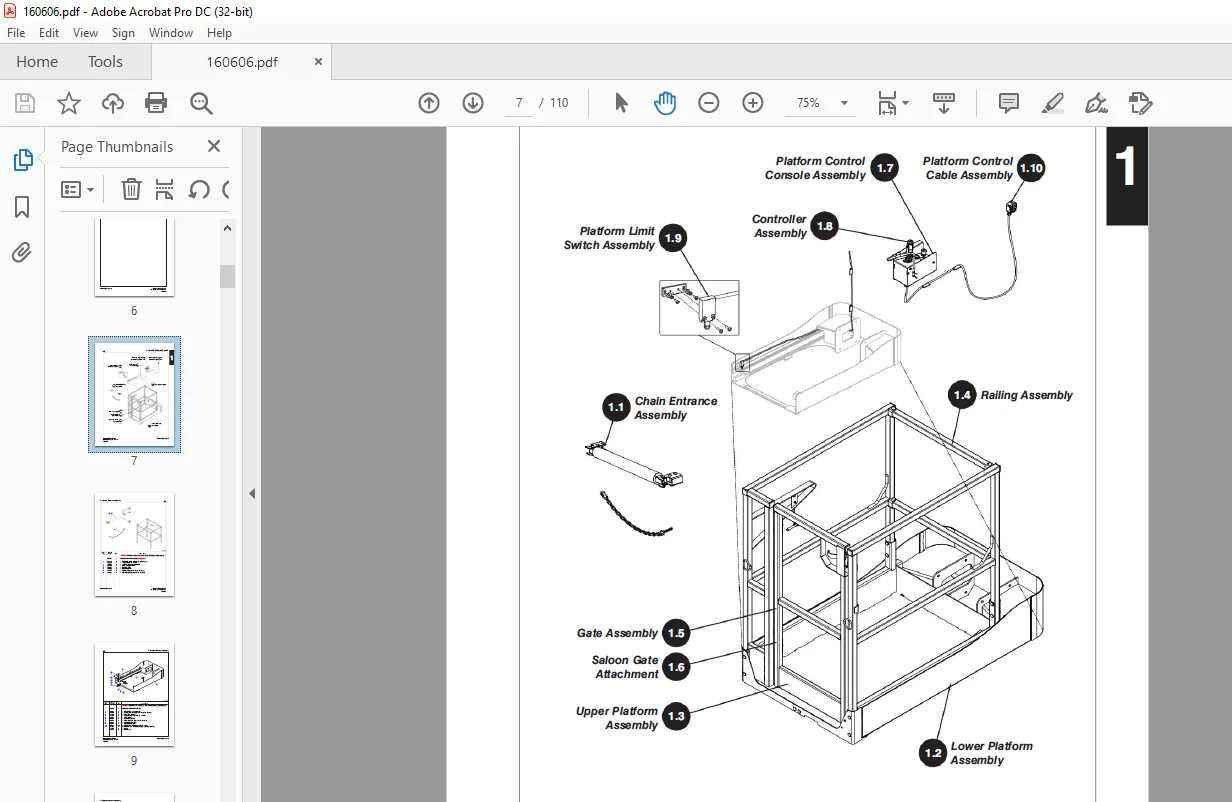

work platform are illustrated and accompanied by a descriptive parts list. Exploded drawings are
used to show relative location of component parts in disassembly order. If a part cannot be found
in this section, order by work platform model number and serial number, giving a complete
description of the part.
Parts Ordering Information:
When ordering replacement parts, the complete part number and description should be used to
ensure proper identification and delivery of the desired item. This complete identification should
also be used when requesting equipment information.
Method of Listing:
Parts are listed in order according to the reference number shown in the illustration,
followed by a full description based upon the “NOUN FIRST” method. That is, the noun name
of the part is listed first, then the modifying description information which serves to
specifically identify the item. For example: PIN, Clevis. Assemblies or groups are shown at the
beginning of a parts list and are identified with the letter references A, B, C, etc. Individual
parts in these lists have corresponding letters after their description to identify which assembly
or group it is used in. Individual parts without identifying letters are used in all the assemblies
or group shown at the beginning of the parts list. Descriptions preceded with an (•) indicates
a serviceable component or attaching hardware for the higher level assembly. If an index
number initially starts with the letter “K”, for example “K1”, means it’s a kit. Any item(s) included
in a kit will not have an index number.

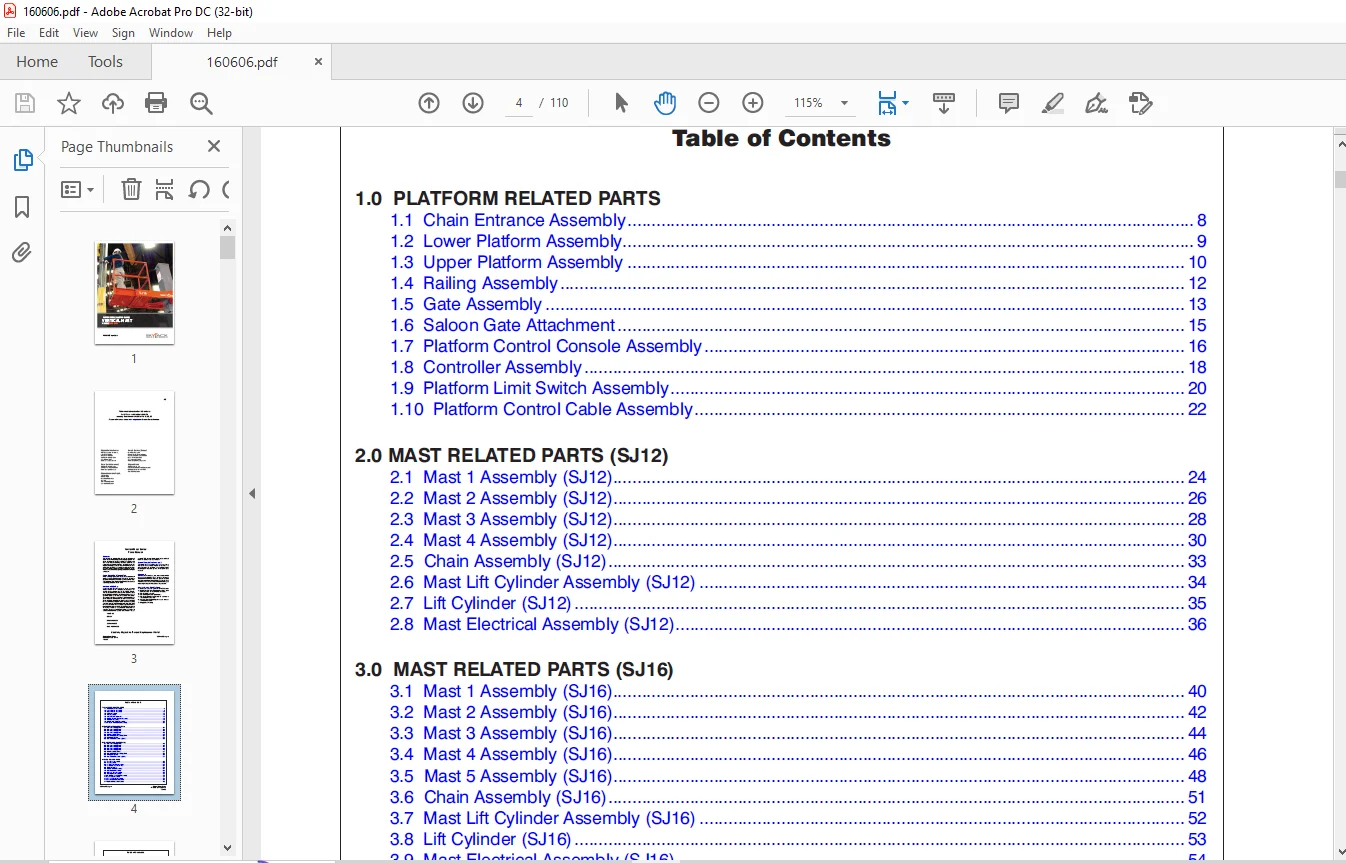

TABLE OF CONTENTS:
