Samsung Rf25hmedbsr Rf25hmedbbc Rf25hmedbww Service Manual
FILE DETAILS:
- LANGUAGE:ENGLISH
- PAGES:105
- FILE TYPE:PDF
- DOWNLOADABLE:YES
DESCRIPTION:
- Unplug the appliance before the changing or repairing the electric parts.
- Be careful the electric shock. When exchanging the parts, use the correct parts. Check the model name, rating voltage, rating current, running temperature symbols.
- When troubleshooting, connect firmly the types of harness. Make not to be separated when some power is imposed. Check the traces of water infiltration at the electric parts.
- If there is a trace of water infiltration, exchange or tape the parts. Check the assemble status of parts after troubleshooting. It must be in the same assembled state when compared with the state before disassembly.
- Check the use circumstance of refrigerator.
- If the refrigerator is installed at the place that is damp or wet, or status of installation is unstable, change the installation place. Ground the refrigerator properly Particularly, Be sure to earth when there is a risk of an electric leakage by humidity or wetness. Do not use multi plugs in a plug socket at the same time.
- Check if the power cord and socket is damaged, pressed, squeezed, or fired. If the plug or plug socket is damaged, repair or exchange it immediately. Do not allow consumers to repair the appliance by themselves.
IMAGES:
VIDEO PREVIEW:
TABLE OF CONTENTS:
Samsung Rf25hmedbsr Rf25hmedbbc Rf25hmedbww Service Manual
1 Precautions(Safety Warnings) 5
2 Product Specifications 9
2-1) Introduction of Main Function 10
2-2) Specifications 12

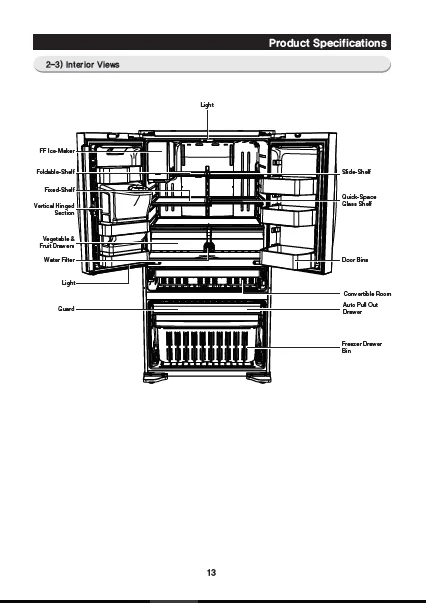

2-3) Interior Views 13
2-4) Model Specification &Specification Chart 14
2-5) Dimensions of Refrigerator (Inches) 17
2-6) Optional Material Specification 19
3 Disassembly and Reassembly 20
3-1) PRECAUTION 21
3-2) Refrigerator Door 22
3-3) Door Handle Refrigerator 24
3-4) Door Handle Freezer & Flex zone 25
3-5) Refrigerator Light 26
3-6) Cover-Display & Water-Dispenser 26
3-7) Water-Dispenser (RF25HM**) 27
3-8) Water-Dispenser (RF28HM**) 29
3-9) Glass Shelf 30
3-10) Foldable Glass Shelf 31
3-11) Vegetable & Fruit Drawers Shelf 31
3-12) Case Water Filter 32
3-13) Water Tank 33
3-14) Motor Damper 35
3-15) Water Filter (Assembly & Disassembly) 36
3-16) Vertical Hinged Section 37
3-17) Evaporator Cover In Refrigerator 38
3-18) Evaporator In Refrigerator 39
3-19) Freezer Door 40
3-20) Convertible Door 41
3-21) Flex Zone Door 42
3-22) Ice-Maker 43
3-23) Flex Zone Light 45
3-24) Freezer Light 45
3-25) Side Light 46
3-26) Door Switch In Freezer 46
3-27) Evaporator Cover In Freezer 47
3-28) Evaporator In Freezer 47
3-29) Comp Cooling Fan 48
3-30) Comp Cooling Fan Motor 49
3-31) Machine Compartment 50
3-32) Electric Box 50
3-33) Cover-Unit 51
3-29) Cover-Unit 51
Contents
4 TROUBLESHOOTING 52
4-1) Function for failure diagnosis 53
4-2) Diagnostic method according to the trouble symptom(Flow Chart) 67
5 PCB DIAGRAM 95
5-1) PBA Layout with part position 96
5-2) PBA Layout with part position (Inverter Board) 97
5-3) Connector Layout with part position (Main Board) 98
5-4) Connector Layout with part position (Inverter Board) 99
6 Wiring Diagram 100
7 Block Diagram 101
7-1) Whole block diagram 101
8 Model code table 103
8-1) RF28HM** 103
8-2) RF25HM**
PLEASE NOTE:
⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
