O and K WHEEL LOADER MODEL 2000-TB104 PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
O and K WHEEL LOADER MODEL 2000-TB104 PARTS MANUAL – PDF DOWNLOAD
Format: PDF
Language: English
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
O and K WHEEL LOADER MODEL 2000-TB104 PARTS MANUAL – PDF DOWNLOAD

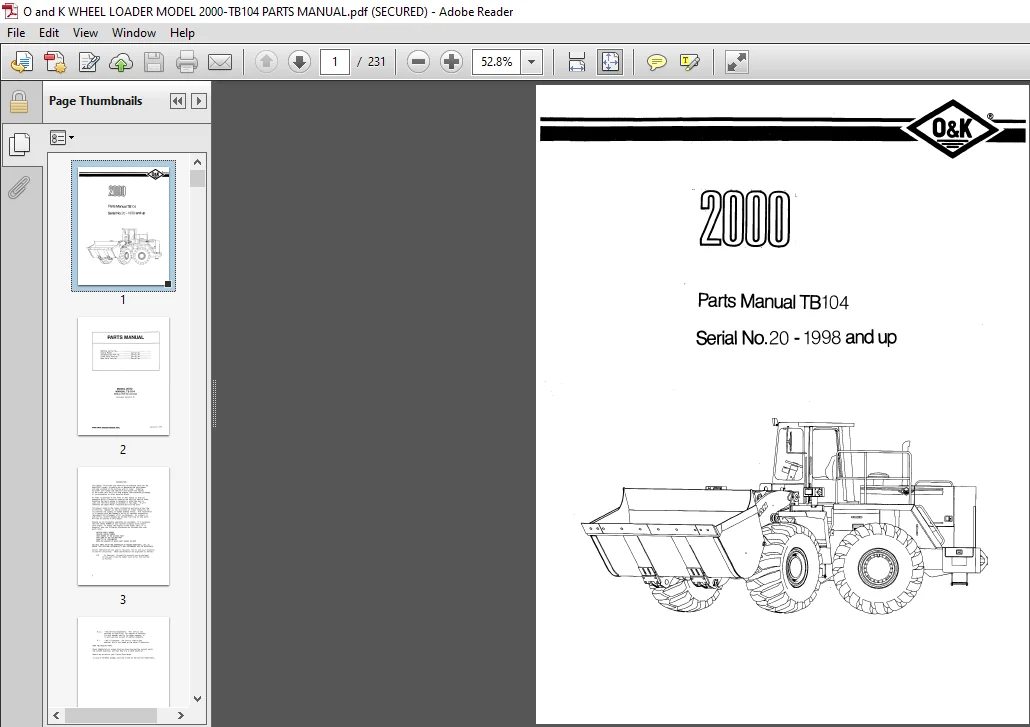

Serial No.20 – 1998 and up
INTRODUCTION:

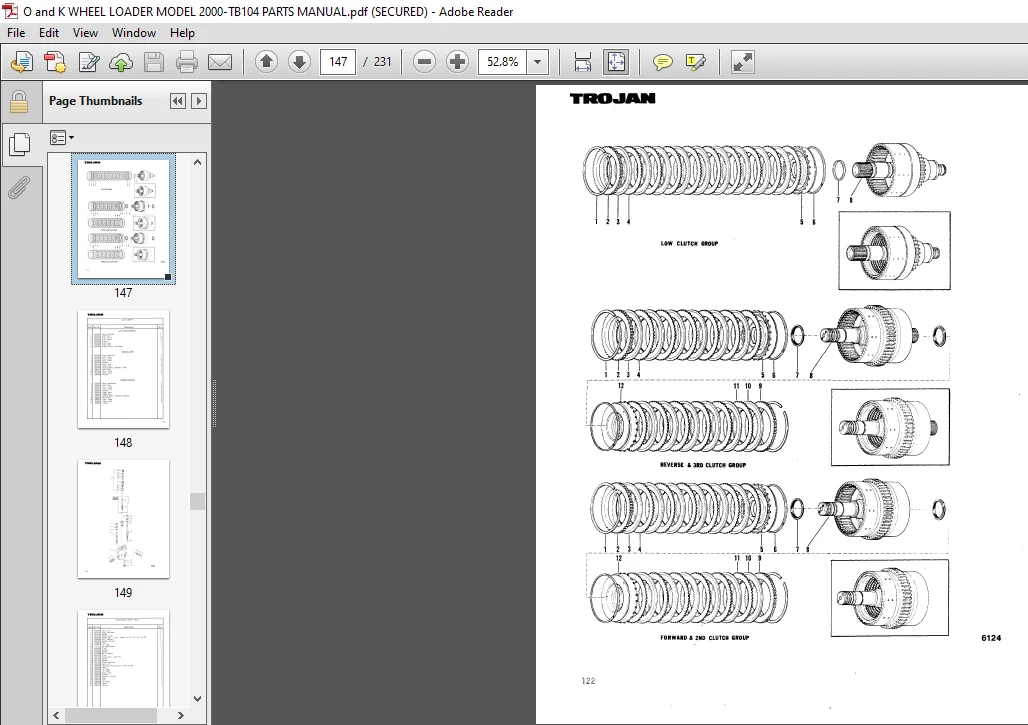

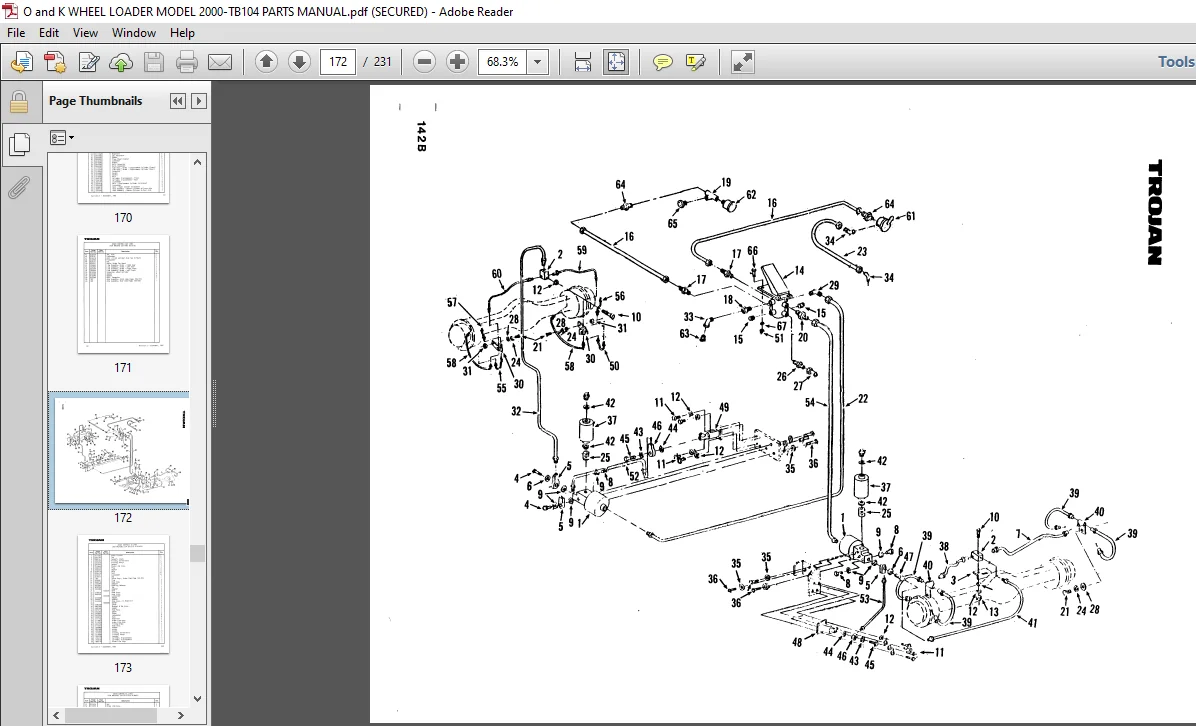

- This manual illustrates and identifies maintenance parts for the Model 2000 loader, to enable you to determine the part number and name assigned to the part you wish to order. Ordering by proper part number and name will help ensure the receipt of the proper part for the first time without time-consuming exchanges of correspondence or other annoying delays.
- An index is provided in the front of this manual to help you determine which illustration contains the part you want to order. Determine the basic system or assembly in which the part is used, and find this system or assembly in the Index. It will reference the pages which illustrate and list the part.
- This manual contains the latest information available at the time of printing. However, at the discretion of Trojan Industries Inc. its contents are subject to change without notice. This reserVation is in keeping with the Company’s policy of constant progressive improvement and refinement of all our products. As a result of such policy, certain changes may be made from time to time which will not be covered in this manual.
Because we are constantly upgrading our equipment, it is necessary“ that the SERIAL NUMBER of your machine accompany every repair parts order. To assure the receipt of the proper part, it is essential that the following information be included with your parts order:
- MACHINE MODEL NUMBER
- MACHINE SERIAL NUMBER
- PART NUMBER OF THE DESIRED PART
- QUANTITY OF ITEMS WANTED
- NAME AND ADDRESS TO WHICH PART SHOULD BE SENT
USE ONLY PARTS WHICH ARE AUTHORIZED.BY O a K TROJAN INDUSTRIES TO ENSURE THAT’ ORIGINAL“ DEPENDABILITY AND, PERFORMANCE WILL BE MAINTAINED.
TABLE OF CONTENTS:
O and K WHEEL LOADER MODEL 2000-TB104 PARTS MANUAL – PDF DOWNLOAD
A
Accelerator Pedal & Linkage (GM)
Accelerator Pedal & Linkage (CD)
Air Cleaner (GM)
Air Cleaner (CD)
Air Dryer Installation
Air Governor
Air Intake System (GM)
Air Intake System (CD)
Air Reservoir Piping (GM)
Air Reservoir Piping (CD)
Air Shift (Reverse to Forward)
Alternator
Alternator Mounting (GM)
Alternator Mounting (co)
Automatic Bucket Leveler & Indicator
Automatic Hoist Cut-Out
Axle Assembly (Front)
Axle Assembly (Rear)
Axle Cradle
B
Back-Up Warning Alarm
Battery & Wiring (Main)
Brake Control and Lines
Brake Assembly, Parking
Brake Group Axle
Brake Valve
Bucket Assembly/Attachments
Bucket Leveler, Automatic
Bucket Cylinder Assembly
C
Cab
Carrier Assembly, Planet
Clutch Cut-Out Switch
Clutch Groups
Connector, Watertight
Controls, Hydraulic Valve
Controls, Transmission
Control Valve Assembly, Main
Control Valve Assembly, Transmission
Control Valve Console
Counterweight
Converter, Torque
Cradle, Axle
Cylinder, Bucket
Cylinder, Lift
Cylinder, Master
Cylinder, Steering
D
Decals & Identification
Detent, Electrical
Differential Group (Front)
Differential Group (Rear)
E
Electrical System, Main
Emergency Brake
Engine & Related Parts (GM)
Engine & Related Parts (CD)
Engine Cooling (GM)
Engine Cooling (CD)
Engine Controls (GM)
Engine Controls (CD)
Engine Mounting (GM)
Engine Mounting (CD)
Ether Start Kit
Ether Start Switch
Exhaust System (GM)
Exhaust System (CD)
F
Fenders
Filter, Engine Oil (GM)
Filter, Engine Oil (CD)
Filter Assembly, Hydraulic Oil
Filter Assembly, Transmission Oil
Filter Assembly, Fuel
Floor Plates & Seat Support
Frame, Front & Rear
Fuel Tank
Fuel Tank & Lines (GM)
Fuel Tank & Lines (CD)
G
Gauges, Instrument Panel
Governor, Air
H
Headlights
Hood
Hoist Cut-Out, Automatic
Hub, Axle
Hydraulic Control Valve Levers, Main
Hydraulic Control Valve, Main (2 Spool)
Hydraulic Control Valve, Main (3 Spool)
Hydraulic Pump, Main
Hydraulic Pump, Steering
Hydraulic Reservoir
Hydraulic System, Booket Cylinder
Hydraulic System, Main
Hydraulic System, Steering
Hydraulic System, Transmission
I
Identification, Decals and
Instrument Panel
L
Lift Arm
Lift Arm Linkage
Lift Cylinder
Lights
Lights, Dasn
E
Main Hydraulic System
Main Hydraulic Pump
Muffler (GM)
Muffler (CD)
O
Oil Cooler
Oil Cooler System
Oil Filter Assembly, Hydraulic
Oil Filter Assembly, Transmission
Orbitrol Assembly, Steering
P
Paint
Parking Brake
Pillow Block
Pivot Group, Main
Planetary Hub ‘
Power Cluster
Propeller Shaft Assemblies
Pump, Main Hydraulic
Pump, Steering
R
Radiator Assembly
Reservoir, Air
Reservoir, Fuel
Reservoir, Hydraulic
S
Seat Assembly
Seat Support
Shaft Assemblies, Propeller
Sheetmetal
Shroud, Front
Starter, Engine
Steering Cylinder
Steering Gear Installation
Steering Hydraulic System
Steering Pump
Steering Valve Assembly (Orbitrol)
Switch, Back-Up Alann
Switch, Battery
Switch, Clutch Cut-Out
Switch, Ether Start
Switch, Neutral Start
Switch, Proximity (Limit)
Switch, Starter
T
Tires a wheels
Tools
Torque Converter Assembly
Transmission Assembly
Transmission Case Assembly
Transmission Clutches
Transmission Control Valve Assembly
Transmission Controls
Transmission Hydraulic Filter
Transmission Hydraulic System
Transmission Mounting Parts
Treadle Valve
V
Valve, Brake ,
Valve Controls, Main (2 Spool)
Valve Controls, Main (3 Spool)
Valve, Cusnion
Valve, Main Hydraulic Control
Valve, Modulator
Valve, Pressure Regulating
Valve, Orbitrol
W
Wheels
Windsnield Hiper Kit
Wiring, Bucket Leveler and Hoist Cut-Out
Wiring, Main
