DESCRIPTION:

O and K WHEEL LOADER MODEL 4000-TB077 PARTS MANUAL – PDF DOWNLOAD

MODEL 4000
Serial No. 40-1011 & Higher

INTRODUCTION:

  • This manual illustrates and identifies maintenance parts for the Model 7500 loader, to enable you to determine the part number and name assigned to the part you wish to order. Ordering by proper part number and name will help ensure the receipt of the proper part for the first time without time-consuming exchanges of correspondence or other annoying delays.
  • An index is provided in the front of this manual to help you determine which illustration contains the part you want to order. Determine the basic system or assembly in which the part is used, and find this system or assembly in the Index. It will reference the pages which illustrate and list the part.
  • This manual contains the latest information available at the time of printing. However, at the discretion of Trojan Industries Inc. its contents are subject to change without notice. This reserVation is in keeping with the Company’s policy of constant progressive improvement and refinement of all our products. As a result of such policy, certain changes may be made from time to time which will not be covered in this manual.

Because we are constantly upgrading our equipment, it is necessary“ that the SERIAL NUMBER of your machine accompany every repair parts order. To assure the receipt of the proper part, it is essential that the following information be included with your parts order:

  • MACHINE MODEL NUMBER
  • MACHINE SERIAL NUMBER
  • PART NUMBER OF THE DESIRED PART
  • QUANTITY OF ITEMS WANTED
  • NAME AND ADDRESS TO WHICH PART SHOULD BE SENT

USE ONLY PARTS WHICH ARE AUTHORIZED.BY O a K TROJAN INDUSTRIES TO ENSURE THAT’ ORIGINAL“ DEPENDABILITY AND, PERFORMANCE WILL BE MAINTAINED.

TABLE OF CONTENTS:

O and K WHEEL LOADER MODEL 4000-TB077 PARTS MANUAL – PDF DOWNLOAD

A
Accelerator Pedal and Linkage (GM)
Accelerator Pedal and Linkage (CD)
Air Chamber Front Axle
Air Chamber Rear Axle
Air Cleaner (GM)
Air Cleaner and Exhaust System (CD)
Air Compressor Lubrication (GM)
Air Compressor Piping (GM)
Air Compressor Piping (CD)
Air Cylinder
Air Governor
Air Shift Lever
Air Shift Reverse to Forward
Automatic Hoist Cut-out
Automatic Bucket Leveler
Axle Assembly Front
Axle Assembly Rear
B
Ball Slip Assembly
Battery and Wiring (GM)
Battery and Wiring (CD)
Belly Pans and Guards
Brake Axle (Front)
Brake Axle (Rear)
Brake Controls and Lines (Front)
Brake Controls and Lines (Rear)
Bucket
Bucket Cylinder
Bucket Cylinder Piping
Bucket Indicator
Bucket Leveler Automatic
C
Cab
Case Assembly Transmission
Clutch Cut-out Switch
Clutch Cut-out System
Clutch Group Input-Reverse 3rd-4th
Clutch Group lst and 2nd
Control Valve Main Hydraulic [2 Spool)
Control Valve Transmission
Cooler Hydraulic 0i1
Cylinder Air
Cylinder Bucket
Cylinder Lift
Cylinder Steering
D
Decals
Defroster
Demand Valve
Differential Group Front Axle
Differential Group Rear Axle
Directional Lever F-N-R
Drag Link
E
Element Filter Main Hydraulic Oil
Emergency Control Valve
Engine and Related Parts (GM)
Engine and Related Parts (CD)
Engine Controls (GM)
Engine Controls (CD)
Ether Starting Kit
Exhaust System (GM)
Exhaust System (CD)
F
Filter Main Hydraulic 011
Filter Transmission Hydraulic 011
Fire Extinguisher
Floorplates
Frame Main
Fuel Tank and Lines (GM)
Fuel Tank and Lines (CD)
G
Gauges Instrument Panel
Governor,Air
H
Headlights
Heater
Hood
Horn Back—up Warning
Hydraulic Control Valve Main (2 Spool)
Hydraulic Control Valve Main (3 Spool)
Hydraulic Control Valve Levers Main
Hydraulic Oil Cooler
Hydraulic Piping [3 Spool Valve)
Hydraulic Pump Main
Hydraulic Pump Steering
Hydraulic System Main
Hydraulic System Steering
Hydraulic System Transmission
Hydraulic Tank Relief System
I
Instrument Panel
L
Leveling Arm
Lever Air Shift
Lift Arm
Lift Arm Linkage
Lift Cylinder
Lights
M
Main Frame Components
Main Hydraulic Pump
Main Hydraulic System
Motor Mounts
O
Oil Filter Assembly Main Hydraulic
Oil Filter Assembly Transmission Hydraulic
p
Pillow Block Assembly
Pivot Group
Planetary Hub Front Axle
Planetary Hub Rear Axle
Power Sensing Pump (GM)
Power Sensing Pump (CD)
Propeller Shafts
Pump Main Hydraulic
Pump Steering Hydraulic
R
Radiator
Radiator and Cooling System (GM)
Radiator and Cooling System (CD)
Relief System Hydraulic Tank
S
Seat
Selector Valve
Servo Valve (2 Spool)
Servo Valve (3 Spool]
Sheetmetal
Shift ReVerse to Forward Air
Steering Cylinder
Steering Cylinder Piping
Steering Gear
Steering Gear Assembly and Linkage
Steering Hydraulic System
Steering Pump
Steering VaIVe
Switch Clutch Cut-out
Swivel Joint Assembly
T
Throttle Linkage (GH)
Throttle Linkage (CD)
Tires and Wheels
Tools
Torque ConVerter
Transmission Assembly
Transmission Case Assembly
Transmission Controls
Transmission Hydraulic System
Transmission Mounting Parts
v
Valve Brake
Valve Controls Main
Valve Demand
Valve Emergency Control
VaIVe Main Hydraulic Control (2 Spool)
Valve Main Hydraulic Control [3 Spool]
Valve Selector
Valve Servo (2 Spool)
Valve Servo [3 Spool)
Valve Steering
Valve Transmission Control
W
Wheels
Winterizution Kit
Windshield Wiper Front
Windshield Wiper Rear
Wiring (GM)
Wiring [CD]

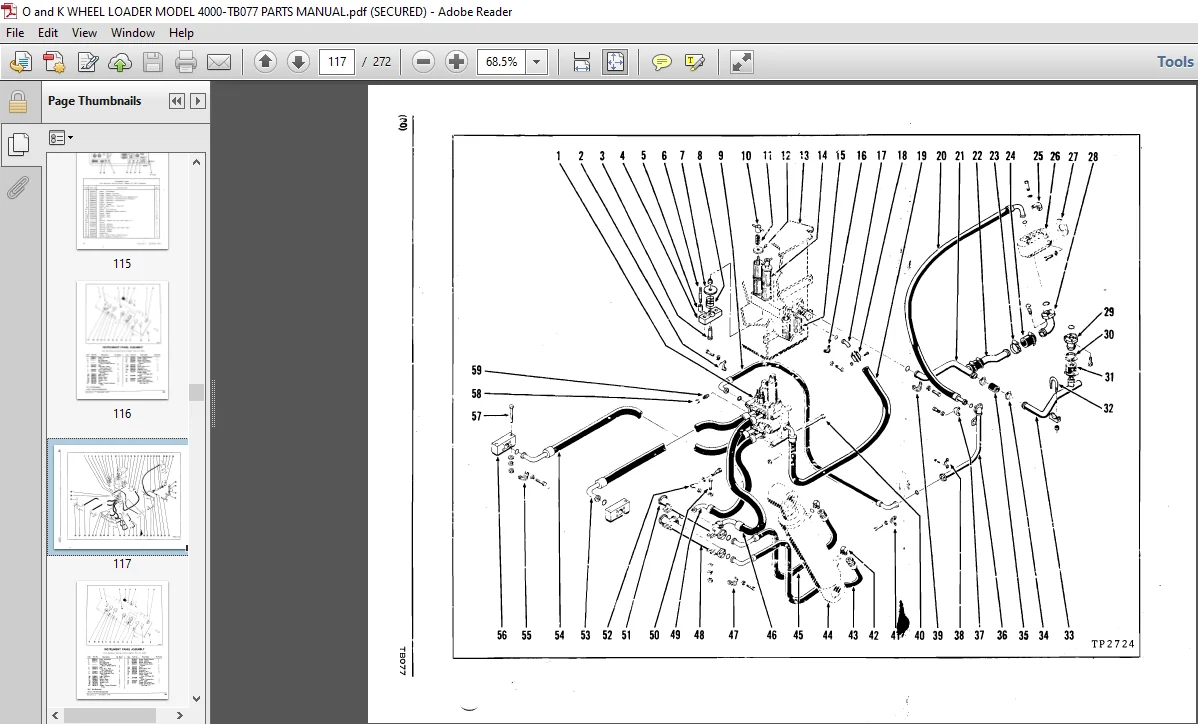

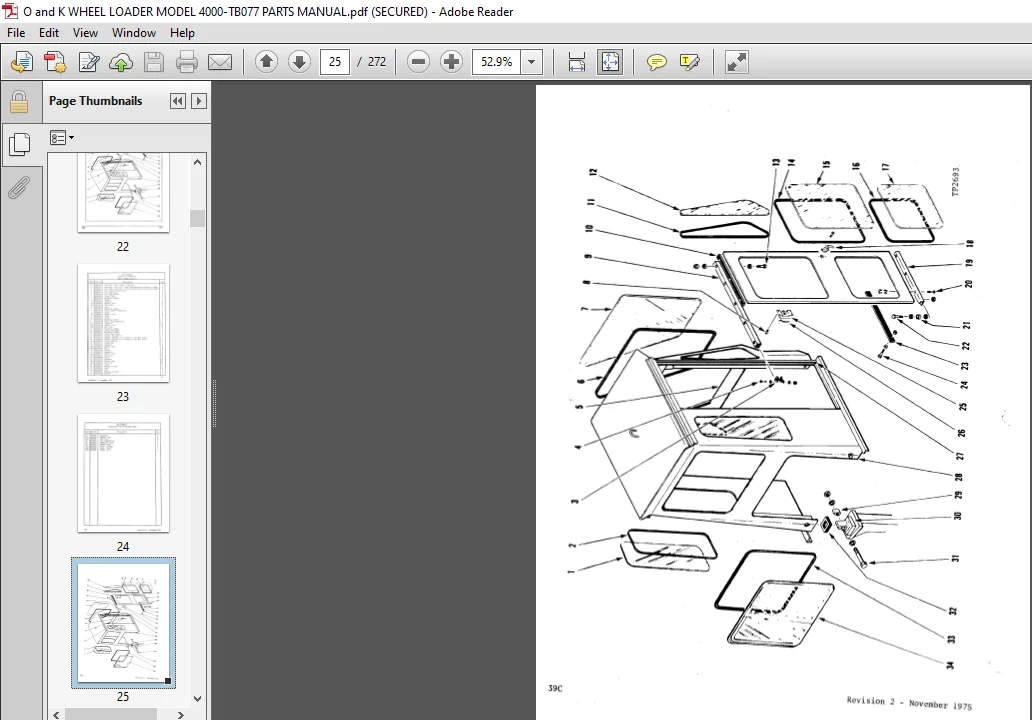

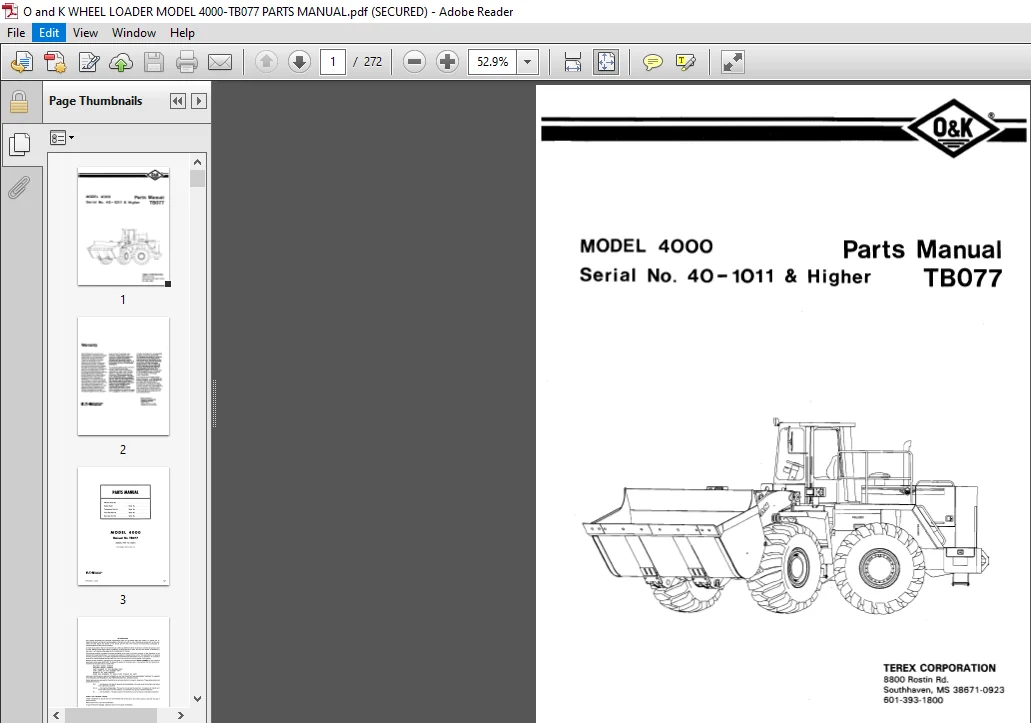

IMAGES PREVIEW OF THE MANUAL:
