O and K WHEEL LOADER MODEL 2000-TB076 PARTS MANUAL – PDF DOWNLOAD
SERIAL NO. 20-1011 & HIGHER
INTRODUCTION:
- This manual illustrates and identifies maintenance parts for the Model 1700Z loader, to enable you to determine the part number and name assigned to the part you wish to order. Ordering by proper part number and name will help ensure the receipt of the proper part for the first time without time-consuming exchanges of correspondence or other annoying delays.

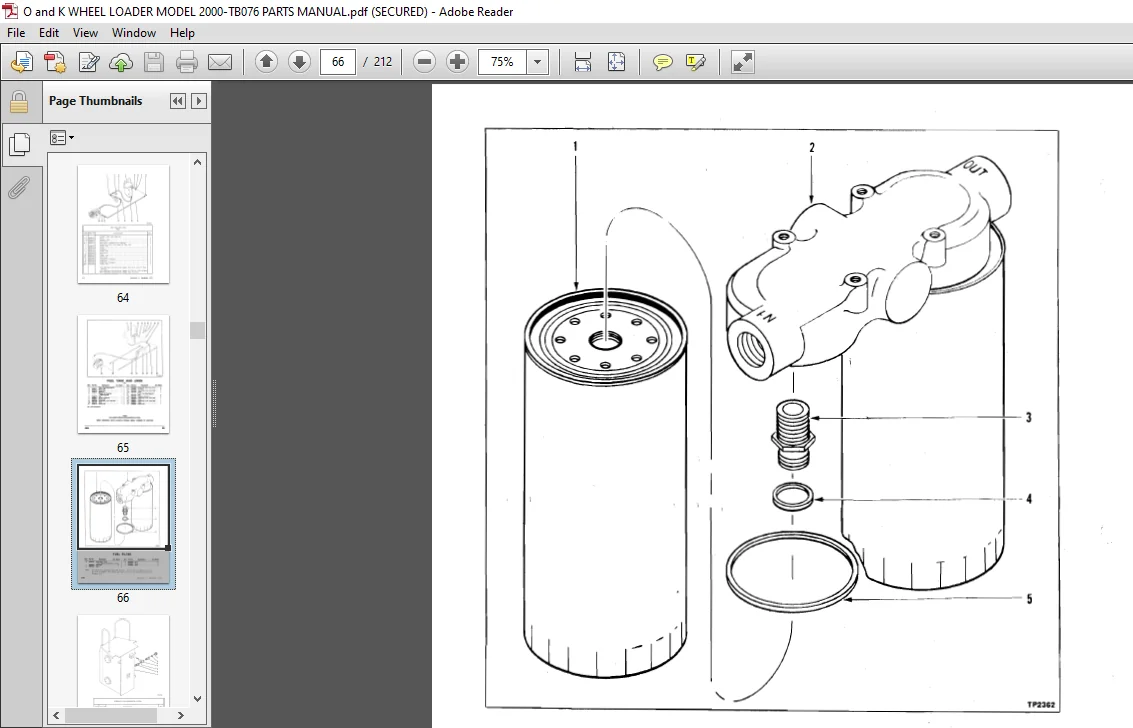

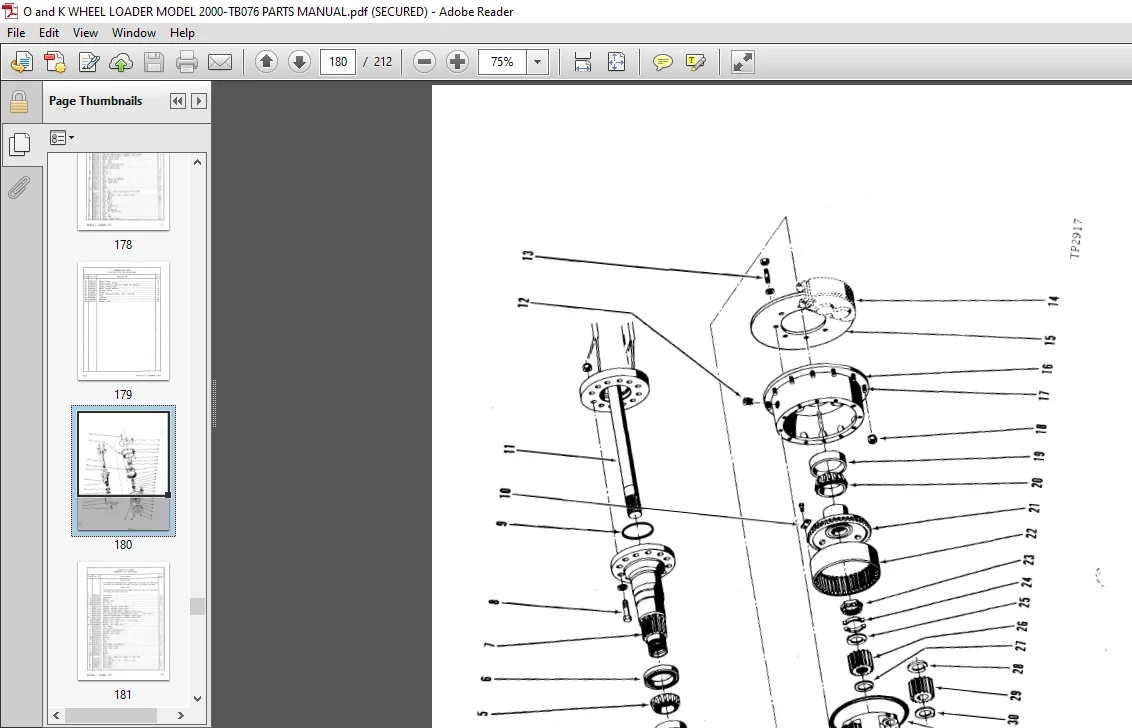

- An index is provided in the front of this manual to help you determine which illustration contains the part you want to order. Determine the basic system or assembly in which the part is used, and find this system or assembly in the Index. It will reference the pages which illustrate and list the part.
- This manual contains the latest information available at the time of printing. However, at the discretion of Trojan Industries Inc. its contents are subject to change without notice. This reserVation is in keeping with the Company’s policy of constant progressive improvement and refinement of all our products. As a result of such policy, certain changes may be made from time to time which will not be covered in this manual.
Because we are constantly upgrading our equipment, it is necessary“ that the SERIAL NUMBER of your machine accompany every repair parts order. To assure the receipt of the proper part, it is essential that the following information be included with your parts order:
- MACHINE MODEL NUMBER
- MACHINE SERIAL NUMBER
- PART NUMBER OF THE DESIRED PART
- QUANTITY OF ITEMS WANTED
- NAME AND ADDRESS TO WHICH PART SHOULD BE SENT
USE ONLY PARTS WHICH ARE AUTHORIZED.BY O a K TROJAN INDUSTRIES TO ENSURE THAT’ ORIGINAL“ DEPENDABILITY AND, PERFORMANCE WILL BE MAINTAINED.
TABLE OF CONTENTS:
O and K WHEEL LOADER MODEL 2000-TB076 PARTS MANUAL – PDF DOWNLOAD
A
Accelerator Pedal E Linkage (GM)
Accelerator Pedal & Linkage (CD)
Accessory Hydraulic Piping (3-Spool)
Air Cleaner (CM)
Air Cleaner (CD)
Air Compressor Assambly (GM)
Air Compressor Piping
Air Compressor Piping (CD)
Air Governor
Air Shift (Reverse to Forward)
Alternator
Automatic Bucket Leveler
Automatic Hoist Cut—Out
Axle Assembly (Front)
Axle Assembly (Rear)
B
Back-Up Warning Alarm
Battery & Wiring
Belly Pans G Guards
Brake Controls & Lines
Brake Croup ;
Brake Assembly, Parking
Bucket Assembly
Bucket Cylinder
Bucket Cylinder Hydraulic System
Bucket LeVeler, Automatic
C
Cab Assembly
Cab, Canopy
Clutches, Transmission
Clutch Cut-Out System
Clutch Cut-Out Switch
Controls, Transmission
Controls, Main Hydraulic Valve (2—Spool)
Controls, Main Hydraulic Valve CS-Spool)
Control Valve Assembly, Transmission
Converter Assembly, Torque)
Cylinder, Bucket
Cylinder Lift
Cylinder, Steering
D
Decals
Detent Assembly, Electrical
Differential GrOup, Front Axle
Differential Group, Rear Axle
DriVe Shaft Assembly
Dual Brake Valve
E
Electrical System
Engine 5 Related Parts (GM)
Engine 6 Related Parts (CD)
Engine Cooling (GM]
Engine Cooling (CD)
Engine Controls (GM)
Engine Controls (CD)
Engine Mounting (GM)
Engine Mounting (CD)
Ether Start Kit
Exhaust System (GM)
Exhaust System (CD)
F
Filter Assembly, Fuel
Filter Assembly, Hydraulic Oil
Filter Assembly, TransmissiOn Oil
Fire Extinguisher
Floor Plates 6 Seat Support
Frame, Front 6 Rear
Fuel Tank E Lines (GM)
Fuel Tank 8 Lines (CD)
G
Gauges, Instrument Panel
Guards, Belly Pans And
H
Headlights
Hood
Hydraulic Control Valve LeVers, Main (Z-Spool)
Hydraulic Control Valve Levers, Main (3-5pool)
Hydraulic Control Valve, Main (2-Spool)
Hydraulic Control VaIVe, Main (3-Spool)
Hydraulic Pump, Main
Hydraulic Pump, Steer
Hydraulic Reservoir
Hydraulic System, Accessory (3-Spool)
Hydraulic System, Bucket Cylinder
Hydraulic System, Main
Hydraulic System, Steering
Hydraulic System, Transmission
I
Instrument Panel
L
Lift Arm
Lift Arm Linkage
Lift Cylinder
Lights
M
Main Hydraulic System
Main Hydraulic Pump
Mirrors, Rear View
Muffler (GM)
Muffler (CD)
O
Oil Cooler System
Oil Filter Assembly, Hydraulic
Oil Filter Assembly, Transmission
Orbitrol Assembly, Steering
P
Parking Brake ASSembly
Parking Brake Lever Assembly
Parking Brake 6 Linkage
Pivot Group
Planetary Hub, Axle
Power Cluster ASSembly
Pressure Regulating Valve Assembly
Pressurized System, Hydraulic Tank
Propeller Shaft Assembly
Pump, Main Hydraulic
Pump, Steer Hydraulic
R
Radiator Assombly
Reservoir, Puel
Reservoir, Hydraulic
S
seat Assembly
Sheetmetal
Starter, Engine
Steering Cylinder
Steering Gear Installation
Steering Hydraulic System
Steering Valve Assembly (Cushion)
Steering Valve Assembly (Orbitrol)
T
Throttle Linkage (GM)
Throttle Linkage (CD)
Tires E Wheels
Tools
Torque Converter Assembly
Transmission Assambly
Transmission Case Assembly
Transmission Control Valve Assembly
Transmission Controls
Transmission Hydraulic System
Transmission Mounting Parts
V
Valve Controls, Main [Z-Spool)
Valve Controls, Main [S-Spool)
Valve, Clutch Cut-Out
Valve, Cushioa
Valve, Dual Brake
Valve, Main Hydraulic Control (Z-Spool)
Valve, Main Hydraulic Control (3-5pool)
W
wheels
Window Guard, Front
Windshield Wiper Kit
Winterization Kite
Wiring
