New Holland Midi Excavator E75C SR Service Manual
FILE DETAILS:
New Holland Midi Excavator E75C SR Service Manual
Size: 178 MB
Format: PDF
Language: English
Number of Pages: 1995 pages
Brand: New Holland
DESCRIPTION:
New Holland Midi Excavator E75C SR Service Manual
SAMPLE PAGE FROM THE MANUAL:
- Do not operate or perform any maintenance on this machine until all instructions found in the OPERATOR’S MANUAL and this MANUAL have been thoroughly read and understood. Improper operation or maintenance of this machine may cause accidents and could result in serious injury or death.
- Always keep the manual in storage. If it is missing or damaged, place an order with an authorized our Distributor for a replacement. If you have any questions, please consult an authorized our Distributor.
- Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in the manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.
- Operation, inspection, and maintenance should be carefully carried out, and safety must be given the first priority. Messages of safety are indicated with marks. The safety information contained in the manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations.
- Messages of safety appear in the manual and on the machine : All messages of safety are identified by either word of “DANGER”, “WARNING” and “CAUTION”. 1. Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury and is represented as follows:
- Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury and is represented as follows: . Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against possible damage to the machine and its components and is represented as follows:
- It is very difficult to forecast every danger that may occur during operation. However, safety can be ensured by fully understanding proper operating procedures for this machine according to methods recommended by Manufacturer. 5. While operating the machine, be sure to perform work with great care, so as not to damage the machine, or allow accidents to occur. Continue studying the manual until all Safety, Operation and Maintenance procedures are completely understood by all persons working with the machine.
- The proper and safe lubrication and maintenance for this machine, recommended by Manufacturer, are outlined in the OPERATOR’S MANUAL for the machine. Improper performance of lubrication or maintenance procedures are dangerous and could result in injury or death.
- Read and understand the MANUAL before performing any lubrication or maintenance. The serviceman or mechanic may be unfamiliar with many of the systems on this machine.
- This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual.
- Use proper lifting procedures when removing any components. The following is a list of basic precautions that must always be observed.
VIDEO PREVIEW OF THE MANUAL:

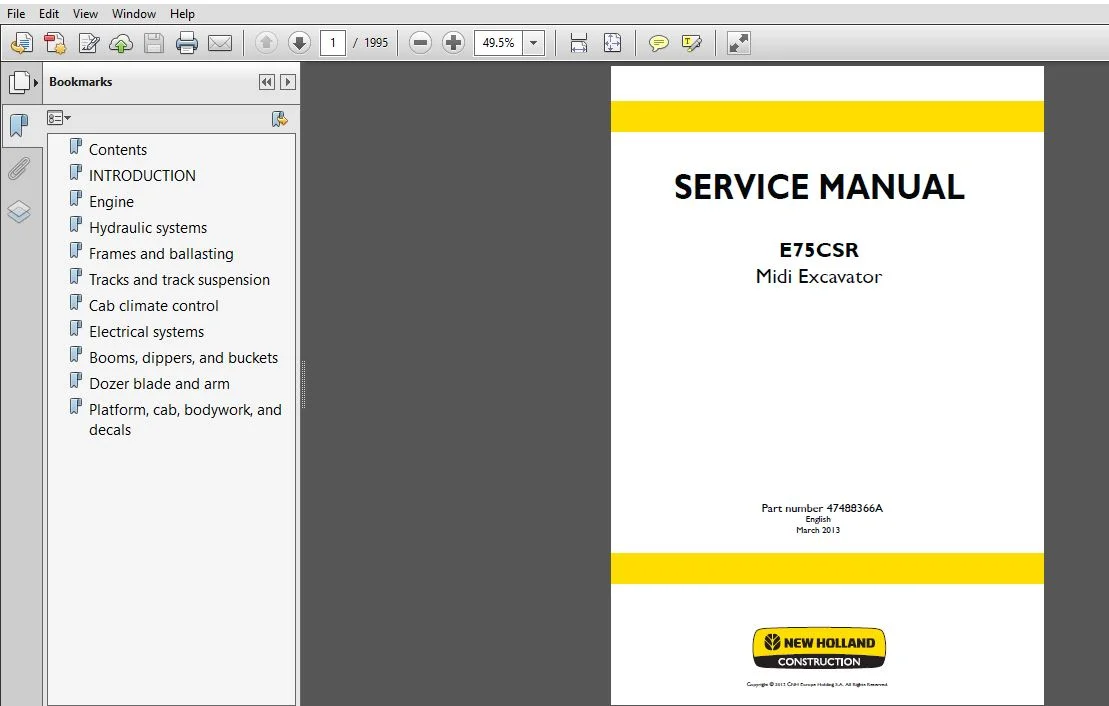

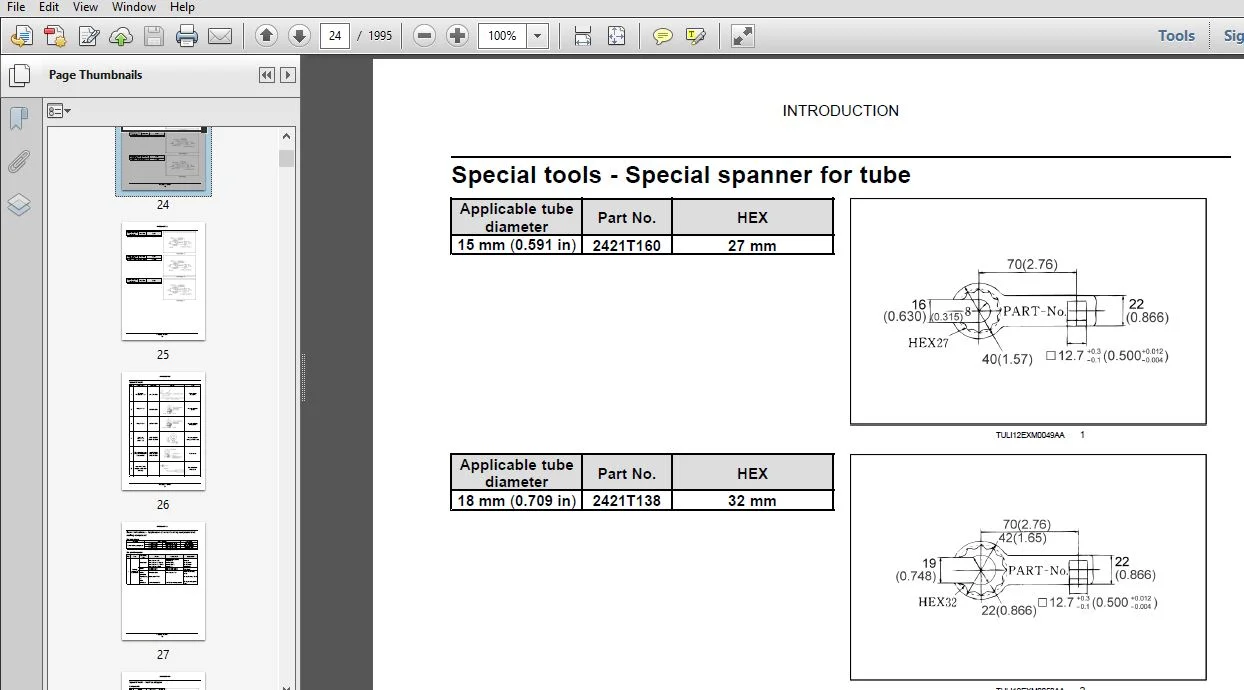

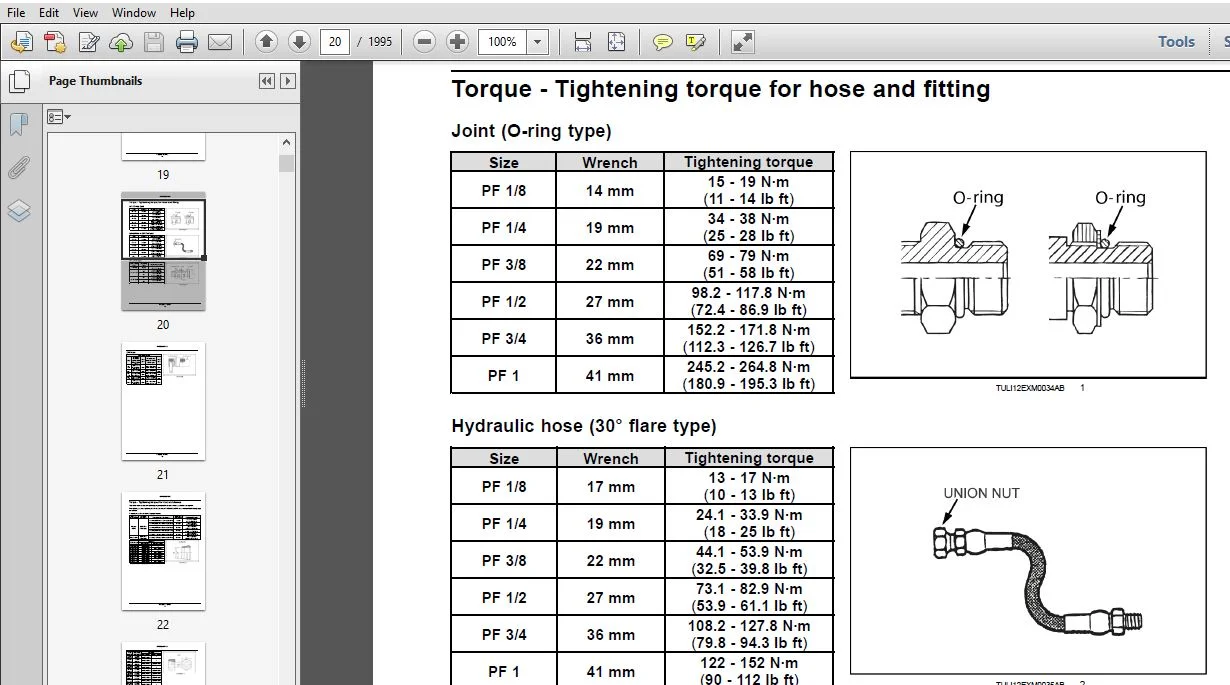

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
New Holland Midi Excavator E75C SR Service Manual
INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 216] Fuel tanks 10 2
[10 202] Air cleaners and lines 10 3
[10 254] Intake and exhaust manifolds and muffler 10 4
[10 400] Engine cooling system 10 5
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 300] Reservoir, cooler, and filters 35 2
[35 106] Variable displacement pump 35 3
[35 102] Pump control valves 35 4
[35 304] Combination pump units 35 5
[35 359] Main control valve 35 6
[35 355] Hydraulic hand control 35 7
[35 356] Hydraulic foot control 35 8
[35 352] Hydraulic swing system 35 9
[35 353] Hydraulic travel system 35 10
[35 354] Hydraulic central joint 35 11
[35 736] Boom hydraulic system 35 12
[35 737] Dipper hydraulic system 35 13
[35 738] Excavator and backhoe bucket hydraulic system 35 14
[35 741] Dozer blade cylinders 35 15
Frames and ballasting 39
[39 101] Upper frame 39 1
[39 103] Swing ring assembly 39 2
[39 140] Ballasts and supports 39 3
47488366A 13/03/2013
Tracks and track suspension 48
[48 130] Track frame and driving wheels 48 1
[48 100] Tracks 48 2
[48 134] Track tension units 48 3
[48 138] Track rollers 48 4
Cab climate control 50
[50 200] Air conditioning 50 1
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 015] Engine control system 55 3
[55 201] Engine starting system 55 4
[55 302] Battery 55 5
[55 011] Fuel tank system 55 6
[55 640] Electronic modules 55 7
[55 512] Cab controls 55 8
[55 036] Hydraulic system control 55 9
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 10
[55 404] External lighting 55 11
[55 510] Cab or platform harnesses and connectors 55 12
[55 408] Warning indicators, alarms, and instruments 55 13
Booms, dippers, and buckets 84
[84 910] Boom 84 1
[84 912] Dipper arm 84 2
[84 100] Bucket 84 3
Dozer blade and arm 86
[86 110] Dozer blade 86 1
Platform, cab, bodywork, and decals 90
47488366A 13/03/2013
[90 150] Cab 90 1
[90 160] Cab interior trim and panels 90 2
[90 120] Mechanically-adjusted operator seat 90 3
[90 105] Machine shields and guards 90 4
[90 116] Fenders and guards
PLEASE NOTE:
⦁ This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
⦁ The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
⦁ Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
