New Holland Fiatallis Wheel Loader FR180-2 Service Repair Manual (75314937) – NH
File Details:
New Holland Fiatallis Wheel Loader FR180-2 Service Manual_75314937
Size: 21.8 MB
Format: PDF
Language: English
Number of Pages: 220
Brand: New Holland
Type of document: Service Manual
Model: FR180-2
Part No: 75314937
Description:
New Holland Fiatallis Wheel Loader FR180-2 Service Repair Manual (75314937) – NH
- Study this Manual before starting. operating, maintaining tualling or servicing the machine.
- Read and head all safety rules before any intervention.
- Do no allow unauthorüed personnel to operate service or maintain this machine.
- Do not wear rings. wrist watches. iewelry, or loose apparels. such as ties. tom clothing, scarves. unbuttoned or unzippad jackets that can attach to moving parts. Wear propersafety equipment as recommended for the iob. Exemples : hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator. Consult your employer for specific safety, equipment requirements.
- Keep operator’s compertment, stepping points. grabrails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mod or grasse fromshoes before attempting to mount or operate the machine.
- Do not jump on et off the machine. Keep two hands and one foot. or two feet and one hand in contact with step grab rails and handles at all times.
- Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvenenfly moved causing occidental machine or equipment movemnt
- Never attempt to operate the machine or its tools from any position other than seated in the operators seat.
- Keep head, body limbe, hands and feet inside operator’s companment at all times to reduce exposure to hazards outside the operator’s campement Be careful of slippery conditions on stepping points , handrails. and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. Do not leave the machine until it is completely stopped.
- Check the seat safety belt at least twice a year. If there are signs of wear or iraying or other signs of weakness that could lead to failure, replace it.
Table Of Contents:
New Holland Fiatallis Wheel Loader FR180-2 Service Repair Manual (75314937) – NH
Table of Contents ......................... 5 Specifications ............................ 7 Safety Rules .............................. 11 Chapter 1 - Engine ....................... 19 Chapter 2 - Transmission ................. 25 Chapter 3 - Axles ......................... 31 Chapter 4 - Brake System .................. 89 Chapter 5 - Steering System ...............118 Chapter 6 - Implement Hydraulic System ....142 Chapter 7 - Bucket Boom and Frame .........185 Chapter 8 - Electric System Diagram .......211
Video Preview:

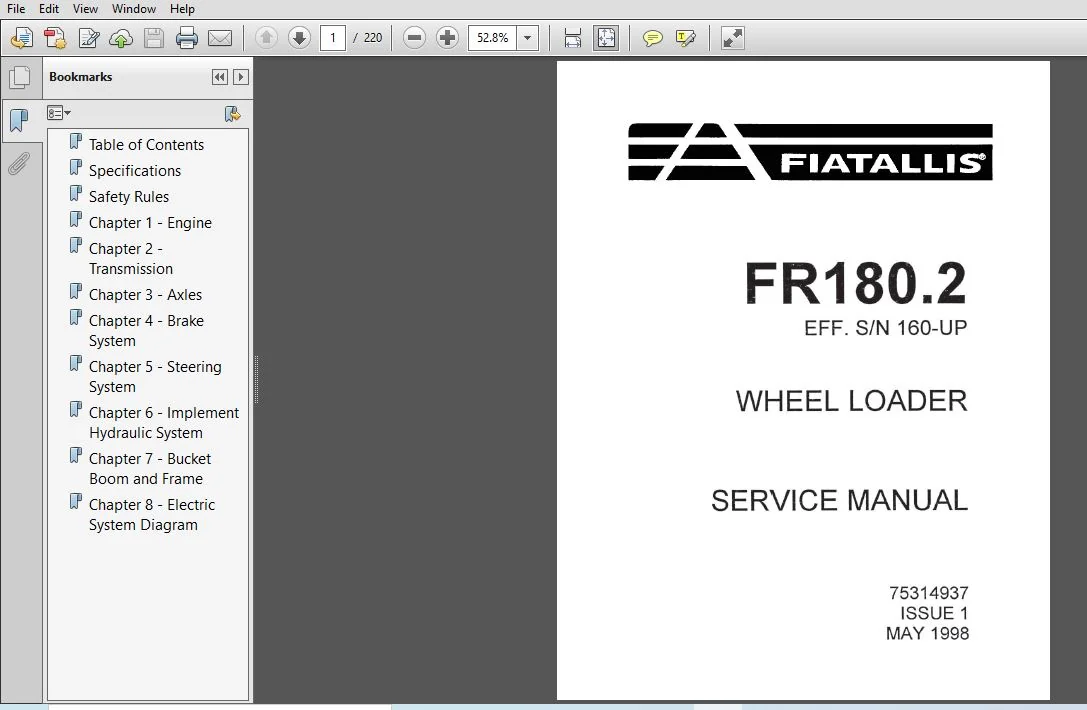

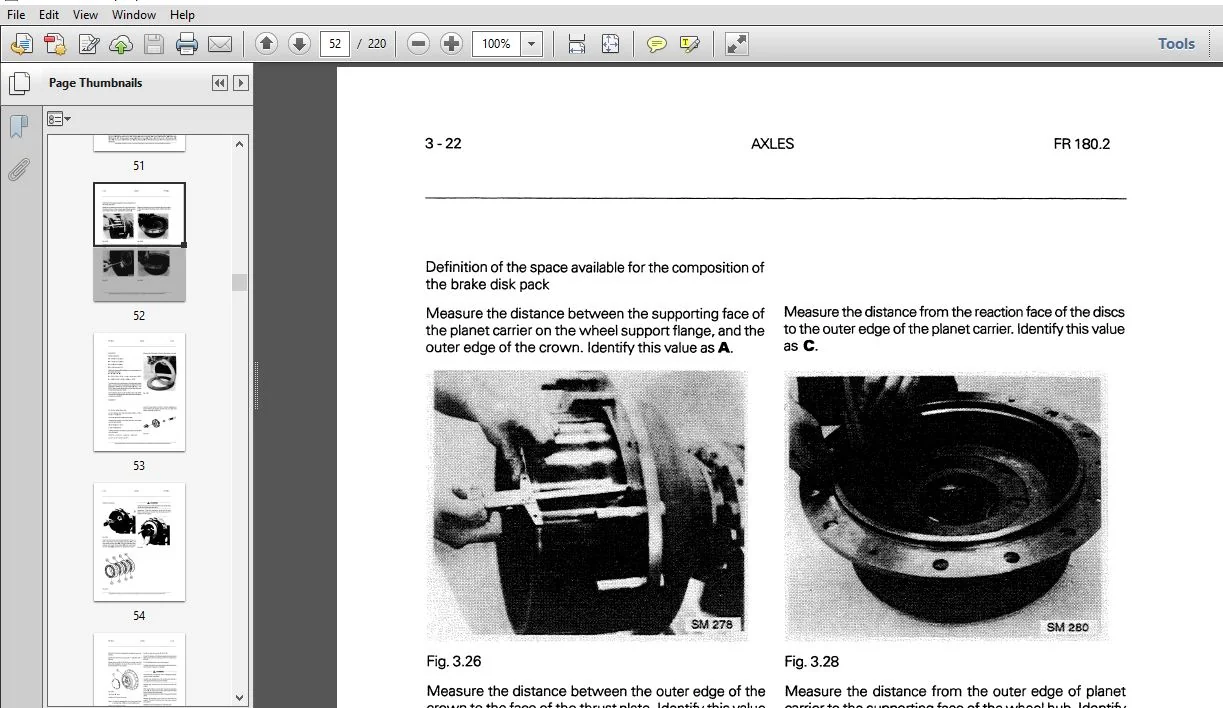

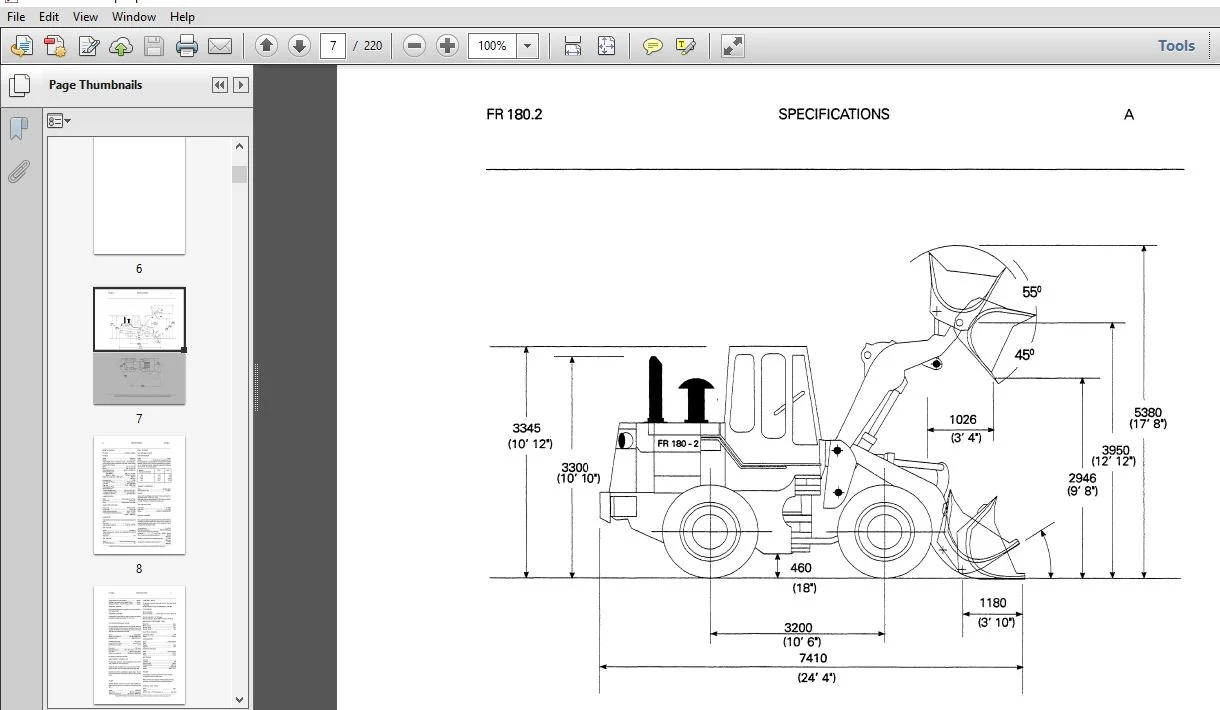

Image Preview:
Please Note:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
