New Holland FIATALLIS 8045 25 Engine Service Repair Manual
FILE DETAILS:
New Holland FIATALLIS 8045 25 Engine Service Repair Manual
Size: 176 MB
Format: PDF
Language: English
Brand: Fiat
Type of machine: Wheel Loader
Type of document: Service Manual
Number of Pages: 770 pages
Complete Part No.: 73154336
DESCRIPTION:
New Holland FIATALLIS 8045 25 Engine Service Repair Manual
GENERAL INFORMATION:
- Studs the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points.
- Do not allow unauthorized personnel to service or main- tain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruc- tion Manual before starting, operating, maintaining, fueling or servicing this machine. Always wear safety glasses with side shields.
- Do not wear rings, wrist watches, jewelry, or loose or hang- ing apparel, such as ties, torn clothing,scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear pro- tectors. safety glasses or goggles, reflector vests, or respira- tors.
- Consult your employer for specific safety equipment requirements. Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvert- ently moved causing accidental machine or equipment movement. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times.
- Machine should not be serviced with anyone in the opera- tor’s seat unless they are qualified to operate the machine and are assisting in the servicing. Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempt- ing to mount or operate the machine. Never attempt to operate the machine or its tools from any other position than seated in the operators seat. Keep operator’s compartment clear of loose objects.
- If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s scat. Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call lor an all clear. Raise attach- ment slowly. Always block with external support any linkage or part on machine that requires work under the raised linkage, ports, or machine according to local or national requirements. Never allow anyone to walk under or be near unblocked raised equipment.
- Avoid working or walking under raised blocked equipment unless you arc assured of your safety. Never place head, body, limbs, fingers, feet or hands into an exposed portion between uncontrolled or unguarded scissor points of machine without first providing secure blocking. Never lubricate, service or adjust a machine with the engine running, except as called for in the Operation and Maintenance Instruction Manuals.
- Do not wear loose cloth- ing or jewelry near moving parts. When servicing or maintenance requires access to areas that cannot be reached from the ground, use a ladder or step platform that meets local or national requirements to reach the service point. If such ladders or platforms arc not available, use the machine handholds and steps as provided. Perform all service or maintenance carefully. Shop or field service platforms and ladders used to main- tain or service machinery should be constructed and main- tained according to local or national requirements.
- Disconnect batteries and TAG all controls according to local or national requirements to warn that work is in progress. Block the machine and all attachments that must be raised according to local or national requirements. Never check or fill fuel tanks, storage batteries or use starter fluid near lighted smoking materials or open flame due to the presence of flammable fluid. Brakes are inoperative when manually released for servicing. Provision must be made to maintain control of the machine by blocking or other means.
- Always place the fuel nozzle against the side of the filler opening before starting and during fuel flow. To reduce the chance of a static electricity spark, keep contact until after fuel flow is shut off. Use only designated towing or pulling attachment points. Use care in making attachment.
- Be sure pins and locks as provided are secure before pulling. Stay clear of drawbars, cables or chains under load. To move a disabled machine, use a trailer or low boy truck if available. If lowing is necessary, provide warning signals as required by local rules and regulations and follow opera- tion and maintenance instruction manual recommenda- tions. Load and unload on a level area that gives full sup- port to the trailer wheels.
- Use ramps of adequate strength, low angle and proper height. Keep trailer bed clean of clay, oil and all materials that become slippery. Tie machine down securely to truck or trailer bed and block tracks (or wheels) as required by the carrier.
VIDEO PREVIEW OF THE MANUAL:

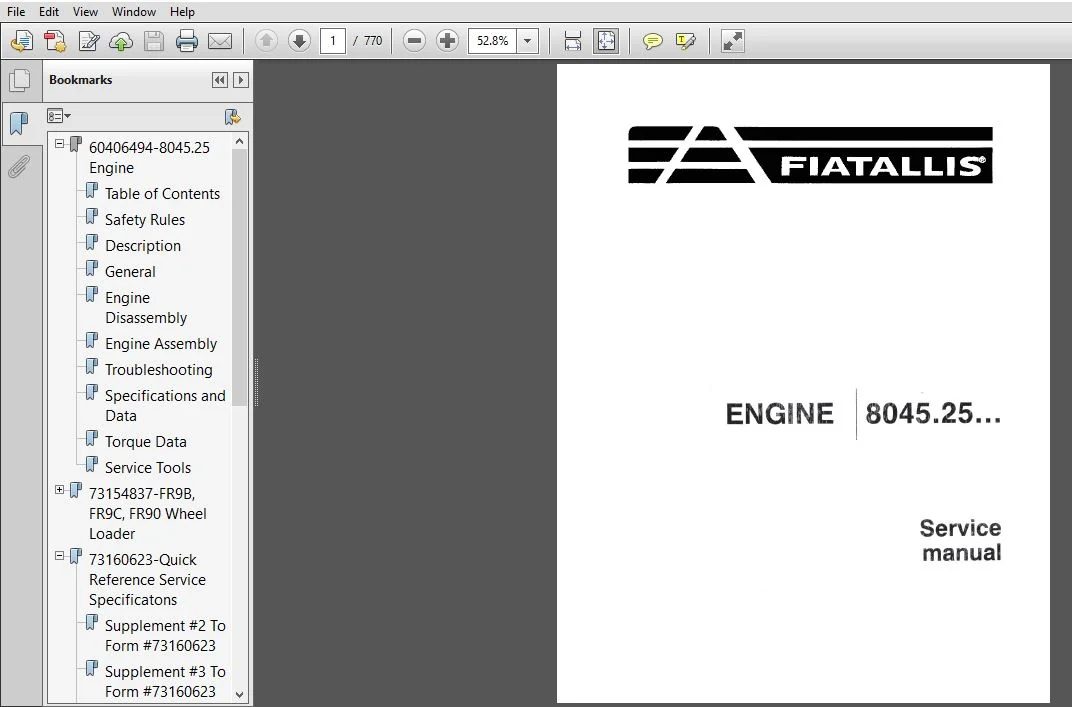

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
New Holland FIATALLIS 8045 25 Engine Service Repair Manual
60406494-8045 25 Engine 1
Table of Contents 3
Safety Rules 4
Description 8
General 9
Engine Disassembly 10
Engine Assembly 31
Troubleshooting 37
Specifications and Data 44
Torque Data 49
Service Tools 50
73154837-FR9B, FR9C, FR90 Wheel Loader 53
Table of Contents 59
Safety Rules 61
Foreword 67
Standard Torque Specifications 68
Section 1 – Engine Related Components 73
Section 2 – Transmission 137
Section 3 – Axle 227
Section 4 – Brake System 283
Section 5 – Steering and Implement 333
Section 6 – Bucket and Chassis 413
Section 7 – Electrical Schematics 439
Section 8 – Cab 587
73160623-Quick Reference Service Specificatons 653
Supplement #2 To Form #73160623 655
Supplement #3 To Form #73160623 657
Index 658
I Machine Fuel Pump Part No , Timing, and Specification Page Numbers 659
II Fuel and Lubricant Specifications 660
IV Table of Lubricants 665
V Viscosity Charts 666
VI Definitions and Abbreviations 667
VII Model Specifications 669
VIII Fuel Consumption 746
IX Machine Dimensions 748
Engine Capscrew Torques 762
XI Fiat Common Engines 768
Benati Excavator Specifications 769
PLEASE NOTE:
⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
