New Holland FiatAllis 16-B Power Shift Crawler Tractor Service Repair Manual (70674537)
FILE DETAILS:
New Holland FiatAllis 16-B Power Shift Crawler Tractor Service Repair Manual (70674537)
- Format : PDF
- Language : English
- Brand: Fiat
- Type of machine: Tractor
- Type of document: Service Manuals
- Model: Fiat Allis 16-B Tractor
VIDEO PREVIEW:

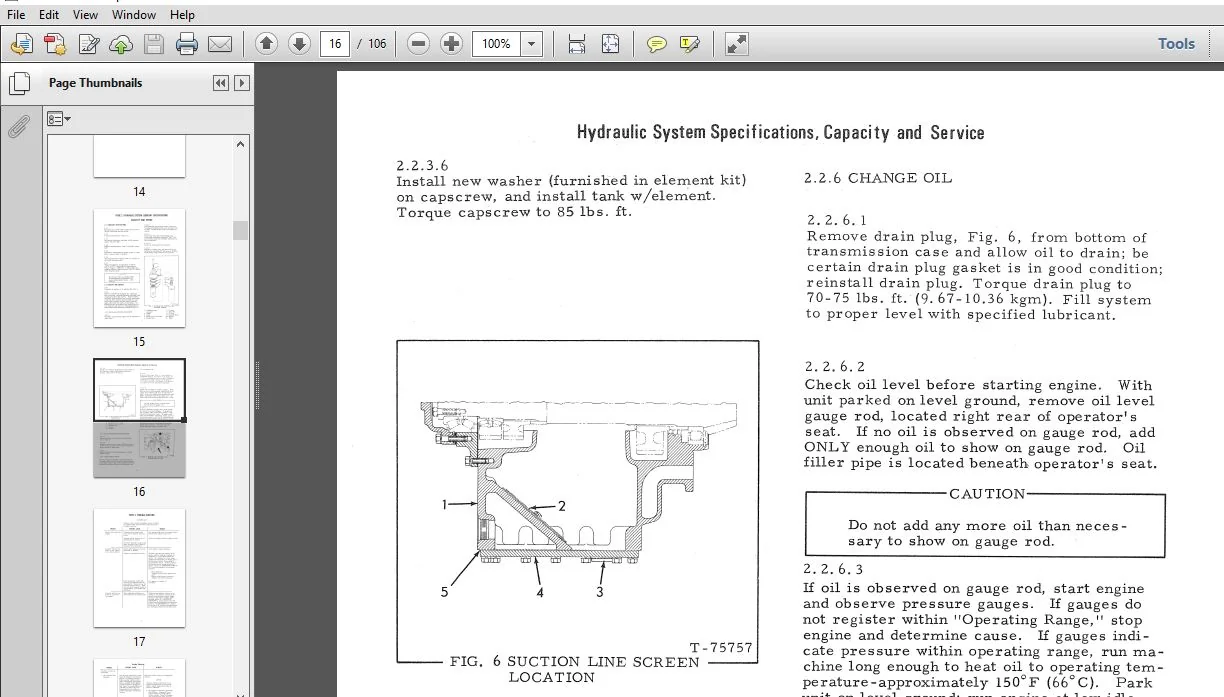

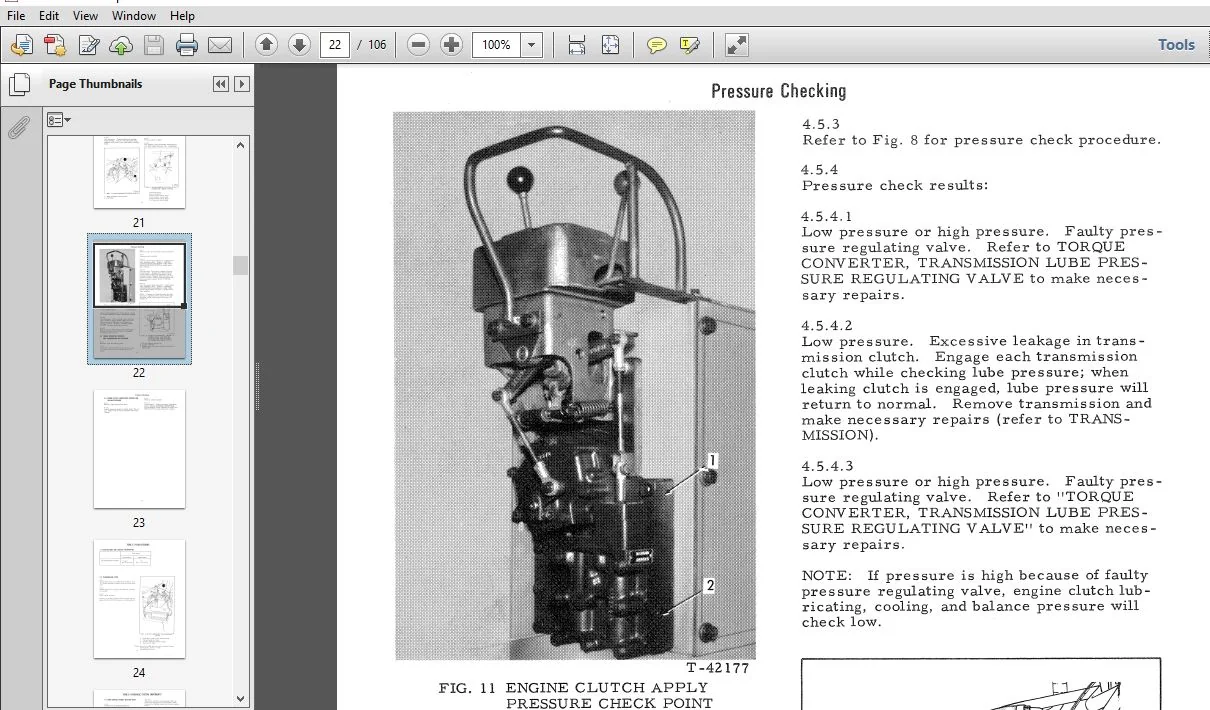

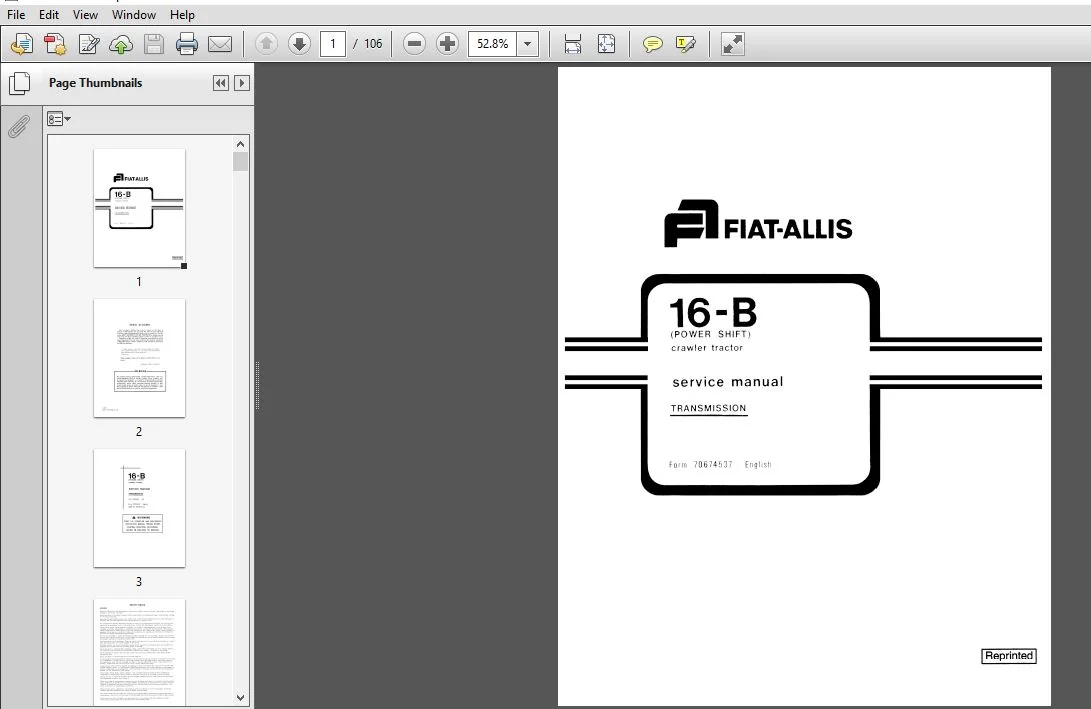

SCREENSHOTS OF THE MANUAL:
DESCRIPTION:
New Holland FiatAllis 16-B Power Shift Crawler Tractor Service Repair Manual (70674537)
- GENERAL Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing machine. Read and heed all machine mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
- Machine- mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points. No unauthorized person should be allowed to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures.
- Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
- Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, safety glasses or goggles, heavy gloves, reflector vests, ear protectors or respirators. Consult your employer for specific safety equipment requirements. Do not use controls or hoses as handhelds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement. Do not jump on or off machine.
- Keep two hands and one foot, or two feet and one hand, in contact with steps and grab- rails and handles at all times. Machine should not be serviced with anyone in’ the operator’s scat unless they are qualified to operate the machine and are assisting in the servicing.
- Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep operator’s compartment clear of loose objects. 1f movement of an attachment by means of the machine‘s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat.
- Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear. Raise attachment slowly. Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine per OSHA requirements. Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking under raised blocked equipment . unless you are assured of your safety.
- Never place head, body, limbs, fingers, feet or hands into the exposed portion between un- controlled or unguarded scissor points on machine without first providing secure blocking. Never service or adjust a machine with the engine running except as called for in the Operation and Maintenance Instruction Manuals.
- When servicing or maintenance requires access to areas that cannot be reached from the ground, use a ladder or step platform that meets OSHA requirements to reach the service point. If such ladders or platforms are not available, use the machine handholds and steps as provided. Per- form all service or maintenance carefully. Shop or field service platforms and ladders used to maintain or service machinery should be constructed and maintained according to OSHA requirements.
TABLE OF CONTENTS:
New Holland FiatAllis 16-B Power Shift Crawler Tractor Service Repair Manual (70674537)
1 GENERALDESCRIPTION………………….. 3
2 HYDRAULIC SYSTEM LUBRICANT SPECIFICATIONS, CAPACITYANDSERVICE…………………. 7
3 TROUBLE-SHOOTING……………………. 9
4 PRESSURECHECKINC…………………… 12
s FLOWCI~IECKINC……………………… 16
6 HYDRAULIC SYSTEMCOMPONENTS . . . . . . . . . . . 17
7 ENGINE CLUTCH AND TORQUE CONVERTER . . .. .. 24
8 TRANSMISSION………………………. 38
9 BEVELCEARANDSHAFT…………………. 59
10 DRIVESHAFTUNIVERSALJOINT……………… 65
11 FITSANDTOLERANCES…………………. 68
12 SERVICETOOLS……………………… 7o
ALPHABETICALINDEX………………….. 72
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
