New Holland E35B SR E39B SR Hydraulic Mini Excavators Service Manual (84553640A_A4)
FILE DETAILS:
New Holland E35B SR E39B SR Hydraulic Mini Excavators Service Manual (84553640A_A4)
- Format: PDF
- Language: English
- Number of Pages: 734 pages
- Brand: New Holland
- Type of document: Service Manual
- Model: E26B SR, E29B SR
- Part No: 84553640A_A4
VIDEO PREVIEW:

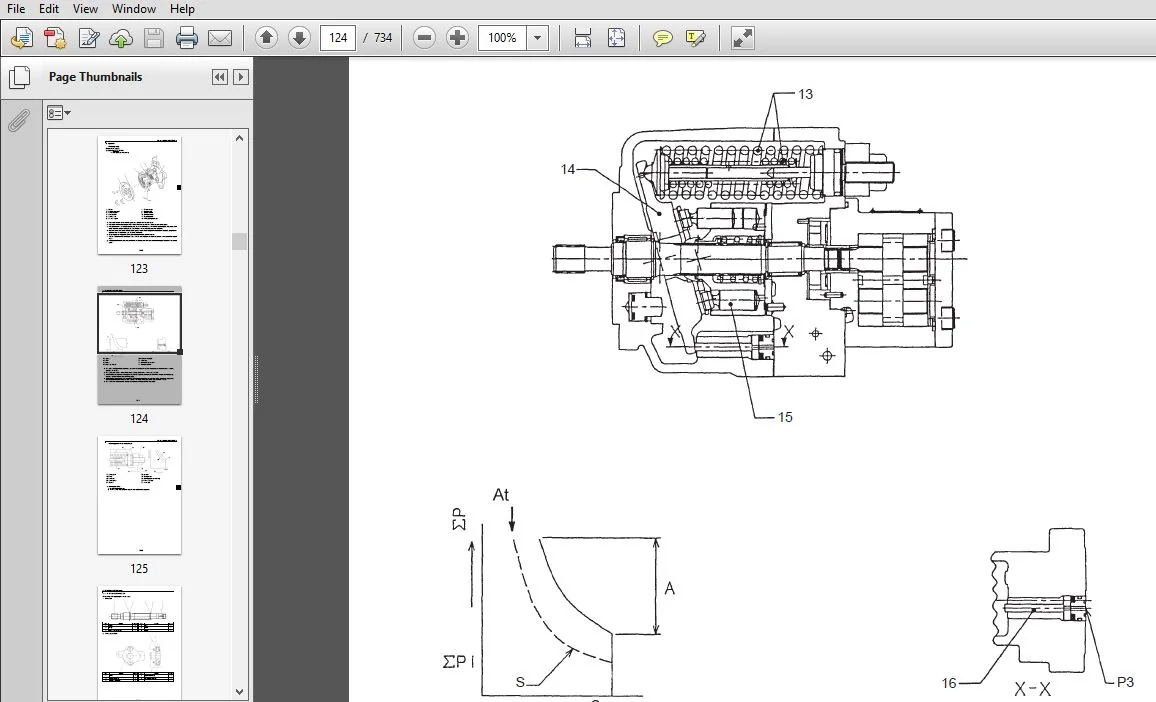

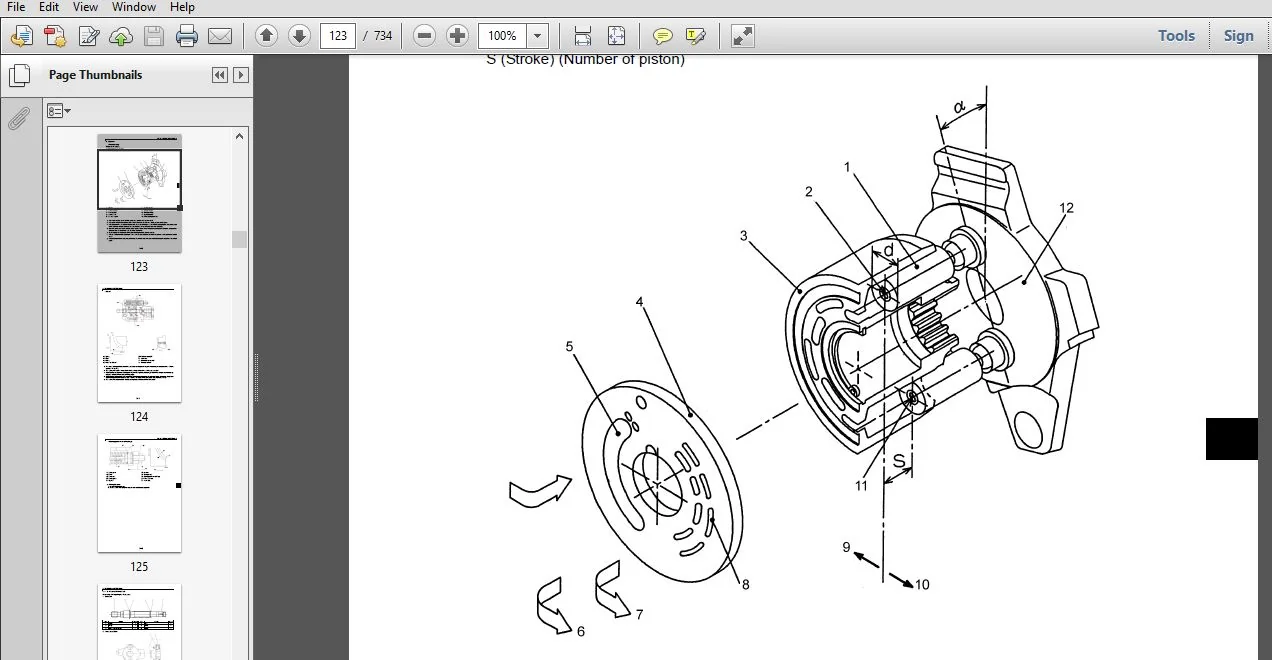

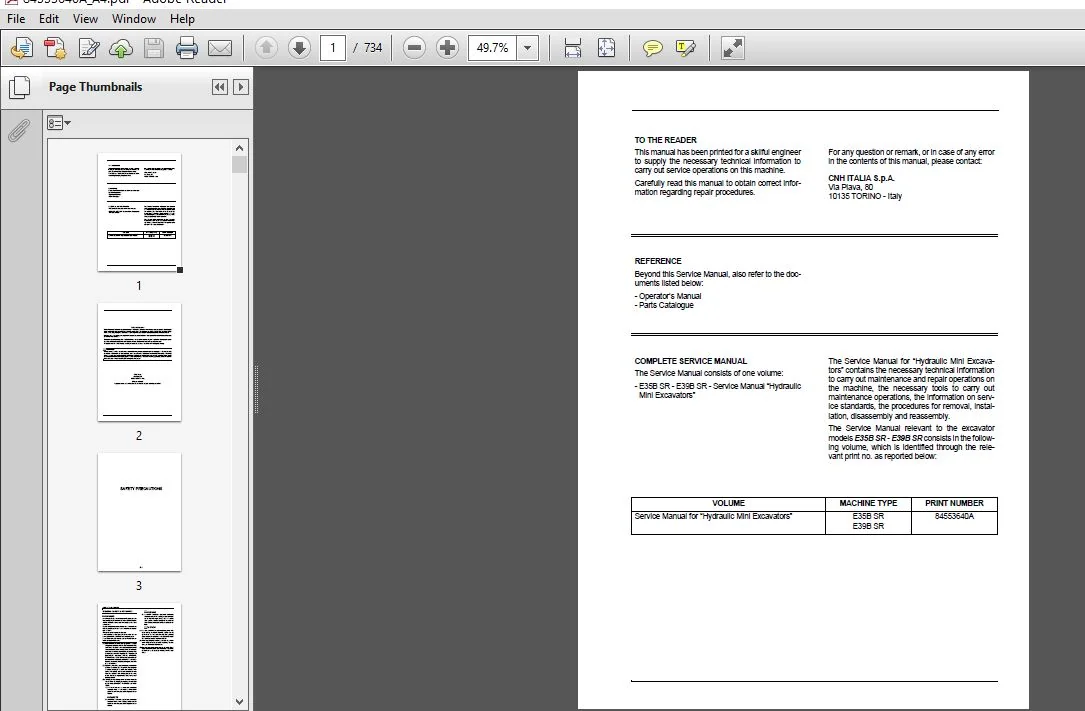

SCREENSHOTS OF THE MANUAL:
DESCRIPTION:
New Holland E35B SR E39B SR Hydraulic Mini Excavators Service Manual (84553640A_A4)
- This manual has been printed for a skilful engineer to supply the necessary technical information to carry out service operations on this machine.
- Carefully read this manual to obtain correct information regarding repair procedures.
- The Service Manual for “Hydraulic Mini Excavators” contains the necessary technical information to carry out maintenance and repair operations on the machine, the necessary tools to carry out maintenance operations, the information on service standards, the procedures for removal, installation, disassembly and reassembly.
- The Service Manual relevant to the excavator models E35B SR – E39B SR consists in the following volume, which is identified through the relevant print no. as reported below
- The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes a careful use of the systems very important when performing maintenance operations. Sound knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section: TECHNICAL SPECIFICATIONS. The following is a list of basic precautions that must always be observed.
- (1) Read and understand all Warning plates and decals on the machine before Operating, Maintaining or Repairing this machine.
- (2) Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewellery, confine long hair and loose clothing before working on this machinery.
- (3) Disconnect the battery and hang a “Maintenance in Progress” tag in the operator’s seat. Remove starter key. (4) If possible, make all repairs with the machine parked on a level and firm surface. Block the machine so it does not roll while working on or under the machine. Hang a “Maintenance in Progress” tag in the operator’s seat.
