Massey Ferguson MF 4700 Series MF4707 MF4708 MF4709 Operation Maintenance Manual – PDF DOWNLOAD
DESCRIPTION:
Massey Ferguson MF 4700 Series MF4707 MF4708 MF4709 Operation Maintenance Manual – PDF DOWNLOAD
FOREWORD:
- We would like to welcome you to the ever-growing number of people who own a Massey Ferguson tractor; people who appreciate quality. We are proud of every tractor that leaves our factories, each being technically advanced and of a high quality. This Operator’s Manual contains the specifications for your new tractor. Please ensure that all operators read the instructions and follow them carefully. The pages that follow contain vital information on your tractor; please read them carefully.
- Your Massey Ferguson dealer will guarantee you quality servicing and will provide you with all the assistance you need. When it comes to servicing, remember that your dealer knows your tractor best and that he wants you to be completely satisfied. Please leave this Operator’s Manual in the tractor if resold. The subsequent owner will need the information it contains. All information and specifications in this manual are up to date at the time of publication.
- However, our ongoing policy to improve our products obliges us to reserve the right to make alterations at any time without notice. Please note that this manual relates to all models and refers to both standard and optional equipment. You may therefore find details relating to equipment that is not fitted on your tractor. This Operator’s Manual complies with Directive 20 10/ 5 2 EC.
VIDEO PREVIEW OF THE MANUAL:

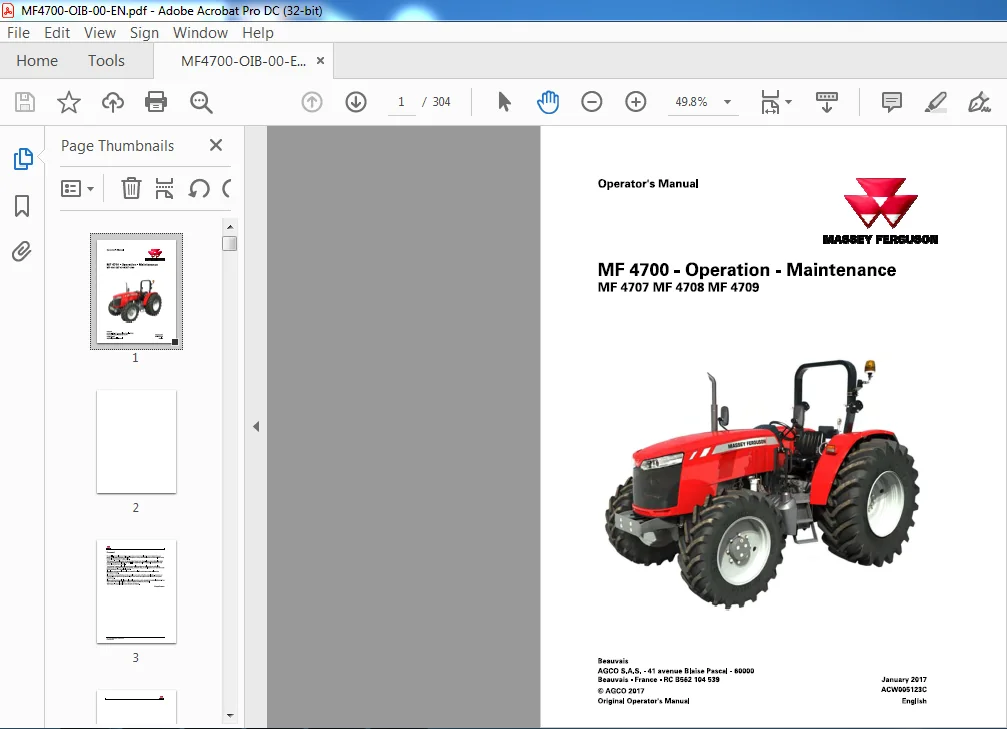

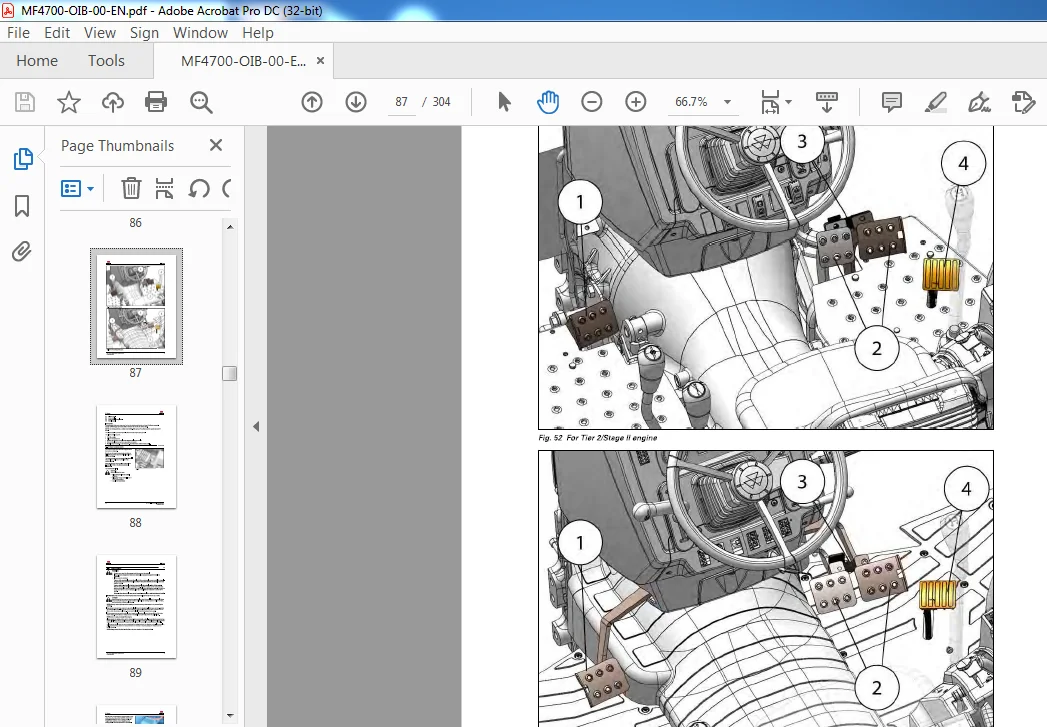

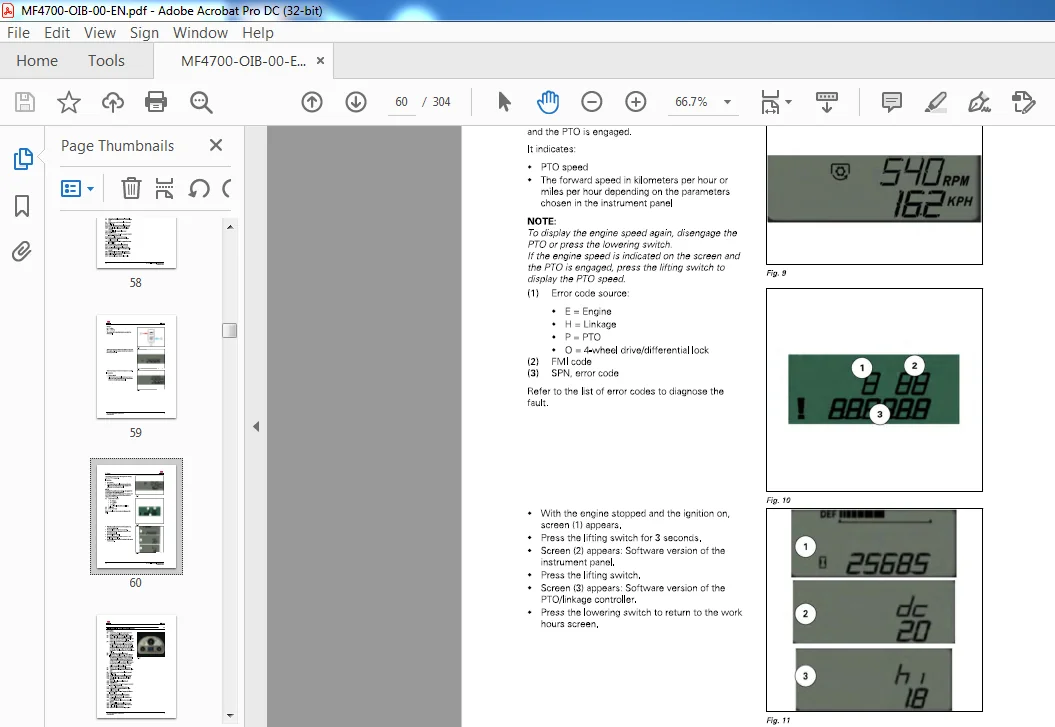

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Massey Ferguson MF 4700 Series MF4707 MF4708 MF4709 Operation Maintenance Manual – PDF DOWNLOAD
1 Tractor identification 11
1 1 Locating serial numbers 13
1 1 1 Locating serial numbers 1 3
1 2 Tractor identification 14
1 2 1 Your tractor identification details 1 4
2 Safety instructions and safety points – Warranty 15
2 1 Introduction 17
2 1 1 Introduction – Safety instructions 1 7
2 2 Safety – Symbols and terms 19
2 2 1 Safety- Symbols and terms 19
2 3 Safety decals and instructions 20
2 3 1 Checking and replacing the safety decals and instructions 20
2 3 2 Presentation and location of the safety decals and instructions 2 1
2 4 General safety instructions 26
2 4 1 Awareness of the safety instructions and symbols 2 6
2 4 2 Operator familiarity in the use of the tractor 2 6
2 4 3 Filling the fuel tank 2 7
2 4 4 Mounting and dismounting the operator’s seat 2 7
2 4 5 Mandatory procedure before dismounting the tractor 2 7
2 5 Special instructions 28
2 5 1 Specific recommendations for agricultural and forestry tractors 2 8
2 6 Special safety instructions for preparing the tractor for use 30
2 6 1 Protective clothing 30
2 6 2 Safety devices and items 30
2 6 3 Checking the tractor 30
2 7 Specific safety instructions for starting the tractor 32
2 7 1 Protection of persons other than the operator 3 2
2 7 2 Start up safely 3 2
2 7 3 Checks to be carried out after start-up 3 3
2 8 Specific safety instructions for using the tractor 34
2 8 1 General instructions 3 4
2 8 2 Protection of persons other than the operator 3 5
2 8 3 Overturning 3 5
2 8 4 Tractor towing 3 8
2 8 5 Regulatory data on maximum permitted trailed weights 3 8
2 8 6 Road use 39
2 8 7 Park brake 40
2 8 8 Power take-off 40
2 8 9 Implements 4 1
2 8 10 Front-end loader 4 4
2 9 Specific safety instructions for servicing the tractor 45
2 9 1 Pollution warning to observe when servicing the tractor 4 5
2 9 2 General instructions 4 5
2 9 3 Handling instructions 4 6
2 9 4 Special instructions for cleaning the tractor 4 7
2 10 Protective structures 48
2 10 1 Protective structures: use and accreditation 4 8
2 10 2 ROPS (Roll Over Protective Structure) 4 8
2 10 3 Seat belt 4 8
MF 4700 – Operation – Maintenance
ACW005123C
Table of contents
2 11 Warranty 49
2 1 1 1 General 49
2 1 1 2 Pre-delivery inspection and commissioning on the user’s premises 49
2 1 1 3 Warranty procedure 49
2 1 1 4 Procedure to follow if changing region 49
2 1 1 5 Servicing during and after the warranty period 50
3 Usage 51
3 1 Operator environment 55
3 1 1 Standard steering console, Footstep tractor 5 5
3 1 2 Standard steering console, Platform tractor 5 6
3 1 3 Essential steering console, Platform tractor 5 7
3 1 4 Instrument panel: Standard option 5 8
3 1 5 Instrument panel Essential option 6 1
3 1 6 Control unit 69
3 1 7 Start switch 69
3 1 8 Start switch 69
3 1 9 Pedals 70
3 1 10 Steering wheel 7 2
3 1 1 1 Seat 7 2
3 2 Body 75
3 2 1 Opening the engine cover 7 5
3 2 2 Tool box 7 5
3 3 Engine 76
3 3 1 Running-in 7 6
3 3 2 Start-up 7 6
3 3 2 1 Starting the engine with preheating on the steering console 7 6
3 3 3 Stopping the engine 7 7
3 3 4 Engine speed 7 8
3 3 5 Filling with fuel 79
3 4 Transmission 81
3 4 1 8 X8 CMS gearbox for Tier 2/Stage 11 engine 8 1
3 4 2 8 X8 SMS gearbox with mechanical reverse shuttle 8 2
3 4 3 gearbox 8 3
3 4 4 1 2 X1 2 S PS gearbox 8 5
3 4 5 Clutch function 8 6
3 4 6 Super creeper gears 8 8
3 4 7 Tractor towing 89
3 5 Brakes 91
3 5 1 Brake pedals 9 1
3 5 2 Hydraulic trailer brake 9 2
3 5 3 Park brake 9 3
3 6 Steering 94
3 6 1 Steering 94
3 7 Standard linkage console 95
3 7 1 Four-wheel drive front axle 95
3 7 1 1 Control locations 95
3 7 1 2 Operation 95
3 7 1 3 Permissible load on the front axle 9 6
3 7 2 Differential lock 9 7
3 7 2 1 Control locations 9 7
3 7 2 2 Operation 9 7
3 7 3 Live PTO 9 8
3 7 3 1 Control locations 9 8
3 7 3 2 Operation 98
3 7 3 3 Selecting the power take-off speed 99
MF 4700 – Operation – Maintenance
ACW005123C
3 8
3 9
Table of contents
3 7 3 4 Interchangeable 54 0 and 1000 rpm PTO 102
3 7 3 5 GSPTO 102
3 7 3 6 Economy PTO 10 3
3 7 3 7 Power take-off protection 10 3
3 7 3 8 Coupling to the PTO shaft 105
3 7 4 Linkage 105
3 7 4 1 Control locations 105
3 7 4 2 Operation 105
3 7 4 3 Rear linkage external controls 108
Electronic linkage console 109
3 8 1 Four-wheel drive front axle 109
3 8 1 1 Control locations 109
3 8 1 2 Operation 109
3 8 1 3 Permissible load on the front axle 110
3 8 2 Differential lock 111
3 8 2 1 Control locations 111
3 8 2 2 Operation 111
3 8 3 Live PTO 112
3 8 3 1 Control locations 112
3 8 3 2 Operation 112
3 8 3 3 Selecting the power take-off speed 113
3 8 3 4 Interchangeable 54 0 and 1000 rpm PTO 116
3 8 3 5 GS PTO 116
3 8 3 6 Economy PTO 117
3 8 3 7 Power take-off protection 117
3 8 3 8 Coupling to the PTO shaft 119
3 8 4 Linkage 119
3 8 4 1 Control locations 119
3 8 4 2 Operation 119
3 8 4 3 Rear linkage external controls 124
Linkage 125
3 9 1 General 12 5
3 9 2 Three-point linkage 12 5
3 9 3 Top link 12 5
3 9 4 Bottom links 12 7
3 9 5 Adjusting the lift rods 12 8
3 9 6 Stabilisers 12 9
3 9 6 1 Stabilizers with manual telescopic adjustment 13 0
3 9 7 Multi-hole drawbar 13 2
3 9 8 Swinging drawbar 13 2
3 9 8 1 Settings 13 2
3 9 8 2 Hitching an attachment 13 3
3 9 8 3 Drawbars, ISO standard 13 3
3 9 8 4 Drawbars, SAE standard 13 4
3 9 9 Linkage type 13 5
3 9 9 1 Standard hitch 13 5
3 9 9 2 Standard hitch with ladder 13 5
3 9 9 3 Short ladder hitch with high load capacity 14 0
3 9 9 4 Pick-up hitch 14 1
3 9 10 Pick-up hitch 14 2
3 9 10 1 General 14 2
3 9 10 2 Using the pickup hitch for pulling 14 2
3 10 Auxiliary hydraulics 144
3 10 1 Types of spool valve 14 4
3 10 2 Hydraulic spool-valve controls 14 5
3 11 Wheels and tires 147
3 11 1 Wheel studs 14 7
MF 4700 – Operation – Maintenance
ACW005123C
Table of contents
3 11 2 Installation points of the axle stands 14 7
3 11 3 Adjustment of the front track width, 2-wheel drive 14 7
3 11 3 1 Adjustment of position 1 of the axle 14 8
3 11 3 2 Adjustment of position 2 of the axle 14 9
3 11 3 3 Adjustment of position 3 of the axle 150
3 11 3 4 Adjustment of position 4 of the axle 15 1
3 11 3 5 Adjustment of position 5 of the axle 152
3 11 4 Adjustment of the front track width, 4-wheel drive 15 3
3 11 5 Adjusting the rear wheel track width 15 4
3 11 6 Adjusting the 4W D front axle stops 156
3 11 7 Tires 156
3 11 8 Tire pressures 15 7
3 11 9 Radial loads and standard inflation pressures 158
3 11 10 Ballasting the tractor 16 0
3 11 11 Liquid ballasting 16 1
3 12 Additional weight 163
3 12 1 Additional weight 16 3
4 Maintenance 165
4 1 Service Guide 167
4 1 1 Service Guide 16 7
4 2 ROPS (Roll Over Protective Structure) 170
4 2 1 Attaching the ROPS 170
4 2 2 Reducing the height of the ROPS 170
4 3 Engine 171
4 3 1 Recommended products 17 1
4 3 2 3-cylinder engine AGCO Power Tier 2 172
4 3 3 4-cylinder engine AGCO Power Tier 2 172
4 3 4 3-cylinder AGCO Power Tier 4i/Stage 111 B engine engine 17 3
4 3 5 Engine oil level check 17 3
4 3 6 Draining the engine oil 17 4
4 3 7 Replacing the engine oil filter 17 4
4 3 8 Breather system 175
4 3 9 Fuel system: fuel prefilter 176
4 3 9 1 Draining the water 176
4 3 9 2 Replacing the filter element 17 7
4 3 10 Fuel filter fuel system 178
4 3 11 Fuel system: Fuel tank 179
4 3 12 Fuel system: bleeding 179
4 3 13 Fuel system: injection pump, regulator and injectors 179
4 3 14 Air filter 179
4 3 15 Cooling system, engine with expansion tank 18 0
4 3 15 1 Checking the level and quality of the coolant 18 0
4 3 15 2 Filling to top up the coolant level 18 1
4 3 15 3 Draining the cooling system 18 1
4 3 15 4 Cleaning the radiator 18 2
4 3 16 Check and replace the main fan/alternator belt 18 2
4 3 16 1 Procedure for tensioning the Poly-V main belt for the AGCO Power
engine 18 3
4 3 17 Fuel quality requirements 18 3
4 3 17 1 Biodiesel blends 18 4
4 3 18 Fuel: Safety instructions and storage 18 5
4 4 Transmission 188
4 4 1 Recommended products 18 8
4 4 2 Checking the hydraulic system level 18 8
4 4 3 Draining the hydraulic system 18 9
4 4 4 Replacing the filter and strainer 19 0
MF 4700 – Operation – Maintenance
ACW005123C
Table of contents
4 4 4 1 Replacing the strainer 19 0
4 4 4 2 Replacing the high-pressure filter 19 0
4 4 5 Transmission oil cooler 19 1
4 4 6 Clutch 19 1
4 4 7 Lubricating the rear axle shaft bearings 19 2
4 5 Brakes 193
4 5 1 Mechanically controlled brakes 19 3
4 5 2 Hydraulically controlled brakes 19 3
4 6 Front axle and steering 195
4 6 1 Recommended products 19 5
4 6 2 Two-wheel drive front axle: lubrication 19 5
4 6 3 Two-wheel drive front axle and four-wheel drive front axle: Check the wheel
alignment 19 6
4 6 4 Four-wheel drive front axle: checking the oil level in the final drives 19 7
4 6 5 Four-wheel drive front axle: draining the oil in the final drives 19 7
4 6 6 Four-wheel drive front axle: Checking the front axle beam oil level 19 7
4 6 7 Four-wheel drive front axle: draining the oil from the front axle beam 19 8
4 6 8 Four-wheel drive front axle: lubrication 19 9
4 6 9 Adjusting the front axle oscillation 2 00
4 7 Linkage 201
4 7 1 Recommended products 2 0 1
4 7 2 Three-point linkage: lubrication 2 0 1
4 8 Electrical equipment 202
4 8 1 Batteries 2 02
4 8 2 Alternator 2 02
4 8 3 Power socket (ISO) 2 0 3
4 8 4 Power socket (ASAE) 2 04
4 8 5 Accessories sockets (ISO) 2 04
4 8 6 Accessories sockets (ASAE) 2 0 5
4 8 7 Adjusting the headlights 2 0 5
4 8 8 Main fuse boxes 2 06
4 8 8 1 AGCO Power Tier 2/Stage 11 engine – Mechanical reverse shuttle/Main
fuse box 2 06
4 8 8 2 AGCO Power Tier 2/Stage II engine – PowerShuttle/Main fuse box 2 09
4 8 8 3 AGCO Power Tier 4 i/Stage II I B engine (EEC) – Mechanical reverse shuttle/
Main fuse box 2 13
4 8 8 4 AGCO Power Tier 4 i/Stage I I I B engine (EEC) – PowerShuttle/Main fuse
box 2 16
4 8 9 Additional fuse boxes 2 2 0
4 8 9 1 AGCO Power Tier 2/Stage 1 1 engine – Mechanical reverse shuttle/
Additional fuse box 2 2 0
4 8 9 2 AGCO Power Tier 2/Stage I I engine – PowerShuttle/Additional fuse box 2 2 0
4 8 9 3 AGCO Power Tier 4 i/Stage I I I B engine (EEC) 2 2 2
4 8 9 4 AGCO Power Tier 4 i/Stage I I I B engine (EEC) – PowerShuttle/Additional
fuse box 222
4 8 10 Fuse boxes on the side of the battery 22 3
4 8 10 1 AGCO Power Tier 2/Stage 11 engine – Fuse box on the side of the battery
22 3
4 8 10 2 AGCO Power Tier 4 i/Stage I I I B engine (EEC) – Main fuse box on the side
of the battery 22 5
4 8 11 Battery isolator 2 2 8
4 9 Pressure washing 230
4 9 1 Pressure washing 2 3 0
4 10 Storing your tractor 231
4 10 1 Storing your tractor 2 3 1
4 11 Faults and solutions 232
4 11 1 General table of faults 2 3 2
MF 4700 – Operation – Maintenance
ACW005123C
Table of contents
4 1 1 2 Indicator light panel 2 3 4
4 1 1 3 Error codes 2 3 7
4 1 1 4 Engine error codes – AGCO Power 2 4 2
5 Technical specifications 259
5 1 General specifications 261
5 1 1 Model MF 4 70 7 2 6 1
5 1 2 Model MF 4 70 8 2 62
5 1 3 Model MF 4 70 9 2 6 4
5 2 Operator environment 266
5 2 1 Noise levels (dBA) at operator’s ears: Tier 4 i/Stage IIIB engine engine 2 6 6
5 2 2 Level of vibration of the operator’s seat 2 6 6
5 3 Engine 267
5 3 1 Specifications: Tier 2 /Stage II engine 2 6 7
5 3 2 Specifications: Tier 4 i/Stage IIIB engine 2 6 7
5 3 3 Fuel system and air filter 2 6 8
5 3 4 Cooling 2 6 8
5 3 5 Tightening torques 2 6 8
5 4 Transmission 269
5 4 1 Forward speed at 2200 rpm with 8 x8 gearbox and 1 6 9 x3 4 tires – 30 km/h option
for Tier 2/Stage 11 engine tractors 2 6 9
5 4 2 Forward speed at 2200 rpm with a 12×1 2 gearbox and 1 6 9 x3 4 tires – 30 km/h
pour les tracteurs Tier 2 /Stage II engine option 2 6 9
5 4 3 Forward speed at 2200 rpm with 1 2 x12 gearbox and 1 6 9 x3 4 tires – option 4 0 km/
h pour les tracteurs Tier 4 i/Stage IIIB engine 2 6 9
5 4 4 Gearbox 2 70
5 4 5 Final drives 2 70
5 4 6 Rear differential lock 2 70
5 5 Brakes 271
5 5 1 Brake technical specifications 2 71
5 6 Front axle and steering 272
5 6 1 Two-wheel drive front axle 27 2
5 6 2 Four-wheel drive front axle 27 2
5 6 3 Steering 272
5 6 4 Tightening torques 2 72
5 7 Power take-off 273
5 7 1 Specifications 2 73
5 7 2 Tightening torques 2 73
5 8 Hydraulic linkage 274
5 8 1 Rear linkage 27 4
5 9 Auxiliary hydraulics (according to specification or country) 275
5 9 1 Standard hydraulic flow rate 27 5
5 10 Electrical equipment 276
5 1 0 1 Electrical equipment technical specifications 2 76
5 11 Wheels and tires 277
5 1 1 1 Wheels 2 77
5 1 1 2 Tires 277
5 1 1 3 Tires compatible with MF 4 700 tractors 2 8 6
5 1 1 4 Tightening torques 2 9 3
5 12 Capacities and dimensions 294
5 12 1 Capacities 2 9 4
5 12 2 Dimensions and weights 2 9 6
5 1 2 3 Attachment points for 3-cylinder engines 2 9 8
5 1 2 4 Attachment points for 4 -cylinder engines for MF 4 70 8 tractors with Tier 2 /Stage
II engine 300
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
S.V
