Linkbelt 600LX SERIES MATERIAL HANDLER EXCAVATOR SHOP MANUAL 1118 – PDF DOWNLOAD
Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent. Dry the bearings completely and put oil on the bearings.
Inspection:
Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures.
Bearings:
Check bearings for easy action. If bearings have a loose fit or rough action, replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR.
Needle Bearings
Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position, put petroleum jelly on the inside and outside diameter of the bearings.
Gears:
Check all gears for wear and damage. Replace gears that have wear or damage.
Oil Seals, O-rings and Gaskets
Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings.
Shafts:
Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
Service Parts:
Always install genuine Link-Belt service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Link-Belt replacement items. Failures due to the use of other than genuine Link- Belt replacement parts are not covered by warranty.
Lubrication:
Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

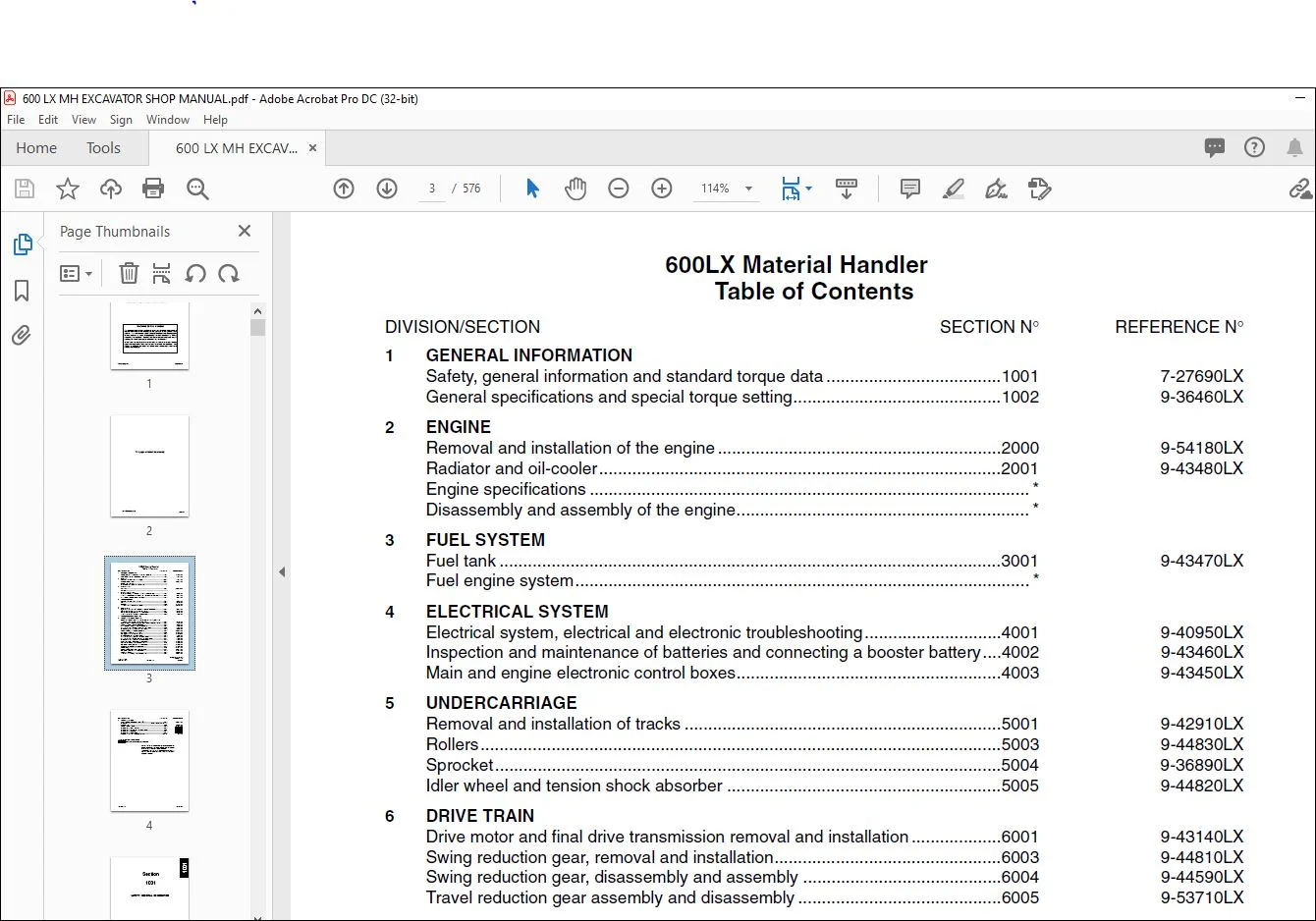

TABLE OF CONTENTS:
Linkbelt 600LX SERIES MATERIAL HANDLER EXCAVATOR SHOP MANUAL 1118 – PDF DOWNLOAD
1 GENERAL INFORMATION
Safety, general information and standard torque data 1001 7-27690LX
General specifications and special torque setting 1002 9-36460LX
2 ENGINE
Removal and installation of the engine 2000 9-54180LX
Radiator and oil-cooler 2001 9-43480LX
Engine specifications *
Disassembly and assembly of the engine *
3 FUEL SYSTEM
Fuel tank 3001 9-43470LX
Fuel engine system *
4 ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting 4001 9-40950LX
Inspection and maintenance of batteries and connecting a booster battery 4002 9-43460LX
Main and engine electronic control boxes 4003 9-43450LX
5 UNDERCARRIAGE
Removal and installation of tracks 5001 9-42910LX
Rollers 5003 9-44830LX
Sprocket 5004 9-36890LX
Idler wheel and tension shock absorber 5005 9-44820LX
6 DRIVE TRAIN
Drive motor and final drive transmission removal and installation 6001 9-43140LX
Swing reduction gear, removal and installation 6003 9-44810LX
Swing reduction gear, disassembly and assembly 6004 9-44590LX
Travel reduction gear assembly and disassembly 6005 9-53710LX
7 UNDERCARRIAGE HYDRAULICS
8 UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of the
vacuum pump and bleeding the components 8000 9-44560LX
Specifications, troubleshooting, checks and hydraulic pressure settings 8001 9-36910LX
Hydraulic reservoir removal and installation 8002 9-43230LX
Main and pilot pumps, removal and installation 8003 9-53950LX
Main hydraulic control valve, removal and installation 8004 9-53990LX
Attachment cylinders, removal and installation 8005 9-43250LX
Hydraulic swivel, removal and installation 8006 9-43390LX
Pilot blocs, removal and installation 8007 9-53980LX
Swing motor, removal and installation 8008 9-53970LX
Free swing disassembly and assembly 8009 9-35530LX
Main hydraulic pump, disassembly and assembly 8010 9-43330LX
Main hydraulic control valve, disassembly and assembly 8011 9-54310LX
Attachment cylinders, disassembly and assembly 8012 9-53690LX
Hand control levers, disassembly and assembly 8013 9-54000LX
Foot control levers, disassembly and assembly 8014 7-28210LX
Six-solenoid valves, disassembly and assembly 8015 9-54050LX
Caution valve, disassembly and assembly 8016 7-27942LX
Safety valve 8017 9-54100LX
Hydraulic swivel, disassembly and assembly 8018 9-43190LX
Swing motor, disassembly and assembly 8019 9-54140LX
Hydraulic functions 8020 9-42740LX
Travel hydraulic motor, disassembly and assembly 8021 9-43160LX
Cre 9-54350LX Issued 06-03
