Liebherr R 9600 1391 Hydraulic Excavator Operating Manual 47001 – PDF DOWNLOAD
FILE DETAILS:
Liebherr R 9600 1391 Hydraulic Excavator Operating Manual 47001 – PDF DOWNLOAD
Language : English
Pages : 524
Downloadable : Yes
File Type : PDF
Size: 37.6 MB

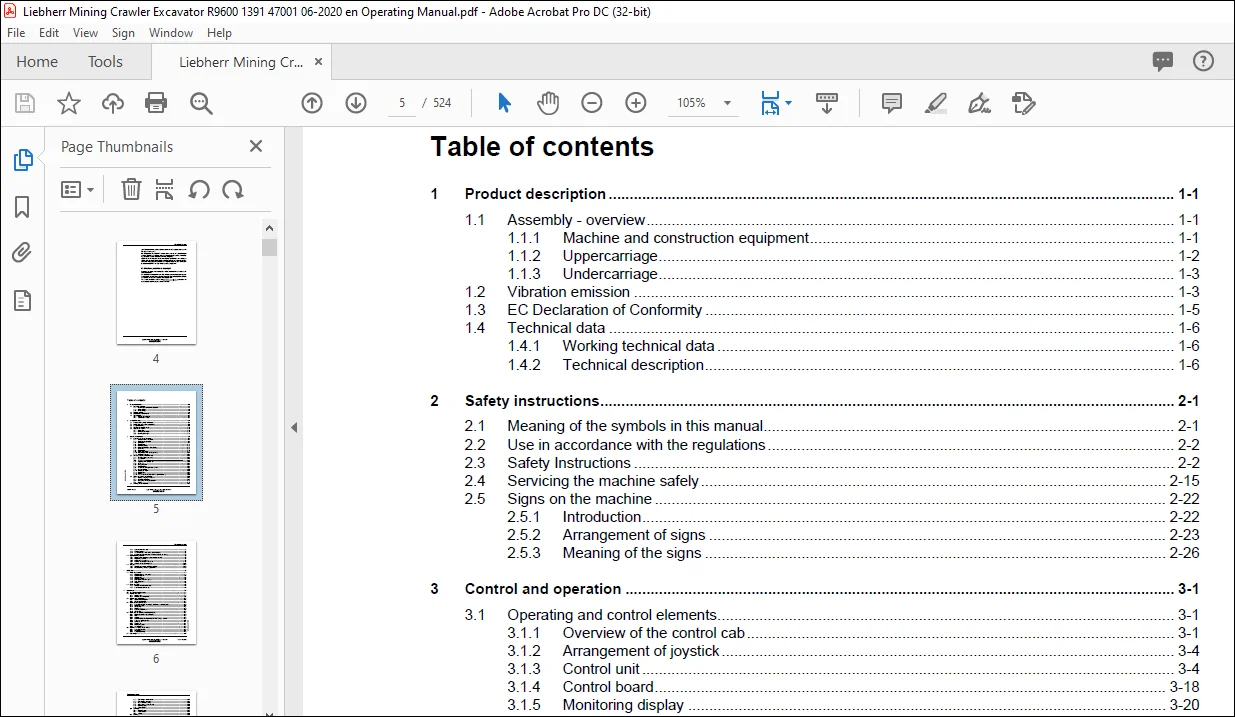

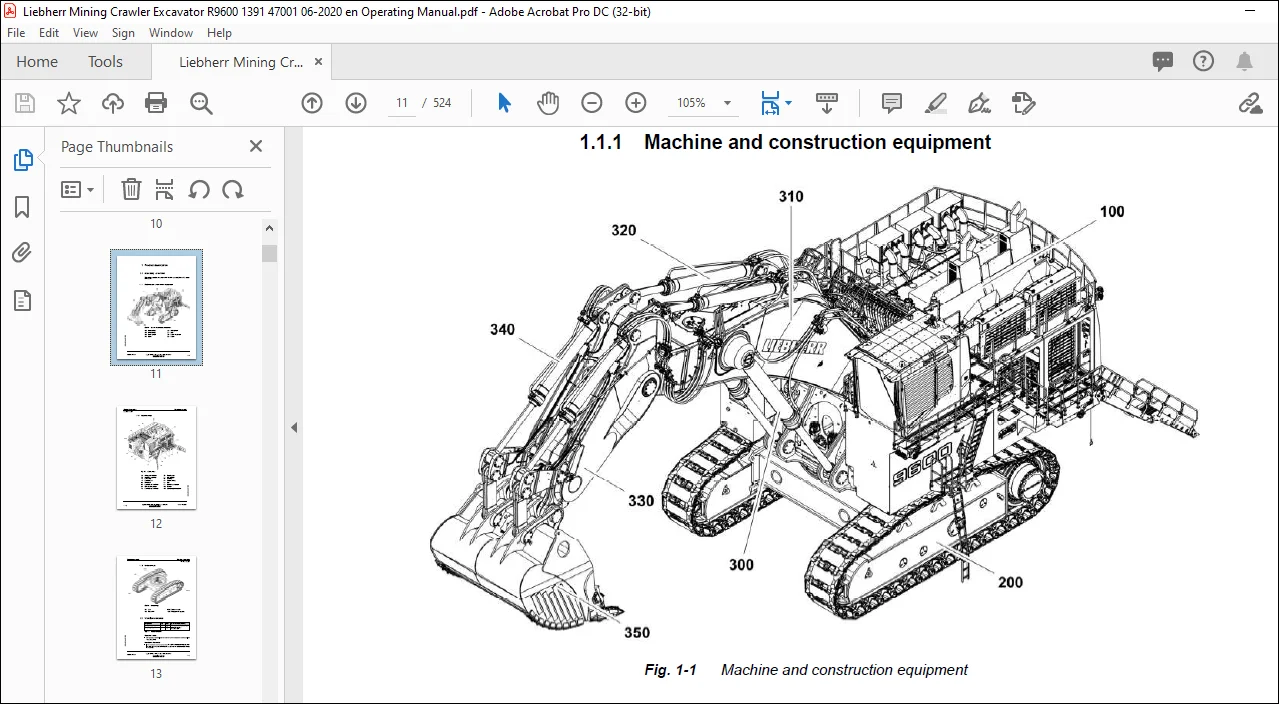

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Liebherr R 9600 1391 Hydraulic Excavator Operating Manual 47001 – PDF DOWNLOAD
Product identification
Manufacturer: Liebherr-Mining Equipment Colmar SAS
Type: R 9600
Type no.: 1391
Preface:
- Operation including setting up and equipping, rectifying malfunctions during the course of work, resolving production dropouts, care, disposal of operating and process materials.
- Maintenance, including maintenance, inspection and repair work.
- Transportation or loading the machine.
- Increases reliability in use.
- Extends the service life of your machine.
- Reduces repair costs and downtime.
- Some illustrations in these operating instructions may depict details and working devices which differ from your machine.
- In some illustrations, protective devices and covers have been removed in the interests of better presentation.
- Improvements, which are always being incorporated into our machines, may result in changes to your machine which are not yet indicated in these operating instructions.
TABLE OF CONTENTS:
Liebherr R 9600 1391 Hydraulic Excavator Operating Manual 47001 – PDF DOWNLOAD
1 Product description 1-1
1 1 Assembly – overview 1-1
1 1 1 Machine and construction equipment 1-1
1 1 2 Uppercarriage 1-2
1 1 3 Undercarriage 1-3
1 2 Vibration emission 1-3
1 3 EC Declaration of Conformity 1-5
1 4 Technical data 1-6
1 4 1 Working technical data 1-6
1 4 2 Technical description 1-6
2 Safety instructions 2-1
2 1 Meaning of the symbols in this manual 2-1
2 2 Use in accordance with the regulations 2-2
2 3 Safety Instructions 2-2
2 4 Servicing the machine safely 2-15
2 5 Signs on the machine 2-22
2 5 1 Introduction 2-22
2 5 2 Arrangement of signs 2-23
2 5 3 Meaning of the signs 2-26
3 Control and operation 3-1
3 1 Operating and control elements 3-1
3 1 1 Overview of the control cab 3-1
3 1 2 Arrangement of joystick 3-4
3 1 3 Control unit 3-4
3 1 4 Control board 3-18
3 1 5 Monitoring display 3-20
3 1 6 Menus and functions of the display 3-21
3 1 7 Dashboard 3-24
3 1 8 Error pop-up 3-27
3 1 9 Notification center 3-29
3 1 10 Indicator and error warning symbols 3-34
3 1 11 Monitoring cameras 3-36
3 2 The access and the outfit of the cab 3-37
3 2 1 Entering or leaving the cab 3-39
3 2 2 Safety lever 3-45
3-46
3 2 4 Adjusting of the auxiliary seat 3-53
3 2 5 Sunshade 3-54
3 2 6 Emergency exit 3-54
3 2 7 Interior lightings 3-55
3 2 8 Vacuum cleaner (optional equipment) 3-56
3 2 9 Fire extinguisher 3-57
3 2 10 Windscreen wiper 3-58
3 2 11 Field of view 3-60
3 2 12 Lighting 3-61
3 2 13 Pressurization/reinforced filtration system (optional) 3-62
3 3 Setting the machine into operation 3-62
3 3 1 Starting / stopping the machine 3-64
3 3 2 Jump start procedure 3-69
3 3 3 Emergency and safety operations 3-70
3 3 4 Driving 3-77
3 4 Working with the machine 3-81
3 4 1 Operating the swing gear 3-88
3 4 2 Working position 3-91
3 4 3 Joystick functions when setting up the machine 3-91
3 4 4 Lowering the work attachment when the engine is not running 3-95
3 5 General working methods 3-96
3 5 1 Minimum impact working methods for your machine 3-96
3 5 2 Preparatory activities 3-97
3 5 3 Positioning of the machine 3-98
3 5 4 Working with the backhoe bucket 3-98
3 5 5 Working with the Shovel bucket 3-101
3 6 Transport 3-103
3 6 1 Travelling procedures for mining machine 3-103
3 6 2 Excavator lifting and lashing operations 3-105
4 Malfunctions 4-1
4 1 Faults and remedies 4-2
4 1 1 Diesel engine and fuel system 4-2
4 1 2 Hydraulic system 4-3
4 1 3 Transmission 4-3
4 1 4 Electrical system 4-4
4 1 5 Heating/air-conditioning system 4-4
4 1 6 Work equipment 4-4
4 1 7 Display 4-5
4 2 Fuses and relays 4-6
4 2 1 Elevation electric cabinet U1003 4-6
4 2 2 Cabin electric cabinet U1005 4-9
5 Maintenance 5-1
5 1 Servicing the machine safely 5-1
5 2 Maintenance access 5-7
5 2 1 Access doors 5-7
5 2 2 Foldable platform (optional) 5-8
5 3 Maintenance anchor points 5-10
5 3 1 Approved anchor points 5-11
5 3 2 Use the anchor points 5-15
5 4 Lubricants and operating fluids 5-16
5 4 1 General information on changing lubricants and operating fluids 5-16
5 4 2 Lubricating chart 5-17
5 4 3 Service trap 5-18
5 4 4 Lubricant chart 5-19
5 4 5 Operating material chart 5-22
5 4 6 Service trap 5-23
5 5 Lubricating and operating material specifications 5-24
5 5 1 Lubricating oil for the Diesel engine 5-25
5 5 2 Fuel 5-25
5 5 3 Coolant 5-25
5 5 4 Hydraulic oil specifications for LIEBHERR Mining excavators 5-25
5 5 5 Swing and travel gear oils 5-31
5 5 6 Splitterbox oil 5-33
5 5 7 Coupling oil 5-34
5 5 8 Lubricating grease 5-34
5 5 9 Other lubricants 5-36
5 6 Condition monitoring with oil analysis 5-36
5 6 1 General information 5-36
5 6 2 Oil sampling 5-37
5 6 3 Sample processing 5-46
5 7 Diesel engine 5-50
5 7 1 Diesel engine oil level check 5-50
5 7 2 Diesel engine oil change 5-51
5 7 3 Engine oil sump refilling 5-52
5 7 4 Oil reserve system (optional) 5-53
5 7 5 Mounting screws 5-57
5 7 6 Elastic bedding 5-58
5 8 Splitterbox 5-59
5 8 1 Mounting screws 5-59
5 8 2 Elastic bedding 5-61
5 8 3 Air filter 5-62
5 9 Coupling 5-62
5 9 1 Wear check (only for Geislinger coupling) 5-63
5 9 2 Visual check (only for Centa coupling) 5-64
5 10 Cooling system 5-64
5 10 1 Check and clean the cooling system 5-64
5 10 2 Check the coolant level 5-65
5 10 3 Coolant antifreeze and anti-corrosion fluid 5-65
5 10 4 Change the coolant 5-66
5 11 Fuel system 5-71
5 11 1 Refuelling 5-72
5 11 2 Draining the fuel tank 5-72
5 11 3 Emptying and cleaning the fuel tank 5-73
5 11 4 Fuel filtering system 5-73
5 11 5 Replace the breather filter for the fuel tank 5-77
5 12 Compressed air system 5-77
5 12 1 Compressor unit 5-78
5 12 2 Air tank 5-79
5 13 Dry air filter 5-80
5 13 1 To change the primary filter element 5-81
5 13 2 Changing the safety element 5-82
5 13 3 To clean the air channels for the precleaner 5-83
5 13 4 Check the air intake system, hoses, elbows, clamps 5-83
5 14 Hydraulic system 5-84
5 14 1 Preparatory activities 5-84
5 14 2 Checking the oil level in the hydraulic tank 5-85
5 14 3 Release the pressure from the hydraulic system 5-86
5 14 4 Emptying and refilling the hydraulic tank 5-95
5 14 5 Leak oil filters, return-line filters and air filter 5-96
5 14 6 Oil filters in Powerpacks 5-99
5 14 7 Control circuit 5-100
5 14 8 Bleeding the working pumps and the pilot oil pump 5-101
5 14 9 Bleeding the swing pumps 5-102
5 14 10 Bleeding the cooling fans pumps 5-103
5 14 11 Bleeding the hydraulic cylinders 5-104
5 14 12 Unscrew the intake hoses to the pump 5-105
5 14 13 High pressure filters in working circuit 5-107
5 14 14 Bypass filter for hydraulic oil (optional equipment) 5-108
5 14 15 Oil filter for swing gear (optional equipment) 5-110
5 14 16 Oil cooler protection filters (optional) 5-112
5 14 17 Servicing the hydraulic cylinder 5-113
5 14 18 Replacement of the hydraulic hoses 5-114
5 14 19 Progressive criss-cross tightening procedure 5-117
5 15 Oil changes on components 5-118
5 15 1 General information 5-118
5-119
5-121
5 15 4 Swing gears and travel gears flushing 5-126
5 15 2 Swing gear – oil change
5 15 3 Travel gear – oil change
5 15 5 Splitterbox – oil change
5 16 Hydraulic rotary connection 5-130
5 17 Track components 5-131
5 17 1 Track components mountings check 5-131
5 17 2 Check the track tension 5-134
5 17 3 Retensioning the track 5-135
5 17 4 Releasing the track tension 5-136
5 17 5 Cleaning the track components 5-136
5 18 Electrical system 5-136
5 18 1 Notes on the electrical system 5-136
5 18 2 Principal batteries switches and Engine Control Unit (ECU) connectors 5-137
5 18 3 Battery care 5-139
5 18 4 Electrical components location 5-139
5 18 5 Electrical boxes and cab pressurization 5-141
5 19 Heating/air conditioning system 5-142
5 19 1 Heating system 5-143
5 19 2 Air-conditioning system 5-144
5 19 3 Dual air-conditioning system (optional) 5-147
5 19 4 Additional maintenance operations 5-148
5 20 Pressurization/reinforced filtration system (optional) 5-148
5 21 Check mounting bolts for tightness 5-148
5 21 1 Counterweight mounting bolts 5-149
5 21 2 Swing ring mounting bolts 5-150
5 21 3 Fuel tank mounting bolts 5-151
5 21 4 Hydraulic tank mounting bolts 5-152
5 21 5 Powerpack mounting bolts 5-153
5 21 6 Swing gear and swing motor mounting bolts 5-154
5 21 7 Hydraulic pumps mounting bolts 5-155
5 21 8 Side frames mounting bolts 5-156
s 5-157
5 22 Drive unit brakes and swing gear brakes 5-157
5 23 General maintenance points 5-158
5 23 1 Replacing working parts 5-158
5 23 2 Welding work on the machine 5-158
5 24 Control and maintenance chart 5-159
5 24 1 General information 5-159
5 24 2 How to use the maintenance chart 5-160
5 24 3 Daily Maintenance Schedule – R 9600 5-161
5 24 4 250 Hours Maintenance Schedule – R 9600 5-167
5 24 5 500 Hours Maintenance Schedule – R 9600 5-173
5 24 6 1000 Hours Maintenance Schedule – R 9600 5-181
5 24 7 2000 Hours Maintenance Schedule – R 9600 5-190
6 Appendix 6-1
6 1 Visual check of the hydraulic hoses 6-1
6 1 1 Preface 6-1
6 1 2 General information 6-2
6 1 3 Components functions 6-4
6 1 4 Recommendations for hose assembly maintenance 6-5
6 2 Cleaning procedure for hydraulic circuits 6-9
6 2 1 Preface 6-9
6 2 2 General information about hydraulic oil contamination 6-9
6 2 3 General cleaning procedure 6-11
6 2 4 Working pumps circuit 6-12
6 2 5 Swing circuit 6-23
6 2 6 Cooling pumps circuit 6-30
6 2 7 Travel motors circuit 6-39
6 2 8 Backhoe cylinders lines 6-45
