Liebherr L 586 1334 Wheel Loader Service Manual – PDF DOWNLOAD
FILE DETAILS:
Liebherr L 586 1334 Wheel Loader Service Manual – PDF DOWNLOAD
Language : English
Pages : 996
Downloadable : Yes
File Type : PDF
Size: 223 MB
DESCRIPTION:
Liebherr L 586 1334 Wheel Loader Service Manual – PDF DOWNLOAD
- This service manual is designed for trained specialist staff of the Liebherr organisation and their dealers.
- This service manual contains specialist knowledge for repairing Liebherr construc- tion machines. Basic specialist knowledge on electronics, hydraulics, mechanics and engine technology is not contained in this service manual. Therefore special- ized training and qualifications are necessary. Liebherr recommends participating in the Liebherr training program for construction machines.
In this service manual you will find information on:
- You will find information on controls and operation in the operator’s manual. Information on spare parts are in the spare parts catalogue. Please observe the local accident prevention laws.
- You can find information on repairs of machine parts in the service documentation under “Wheel loader – repair instructions”.
Introduction:
To ensure safe operation:
- Consult with the worksite manager about safety regulations at the place of use.
- Adhere to safety regulations at the place of use.
- Follow traffic regulations.
- Adhere to valid guidelines provided by insurers (for example, employers’ professional liability insurance companies, accident insurance, etc.).
- Avoid working methods that can endanger safety.
- Follow all intervals specified for recurrent checks and inspections as outlined in this operator’s manual.
1.2. Intended Use of Wheel Loader
The wheel loader is used to pick up, move, and dump the following materials:
- Soil
- Stones
- Broken rocks
- Bulk materials
This applies to a standard machine under normal operating conditions. Special applications are described in a separate options operator’s manual.
To ensure the intended use:
- Adhere to the operator’s manual.
- Follow maintenance intervals.
- Carry out inspection and maintenance tasks.
- Follow the specifications in the technical data.
- When using the machine on public roads, ensure it complies with applicable national regulations.
- Only lift loads with intended working attachments (fork prongs, crane boom), which must be properly fitted and functioning.
- Ensure that machines used underground (for mining and tunnel construction) are fitted with systems to reduce exhaust emissions (such as diesel particulate filters).
- Adhere to the requirements of each individual country for underground operation.
- For special uses, use special working attachments and, if necessary, special safety equipment.
- Exclusively mount and use special working attachments with approval and as per the stipulations of the manufacturer of the basic machine.

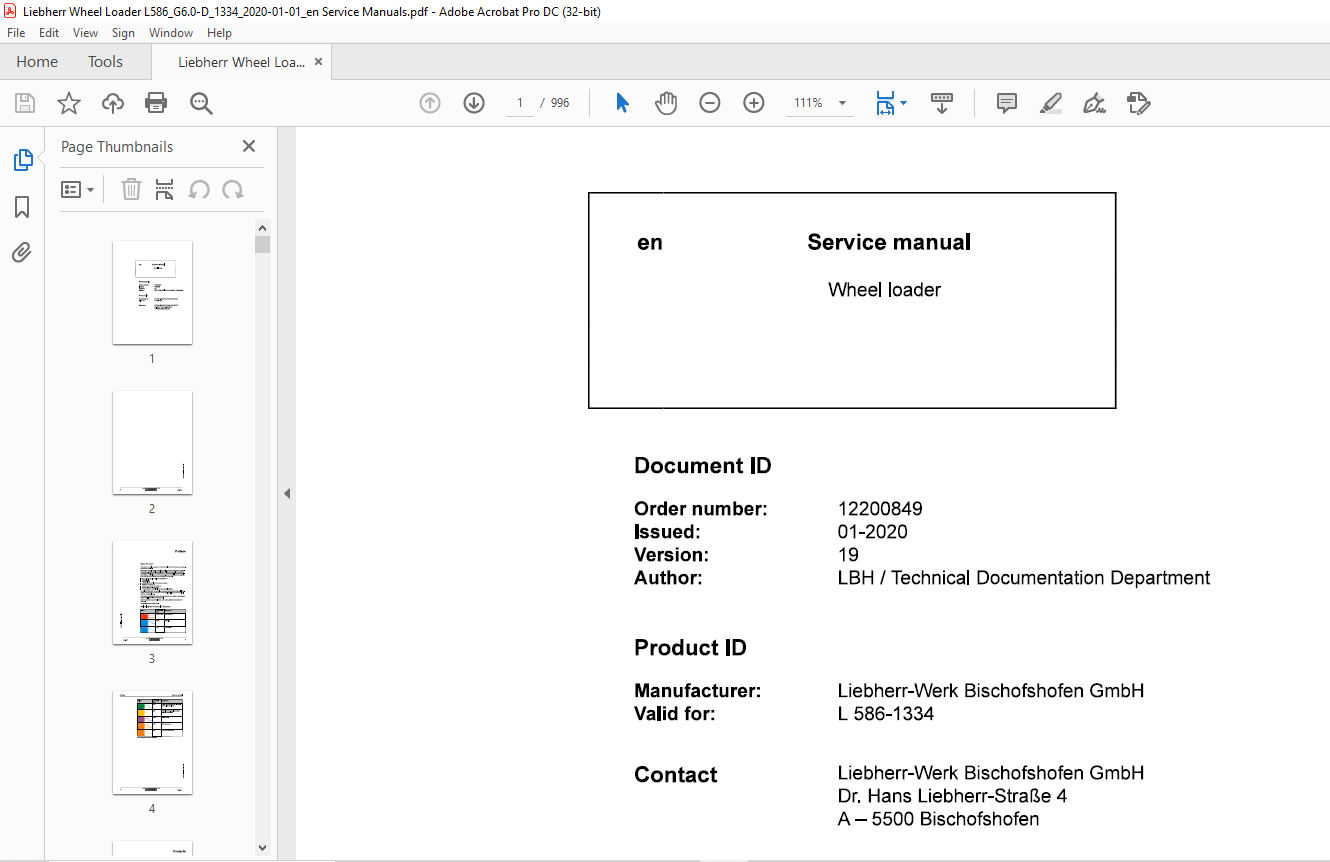

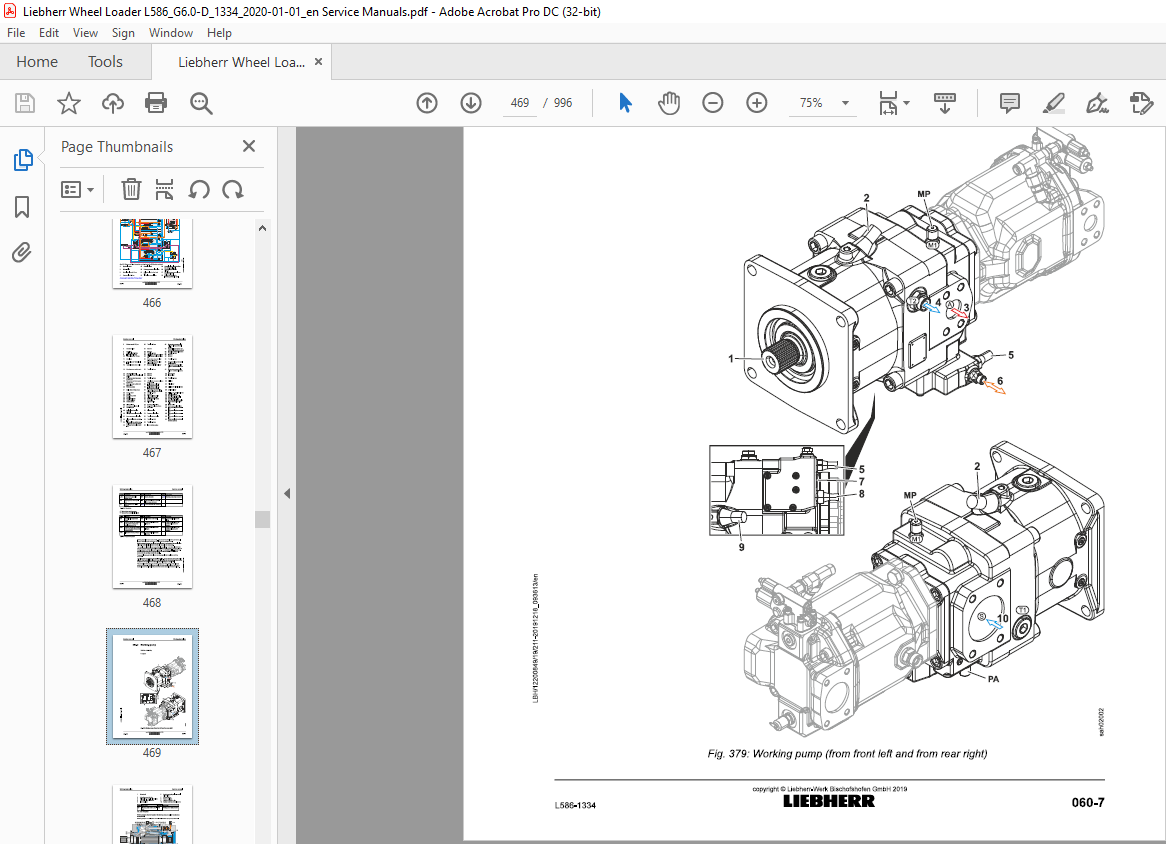

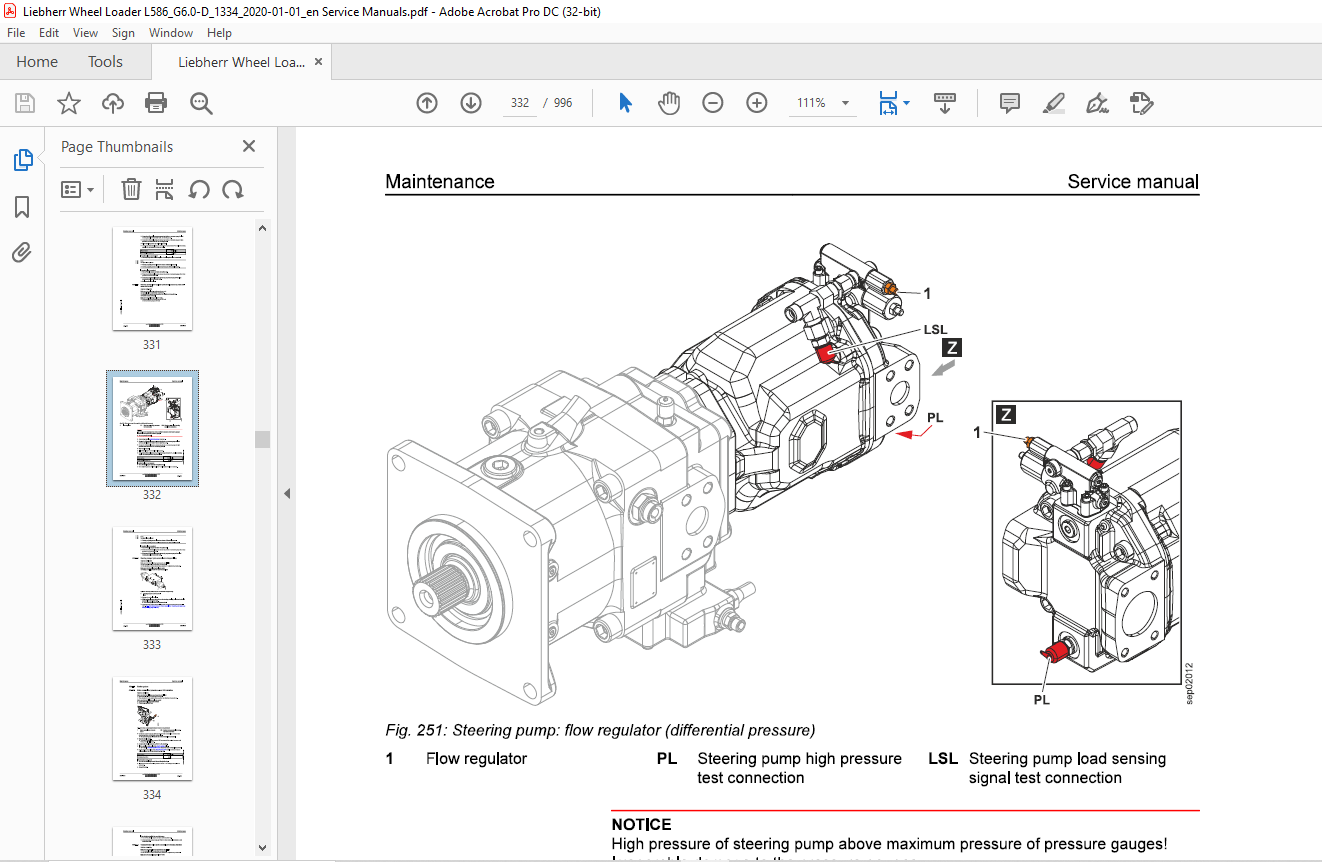

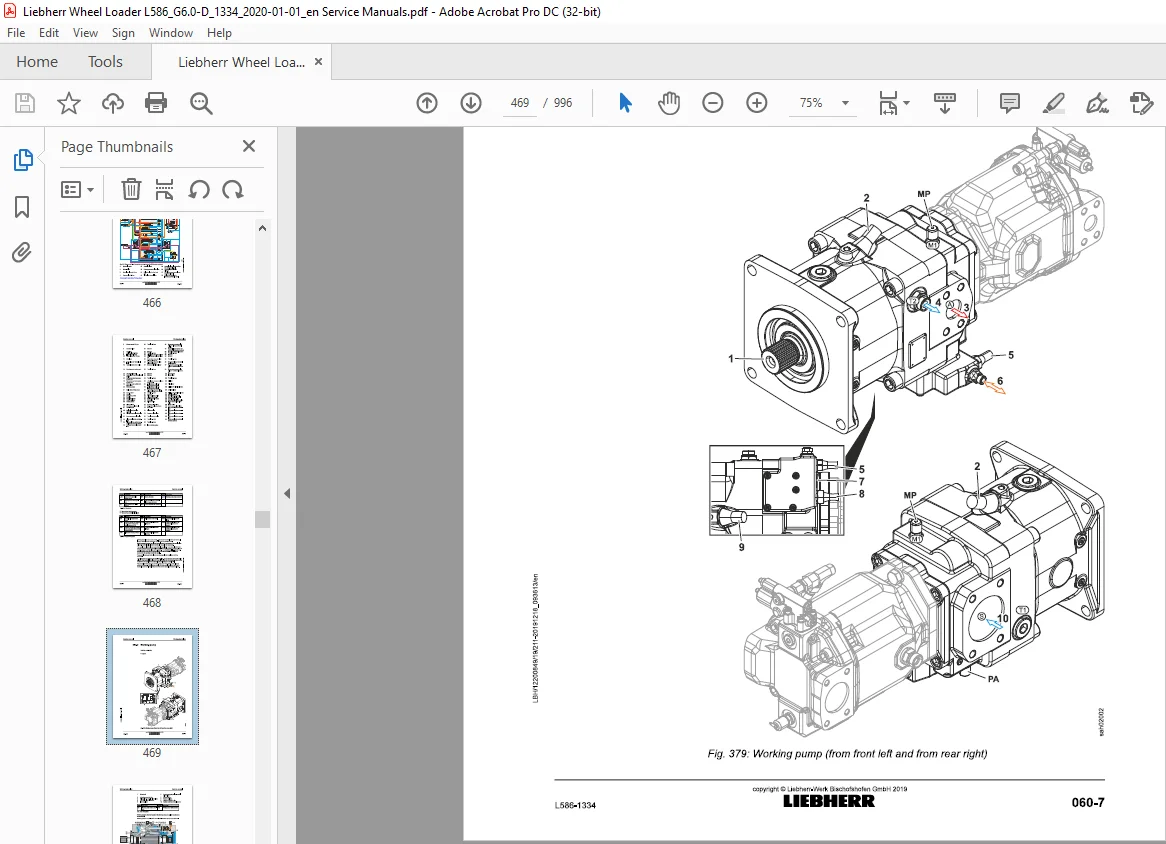

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Liebherr L 586 1334 Wheel Loader Service Manual – PDF DOWNLOAD
010.1 Safety instructions 010-4
010.1.1 Information on these instructions 010-4
010.1.1.1 Representation of warning messages 010-4
010.1.1.2 Graphic symbols in these instructions 010-4
010.1.2 Intended use 010-5
010.1.2.1 Laws, rules, guidelines and safety regulations 010-5
010.1.2.2 Intended use 010-5
010.1.2.3 Foreseeable misuse 010-6
010.1.2.4 Operating conditions 010-6
010.1.2.5 Disposal 010-7
010.1.3 Description of staff 010-7
010.1.3.1 Personal protective equipment 010-7
010.1.3.2 Requirements for staff 010-8
010.1.3.3 Operating company 010-8
010.1.3.4 Operator 010-9
010.1.3.5 Maintenance staff 010-9
010.1.3.6 Refrigeration technician 010-10
010.1.3.7 Slinger 010-11
010.1.3.8 Spotter 010-12
0101.4 Protective devices on the machine 010-12
010.1.4.1 Operator’s cab 010-12
010.1.4.2 Roll over protective structure (ROPS) 010-13
010.1.4.3 Falling object protective structures (FOPS) 010-13
0101.5 Emergency equipment on the machine 010-13
010.1.5.1 Emergency exit (standard) 010-13
010.1.5.2 Fire extinguisher (option) 010-14
010.1.6 Safe operation 010-14
010.1.6.1 Intoxicants 010-14
010.1.6.3 Transporting machine 010-15
010.1.6.4 Access to machine 010-15
010.1.6.5 Machine danger zone 010-16
010.1.6.6 Visibility 010-16
010.1.6.7 Protection against vibration 010-17
010.1.6.8 Operation of machine 010-18
010.1.7 Safe maintenance 010-21
010.1.7.1 Spare parts 010-21
010.1.7.2 Heavy parts 010-21
010.1.7.3 Regular checks 010-22
010.1.8 Modifications to the machine 010-22
010.1.8.1 Modifications, add-ons and retrofittings 010-22
Special tools for maintenance and repair work 010-23
010.21 Special tools, general 010-23
010.2.2 Special tools for the diesel engine 010-25
010.2.3 Special tools for lift cylinders with Z kinematics 010-29
010.2.4 Special tools for tilt cylinders with Z kinematics 010-29
010.25 Special tools for steering wheel 010-30
010.2.6 Special tools for steering cylinders 010-30
010.2.7 Special tools for brake system 010-31
010.2.8 Special tools for the electrical system 010-31
010.2.9 Special tools for the transmission 010-32
010.2.10 Special tools for front axle 010-33
010.2.11 Special tools for rear axle 010-33
010.2.12 Special tools for the air conditioning system 010-34
010.2.13 Special tools for Grammer driver’s seat 010-35
010.2.14 Special tools for cab glazing 010-36
010.2.15 Special tools for the central lubrication system (Liebherr) 010-36
010.3.1.1 Range of application and purpose 010-37
010.3.1.2 Other applicable documents 010-37
010.3.1.3 Modifications and descriptions 010-38
0104.1 General information 010-45
010.4.2 Machine out of service for an unknown period of time 010-45
010.4.3 Putting the machine out of service 010-46
010.4.3.2 Out of service for up to 12 months 010-47
010.4.3.3 Out of service for longer than 12 months 010-48
010.44 Putting back into service 010-48
010.4.4.1 After being out of service for 2 months 010-48
010.4.4.2 After being out of service for 12 months 010-49
010.4.4.3 After being out of service for longer than 12 months 010-49
0105.1 Putting out of service for longer than 2 months 010-50
010.5.2 Starting up after being out of service for longer than 2 months 010-50
020.1.1 Complete machine with bucket (Z lift arms)
020.1.2 Working attachment: light material bucket
020.1.3 Working attachment: high dump bucket
0202.2 Fuel tank
020.2.3 Fuel level sensor
020.24 Fuel pre-filter (separator filter)
0202.5 Compressed air system
L586-1334, 020-13
020.3.2 Fan motor
1586-1334; 020-13
020.3.3 Hydraulic oil temperature sensor B8
1586-1334; 020-13
020.4 Working hydraulics 020-14
020.4.1 Working pump
1586-1334; 020-14
020.4.2 Control valve block for Z kinematics
1586-1334; 020-14
020.4.3 Pilot control valve block
1586-1334; 020-15
020.4.4 Pilot control hydro accumulator
1586-1334; 020-15
020.4.5 Stabilisation module
1586-1334; 020-15
020.46 Ride control hydro accumulator
1586-1334; 020-15
020.4.7 Z kinematics lift cylinder
1586-1334; 020-15
020.4.8 Z kinematics tilt cylinder
1586-1334; 020-16
020.5 Hydraulic components 020-17
020.5.1 Return filter
1586-1334; 020-17
020.5.2 Breather filter
1586-1334; 020-17
020.6 Steering system 020-18
020.6.1 Steering pump
1586-1334; 020-18
020.6.2 Servostat
1586-1334; 020-18
020.6.3 Steering cylinder
1586-1334; 020-18
020.6.4 Steering damper hydro accumulator
1586-1334; 020-19
020.6.5 Emergency steering pump
1586-1334; 020-19
020.6.6 Emergency steering pressure switch B3
1586-1334; 020-19
020.6.7 Emergency steering check pressure switch B3a
1586-1334; 020-19
020.6.8 Joystick steering control valve block
1 586-1334/0-51486; 020-20
0206.9 Joystick steering control valve block
L586-1334/51487-; 020-20
020.7 Brake system 020-21
020.7.1 Brake pump
L586-1334; 020-21
020.7.2 Compact brake valve
L586-1334; 020-21
020.7.3 Service brake hydro accumulator
1586-1334; 020-21
020.7.4 Brake light pressure switch B12
L 586-1334; 020-21
020.7.5 Brake accumulator pressure sensor B19
L586-1334; 020-22
020.7.6 Parking brake hydro accumulator
L586-1334; 020-22
020.8 Electrical system 020-23
020.8.1 Central control unit (Master 4)
L586-1334; 020-23
020.8.2 Input module
L586-1334; 020-23
020.8.3 Output module
1586-1334; 020-23
020.8.4 Battery
1586-1334; 020-24
0208.5 Voltage transformer
L586-1334; 020-24
020.8.6 Reversing camera
L 586-1334; 020-24
020.9 Gearbox 020-26
020.9.1 Transmission
L586-1334; 020-26
020.9.2 Filter bypass switch B85
1586-1334; 020-26
020.9.3 Proportional solenoid for gear shifting Y1, Y2, Y3, Y4, Y5, Y6
L586-1334; 020-26
020.9.4 Pressure sensor B80, B81
L 586-1334; 020-27
020.9.5 Speed sensor B82, B83, B84
L586-1334; 020-27
020.9.6 Transmission oil temperature sensor B86
L 586-1334; 020-27
020.9.7 Proportional solenoid for position control Y7
1586-1334; 020-28
020.10 Axles and drive shafts 020-29
020.10.2 Rear axle
1586-1334; 020-29
020.10.3 Drive shaft between diesel engine and transmission
1586-1334; 020-29
020.10.4 Drive shaft between transmission and front axle
1586-1334; 020-30
020.10.5 Cardan shaft between transmission and rear axle
L 586-1334; 020-30
020.10.6 Tyres
1586-1334; 020-30
020.10.6.2 Special tyres 020-31
020.11 Steel parts of the basic machine 020-32
020.11.1 Ballast weights
1586-1334; 020-32
020.11.1.1 Standard (Z kinematics) 020-32
020.11.1.2 Foam-filled tyres or tracks 020-32
020.12 Working attachment 020-33
020.12.1 Quick coupler locking hydraulic cylinder
1586-1334; 020-33
020.13 Operator’s cab, heating and air conditioning 020-34
020.13.1.1 Air conditioning compressor 020-34
020.13.2 Air conditioning pressure switch
1586-1334; 020-34
020.14 Lubrication system 020-35
020.14.1 Central lubrication system (Liebherr)
1586-1334; 020-35
020.14.1.1 Central lubrication pump 020-35
020.14.1.2 Progressive distributor 020-35
020.14.2 Progressive distributor SXE-2
1586-1334; 020-36
020.14.2.1 SXE-2/MX-F 020-36
020.14.2.2 SXE-2 100 020-36
020.14.2.3 SXE-2 150 020-37
020.14.24 SXE-2 220 020-37
020.14.2.5 SXE-2 400 020-37
020.1426 SXE-2760 020-37
030 Maintenance 030-1
030.1 Maintenance and inspection schedule 030-10
030.2 Filling quantities and lubrication chart 030-15
030.2.1 Recommended lubricants
L586-1334; 030-15
0302.2 Recommended operating fluids
L 586-1334; 030-16
030.3 Lubricants and fuels 030-17
030.3.1 General information on changing lubricants and fuels 030-17
030.3.2 Converting hydraulic system from mineral oils to biodegradable
hydraulic fluids 030-17
030.3.3 Diesel fuels
L586-1334; 030-18
030.3.3.1 Minimum quality requirement 030-18
030.3.3.2 Operating temperatures of diesel fuels 030-18
030.3.3.3 Minimum quality requirement 030-18
030.3.4 Diesel fuels for diesel engines without emission-type approval
1586-1334; 030-18
030.34.1 Minimum quality requirement 030-18
030.3.4.2 Operating temperatures of diesel fuels 030-19
030.3.4.3 Minimum quality requirement 030-19
030.3.5 Diesel exhaust fluid
1586-1334; 030-19
030.3.5.1 Liebherr recommendation 030-19
030.3.5.2 Minimum quality requirement 030-19
030.3.6 Engine oils
L586-1334; 030-20
030.36.1 Liebherr recommendation 030-20
030.3.6.2 Other approved engine oils 030-20
030.3.6.3 Minimum quality requirement 030-20
030.3.6.4 Changing intervals 030-20
030.3.6.5 Complicating factors 030-21
030.3.7 Engine oils for diesel engines without emission-type approval
1586-1334; 030-21
030.3.7.1 Liebherr recommendation 030-21
030.3.7.2 Other approved engine oils 030-21
030.3.7.3 Minimum quality requirement 030-21
030.3.7.4 Changing intervals 030-22
030.3.8 Refrigerant
1586-1334; 030-22
030.3.9 Coolant
L 586-1334; 030-22
030.3.9.1 Requirements for the water used 030-22
030.3.9.2 Antifreeze and corrosion inhibitor 030-23
030.3.9.3 Minimum quality requirement 030-23
030.3.10 Hydraulic oil
L 586-1334; 030-23
030.3.10.1 Liebherr recommendation 030-23
030.3.10.2 Minimum quality requirement 030-24
030.3.10.3 Oil analysis 030-24
030.3.10.4 Oil change 030-24
030.3.11 Splitter box oil
L 586-1334; 030-24
030.3.11.1 Liebherr recommendation 030-24
030.3.11.2 Minimum quality requirements 030-25
030.3.12 Gear oil
L 586-1334; 030-25
030.3.12.1 Liebherr recommendation 030-25
030.3.12.2 Minimum quality requirement 030-25
030.3.13 Axle oil
L 586-1334; 030-25
030.3.13.1 Liebherr recommendation 030-25
030.3.13.2 Minimum quality requirement 030-25
030.3.14 Lubrication grease
1586-1334; 030-26
030.3.14.1 Liebherr recommendation 030-26
030.3.14.2 Minimum quality requirement 030-26
Maintenance tasks 030-27
030.4.1 Safety precautions
1586-1334; 030-27
030.4.2 Preparatory tasks for maintenance 030-27
030.4.2.1 Maintenance positions
1586-1334; 030-28
030.4.2.2 Opening the service hatches
1586-1334; 030-29
0304.23 Turning off the battery main switch
1 586-1334/0-54471; 030-33
030.4.2.4 Turning off the battery main switch
L586-1334/54472-; 030-34
030.4.3 Overall machine 030-35
030.4.3.1 Checking machine is in proper condition
1586-1334; 030-35
030.4.3.2 Removing loose parts, dirt, ice and snow from
machine
1586-1334; 030-37
030.4.3.3 Cleaning machine
1586-1334; 030-37
030.4.3.4 Changing the VCl-capsules
1586-1334; 030-40
030.4.3.5 Qil analyses
1586-1334; 030-43
0304.4 Drive group 030-50
030.4.4.1 Checking diesel engine oil level
1586-1334; 030-50
030.4.4.2 Diesel engine: changing diesel engine oil
1586-1334; 030-53
030.4.4.3 Diesel engine: Changing the oil filter
1586-1334; 030-56
030.4.4.4 Checking diesel engine belt drive
1586-1334; 030-57
030.4.4.5 Changing diesel engine belt drive
1586-1334; 030-58
030.4.4.6 Engine: Checking the fastening of the engine control
units ad the sensor cable connections
1586-1334; 030-59
030.44.7 Checking diesel engine valve clearance
1586-1334; 030-60
030.44.8 Diesel engine: Changing the oil separator filter insert
1586-1334; 030-62
030.4.4.9 Diesel engine: Changing the heating flange
1586-1334; 030-62
030.4.4.10 Fuel tank: Draining off condensate and sediment
1586-1334; 030-63
030.4.4.11 Fuel pre-filter: Draining off condensate
1586-1334; 030-64
030.4.4.12 Changing fuel pre-filter cartridge
1586-1334; 030-65
030.4.4.13 Changing fuel fine filter element
L586-1334; 030-68
030.4.4.14 Diesel exhaust fluid tank: checking ventilation
030.4.4.15 Air filter system: Cleaning the service cover and dust
discharge valve
1586-1334; 030-72
030.4.4.16 Cleaning or changing the main element of the air
filter system
1586-1334; 030-73
030.4.4.17 Air filter system: Changing the safety element
1586-1334; 030-76
030.4.4.18 Splitter box: Checking the oil level
1586-1334; 030-77
030.4.4.19 Splitter box: Changing the oil
1586-1334; 030-79
030.4.4.20 Diesel engine: Checking that the intake and exhaust
system is in good condition and not loose or leaking
L586-1334; 030-81
030.4.4.21 Checking the diesel engine for leaks, contamination
and damage
1586-1334; 030-85
0304.4.22 Diesel particulate filter: Cleaning filter module
1586-1334; 030-86
030.4.4.23 Changing the compressed air dryer
1586-1334; 030-87
030.4.4.24 Checking the compressed air system
1586-1334; 030-89
030.4.5 Cooling system 030-90
030.4.5.1 Cooling system: Checking the coolant level
1586-1334; 030-90
030.4.5.2 Checking the concentration of anti-freeze and corro-
sion protection agent or corrosion inhibitor in the
coolant
1586-1334; 030-91
030.4.5.3 Cleaning the cooling system
1586-1334; 030-98
030.4.5.4 Changing coolant in cooling system
1586-1334; 030-99
030.4.6 Hydraulic components 030-102
030.4.6.1 Hydraulic tank: Checking the oil level
1586-1334; 030-102
030.4.6.2 Draining off condensate and sediment from the
hydraulic tank
1586-1334; 030-104
030.4.6.3 Change the return filter insert in the hydraulic tank.
L586-1334; 030-105
0304.6.4 Changing the hydraulic tank breather filter
1586-1334; 030-106
030.4.6.6 Changing the oil in the hydraulic tank
Steering system 030-111
030.4.7.1 Steering: Checking the function
Brake system 030-112
030.4.8.1 Service brake: checking function and effectiveness
030.4.8.2 Checking service brake discs for wear
030.4.8.3 Checking the gap and wear on the parking brake
030.4.8.4 Emergency actuation of parking brake: checking the
030.4.8.5 Checking emergency parking brake actuation
Electrical system 030-123
030.4.9.1 Checking function of the lighting and horn
030.4.9.2 Batteries: Checking the acid level and terminals
030.4.9.3 Control lever: Change the travel direction switch
030.4.9.4 Personnel detection: cleaning sensor
Gearbox 030-129
030.4.10.1 Transmission: checking the oil level
030.4.10.2 Changing gear oil and gear oil filter
030.4.10.3 Change the transmission hydrostat oil filter.
Axles and drive shafts 030-136
030.4.11.1 Axles Changing the oil
030.4.11.2 Checking drive shafts
030.4.11.3 Checking the tyre pressure
030.4.11.4 Checking the wheel tightness
L586-1334; 030-141
030.4.12 Steel parts of the basic machine 030-142
0304.12.11 Cooler hood: Lubricating moving parts with pene-
trating oil
1586-1334; 030-142
030.4.12.2 Engine hood: Lubricating moving parts with pene-
trating oil
1586-1334; 030-142
030.4.12.3 Right cab access: Lubricating moving parts with
penetrating oil
L586-1334; 030-143
030.4.124 Service hatches: Cleaning and maintaining the seals
1586-1334; 030-144
030.4.13 Working attachment 030-144
030.4.13.1 Lift arms: Checking the bucket bearing seals
1586-1334; 030-144
0304.13.2 Checking the lift arm bucket bearing bushings
L586-1334; 030-145
030.4.13.3 Checking the lift arm bucket stops
1586-1334; 030-146
0304.13.4 Bucket: Check the teeth or undercut blade for wear
and replace if necessary
1586-1334; 030-147
0304.13.56 Lubricate and test the bearings on the quick coupler.
L 586-1334; 030-150
030.4.136 High dump bucket: Lubricating the bearing
1586-1334; 030-151
030.4.14 Operator’s cab, heating and air conditioning 030-151
030.4.14.1 Operator’s cab: cleaning the fresh and recirculated
air filters
1586-1334; 030-151
0304.14.2 Changing the fresh and recirculated air filters in the
cab
1586-1334; 030-153
030.4.14.3 Safety belt: Checking the condition and function
1586-1334; 030-155
030.4.14.4 Testing the windscreen washer system
1586-1334; 030-156
0304.14.5 Windscreen washer system: Topping up windscreen
washer fluid
1586-1334; 030-156
030.4.14.6 Cab: Lubricating the lock and cylinder with pene-
trating oil
L586-1334; 030-157
030.4.14.8 Heating and air conditioning: Checking the function
Lubrication system 030-160
030.4.15.1 Checking the level in the grease reservoir of the
030.4.15.2 Central lubrication system: Checking the pipes,
030.4.15.3 Central lubrication system: Checking the lubrication
030.5 Testing and adjustment checklist
L586-1334; 030-163
030.6 Testing and adjustment tasks 030-168
0306.1 Safety precautions
L586-1334; 030-168
030.6.2 Overall machine 030-168
030.6.2.1 Preparing for adjustment procedures
1586-1334; 030-168
030.6.2.2 Hydraulic oil: operating temperature
L 586-1334; 030-170
030.6.2.3 Gear oil operating temperature
1586-1334; 030-171
0306.3 Drive group 030-171
030.6.3.1 Pedals: calibration
1586-1334; 030-171
030.6.3.2 Reading the diesel engine service files
1586-1334; 030-173
0306.4 Cooling system 030-174
030.6.4.1 Fan speed proportional solenoid valve
1586-1334; 030-174
0306.5 Working hydraulics 030-176
030.6.5.1 Multi-lever control (optional): Calibration
L 586-1334; 030-176
030.6.5.2 Calibrating working hydraulics angle sensors
1586-1334; 030-178
030.6.5.3 Proportional solenoids in the control valve block: cali-
bration
1586-1334; 030-182
030.6.5.4 Pilot control valve block: pressure reducing valve
L 586-1334; 030-185
030.6.5.6 Working pump flow regulator (differential pressure)
030.6.5.7 Working pump: power regulator
030.6.5.8 Control valve block: secondary pressure relief valves
0306.5.9 Control valve block: primary pressure relief valve
030.6.5.10 Control valve block: LS pressure cut-off valve
030.6.5.11 Stabilisation module: Cut-off function
030.6.5.12 Ride control hydro accumulator nitrogen filling
Hydraulic components 030-199
030.6.6.1 Hydro accumulator: checking and topping up
030.6.6.2 Checking the hydraulic lines for damage
Steering system 030-205
030.6.7.1 Joystick for joystick steering (option): calibration
030.6.7.2 Angle sensor for articulation angle (option): calibra-
0306.7.3 Control block for joystick steering (option): calibration
030.6.7.4 Steering pump: LS pressure cut-off valve
030.6.7.5 Steering pump flow regulator (standby pressure)
030.6.7.6 Steering pump: flow regulator (differential pressure)
030.6.7.7 Steering pump: flow regulator (differential pressure)
0306.7.8 Steering damper hydro accumulator nitrogen filling
030.6.8.2 Compact brake valve hydro accumulator charging
030.6.8.3 Service brake pressure
030.6.8.4 Service brake hydro accumulator capacity
030.6.9.2 Central control unit (Master4): software update
030.6.9.3 Setting the IP addresses of the central control unit
030.6.9.4 Resetting the central control unit (Master4)
030.6.9.5 Testing the CAN line
030.6.9.6 Addressing CAN module and checking system infor-
1586-1334; 030-234
L586-1334; 030-238
030.6.10.2 Gearbox: service calibration
1586-1334; 030-240
030.6.10.3 Travel gearbox: Check power output
1586-1334; 030-243
030.6.10.4 Transmission: Reversing test
L586-1334; 030-246
030.6.10.5 Transmission control unit (TCU): Software update
L 586-1334; 030-248
030.6.11 Axles and drive shafts 030-251
030.6.11.1 Tyres: setting radius
1586-1334; 030-251
0306.12 Working attachment 030-252
030.6.12.1 Valve block for quick coupler (option). Pressure
reducing valve
1586-1334; 030-252
030.6.12.2 Parameters for lift arm geometry
L586-1334; 030-254
030.6.13 Operator’s cab, heating and air conditioning 030-255
0306.13.1 Checking the pressure and temperature conditions of
the air conditioning unit
1586-1334; 030-255
030.6.13.2 Calibrating the display (Display4)
L586-1334; 030-256
030.6.13.3 Formatting the display and reinstalling the software
(Display4)
1586-1334; 030-258
030.6.14 Options 030-259
030.6.14.1 Checking the LiDAT connection status
L586-1334; 030-259
030.6.14.2 LiDAT: activating data transmission manually
1586-1334; 030-261
030.6.14.3 Personnel detection: transmitting configuration files
L586-1334; 030-263
040 Drive group 040-1
040.1 Engine 040-3
040.1.2 Electrical components of diesel engine
1586-1334; 040-7
040.1.3 Sensors on diesel engine
1586-1334; 040-11
040.1.4 Ambient temperature sensor
1586-1334; 040-22
040.1.5 Fuel system 040-24
040.1.5.2 Fuel level sensor
L586-1334; 040-28
040.1.5.3 Separ fuel pre-filter
L586-1334; 040-30
040.1.6 Air filter system 040-30
040.1.6.1 Air filter
L586-1334; 040-31
040.1.6.2 Air mass sensor
1586-1334; 040-32
040.1.7 Exhaust system 040-33
040.1.7.1 Overview of exhaust gas treatment system
1586-1334; 040-33
040.1.7.2 Metering unit
1586-1334; 040-38
040.1.7.4 Exhaust treatment sensors
1586-1334; 040-42
040.1.7.5 Exhaust gas treatment with diesel particulate filter
(option)
L 586-1334; 040-44
040.1.8 Compressed air system 040-47
040.1.8.1 Overview of the compressed air system
1586-1334; 040-48
040.1.8.2 Compressor
L 586-1334; 040-50
040.1.8.3 Air dryer
1586-1334; 040-51
040.1.8.4 SCR system air supply valve
L 586-1334; 040-52
040.2 Clutch
1586-1334; 040-53
040.3 Splitter box
L 586-1334; 040-55
050 Cooling system 050-1
050.1 Cooling system: General overview
L586-1334; 050-2
050.2 Cooling system hydraulics 050-3
0502.1 Overview of cooling system hydraulics
1586-1334; 050-4
050.22 Fan pump
1586-1334; 050-8
050.2.3 Fan motor
1586-1334; 050-9
050.3 Cooling system electronics 050-13
050.3.1 Overview of electrical controls of cooling system
1586-1334; 050-13
050.3.2 Hydraulic oil temperature sensor
1586-1334; 050-16
050.4 Cooler 050-18
050.4.1 Cooler unit
1586-1334; 050-18
050.5 Reversible fan drive 050-19
050.5.1 Overview of reversible fan drive
1586-1334; 050-19
060 Working hydraulics 060-1
060.1 Overview of Z-bar kinematics working hydraulics
L586-1334, 060-2
060.2 Working pump
L 586-1334; 060-7
060.3 Control block for Z-bar kinematics
1586-1334; 060-15
060.4 Pilot control 060-24
060.4.1 Pilot control valve block
L 586-1334; 060-24
060.5 Ride control 060-26
060.5.1 Overview of ride control system
1586-1334; 060-26
060.5.2 Stabilisation module
L 586-1334; 060-29
060.5.3 Electric ride control unit
1586-1334; 060-31
080.6 Electronics of the working hydraulics 060-33
060.6.1 Overview of electrical controls of working hydraulics
L 586-1334; 060-33
060.6.2 Working hydraulics angle sensors
1586-1334; 060-35
0680.7 Pipe break protection 060-38
060.7.1 Pipe break protection: overview
1586-1334; 060-38
060.7.2 Pipe break protection valve block (lift cylinder)
L 586-1334; 060-41
060.7.3 Pipe break protection valve block (tilt cylinder)
L 586-1334; 060-43
060.7.4 Ride control release solenoid valve
1586-1334; 060-44
080 Hydraulic components 080-1
080.1 Hydraulic system: overview
L586-1334/0-50692; 080-2
080.2 Hydraulic system: overview
L586-1334/50693-; 080-6
080.3 Hydraulic tank 080-10
L586-1334; 080-10
080.3.2 Steel tank
L586-1334; 080-12
080.3.3 Return filter
1586-1334; 080-14
080.34 Leak oil strainer
L586-1334; 080-15
080.3.5 Breather filter
L 586-1334; 080-15
090 Steering system 090-1
090.1 Steering system overview
1L.586-1334/0-50692; 090-3
090.2 Steering system overview
L586-1334/50693-; 090-7
090.3 Steering pump
1586-1334; 090-11
090.4 Servostat
L586-1334; 090-17
090.5 Steering cylinder 090-20
090.5.1 Steering cylinder
L 586-1334; 090-20
090.5.2 Steering stabilisation valve block
L586-1334/0-50692; 090-21
0905.3 Steering stabilisation valve block
L586-1334/50693-; 090-23
090.6 Emergency steering 090-25
090.6.1 Emergency steering overview
1586-1334; 090-25
0806.2 Emergency steering pump
L586-1334; 090-27
090.6.3 Emergency steering electronics 090-28
090.6.3.1 Overview of electrical controls of emergency steering
system
1586-1334; 090-29
090.6.3.2 Emergency steering pressure switch
1586-1334; 090-33
090.6.3.3 Emergency steering check pressure switch
1586-1334; 090-34
090.7 Joystick steering 090-36
090.7.1 Overview of joystick steering
L586-1334/0-50692; 090-36
090.7.2 Overview of joystick steering
L586-1334/50693-51486; 090-40
090.7.4 Joystick steering control valve block
L586-1334/0-51486; 090-46
090.7.5 Joystick steering control valve block
L586-1334/51487-; 090-52
090.7.6 Joystick steering electrical system 090-58
090.7.6.1 Electronic control unit for joystick steering: overview
1 586-1334/0-51486; 090-58
090.7.6.2 Electronic control unit for joystick steering: overview
1L.586-1334/51487-55877; 090-64
090.7.6.3 Electronic control unit for joystick steering: overview
L586-1334/55878-; 090-71
090.7.6.4 Joystick with position tracking
L586-1334/55878-; 090-79
090.8 2in1 steering 090-81
090.8.1 2in1 steering: total overview
L586-1334/0-50692; 090-81
090.8.2 2in1 steering: total overview
L586-1334/50693-; 090-83
090.8.3 Servostat for 2in1 steering
1586-1334; 090-85
100 Brake system 100-1
100.1 Overview of brake system
L586-1334; 100-2
100.2 Service brake and parking brake 100-7
100.2.1 Brake pump
1586-1334; 100-7
100.2.2 Compact brake valve
L 586-1334; 100-8
100.3 Parking brake 100-16
100.3.1 Parking brake
1586-1334; 100-16
110 Electrical system 110-1
110.1 Overview of electrical system
L586-1334/0-54471; 110-3
110.2 Overview of electrical system
L586-1334/54472-; 110-7
110.3 Lighting
1586-1334; 110-11
L586-1334; 110-12
110.5 Electronic control unit 110-14
110.5.1 General overview of electronic control system
L 586-1334; 110-14
110.5.2 Central control unit (Master4)
L586-1334; 110-16
110.5.3 Modules 110-20
110.5.3.1 Overview of the input and output modules
L 586-1334; 110-21
110.5.3.2 Input modules
1586-1334; 110-23
110.5.3.3 Output modules
L 586-1334; 110-25
110.6 Electrical components of the driver’s cab 110-28
110.6.1 Electrical components of the cab General overview
1586-1334; 110-28
110.6.2 Fuse and relay boards
L586-1334; 110-29
110.6.3 Door contact switch
L586-1334/0-46488; 110-34
110.6.4 Door contact switch (inductive sensor)
L586-1334/46489-; 110-35
110.7 Electrical components in the rear section 110-36
110.7.1 Battery installation
1586-1334; 110-36
110.7.2 Electric battery main switch
L586-1334/54472-; 110-38
110.8 Rear area monitoring with camera 110-42
110.8.1 Rear area monitoring with camera: General overview
L586-1334; 110-42
110.8.2 Camera
5 1586-1334; 110-43
ro]
g 120 Gearbox 120-1
g 120.1 Overview of transmission
5 1586-1334; 120-2
] 120.2 Transmission hydraulics 120-16
g 120.2.1 Overview of transmission hydraulics
3 1586-1334; 120-16
120.2.2 Gear pump
1586-1334; 120-20
L 586-1334; 120-21
120.2.4 Hydrostat module
1586-1334; 120-24
120.3 Transmission electronics 120-29
120.3.1 Overview of the electrical control system of the transmission
L 586-1334; 120-29
120.3.2 Filter bypass switch
1586-1334; 120-30
120.3.3 Gear shifting proportional solenoid
1586-1334; 120-31
120.3.4 Pressure sensor for hydrostat
L 586-1334; 120-32
120.3.5 Engine speed sensor
L 586-1334; 120-33
120.3.6 Temperature sensor
1586-1334; 120-34
120.3.7 Proportional solenoid for position control
L 586-1334; 120-34
130 Axles and drive shafts 130-1
130.1 Axles 130-2
130.1.1 Front axle
1586-1334; 130-2
130.1.2 Rear axle
L 586-1334; 130-7
130.2 Cardan shafts 130-9
130.2.1 Drive shaft between diesel engine and transmission
1586-1334; 130-9
130.2.2 Drive shaft between transmission and front axle
L 586-1334; 130-10
130.2.3 Drive shaft between transmission and rear axle
1586-1334; 130-11
140 Steel parts of the basic machine 140-1
140.1 Vehicle frame 140-2
140.1.1 Articulation bearing
L 586-1334; 140-2
140.1.2 Articulation lock
1586-1334; 140-3
140.2 Covering 140-4
140.2.1 Linear motor for opening the engine hood
L 586-1334; 140-4
150 Working attachment 150-1
150.1 Lift arms for Z kinematics 150-2
160.1.1 Z kinematics
L586-1334; 150-2
150.2 Quick coupler 150-4
160.2.1 Quick coupler
1586-1334; 150-4
160.2.2 Quick coupler hydraulics 150-5
160.2.2.1 Overview of the quick coupler hydraulics
L586-1334/0-51252; 150-5
150.2.2.2 Overview of quick coupler hydraulics
L586-1334/51253-; 150-7
160.2.2.3 Valve block for quick coupler
1586-1334; 150-9
160.2.3 Quick coupler electrics 160-11
150.2.3.1 Quick coupler electric control unit
L 586-1334; 150-11
160 Operator’s cab, heating and air conditioning 160-1
160.1 Overview of operator’s cab, heating and air conditioning unit
1586-1334; 160-3
160.2 Display and control elements 160-5
160.2.1 Electrical components in the control panel 160-5
160.2.1.1 Control unit
L 586-1334; 160-5
160.2.2 Touch screen display
1586-1334; 160-7
160.2.3 Control lever
L586-1334; 160-8
160.24 Accelerator pedal
1586-1334; 160-10
160.3 Heating, ventilation, air conditioning 160-12
160.3.1 Heating, ventilation, air conditioning: General overview
L 586-1334; 160-12
160.3.2 Heating and air conditioning unit 160-17
160.3.2.1 Heating and air conditioning unit
1586-1334; 160-18
160.3.2.2 Blower
1586-1334; 160-22
160.3.3 Air conditioning controller
L586-1334; 160-23
160.4 Air conditioning 160-26
160.4.2 Air conditioning compressor
1586-1334; 160-27
160.4.3 Condenser
L 586-1334; 160-29
160.4.4 Dryer
1586-1334; 160-30
160.4.5 Air conditioning pressure switch
L 586-1334; 160-31
170 Lubrication system 170-1
170.1 Liebherr automatic central lubrication system 170-2
170.1.1 Liebherr automatic central lubrication system: General overview
1586-1334; 170-2
170.1.2 Liebherr central lubrication pump
1586-1334; 170-6
170.1.3 Progressive distributor MX-F
L 586-1334; 170-10
170.1.4 Progressive distributor SXE-2
1586-1334; 170-12
190 Options 190-1
190.1 Diesel engine without emission type approval
L586-1334; 190-2
190.2 LiDAT 190-4
190.2.1 Overview of LiDAT
1586-1334; 190-4
190.2.2 LiDAT on machine
L 586-1334; 190-6
190.2.3 LiDAT module (LiTU2)
1586-1334; 190-7
190.3 Weighing device (Liebherr)
L586-1334/0-54471; 190-10
190.4 Liebherr weighing device with Truck Payload Assist
L586-1334/54472-; 190-16
190.5 Remote control for door lock
L 586-1334; 190-19
190.6 Personnel detection
L 586-1334; 190-22
200 Diagnosis 200-1
200.1 Malfunctions 200-2
200.1.2 SCR system warning symbols 200-3
200.1.3 Service code indicator in display 200-3
200.2 Troubleshooting 200-6
200.21 Replacing fuses 200-6
200.2.1.1 Fuses on fuse board A4 in the operator’s cab 200-6
200.2.1.2 Fuses on fuse board Ada in the left ballast weight 200-9
200.2.1.3 Fuses on fuse board A4b in the operator’s cab 200-11
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
S.V
