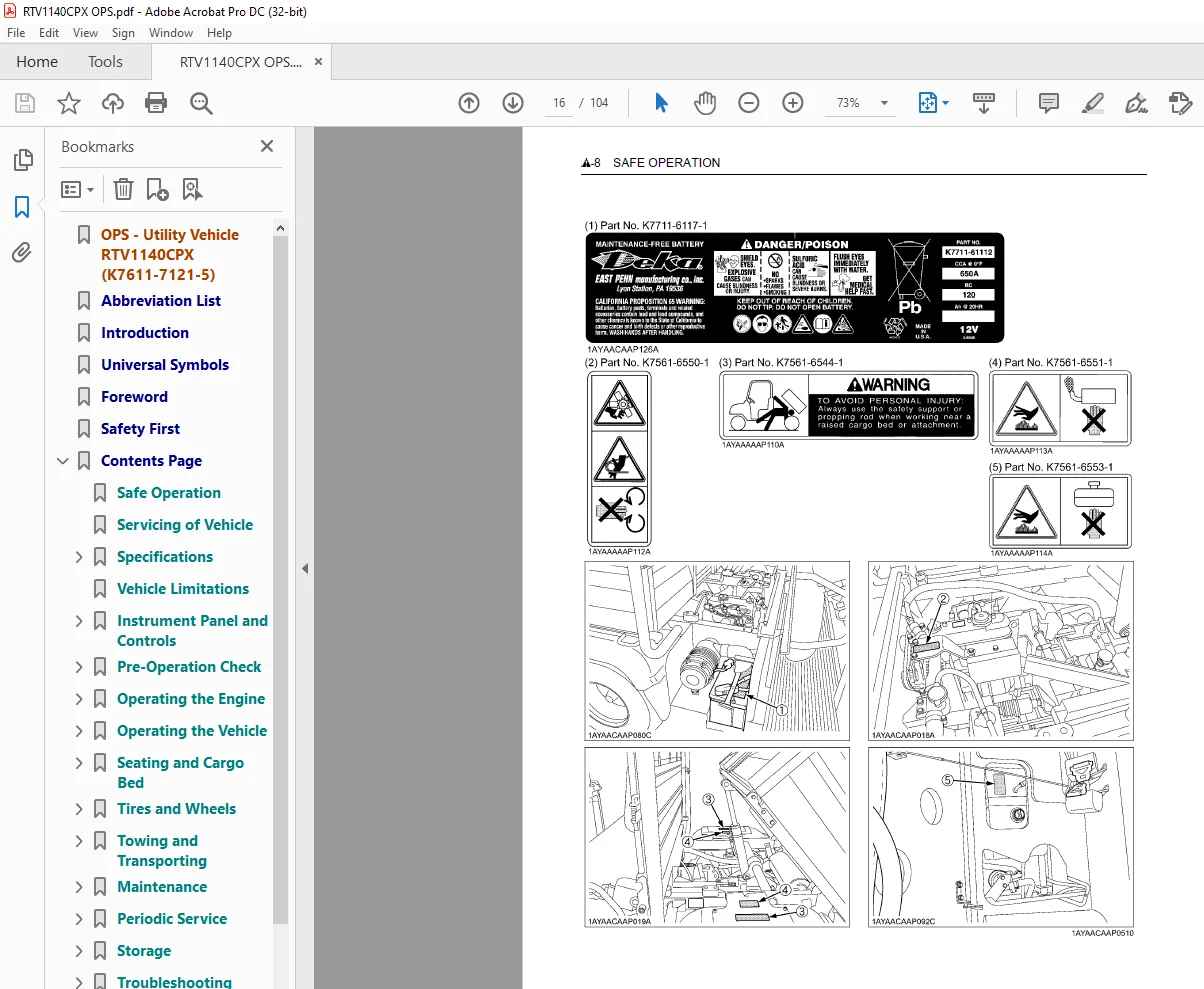

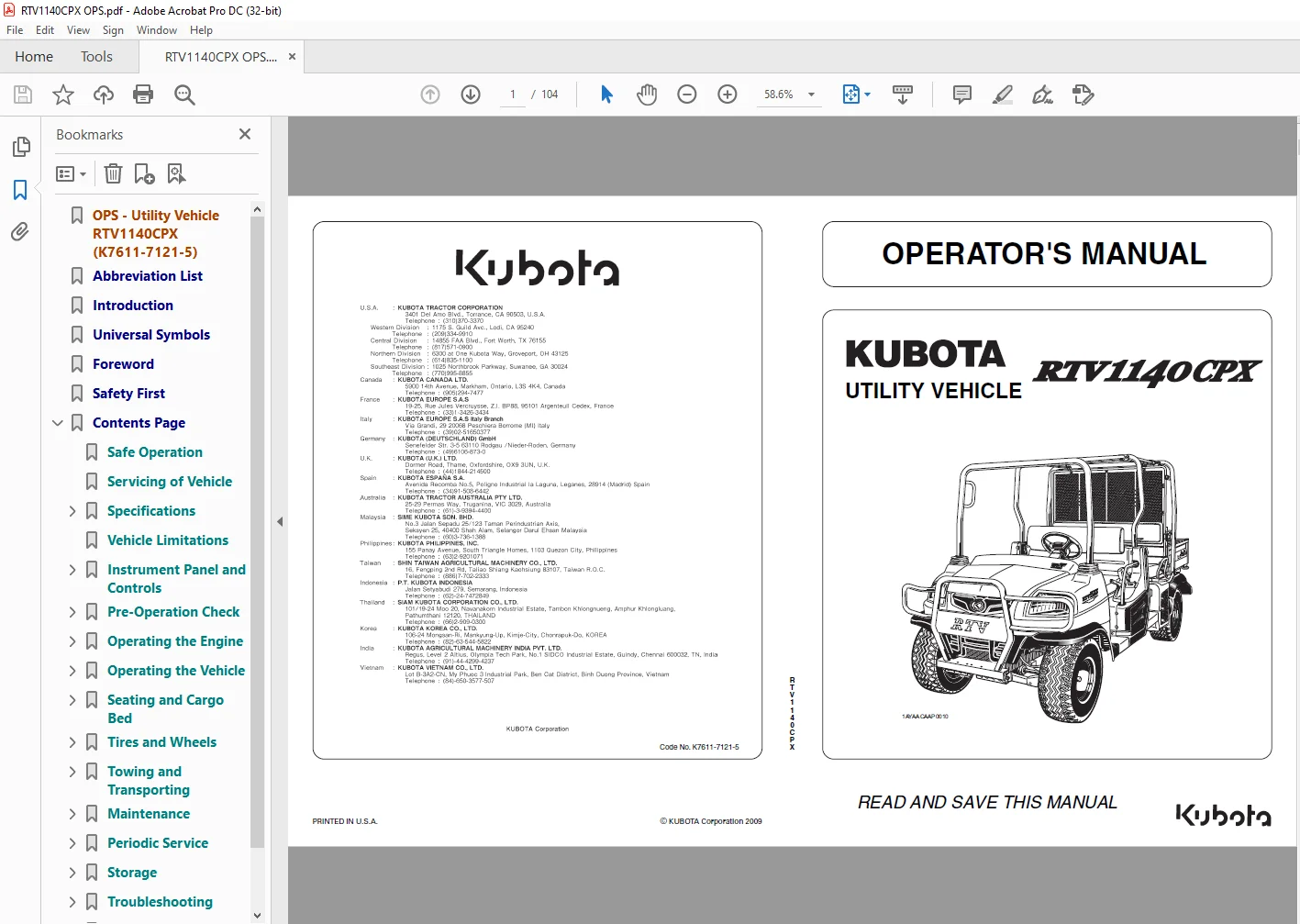

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kubota Utility Vehicle RTV 1140CPX Operator’s Manual – PDF DOWNLOAD
FOREWORD:
You are now the proud owner of a KUBOTA Tractor. This tractor is a product of KUBOTA quality engineering and manufacturing. It is made of fine materials and under a rigid quality control system. It will give you long, satisfactory service.
- To obtain the best use of your tractor, please read this manual carefully. If your tractor is provided with CAB, also read the CAB operator’s manual, which is a separate manual. It will help you become familiar with the operation of the tractor and contains many helpful hints about tractor maintenance.
- It is KUBOTA’s policy to utilize as quickly as possible every advance in our research. The immediate use of new techniques in the manufacture of products may cause some small parts of this manual to be outdated. KUBOTA distributors and dealers will have the most up-to-date information. Please do not hesitate to consult with them.
SAFE OPERATION:
Careful operation is your best insurance against an accident.
Read and understand this Operator’s Manual carefully before operating the vehicle.
All operators, no matter how much experience they may have, should read this and other related
manuals before operating the vehicle or any implement attached to it. It is the owner’s
obligation to instruct all operators in safe operation.
1. BEFORE OPERATING THE VEHICLE:
1. Know your equipment and its limitations. Read this entire manual before attempting to
start and operate the vehicle.
2. Pay special attention to the Danger, Warning and Caution labels on the vehicle.
3. Do not remove Roll-Over Protective Structures (ROPS) for any application and fasten
seat belts at all times. This combination will reduce the risk of serious injury or death, should
the vehicle be upset.
If the ROPS is loosened or removed for any reason, make sure that all parts are reinstalled
correctly before operating the vehicle.
Never modify or repair a ROPS because welding, bending, drilling, grinding, or cutting may
weaken the structure.
A damaged ROPS structure must be replaced, not repaired or revised.
If any structural member of the ROPS is damaged, replace the entire structure at your
local KUBOTA Dealer.
4. Always use the seat belts. Check the seat belts regularly and replace if frayed or
damaged.
5. Do not operate the vehicle or any implement attached to it while under the influence of
alcohol, medication, controlled substances or while fatigued.
6. Carefully check the vicinity before operating the vehicle or any implement
attached to it. Check for overhead clearance which may interfere with the CAB or ROPS. Do not
allow any bystanders around or near the vehicle during operation.
7. Never allow anyone without a valid driver’s license to operate this vehicle.
8. Before allowing other people to use your vehicle, explain how to operate and have
them read this manual before operation.
9. Never wear loose, torn, or bulky clothing around the vehicle. It may catch on moving
parts or controls, leading to the risk of an accident. Use additional safety items, e.g.
helmet, safety boots or shoes, eye and hearing protection, gloves, etc., as appropriate
or required.
10. This vehicle is for off road use only.
KUBOTA does not recommend operating on public
roads.

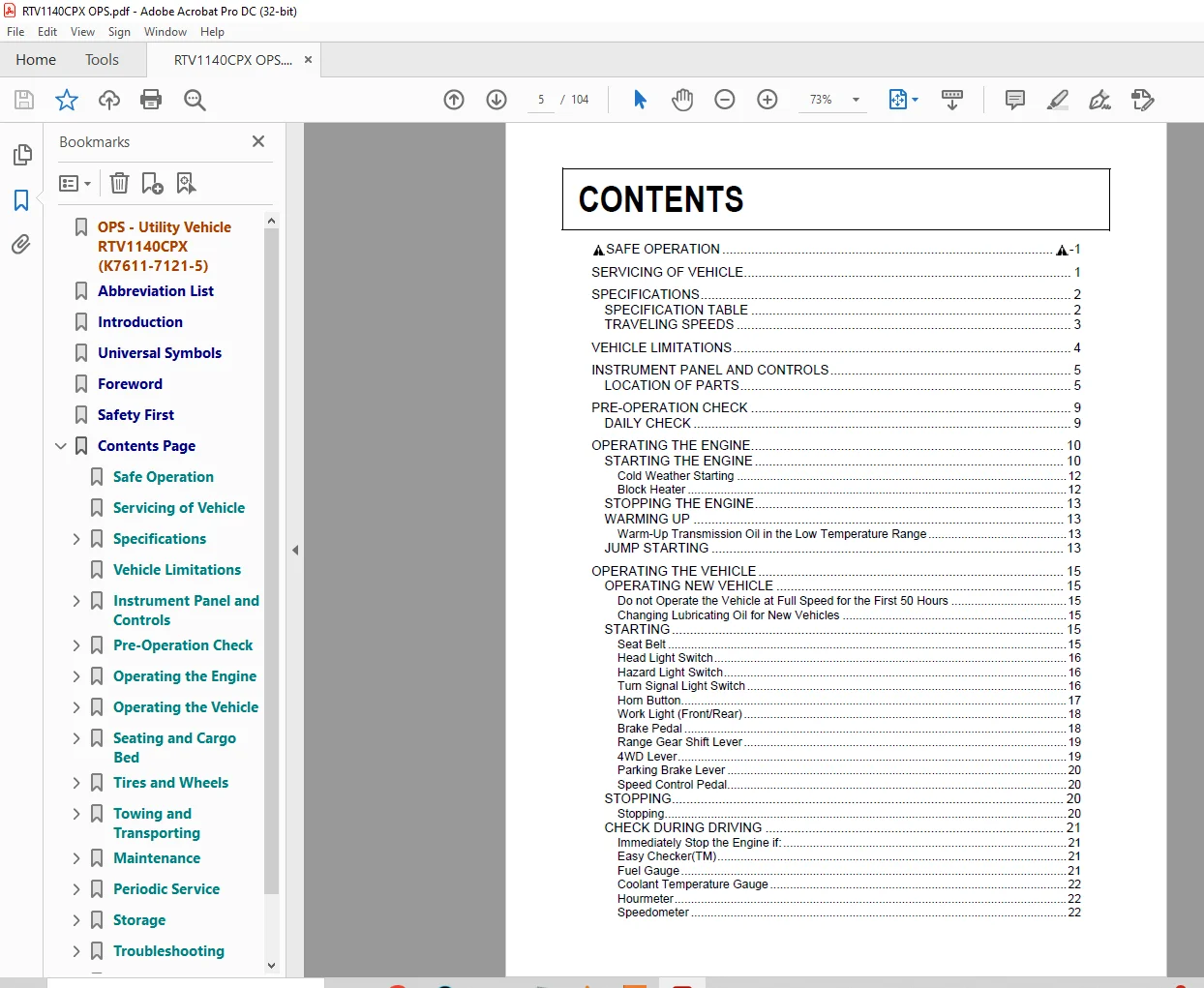

TABLE OF CONTENTS:
Kubota Utility Vehicle RTV 1140CPX Operator’s Manual – PDF DOWNLOAD
OPS - Utility Vehicle RTV1140CPX (K7611-7121-5)................................ 1 Abbreviation List.............................................................. 2 Introduction................................................................... 2 Universal Symbols.............................................................. 3 Foreword....................................................................... 4 Safety First................................................................... 4 Contents Page.................................................................. 5 Safe Operation............................................................. 9 Servicing of Vehicle....................................................... 23 Specifications............................................................. 24 Specification Table.................................................... 24 Travelling Speeds...................................................... 25 Vehicle Limitations........................................................ 26 Instrument Panel and Controls.............................................. 27 Location of Parts...................................................... 27 Pre-Operation Check........................................................ 31 Daily Check............................................................ 31 Operating the Engine....................................................... 32 Starting the Engine.................................................... 32 Cold Weather Starting.............................................. 34 Block Heater....................................................... 34 Stopping the Engine.................................................... 35 Warming Up............................................................. 35 Warm Up Transmission Oil in the Low Temperature Range.............. 35 Jump Starting.......................................................... 35 Operating the Vehicle...................................................... 37 Operating New Vehicle.................................................. 37 Do Not Operate the Vehicle at Full Speed for the First 50 Hours.... 37 Changing Lubricating Oil for New Vehicles.......................... 37 Starting............................................................... 37 Seat Belt.......................................................... 37 Head Light Switch.................................................. 38 Hazard Light Switch................................................ 38 Turn Signal Light Switch........................................... 38 Horn Button........................................................ 39 Work Light - front and rear........................................ 40 Brake Pedal........................................................ 40 Range Gear Shift Lever............................................. 41 4WD Lever.......................................................... 41 Parking Brake Lever................................................ 42 Speed Control Pedal................................................ 42 Stopping............................................................... 42 Stopping........................................................... 42 Check During Driving................................................... 43 Immediately Stop the Engine if..................................... 43 Easy Checker....................................................... 43 Fuel Gauge......................................................... 43 Coolant Temperature Gauge.......................................... 44 Hourmeter.......................................................... 44 Speedometer........................................................ 44 Parking................................................................ 45 Parking Brake Lever................................................ 45 Accessory.............................................................. 45 12V Electric Outlet................................................ 45 Utility Box........................................................ 45 Operating Techniques................................................... 46 Differential Lock.................................................. 46 Directions for Use of Power Steering............................... 47 Unfamiliar Terrain................................................. 47 Driving in Reverse................................................. 47 Driving in 4WD..................................................... 48 Turning the Vehicle................................................ 48 Hills.............................................................. 49 Traversing Hillsides............................................... 49 Sliding and Skidding............................................... 49 Driving Through Water.............................................. 50 Seating and Cargo Bed...................................................... 51 Cargo Bed.............................................................. 51 General Caution.................................................... 51 Max. Cargo Load.................................................... 51 Changing Seating and Cargo Bed......................................... 52 Carbo Bed Tailgate................................................. 54 Raising and Lowering the Cargo Bed................................. 55 Tires and Wheels........................................................... 56 Tires.................................................................. 56 Inflation Pressure................................................. 56 Tire Type and Use.................................................. 56 Wheels................................................................. 57 Towing and Transporting.................................................... 58 Towing and Transporting................................................ 58 Rear Trailer Hitch................................................. 58 Front Trailer Hitch................................................ 58 Winch Mount Plate.................................................. 59 Transport the Vehicle Safely....................................... 59 Maintenance................................................................ 60 Service Intervals...................................................... 60 Lubricants, Fuel and Coolant........................................... 63 Periodic Service........................................................... 66 How to Open the Hood and Tilt the Seat................................. 66 Hood............................................................... 66 Operator's Seat.................................................... 66 How to Raise the Carbo Bed............................................. 67 Raising and Lowering the Cargo Bed................................. 67 Jack Up Point.......................................................... 68 Front End.......................................................... 68 Rear End........................................................... 68 Daily Check............................................................ 68 Walk Around Inspection............................................. 68 Checking and Refueling............................................. 68 Checking Engine Oil Level.......................................... 69 Checking Hydraulic Tank Oil Level.................................. 70 Checking Transmission Fluid Level.................................. 70 Checking Coolant Level............................................. 71 Cleaning Radiator Screen........................................... 71 Checking Brake Fluid Level......................................... 72 Checking Brake Pedal............................................... 72 Checking Parking Brake............................................. 73 Checking Gauges, Meter and Easy Checker............................ 73 Checking Head Light, Turn Signal Light etc......................... 73 Checking Seat Belt and ROPS........................................ 73 Checking Joint Boot................................................ 73 Checking Tire Inflation Pressure................................... 74 Checking Backup Beeper............................................. 74 Every 50 Hours......................................................... 75 Greasing........................................................... 75 Oiling............................................................. 76 Checking Engine Start System....................................... 77 Every 100 Hours........................................................ 77 Checking VHT Neutral Spring........................................ 77 Checking VHT Pressure Release...................................... 77 Checking Wheel Bolt Torque......................................... 78 Cleaning Air Cleaner Primary Element............................... 78 Adjusting Alternator Belt Tension.................................. 79 Checking Fuel Line and Fuel Filter................................. 79 Checking Battery Condition......................................... 80 Adjusting Toe-In................................................... 81 Cleaning Muffler................................................... 82 Every 200 Hours........................................................ 83 Changing Engine Oil................................................ 83 Adjusting Parking Brake............................................ 83 Replacing Engine Oil Filter........................................ 84 Replacing Transmission Oil Filter - HST............................ 84 Replacing Transmission Oil Filter - Suction........................ 85 Changing Hydraulic Tank Oil........................................ 85 Checking Brake Pedal............................................... 86 Checking Brake Hose and Pipe....................................... 87 Checking Front Brake Case.......................................... 87 Checking Brake Light Switch........................................ 88 Checking Radiator Hose and Clamp................................... 88 Checking Power Steering Line....................................... 89 Checking Intake Air Line........................................... 89 Every 300 Hours........................................................ 90 Checking Tire...................................................... 90 Every 400 Hours........................................................ 90 Changing Knuckle Case Oil.......................................... 90 Changing Transmission Fluid........................................ 91 Replacing Hydraulic Tank Oil Filter................................ 92 Changing Front Axle Case Oil....................................... 92 Every 500 Hours........................................................ 93 Replacing Fuel Filter.............................................. 93 Every 800 Hours........................................................ 93 Adjusting Engine Valve Clearance................................... 93 Every 1500 Hours....................................................... 93 Checking Fuel Injection Nozzle Injection Pressure.................. 93 Every 3000 Hours....................................................... 93 Checking Injection Pump............................................ 93 Every 1 Year........................................................... 93 Replacing Air Cleaner Primary Element and Secondary Element........ 93 Every 2 Years.......................................................... 93 Changing Brake Fluid............................................... 93 Flushing Cooling System and Changing Coolant....................... 93 Anti-Freeze........................................................ 94 Replacing Radiator Hose - Water Pipes.............................. 95 Replacing Fuel Hose................................................ 95 Replacing Brake Master Cylinder - Inner Parts...................... 95 Replacing Front Brake Seal......................................... 95 Replacing Rear Brake Cylinder Seal................................. 95 Replacing Intake Air Line.......................................... 95 Replacing Remote Hydraulic Hose.................................... 95 Every 4 Years.......................................................... 95 Replacing Brake Hose............................................... 95 Service As Required.................................................... 95 Bleeding Fuel System............................................... 95 Replacing Fuse..................................................... 96 Replacing Slow Blow Fuses.......................................... 97 Replacing Light Bulb............................................... 97 Checking Hydraulic Tank Suction Strainer........................... 97 Storage.................................................................... 98 Vehicle Storage........................................................ 98 Removing the Vehicle from Storage...................................... 98 Troubleshooting............................................................ 99 Engine Troubleshooting................................................. 99 Battery Troubleshooting................................................100 Machine Troubleshooting................................................101 Options....................................................................102 Index......................................................................103
