Kubota Tractor M5500DT Parts Book Manual – PDF DOWNLOAD
FILE DETAILS:
Kubota Tractor M5500DT Parts Book Manual – PDF DOWNLOAD
Language : English
Pages : 185
Downloadable : Yes
File Type : PDF

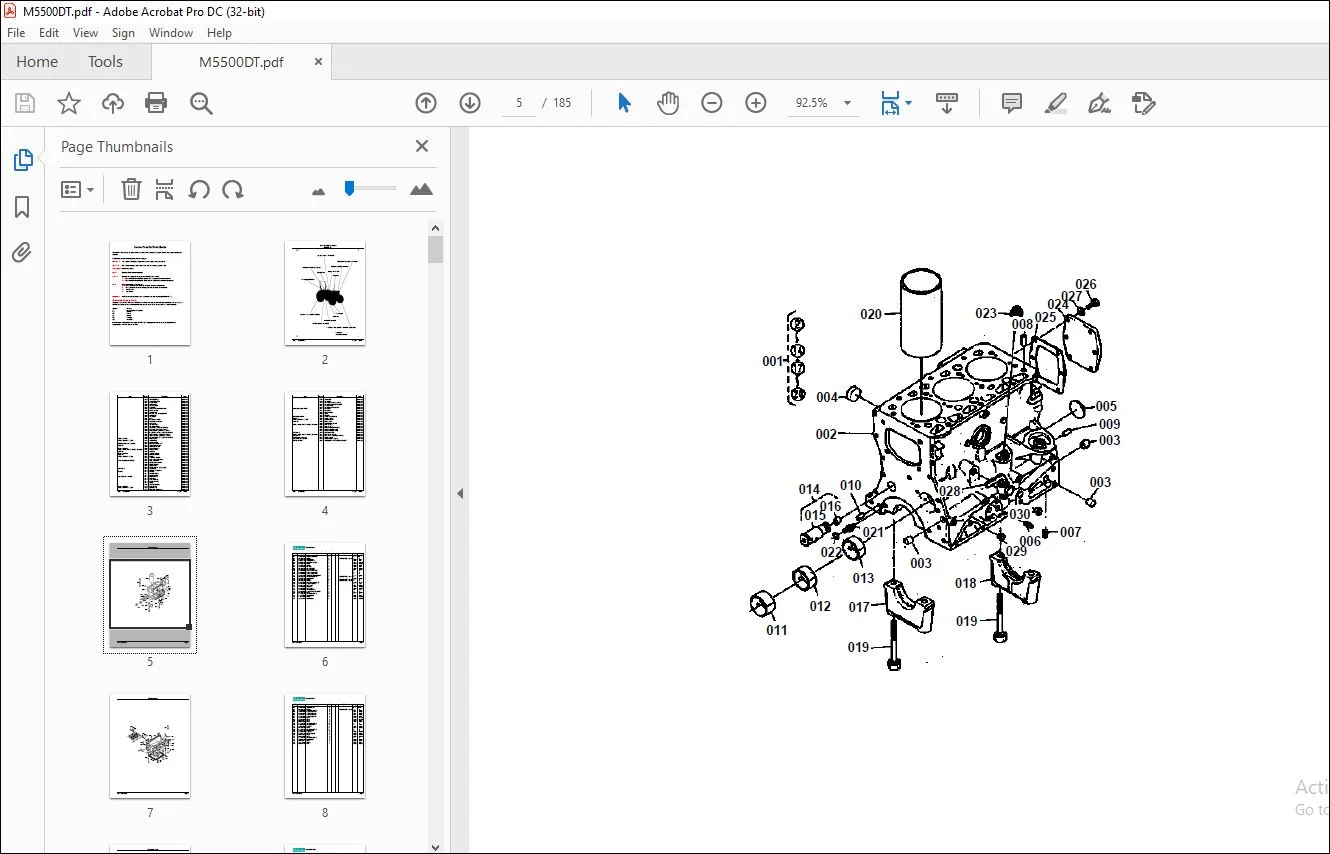

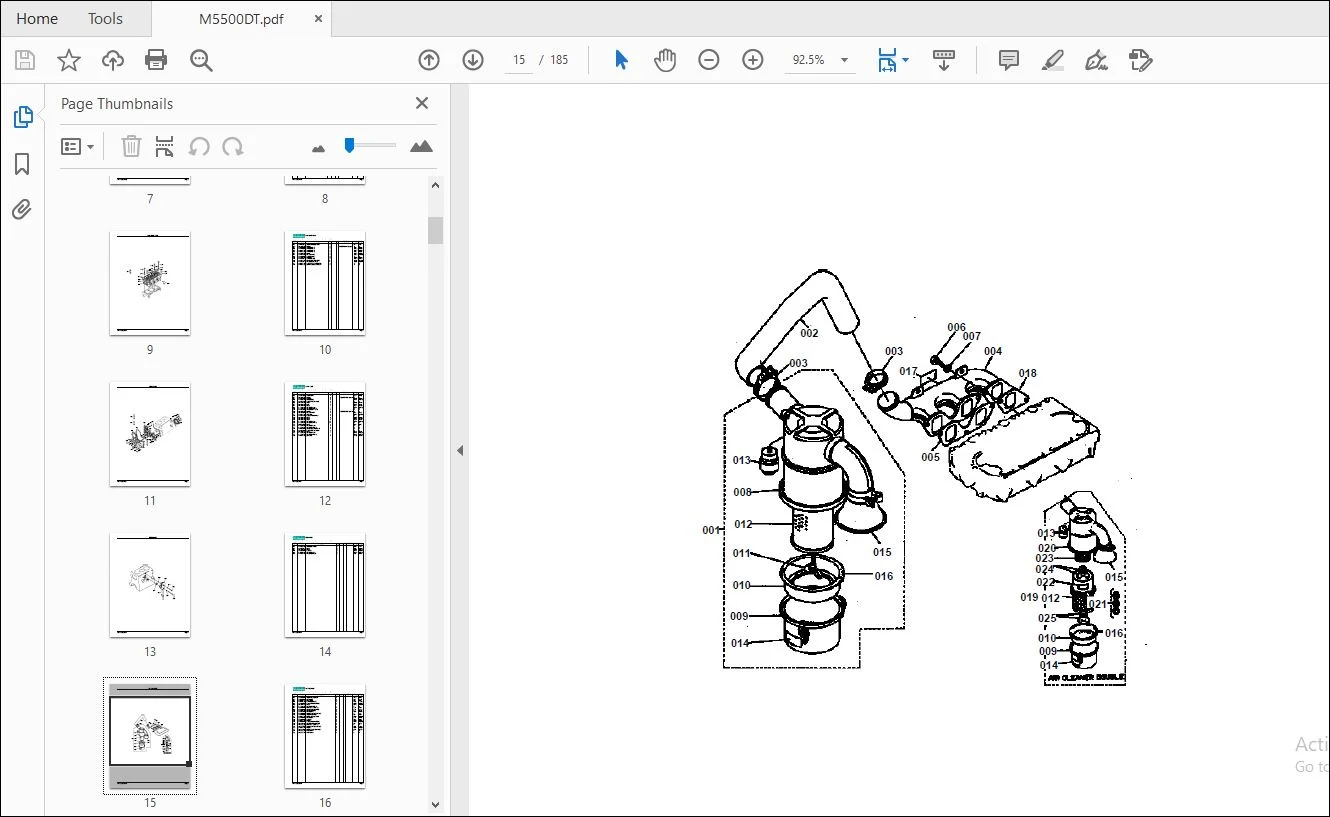

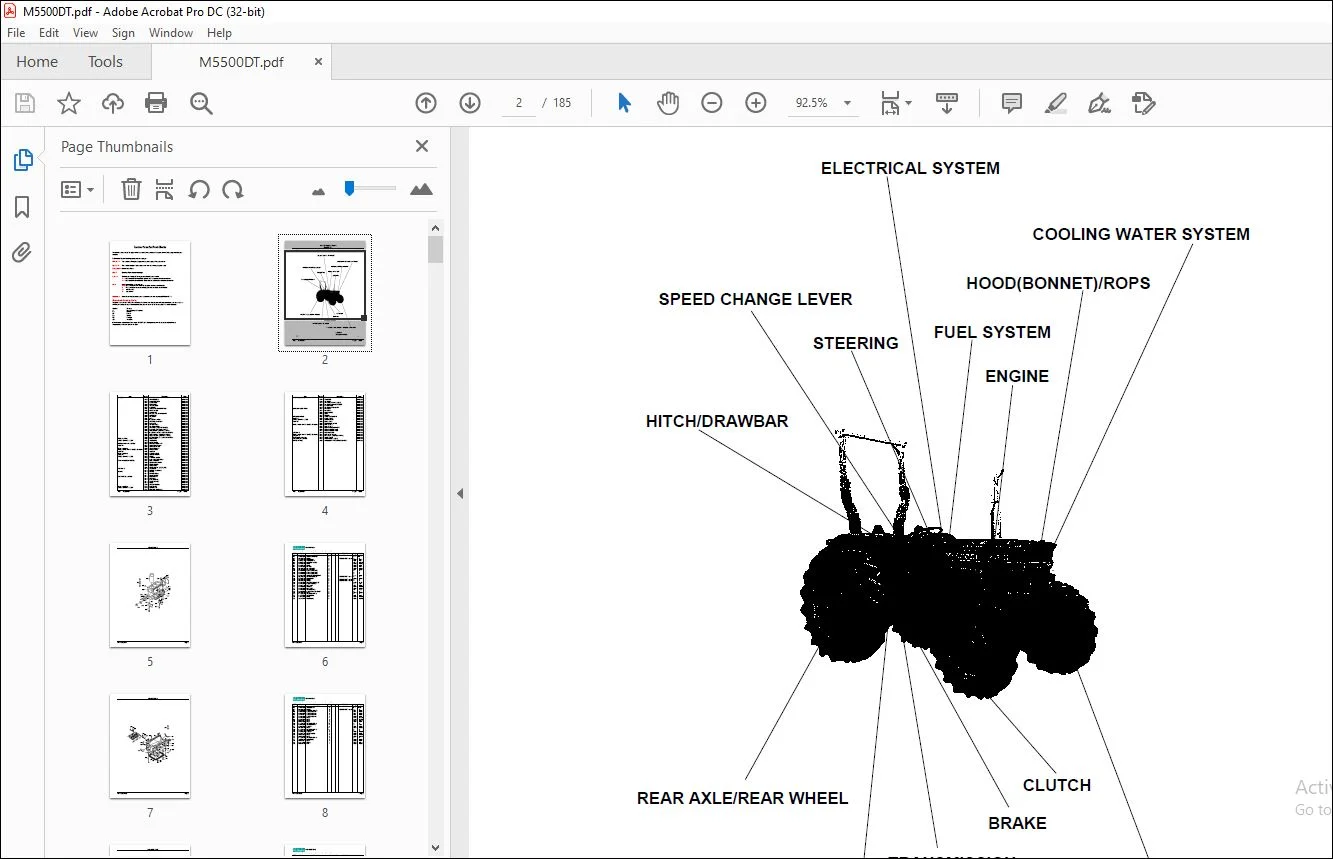

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kubota Tractor M5500DT Parts Book Manual – PDF DOWNLOAD
Instructions for Parts Books:
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No -> The number refering to the part on the picture page of the parts book.
Part No. -> The number assigned to this part at the time of printing the parts book.
Description -> Discription of part.
Q’ty -> Quanity of part used on that page.
S.No.-> Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C à Interchangeability of part shown.
<- -> The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
<- new for old
-> old for new
Remarks -> Notes about this particulart part. Sometimes this may say except [FR] or [CA]
TABLE OF CONTENTS:
Kubota Tractor M5500DT Parts Book Manual – PDF DOWNLOAD
Instructions for Parts Books...... 1 |ALL PRODUCT INDEX................ 2 CRANKCASE 1....................... 5 CRANKCASE 2....................... 7 CYLINDER HEAD..................... 9 GEAR CASE......................... 11 BREATHER.......................... 13 AIR CLEANER....................... 15 MUFFLER........................... 17 VALVE AND ROCKER ARM.............. 19 HEAD COVER........................ 21 CAMSHAFT.......................... 23 PISTON AND CRANKSHAFT............. 25 FLYWHEEL.......................... 27 OIL PUMP.......................... 29 PIPE.............................. 31 INJECTION PUMP.................... 33 STARTER DYNAMO.................... 35 RADIATOR.......................... 37 WATER PUMP........................ 39 OIL PUMP BASE..................... 41 STARTER [SECTION PARTS]........... 43 DYNAMO [SECTION PARTS]............ 45 FUEL PUMP [SECTION PARTS]......... 47 INJECTION PUMP [SECTION PARTS].... 49 FUEL FILTER [SECTION PARTS]....... 51 SEDIMENTER [SECTION PARTS]........ 53 NOZZLE HOLDER [SECTION PARTS]..... 55 FUEL TANK......................... 57 ACCEL ROD......................... 59 HAND ACCEL........................ 61 BATTERY SUPPORT................... 63 CLUTCH HOUSING.................... 65 CHANGE COVER...................... 67 TRANSMISSION...................... 69 FRONT AXLE........................ 71 CLUTCH............................ 73 MISSION GEAR...................... 75 CLUTCH PEDAL...................... 78 LEVER............................. 80 1 2 SHIFT LEVER................... 82 MAIN CHANGE LEVER................. 84 DIFF SUPPORT...................... 86 REDUCTION SHAFT................... 88 BEVEL PINION...................... 90 AXLE CASE......................... 92 REAR WHEEL [A][NZ][AU]............ 94 STEERING.......................... 96 POWER STEERING.................... 98 BRAKE.............................101 BRAKE PEDAL.......................103 HAND BRAKE........................105 ELECTRICAL........................107 BATTERY...........................109 MAIN SWITCH.......................111 PANEL BOARD.......................113 LAMP..............................115 WIRE HARNESS......................117 PTO SHAFT.........................119 SHIFT FORK........................121 POSITION OPERATE..................123 TOP LINK..........................126 CYLINDER..........................128 OIL PUMP..........................130 CONTROL VALVE [A][NZ].............132 OIL PUMP CYLINDER LINER...........135 FILTER CASE.......................137 OIL PUMP ARM SHAFT................139 BONNET 1..........................141 BONNET 2..........................143 BELT COVER........................145 SEAT..............................147 FENDER............................149 TOWING DRAWBAR....................152 NAME PLATE........................154 CREEP SHAFT.......................156 DRIVE CASE........................158 PROPELLER SHAFT...................160 DIFF CASE 1.......................162 DIFF CASE 2.......................164 FRONT AXLE SUPPORT................166 FRONT WHEEL CASE..................169 FRONT WHEEL CASE..................171 KNUCKLE ARM.......................173 DIFF LOCK PEDAL...................175 BOOSTER [SECTION PARTS]...........177 3-POINT LINK......................179 WORK LAMP [A][NZ].................182 ACCESSORY AND SERVICE PARTS.......185
