Kubota Tractor M4500DT Parts Book Manual – PDF DOWNLOAD
FILE DETAILS:
Kubota Tractor M4500DT Parts Book Manual – PDF DOWNLOAD
Language : English
Pages : 187
Downloadable : Yes
File Type : PDF

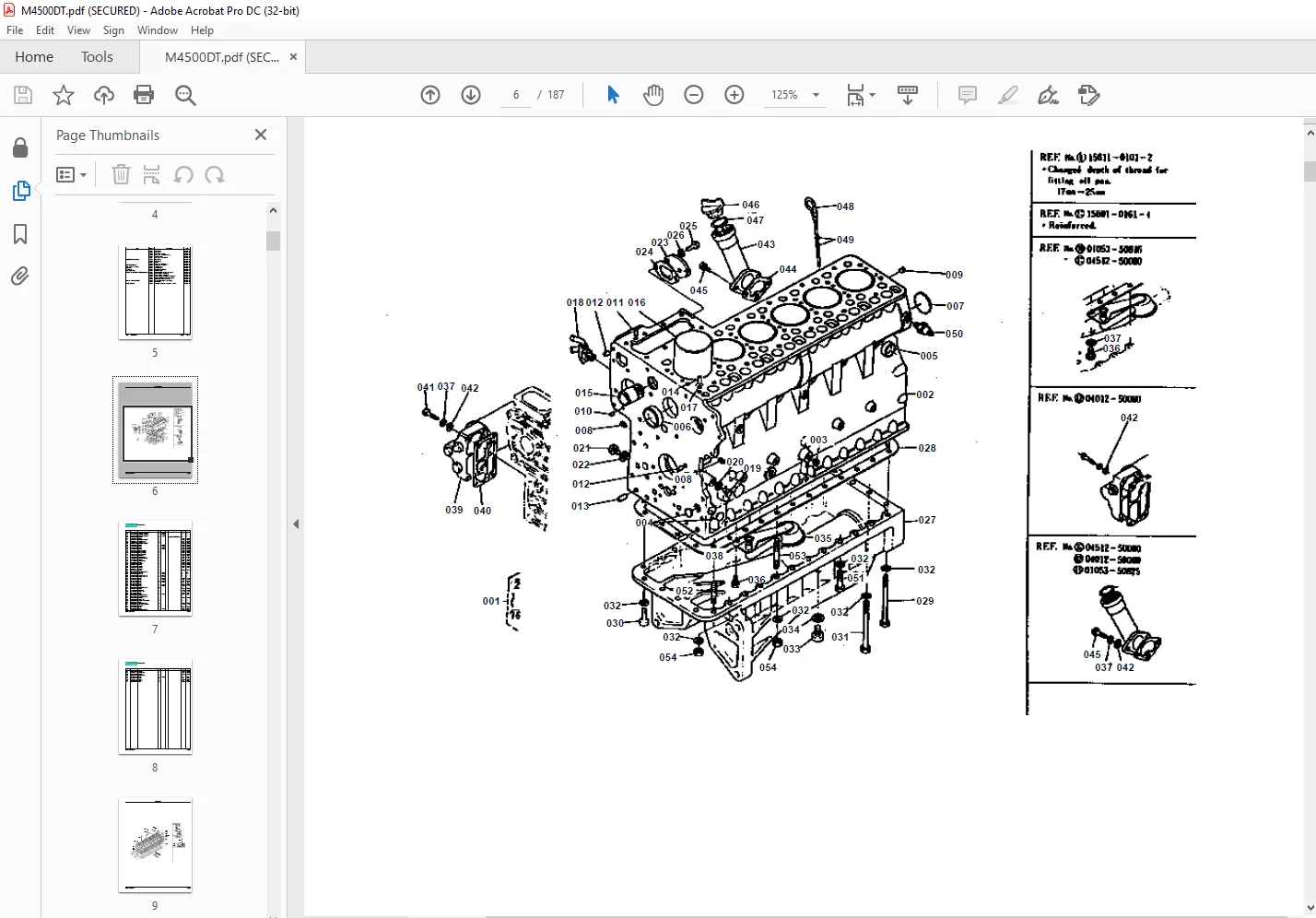

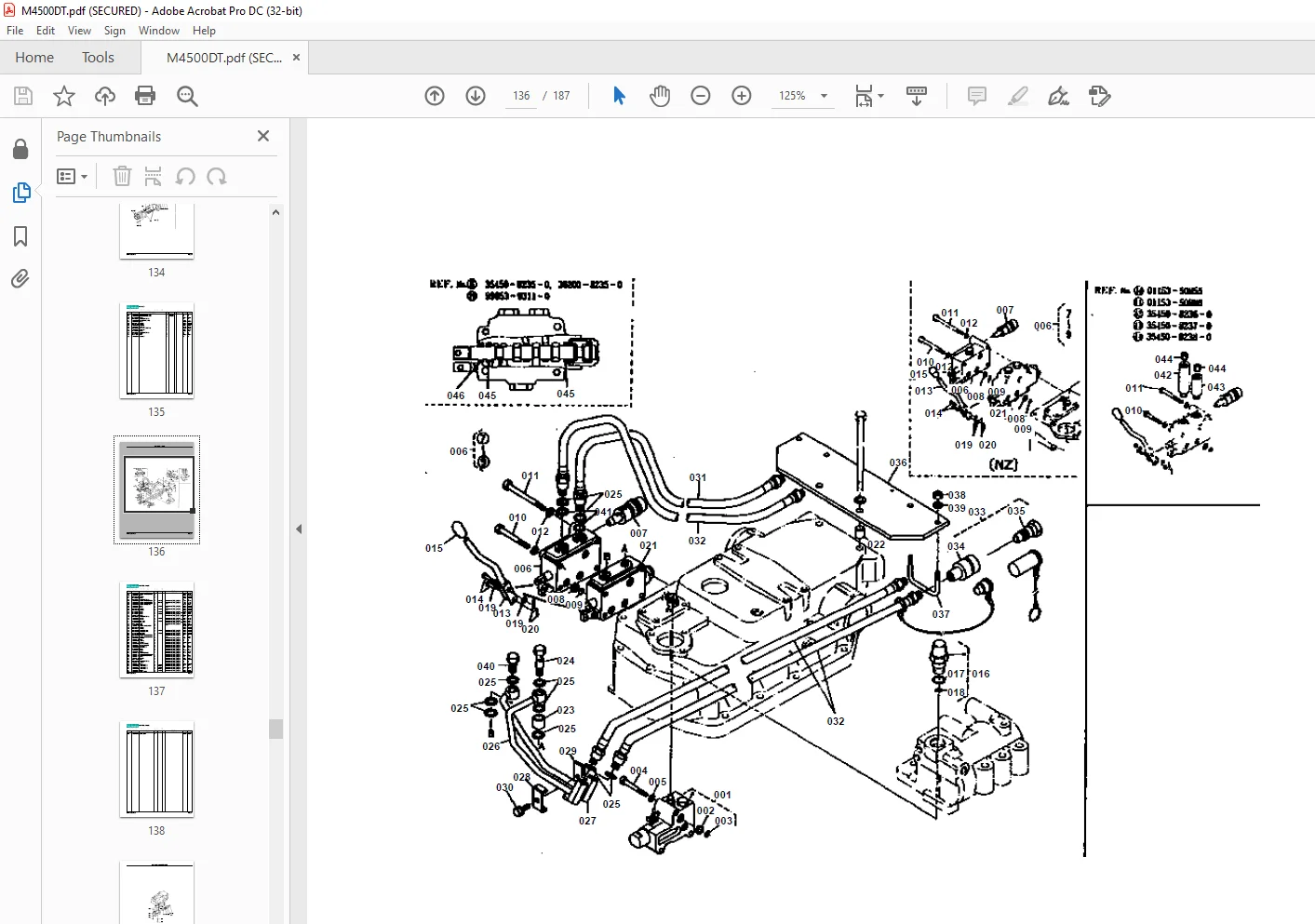

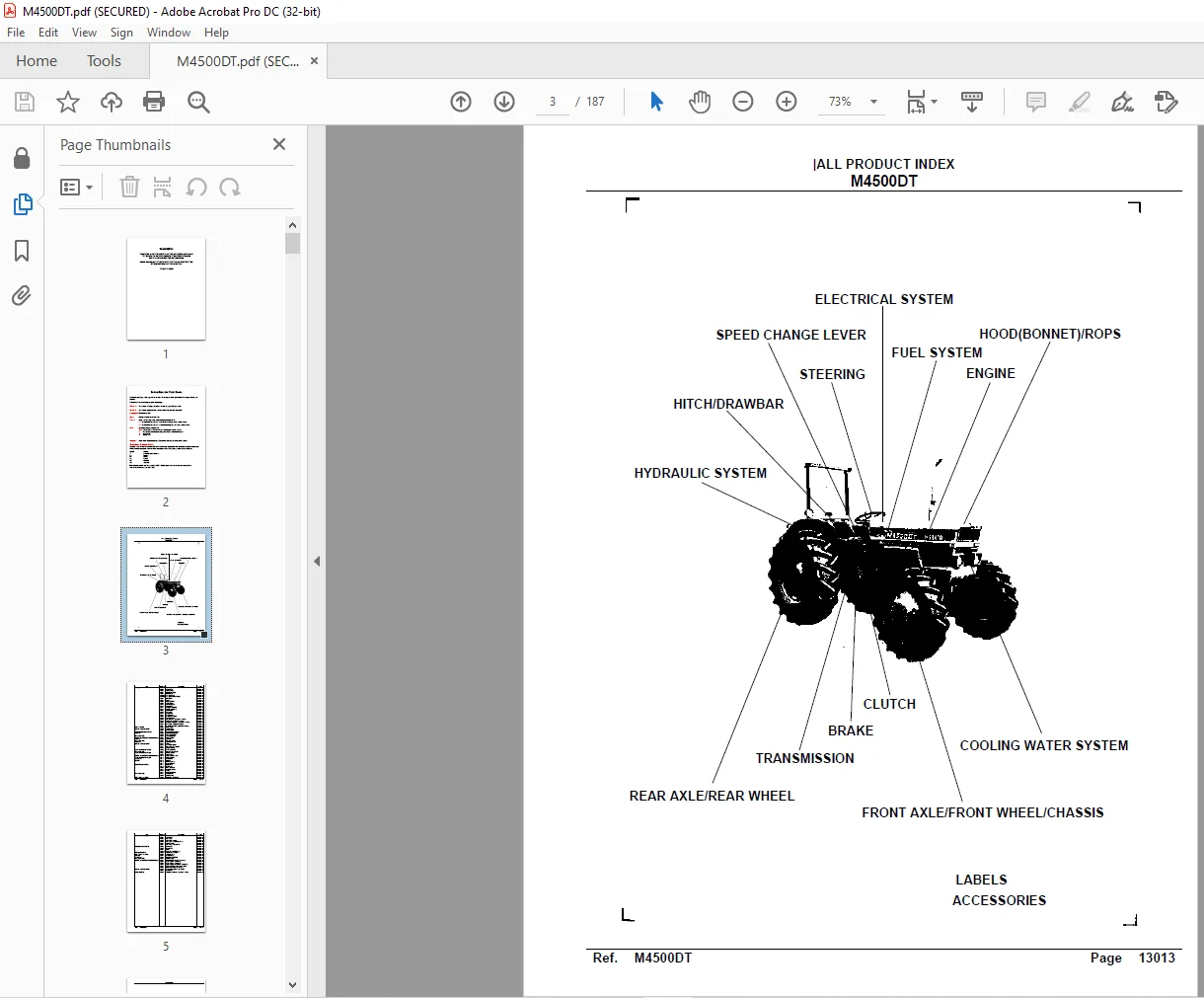

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kubota Tractor M4500DT Parts Book Manual – PDF DOWNLOAD
Instructions for Parts Books:
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No -> The number refering to the part on the picture page of the parts book.
Part No. -> The number assigned to this part at the time of printing the parts book.
Description -> Discription of part.
Q’ty -> Quanity of part used on that page.
S.No.-> Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C à Interchangeability of part shown.
<- -> The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
<- new for old
-> old for new
Remarks -> Notes about this particulart part. Sometimes this may say except [FR] or [CA]
TABLE OF CONTENTS:
Kubota Tractor M4500DT Parts Book Manual – PDF DOWNLOAD
Instructions for Parts Books....... 2 |ALL PRODUCT INDEX................. 3 CRANKCASE.......................... 6 CYLINDER........................... 9 GEAR CASE.......................... 11 BEARING CASE....................... 13 BREATHER........................... 15 AIR CLEANER........................ 17 AIR CLEANER DOUBLE................. 19 MUFFLER............................ 21 VALVE.............................. 23 HEAD COVER......................... 25 CAMSHAFT........................... 27 CRANKSHAFT......................... 29 FLYWHEEL........................... 31 NOZZLE HOLDER...................... 33 SPEED CONTROL...................... 35 GOVERNOR........................... 37 DYNAMO............................. 39 RADIATOR........................... 41 NAME PLATE......................... 43 INJECTION PUMP..................... 45 WATER PUMP......................... 47 OIL FILTER 2 [SECTION PARTS]....... 49 STARTER [SECTION PARTS]............ 51 NOZZLE HOLDER 2 [SECTION PARTS].... 53 DYNAMO [SECTION PARTS]............. 55 INJECTION PUMP [SECTION PARTS]..... 57 FUEL TANK.......................... 59 ACCEL ROD.......................... 61 HAND ACCEL......................... 63 RADIATOR SUPPORT................... 65 CLUTCH HOUSING..................... 67 CHANGE COVER....................... 69 TRANSMISSION....................... 71 FRONT AXLE......................... 73 CLUTCH............................. 75 MISSION GEAR....................... 77 CLUTCH PEDAL....................... 80 LEVER.............................. 82 1 2 SHIFT LEVER.................... 84 MAIN CHANGE LEVER.................. 86 CREEP SHAFT........................ 88 DIFF SUPPORT....................... 90 REDUCTION SHAFT.................... 92 BEVEL PINION....................... 94 AXLE CASE.......................... 96 FRONTWHEEL HUB..................... 98 REAR WHEEL.........................100 STEERING...........................102 BRAKE..............................104 BRAKE PEDAL........................106 HAND BRAKE.........................108 ELECTICAL..........................110 BATTERY............................112 MAIN SWITCH........................114 PANNEL BOARD.......................116 LAMP...............................118 WIRE HARNESS.......................121 PTO SHAFT..........................123 SHIFT FORK.........................125 POSITION OPERATE...................127 TOP LINK...........................130 CYLINDER...........................132 OIL PUMP...........................134 CONTROL VALVE......................136 OIL PUMP CYLINDER LINER............139 FILTER CASE........................141 OIL PUMP ARM SHAFT.................143 BONNET 1...........................145 BONNET 2...........................147 SEAT...............................150 FENDER EXCEPT [OC].................153 TOWING DRAWBAR.....................156 3-POINT LINK.......................158 NAME PLATE.........................161 POWER STEERING.....................163 DRIVE CASE.........................166 PROPELLER SHAFT [M4500DT]..........168 DIFF CASE 1 [M4500DT]..............170 DIFF CASE 2 [M4500DT]..............172 FRONT AXLE SUPPORT [M4500DT].......174 FRONT WHEEL CASE [M4500DT].........177 KNUCKLE ARM [M4500DT]..............180 DIFF LOCK PEDAL [M4500DT]..........182 BOOSTER............................184 ACCESSORIES AND SERVICE PARTS......187
