Kubota LA272 LA302 LA352 LA402 Front Loader Operator’s Manual – PDF DOWNLOAD
DESCRIPTION:
Kubota LA272 LA302 LA352 LA402 Front Loader Operator’s Manual – PDF DOWNLOAD
1. Read and understand both the tractor and the loader 0perator’s Manuals before using the loader.
Lack of knowledge сап lead to accidents.
2. Fог your safety, ROPS with а seat belt is strongly
recommended Ьу KUB0TA in almost all
applications. lf your tractor has а folding R0PS,
fold it down only when absolutely necessary and
fold it up and lock it again as soon as possiЫe. Do
not wear the seat belt when the folding R0PS is
down ог the fixed R0PS is removed. lf you have
any questions, consult your local KUB0TA Dealer.
Always use seat belt when the tractor is equipped
with а R0PS. Never use the seat belt when the
tractor is not equipped with а R0PS.
3. Do not lift ог саггу anybody on the loader, bucket
ог attachment.
4. Never allow anyone to get under the loader
bucket ог reach through the boom when the
bucket is raised.
5. Do not walk ог work under а raised loader bucket
or attachment unless it is securely Ыocked and
held in position.
6. When operating оп а slope, always operate up
and down the slope, never across the slope.
7. 0perate the loader from the tractor seat only.
8. Fог tractor stabllity and operator’s safety, геаг
ballast must Ье added to the 3-point hitch and to
the геаr wheels.
9. То increase stabllity adjust the rear wheels to the
widest setting that is suitaЫe for your application.
10. Move and turn the tractor at low speeds.

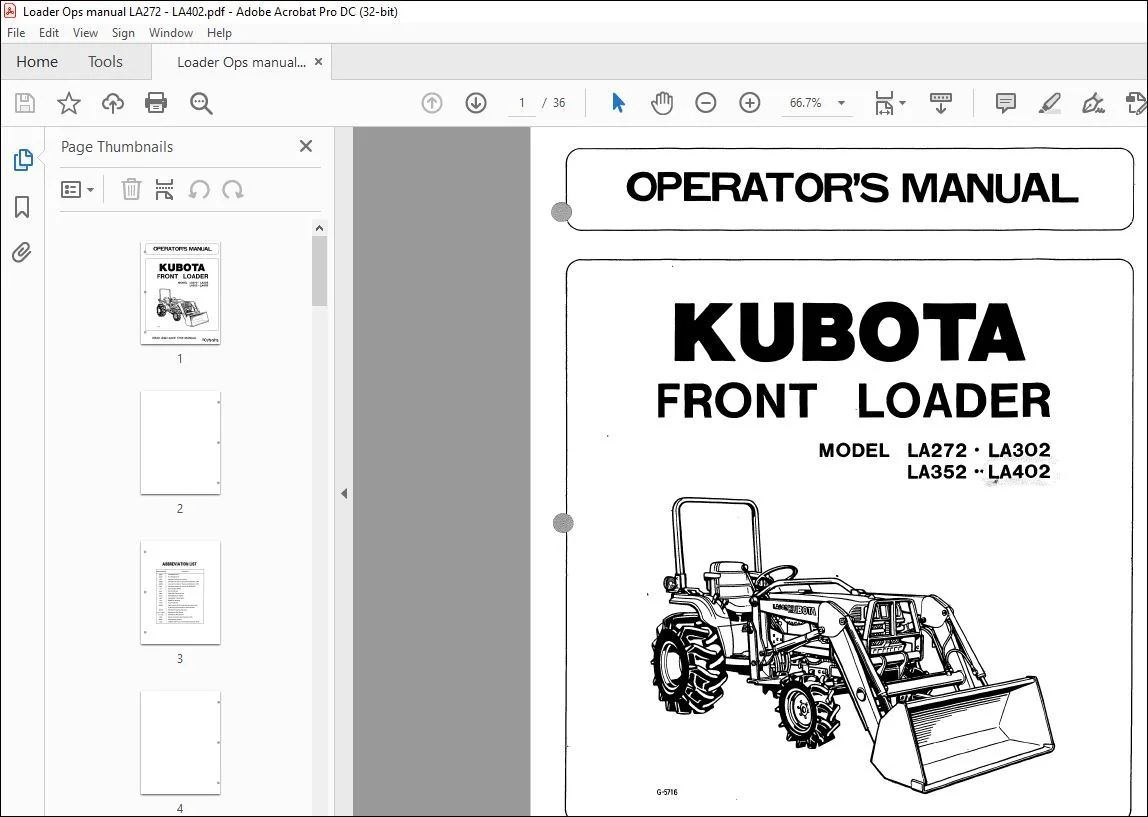

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Kubota LA272 LA302 LA352 LA402 Front Loader Operator’s Manual – PDF DOWNLOAD
SAFE OPERATION 1 OPERATING ТНЕ LOADER 19
FILLING ТНЕ BUCKET 19
SERVICING OF LOADER 5 LIFТING ТНЕ LOAD 19
SPECIFICA TIONS 6 CARRYING ТНЕ LOAD 19
SUITABLE TRACTOR 6 DUMPING ТНЕ BUCKET 20
LOADER SPECI FICA TIONS 6 LOWERING ТНЕ BUCKET 20
BUCKET SPECIFICATIONS 6 OPERA TING WIТH
DIMENTIONAL SPECIFICATIONS 7 FLOA Т CONTROL 20
OPERATIONAL SPECIFICATIONS 7 LOADING FROM А BANK 21
PERFORMANCE CHART 8 PEELING AND SCRAPING 21
LOADER TERMINOLOGY 9 LOADING LOW TRUCKS OR
SPREADERS FROM А PILE 22
SEТТING-UP INSTRUCTIONS 10 BACKFILLING 22
PRE-ASSEMBL У 10 HANDLING LARGE
TRACTOR PREPARATION 11 HEAVY OBJECTS 23
INSTALLATION INSTRUCТIONS 11
PRE-OPERATION СНЕСК 17 MAINTENANCE 24
LUBRICATION 17 LUBRICATION 24
TRANSMISSION FLUID 17 DAILYCHECKS 24
R EAR BALLAST 17
TIRE INFLATION 18 REMOVING ТНЕ LOADER 26
TEST OPERA TIO N 18
REMOVING AIR FROM STORING ТНЕ LOADER 27
HYDRAULIC SYSTEM 18
REINSTALLING ТНЕ LOADER 28
