Kubota 1200 Loader L-175 L-185 L-185DT L-225 L-225DT L-245 -L-245DT L-285 Tractor Owner’s Manual – PDF DOWNLOAD

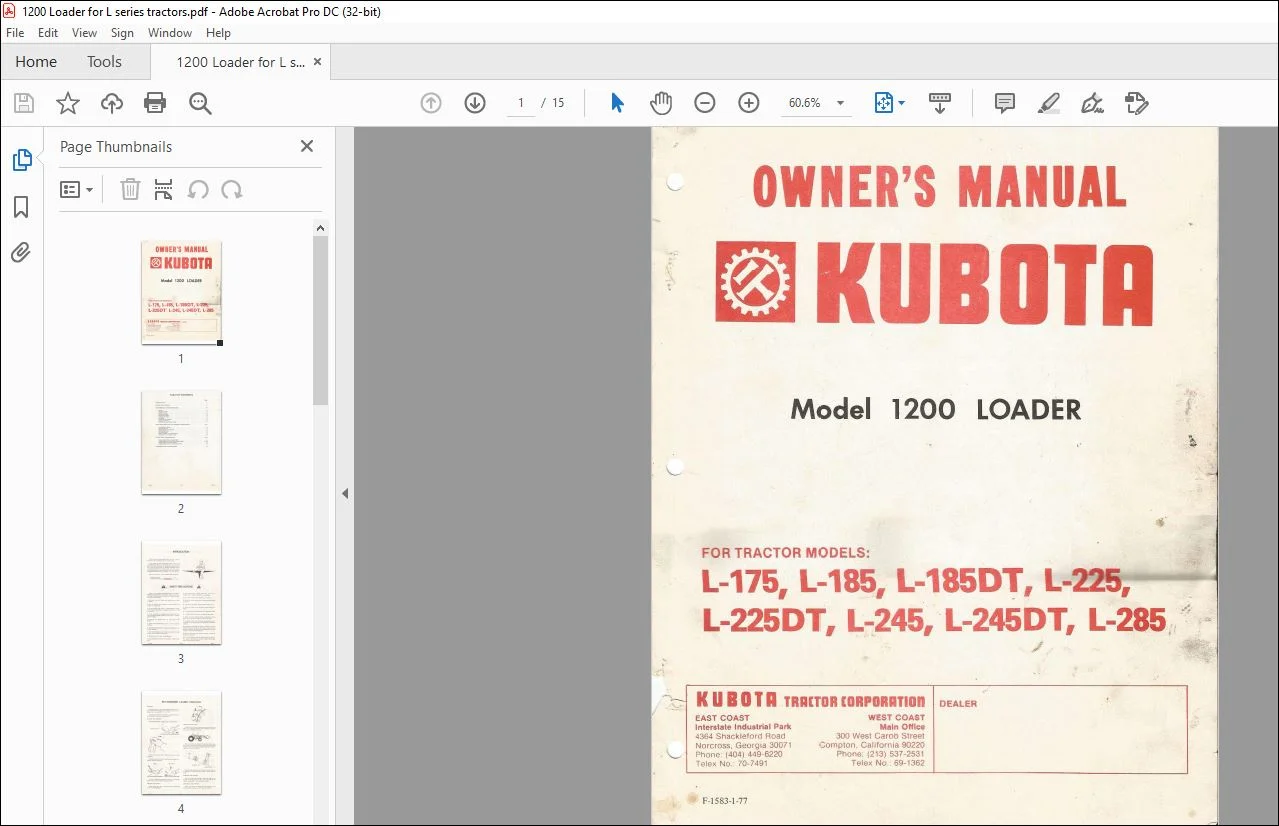

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Kubota 1200 Loader L-175 L-185 L-185DT L-225 L-225DT L-245 -L-245DT L-285 Tractor Owner’s Manual – PDF DOWNLOAD
INTRODUCTION . ……. …. . .. …….. . …. . … . .. . .. . . … .. . . . … … . 3
SAFETY PRECAUTIONS ……… . . . … . ……….. .. .. . . ….. . ……. .. . . …. . . …. . . . 3
RECOMМENDED LOADER OPERA TION . . . . … . …… . ….. . . .. .. . … . . .. .. . .. ……. 4-5 .,
General ………….. . …. . . . . .. . . ……….. .. . . …. . .. .. . ………………….. 4
Filling the Bucket . . . . ….. . .. . .. …. ….. . . . ……….. . . . …………. … ……… 4
Lifting the Load . .. . …. …….. … .. . . … .. . . .. .. … . . .. -: . … . . . … .. .. . .. . . . ….. 4
Carrying the Load … . … . ………. . . . .. . .. …. … . . ……… . . . … . .. . ……….. 4
Dumping the Bucket . . …… . .. . . ….. … .. .. … . .. . . ……. .. . . .. … .. …. . …… . 4
Lowering the Bucket . . … . …. … … . … . . … . . . . . . . …… . ….. . ………. . . .. …. 4
Backfilling … . . … …. ……… . …. . … . .. . . . . .. . . . . … . .. . . .. . … .. . …. .. .. . … 5
DouЫe-Acting Cylinders ….. . …….. . .. ….. .. . ….. . . … .. . . .. . …. . . … . … …. . 5
Loading from а Pile … ….. . … …. …… . . . . . . . . .. . . . . ……… . . . .. . . . .. . . . . . . … 5
Hydraulic System Pressure Check ……. . .. . … . ……. … .. . … . .. . …. . .. . . . …… 5
PARTS IDENTIFICA TION AND ASSEМВLY INSTRUCTIONS ….. . . . . . . . . . ………. . . 6-10
Loader Main AssemЬly ….. . . … .. … .. …. . …. . . . …. . … . .. .. … .. . …. . . … . … 6
Hydraulic System ………….. . ….. . . .. .. . . …. .. .. …. .. … . …. . .. . . . . .. . . . . … 7
Manure Bucket and Dirt Plate …. . . … . . . …. . . . …… . …… . ….. . . . ………….. 8
48″ Material Bucket ………………….. . ….. . . . … . . .. . . .. …. . . ………… … 8
60″ Snow Bucket . .. .. .. ….. … . . ….. . … .. . .. .. .. .. . . . .. . . .. …….. . …… . … . . 8
Bucket Cylinder, 1 ¾” DouЫe Acting . .. . . …. . . . . .. . ………. . . … .. ……………. 9
Lift Cylinder, 1 ¾” DouЫe Acting ……………… . ….. …… … ……. . …. . .. . . . 10
НYDRAULIC CYLINDER REPAIR …. . … . . . . …. . ……….. . .. . .. . . .. . … … . …. . 11-13
Disassemb)y of Bucket Cylinder #4361 . …… . …. . . . …. . . . .. … … …… . . . . . …… 11 _,/
Insta)ling {tepair Parts in Bucket Cylinder #4361 .. . .. .. . … . . . … .. ……… . …… 11-12
DisassemЬly of Lift Су linder #7713 … . …. . …… . . …. . .. . …………… . … . .. … 12
Instailirig Repair Parts in Lift Cylinder #7713 .. . . . . . . . . . …….. . .. … . ……….. .. .. 13
NUMERICAL PART NUMBER INDEX ………………… .. . . .. . ….. … …….. .. … . 14
