DESCRIPTION:

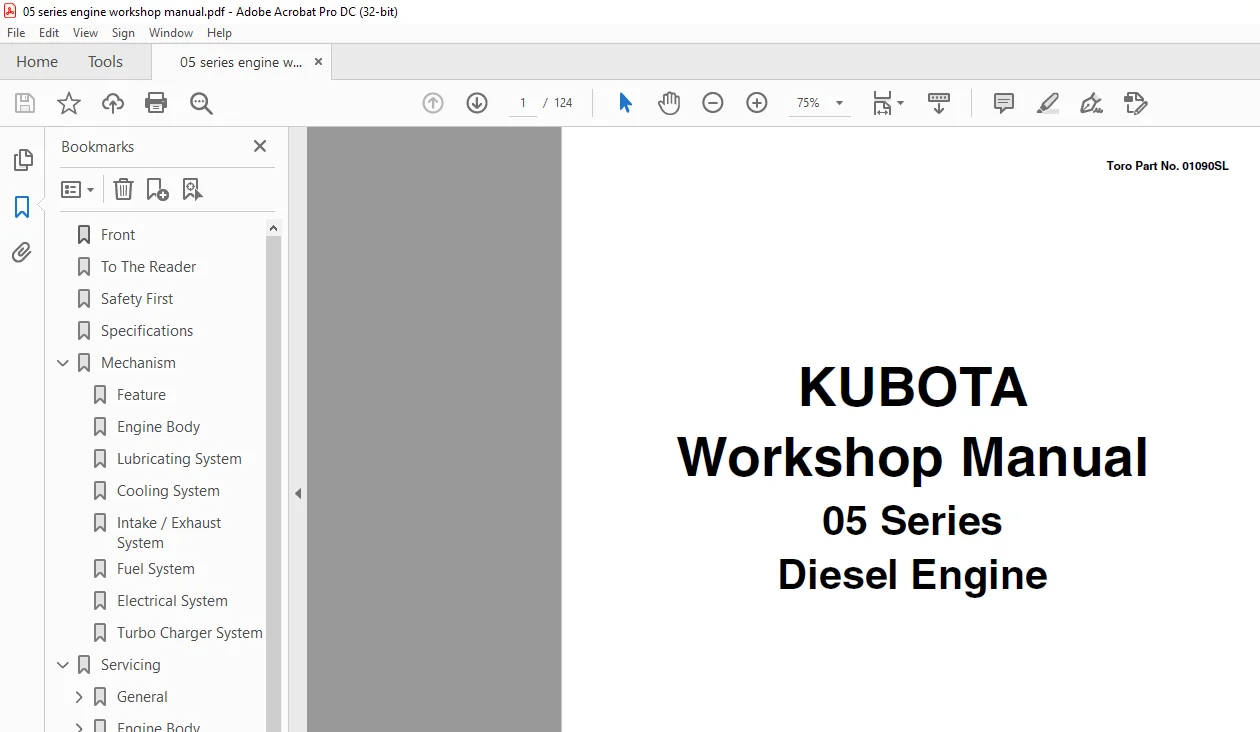

Kubota 05 Series Diesel Engine Workshop Manual 01090SL – PDF DOWNLOAD
ТО ТНЕ READER:
This Workshop Manual has been prepared to provide serv1c1ng personnel with
information оп the mechanism, service and maintenance of KUBOTA Diesel Engines 05
SERIES. lt is divided into two parts, “Mechanism” and “DisassemЫing and Servicing” for
each section.
■ Mechanism
lnformation оп the construction and function are included for each engine section. This
part should Ье understood before proceeding with trouЫeshooting, disassemЫing and
servicing.
■ DisassemЫing and Servicing
Under the heading “General” section comes general precautions, trouЫeshooting, lists
of servicing specifications and periodic inspection items. For each engine section, there
are “Checking and Adjustment”, “DisassemЫing and AssemЫing”, and “Servicing” which
cover procedures, precautions, factory specification and -allowaЫe limits.
AII the engines that have been manufactures since January of 1994 are clean exhaust
engines.
The mark [Е] in the WSM refers to the said clean engine.
AII information, illustrations and specifications contained in this manual are based оп
the latest production information availaЫe at the time of puЫicatlon.
The right is reserved to make changes in all information at any time without notice.
Due to covering many models of this manual, illustration or picture being used have not
been specified as one model.

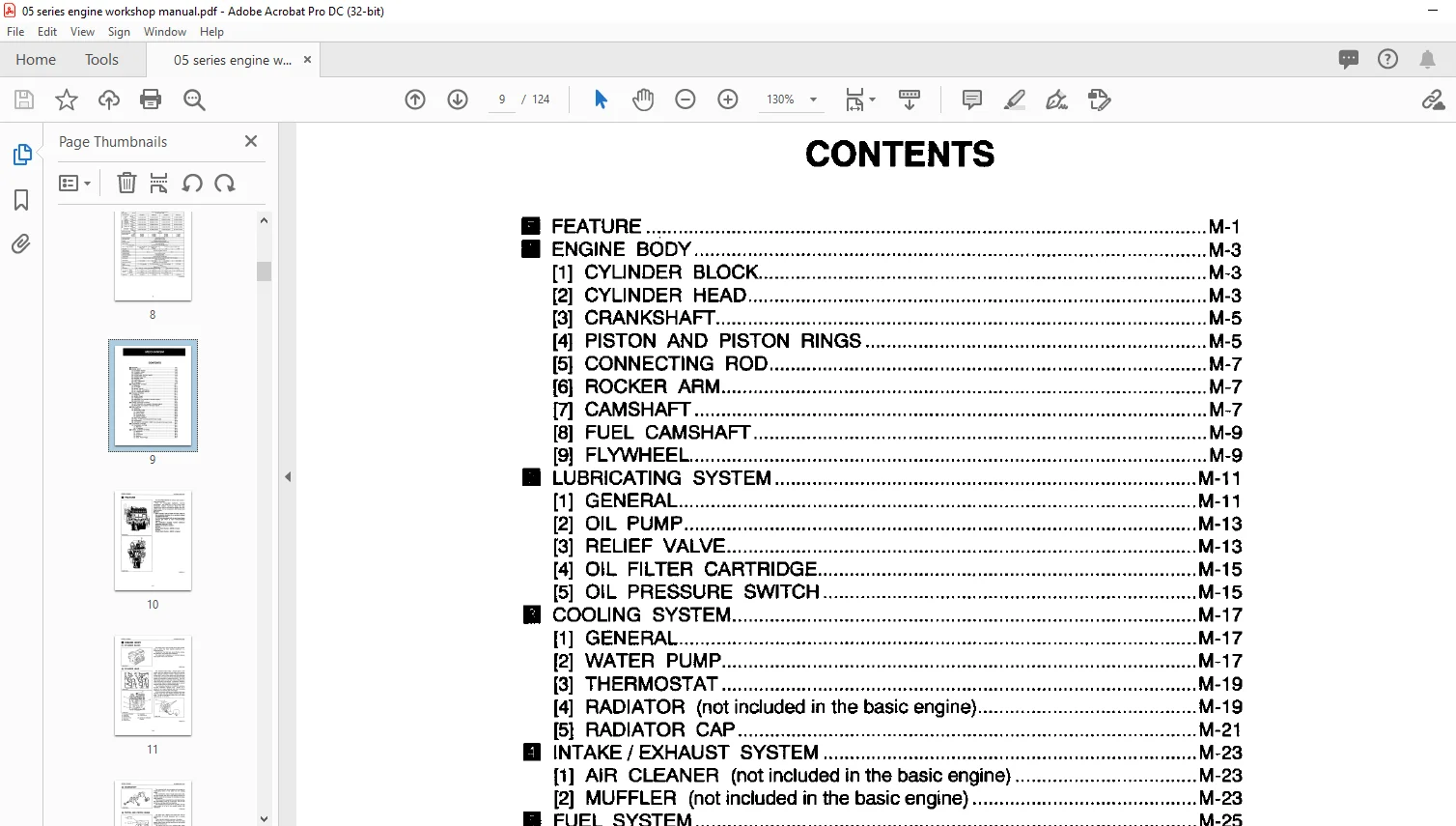

TABLE OF CONTENTS:
Kubota 05 Series Diesel Engine Workshop Manual 01090SL – PDF DOWNLOAD
Front……………………………… 1
To The Reader………………………. 3
Safety First……………………….. 4
Specifications……………………… 7
Mechanism………………………….. 9
Feature………………………… 10
Engine Body…………………….. 11

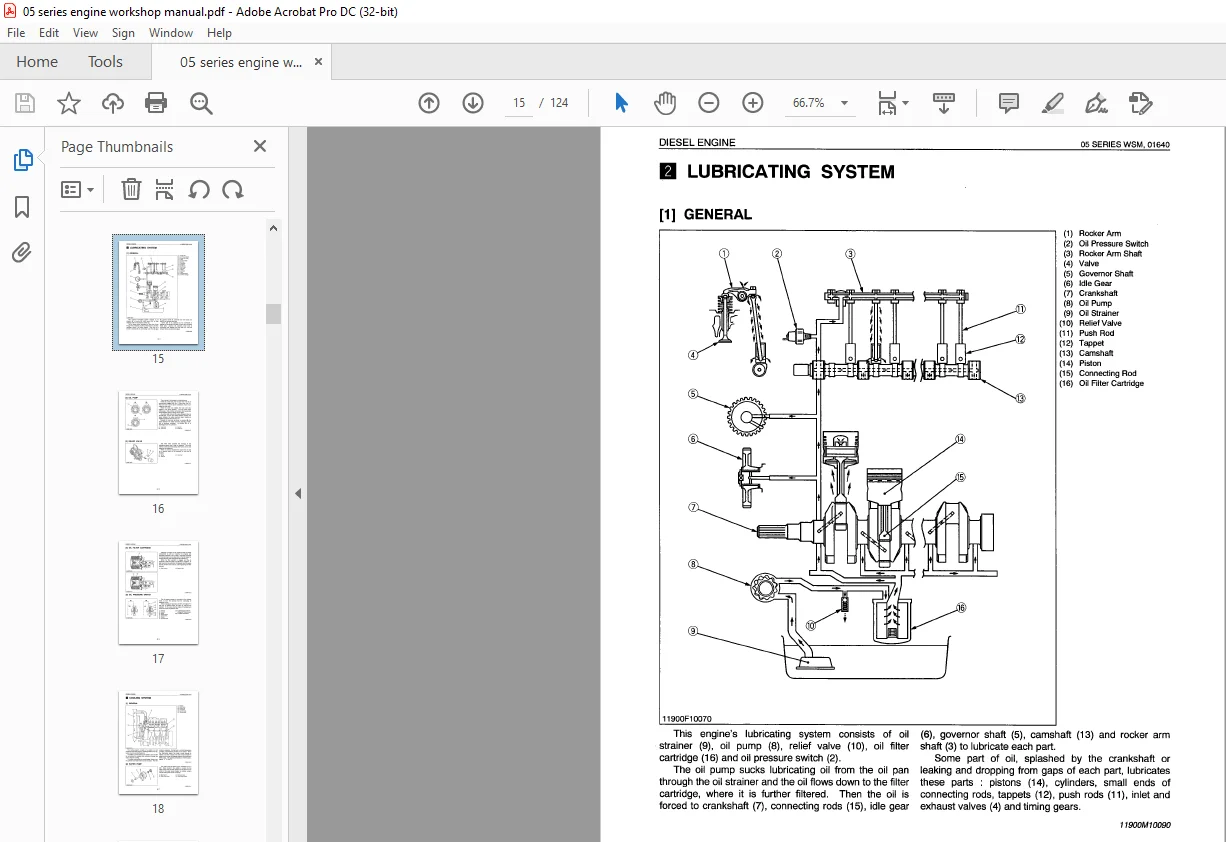

Lubricating System………………. 15
Cooling System………………….. 18
Intake / Exhaust System………….. 21
Fuel System…………………….. 22
Electrical System……………….. 30
Turbo Charger System…………….. 31
Servicing………………………….. 36
General………………………… 38
Identification………………. 38
General Precaution…………… 39
Tightening Torques…………… 40
Troubleshooting……………… 41
Service Specifications……….. 44
Maintenance Checklist………… 53
Check and Maintenance………… 54
Special Tools……………….. 60
Engine Body…………………….. 67
Checking and Adjusting……….. 67
Disassembling and Assembling….. 68
Draining Water and Oil……. 69
External Components………. 69
Cylinder Head and Valves….. 70
Gear Case……………….. 72
Piston and Connecting Rod…. 78
Flywheel and Crankshaft…… 81
Servicing…………………… 83
Cylinder Head……………. 83
Timing Gear and Camshaft….. 88
Piston and Connecting Rod…. 90
Crankshaft………………. 93
Cylinder………………… 99
Lubricating System……………….101
Checking…………………….101
Servicing……………………101
Oil Pump…………………101
Cooling System…………………..103
Checking…………………….103
Fan Belt…………………103
Radiator…………………103
Disassembly and Assembly………104
Fuel System……………………..106
Checking and Adjusting………..106
Injection Pump……………106
Injection Nozzle………….108
Disassembling and Assembling…..109
Injection Pump……………109
Injection Nozzle………….110
Electrical System………………..111
Checking…………………….111
Starter………………….111
Glow Plug………………..112
Disassembling and Assembling…..112
Starter………………….112
Alternator……………….113
Servicing……………………116
Starter………………….116
Alternator……………….118
Turbo Charger System……………..121
Checking…………………….121
Disassembling and Assembling…..123
