Kobelco SK200 V SK200LC V Hydraulic Excavator Shop Manual – PDF DOWNLOAD
DESCRIPTION:
Kobelco SK200 V SK200LC V Hydraulic Excavator Shop Manual – PDF DOWNLOAD
- When checking or repairing the machine we suggest that you refer to this manual carefully. We hope that reference to this manual will help to maintain it high level of working efficiency and reliability. For further details on maintenance and checks refer to the “OPERATORS MANUAL” which has been supplied with the machine.
- Although all data was correct at the time of printing. due to continual design changes and improvements. some content: may not conform to the actual machine. Take special care to order parts only after confirming the validity of the parts number in the “PARTS MANUAL.”
- If you notice any explanatory discrepancies. after consulting one of our representatives. please update your manual according to the latest data. However. in the event of any specification changes. we will issue revised edition.
SAFETY PRECAUTIONS :
The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ; SPECIFICATIONS.
The following is a list of basic precautions that must always be observed.
TABLE OF CONTENTS:
Kobelco SK200 V SK200LC V Hydraulic Excavator Shop Manual – PDF DOWNLOAD
*GENERAL
YN01. SPECIFICATION
OPERATION AND CONTROLS
(Refer to Operators Manual)
УNОЗ. LOCATION AND
WEIGНТ OF COMPONENТS
YN04. MAINТENANCE STANDARD AND
TEST PROCEDURE
PREVENTIVE MAINТENANCE
(Refer to Operators Manual)
YN07. WORKING STANDARD
YN08. STANDARD MAN-HOUR TABLE
*SYSTEMS
YN12. HYDRAULIC SYSTEM
YN15. SWING FRAME
YN18. TRAVEL SYSTEM
YN21. АТТАСНМЕNТS
YN22. CONTROL SYSТEM
YN25. ELECТRICAL SYSTEM
YN26. AIR-CONDITIONER SYSTEM
YN29. TROUBLE SHOOTING
*COMPONENTS
12. HYDRAULIC PUMP
13. CONТROL VALVE
14. OTHER VALVES
15. HYDRAULIC MOTOR
16. SWIVEL JOINТ
17. HYDRAULIC CYLINDER
21. REDUCТION UNIT
50. ENGINE
*PROCEDURE
VIDEO PREVIEW OF THE MANUAL:

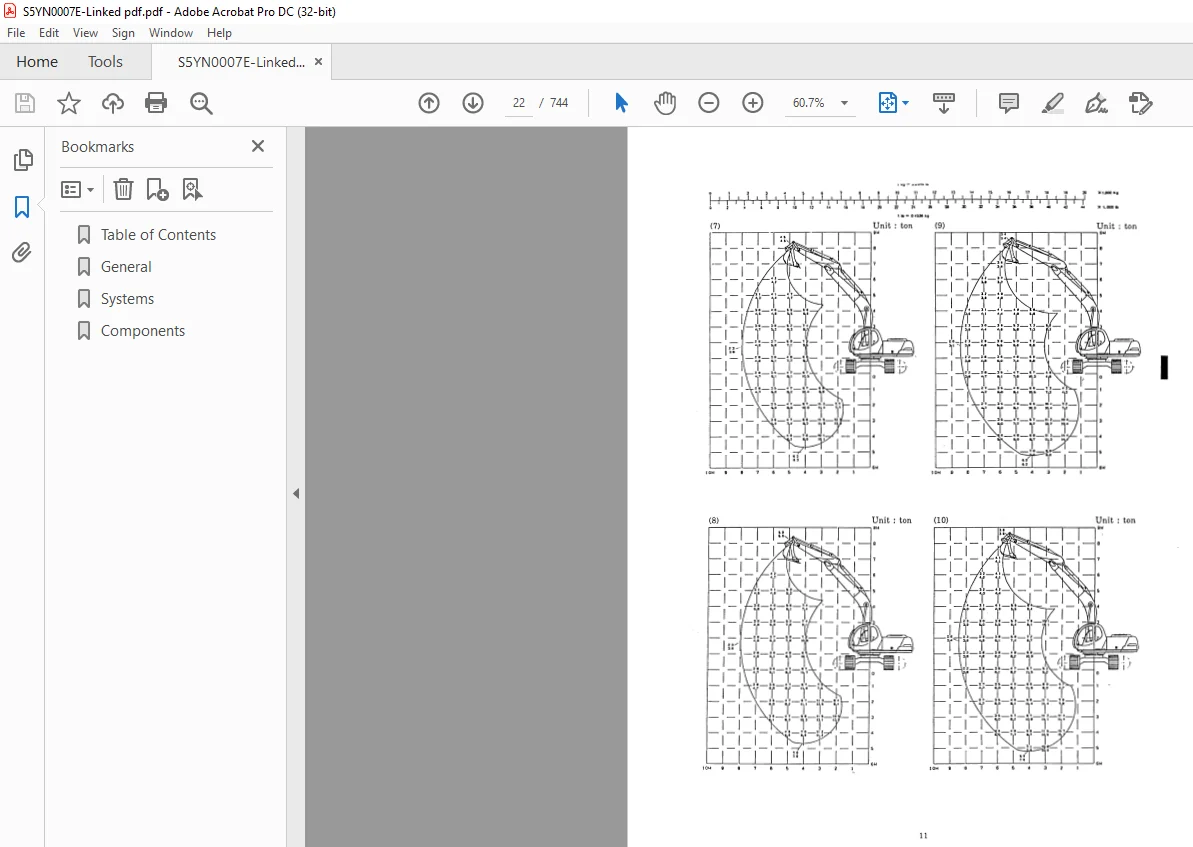

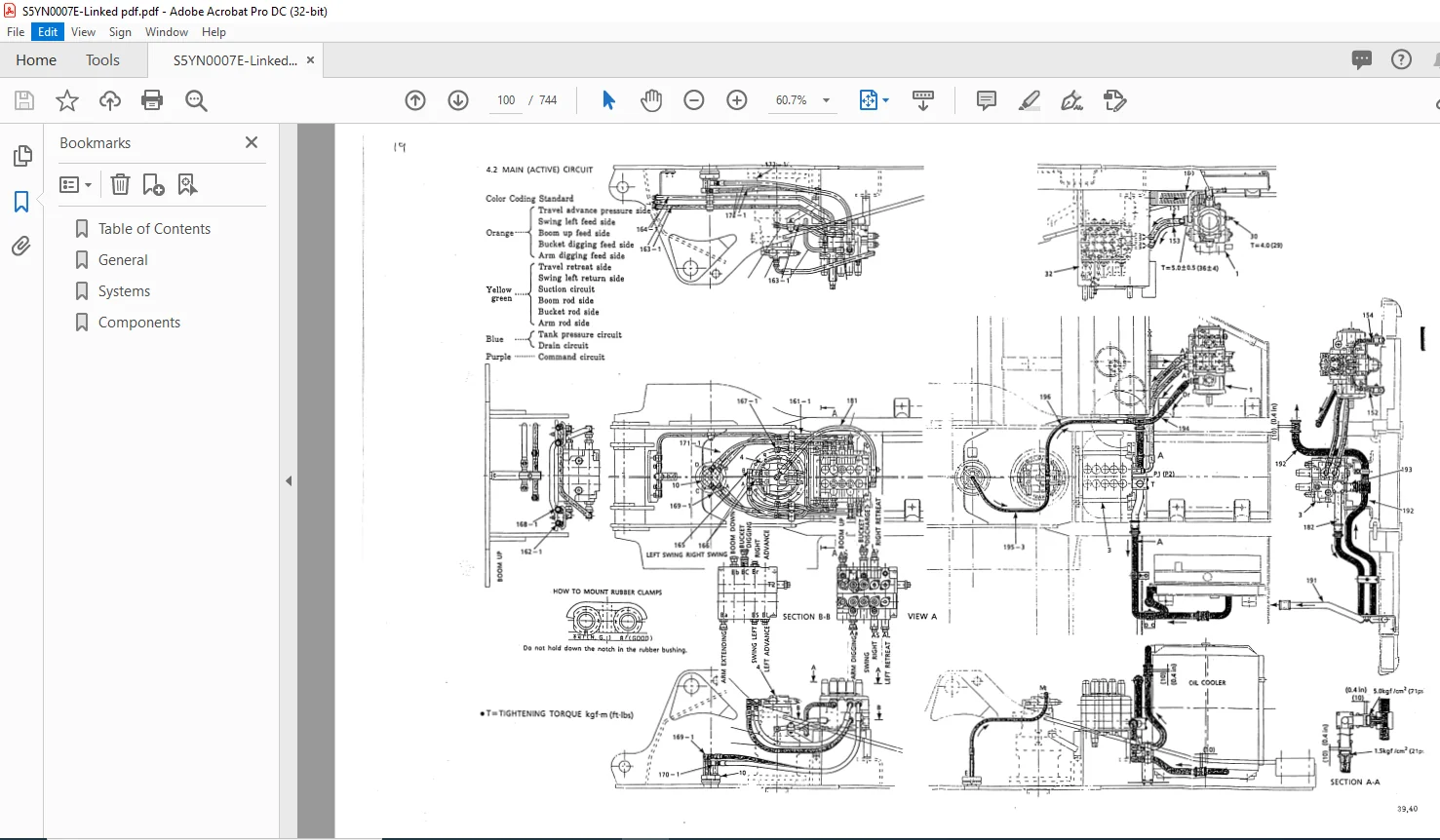

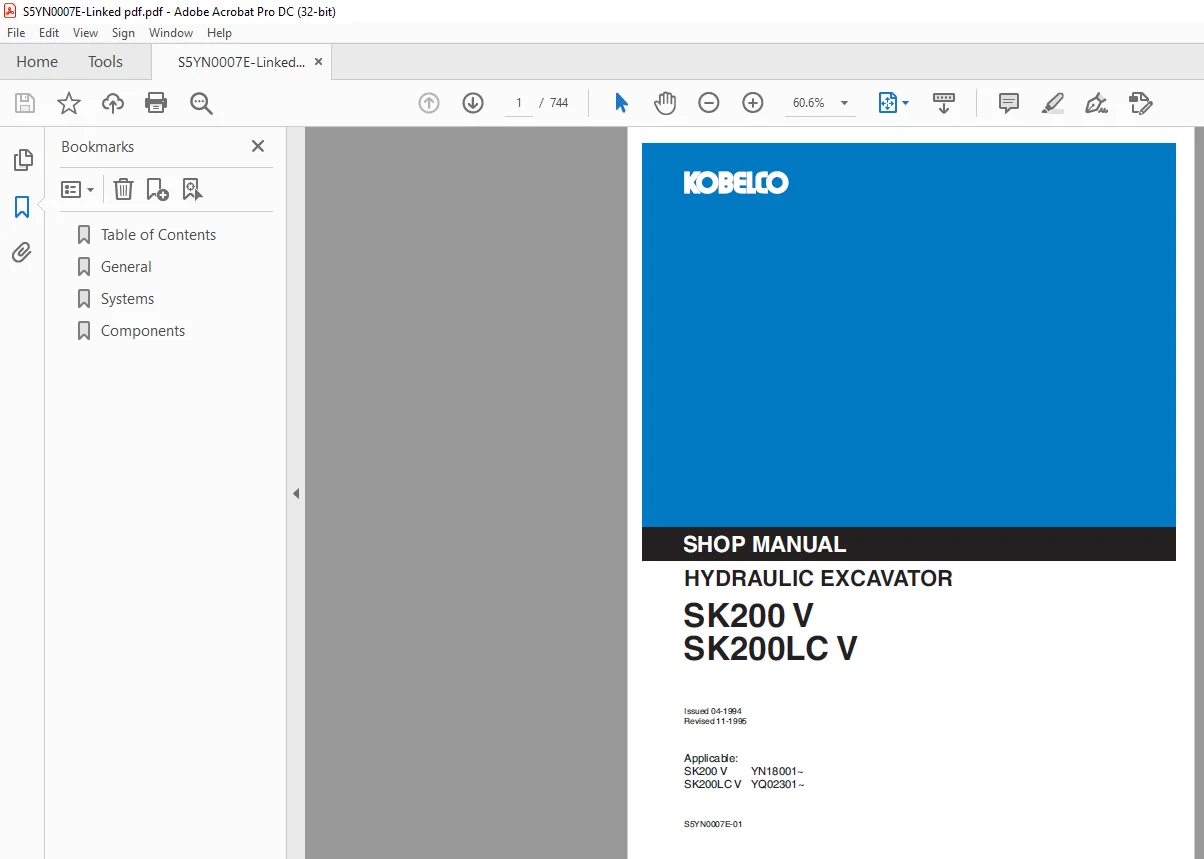

IMAGES PREVIEW OF THE MANUAL:
