Honda Outboard Engine GB40 Shop Manual – PDF DOWNLOAD
FILE DETAILS:
Honda Outboard Engine GB40 Shop Manual – PDF DOWNLOAD
Language : English
Pages : 35
Downloadable : Yes
File Type : PDF
Size: 1.4 MB
IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Honda Outboard Engine GB40 Shop Manual – PDF DOWNLOAD
1. Few of the outstanding features
Th~ Model GB40 engine is a general purpose utility engine which can be easily dismounted
and utilized for a wide range of application such as for the power source for electric gener•
ator, water pump, cement mixer and numerous other machineries.
l. Ease of handling
A loop steering handle with a full 360° swivel permits control from forward to reverse ijlnd
also stopping without requiring gear change or shutting off the engine. ·
l. Smooth slow speed operation
Unlike a two cycle engine which produces rough operation at slow speed, the GB40 engine
gives the same smooth performance at all range of speed, ideatly suited for both high speed
cruising or for trolling. · · ·
◄. Low operating cost
The highly efficient 4-cycle GB40 is over 200/4 lower in fuel consumption than the comparable
2-cycle outboard engine. Further, the engine is always kept clean because it use
straight gasoline as compared to the engine using mixed fuel.
S. Minimum vibration
A well balanced design and precisionsly manufactured parts produces minimum of vibration
under all operating speed. The shock absorber mounted loop handle f~rther isolates vibration.
6. Easy starting
The engine carburetor is designed to require no adjustment, making it easy to start’the engine
with the use of engine starter lock device and recoil starter. Engine starter lock device can
also be used in securing the engine when powering other machinery.
7. Durability
The use of ball bearings on primary moving parts and high grade materials assure greater
engine life. Modern production method with strict quality control will realize trouble free
operation.

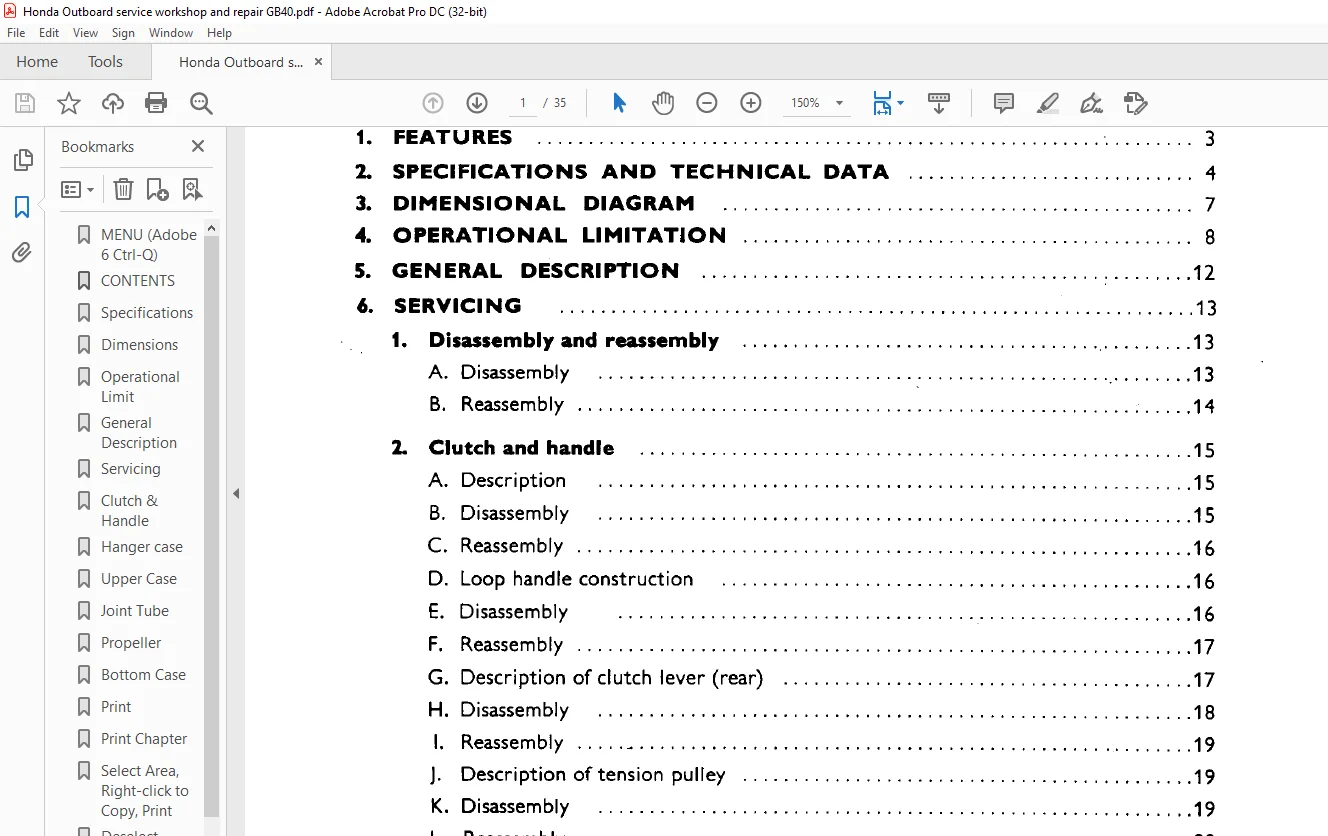

TABLE OF CONTENTS:
Honda Outboard Engine GB40 Shop Manual – PDF DOWNLOAD
MENU (Adobe 6 Ctrl-Q) 0
CONTENTS 1
Specifications 4
Dimensions 7
Operational Limit 8

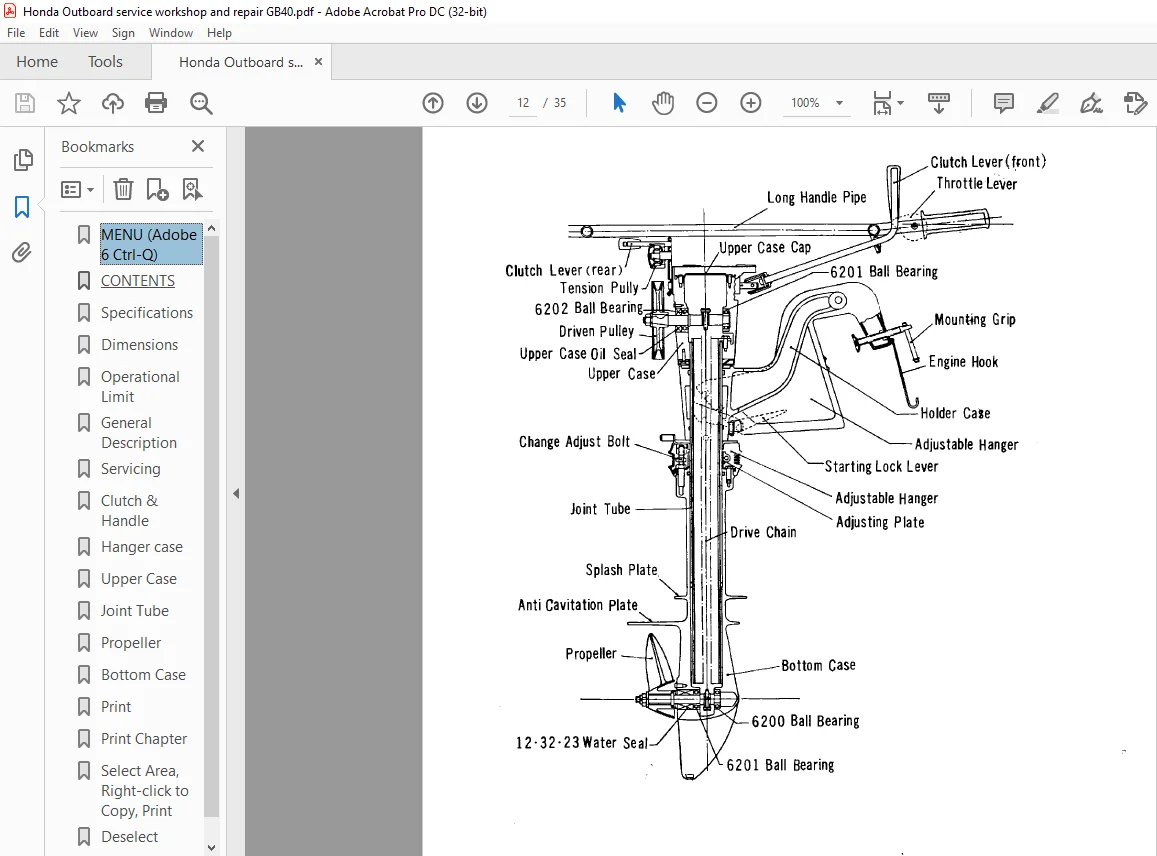

General Description 12
Servicing 13
Clutch & Handle 15
Hanger case 20
Upper Case 25
Joint Tube 29
Propeller 30
Bottom Case 32
Print 0
Print Chapter 35
Select Area, Right-click to Copy, Print 0
Deselect 0
