Fiatallis Hydraulic Motors Service Manual 60406205 – PDF DOWNLOAD

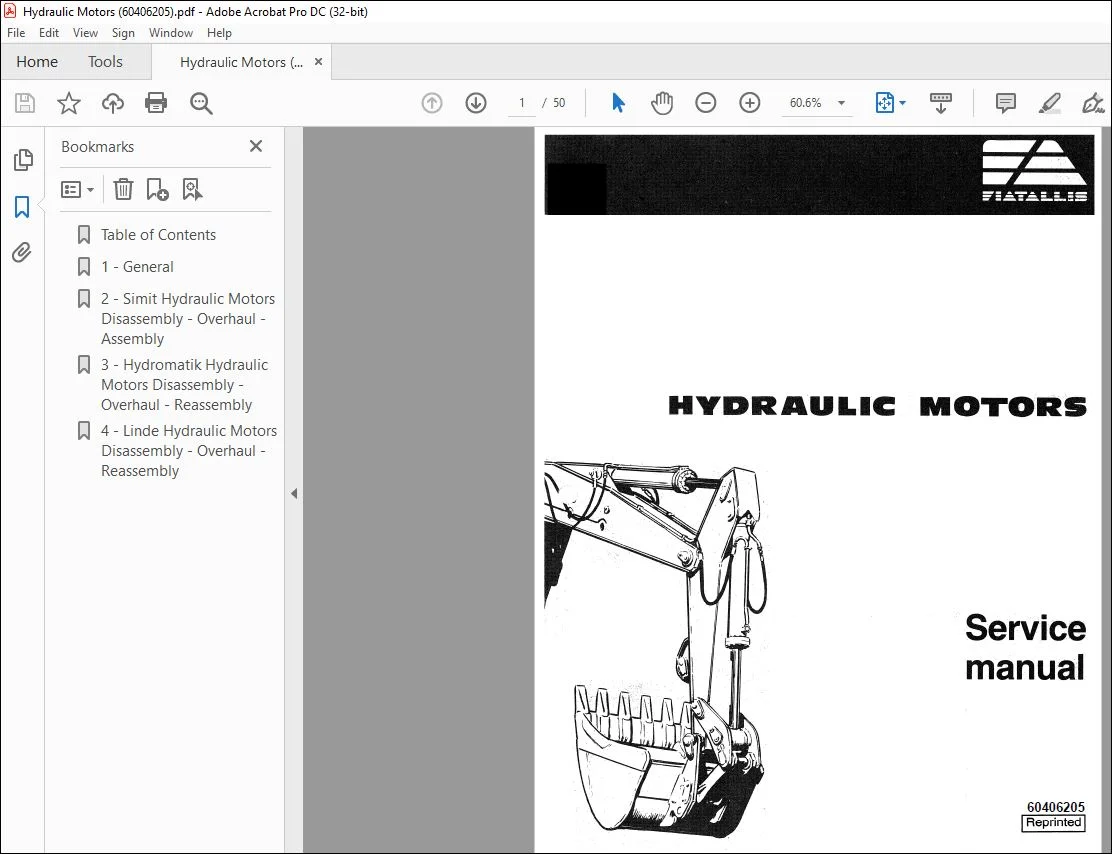

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fiatallis Hydraulic Motors Service Manual 60406205 – PDF DOWNLOAD
GENERAL:
Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or serviGing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing mqchine.
- Machine-mounted safety signs have been color coded yellow with black borders”and lettering for warning and red with white borders and lettering for danger points. Do not allow unauthorized personnel to service or maintain this machine. Do not perform any work on equipment that is not authorized.
- Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine.
- Always wear safety glasses with side shields. Do not wear rings, wrist watches, jewelry, or loos~ or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats. safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vest, or respirators. Consult your employer for specific safety equipment requirements. Do not use controls or hoses.as handholds when climbing on or off machine.
- Hoses _and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement. Do not jump on or off machine. Keep two hands and one foot. or two feet and one hand, in contact with steps and grab-rails ;md handles at all times.
- Machine should not be serviced with anyone in the operator’s seat unless they are.qualified to operate the machine and are assisting in the servicing. Keep operator’s compartment. stepping points, grabrails and handles clean of foreign objects, oil. grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
- Never attempt to operate the machine or i_ts tools from any other position than seated in the operator’s seat. Keep operator’s compartment clear of loose objects.
- If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, db not raise or lower attachments from any position other than when seated in the operator’s seat. Before starting machine or moving attachment or tool. make sure to set brakes. sound horn and call for an all clear. Raise attqchment slowly.

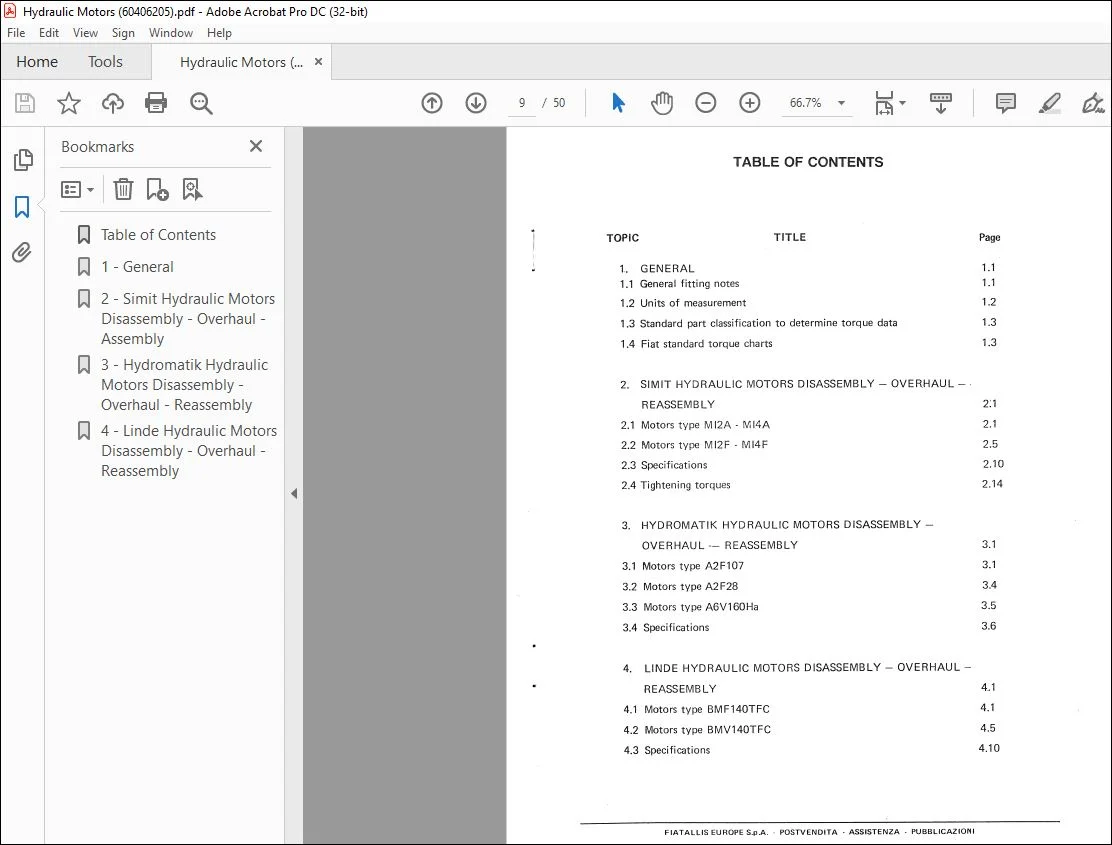

TABLE OF CONTENTS:
Fiatallis Hydraulic Motors Service Manual 60406205 – PDF DOWNLOAD
l. GENERAL
1.1 General fitting notes
1.2 Units of measurement
1.3 Standard part classification to determine torque data
1.4 Fiat standard torque charts
2. SIMIT HYDRAULIC MOTORS DISASSEMBLY – OVERHAUL – –
REASSEMBLY
2.1 Motors type M I2A – M I4A
2.2 Motors type M12F – Ml4F
2.3 Specifications
2.4 Tightening torques
3. HYDROMATIK HYDRAULIC MOTORS DISASSEMBLY –
OVERHAUL — REASSEMBLY
3.1 Motors type A2F107
3.2 Motors type A2 F28
3.3 Motors type A6V160Ha
3.4 Specifications
4. LINDE HYDRAULIC MOTORS DISASSEMBLY – OVERHAUL –
REASSEMBLY
4.1 Motors type BMF140TFC
4.2 Motors type BMV140TFC
4.3 Specifications
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
