DAEWOO DOOSAN EXCAVATOR Solar 225LC-V Shop Manual 023-00058E – PDF DOWNLOAD
DESCRIPTION:
DAEWOO DOOSAN EXCAVATOR Solar 225LC-V Shop Manual 023-00058E – PDF DOWNLOAD
- Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
- It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
- Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.
TO THE OPERATOR OF A DOOSAN DAEWOO EXCAVATOR
- Unsafe use of the excavator could lead to serious injury or death. Operating procedures, maintenance and equipment practices or traveling or shipping methods that do not follow the safety guidelines on the following pages could cause serious, potentially fatal injuries or extensive damage to the machine or nearby property
- Please respect the importance of taking responsibility for your own safety, and that of other people who may be affected by your actions
- The safety information on the following pages is organized into the following sections:
1. “General Safety Essentials” on page 6
2. “Location of Safety Labels” on page 6
3. “Summary of Safety Precautions for Lifting in Digging Mode” on page 7
4. “Unauthorized Modifications” on page 8
5. “General Hazard Information” on page 8
6. “Before Starting Engine” on page 17
7. “Machine Operation” on page 20
8. “Maintenance” on page 27
9. “Battery” on page 35
10. “Towing” on page 37
11. “Shipping and Transportation” on page 38
12. “Lifting With Sling” on page 38
- Improper operation and maintenance of this machine can be hazardous and could result in serious injury or death. Operator and maintenance personnel should read this manual thoroughly before beginning operation or maintenance.
- Keep this manual in the storage compartment to the rear of the operator’s seat, and have all personnel involved in working on the machine periodically read the manual. Some actions involved in operation and maintenance of the machine can cause a serious accident, if they are not done in a manner described in this manual.
- The procedures and precautions given in this manual apply only to intended uses of the machine. If you use your machine for any unintended uses that are not specifically prohibited, you must be sure that it is safe for any others. In no event should you or others engage in prohibited uses or actions as described in this manual.
- DOOSAN delivers machines that comply with all applicable regulations and standards of the country to which it has been shipped. If this machine has been purchased in another country or purchased from someone in another country, it may lack certain safety devices and specifications that are necessary for use in your country.
- If there is any question about whether your product complies with the applicable standards and regulations of your country, consult DOOSAN or your DOOSAN distributor before operating the machine
GENERAL SAFETY ESSENTIALS ACCESSORY APPLICATIONS
The excavator has been primarily designed for moving earth with a bucket. For use as a grapple or for other object handling, contact Daewoo for proper installation and application. Lifting-work applications (unless restricted or prohibited by local regulations) are permitted in approved lift configuration, to rated capacity only, with no side-loading. DO NOT use the machine for activities for which it was not intended. DO NOT use the bucket for lifting work, unless lift slings are used in approved configuration.
Use of an accessory hydraulic hammer (breaker), work in rough terrain, demolition applications or other hazardous operation may require installation of additional protective structures to safeguard the operator
LIFTING CAPACITY RATING CONFIGURATION
Lifting capacity ratings that are printed at the end of this safety section are based on the machine being level, on a firm supporting surface, with hooks and slings attached in approved configuration. Loads must be balanced and supported evenly. Use taglines to keep load steady if wind conditions and large surface area are a problem. Work crew hand signals, individual tasks and safe procedures should all be universally understood before lift is made
IMPORTANT
Before using the excavator to make lifts check municipal and regional regulations or statutes that could apply. Governing ordinances may require that all heavy lifting be done with single purpose equipment specifically designed for making lifts, or other local restrictions may apply. Making heavy lifts with a general purpose excavator that can be used for digging, loading, grading or other work may be expressly forbidden by a regional injunction or other legal prohibition. Always follow all other instructions, guidelines and restrictions for Safe Lifting in Operation and Maintenance and Shop Manuals.
LOCATION OF SAFETY LABELS
Location of safety labels (decals) can vary from unit to unit. Refer to appropriate Operation and Maintenance Manual, and parts manual for your unit. Always replace damaged or faded decals.
TABLE OF CONTENTS:
DAEWOO DOOSAN EXCAVATOR Solar 225LC-V Shop Manual 023-00058E – PDF DOWNLOAD
Safety
Track Excavator SafetyS0102000
Specifications
Specifications for Solar 225LC-V S0205015K
General Maintenance
General Maintenance ProceduresS0302000
Standard TorquesS0309000
Upper Structure
Cab S0402040K
Counterweight S0403050K
Fuel Tank S0405005K
Fuel Transfer PumpS0405500
Swing BearingS0407000
Swing Reduction Gearbox S0408015K
Lower Structure and Chassis
Track Assembly S0505030
Engine and Drive Train
Air-Conditioner S0605060K
Drive Coupling (Main Pump)S0609000
Hydraulics
Hydraulic System Troubleshooting, Testing and Adjustment S0702170K
Accumulator S0703010K
Center Joint (Swivel)S0704010
CylindersS0705000
Table of Contents
Page 2
Swing MotorS0707200
Travel Motor (With Gearbox) (GM35VL)S0707330
Main Pump (With Regulator) S0708320
Main Control Valve (Kayaba) S0709401K
Pilot Control Valve (Work Lever / Joystick) S0709451K
Travel Control Valve (With Damper) S0709820K
Hydraulic Schematic (Solar 225LC-V/225NLC-V) S0792105K
Electrical System
Electrical System S0802220K
Electrical Schematic (Solar 225LC-V/225NLC-V) S0892105K
Attachments
Boom and ArmS0902010
Bucket S0904015K
Publication Request for Proposed Revision
To the Operator of a Daewoo Excavator 3
General Safety Essentials 6
Location of Safety Labels 6
Summary of Safety Precautions for Lifting in Digging Mode 7
Unauthorized Modifications 8
General Hazard Information 8
Before Starting Engine 16
Machine Operation 19
Maintenance 26
Battery 34
Towing 36
Shipping and Transportation 37
Lifting With Sling
VIDEO PREVIEW OF THE MANUAL:

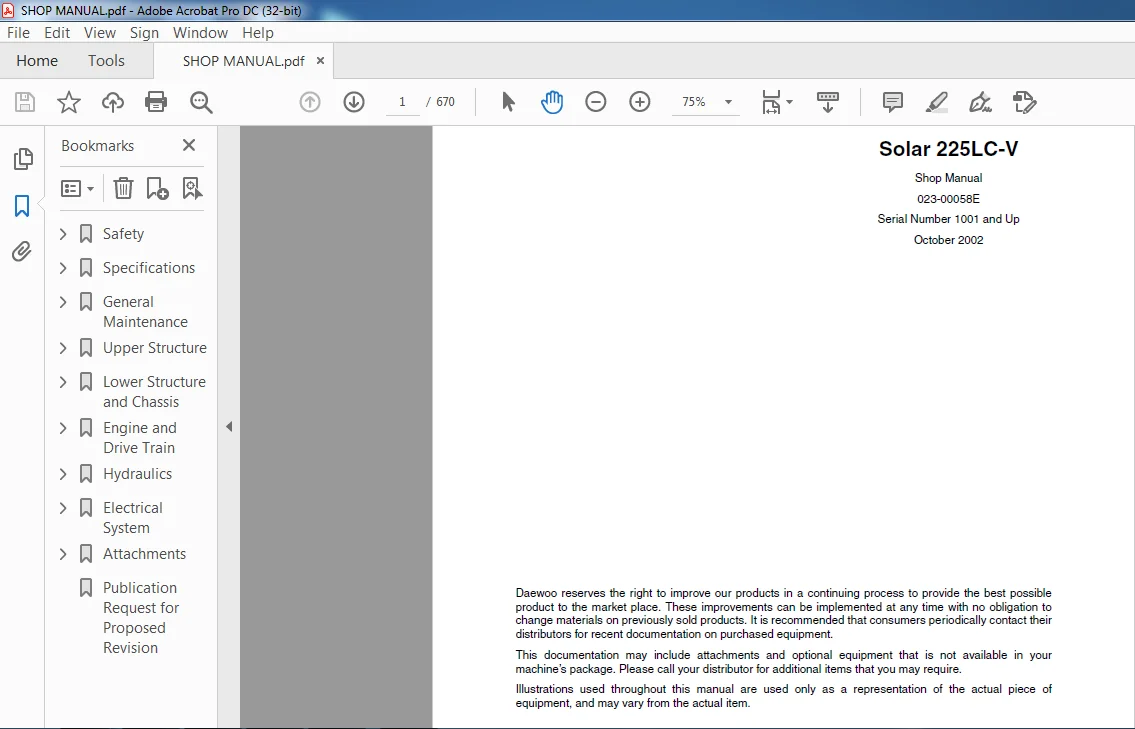

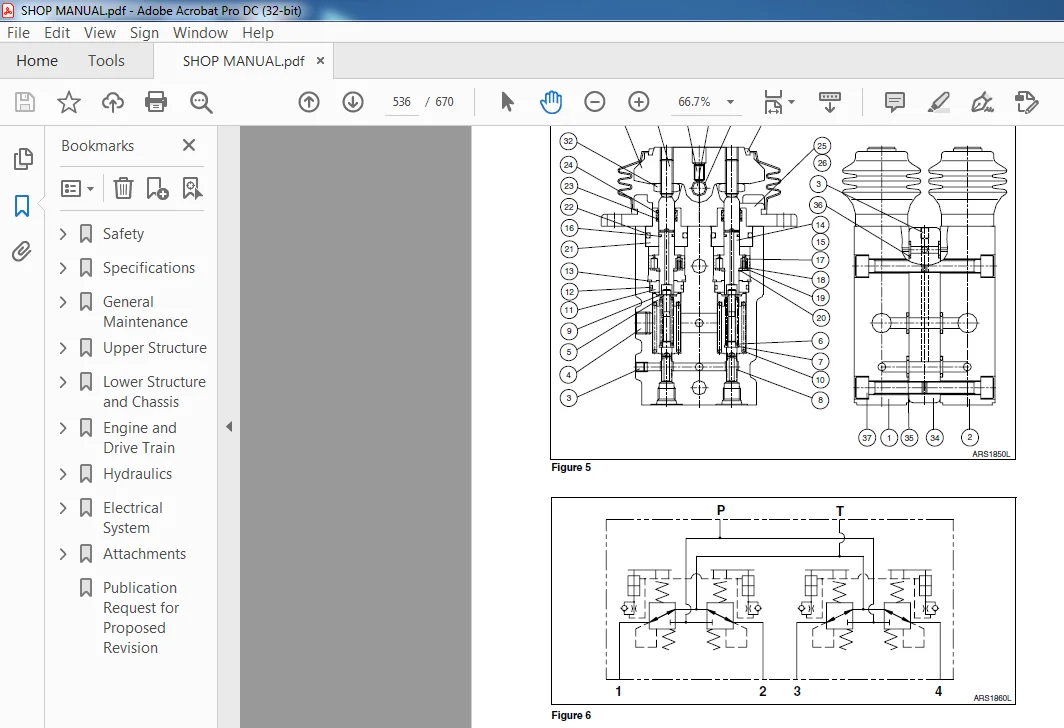

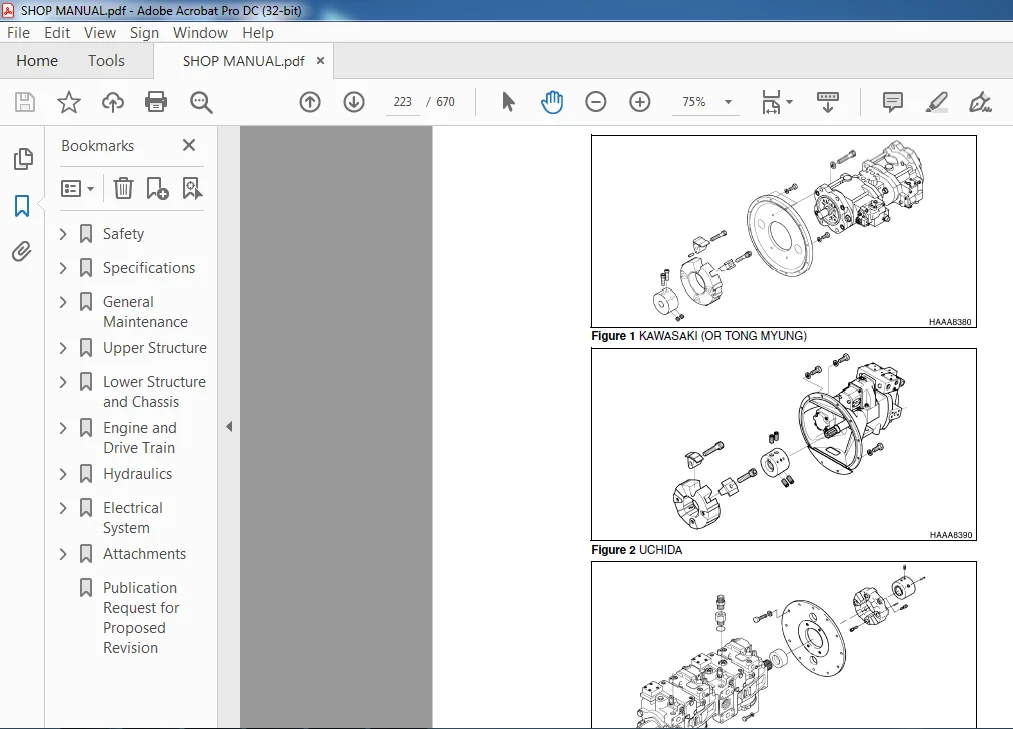

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
