CNH CX80 Tier3 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133119 – PDF DOWNLOAD
DESCRIPTION:
CNH CX80 Tier3 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133119 – PDF DOWNLOAD
ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX80 Tier3 EXCAVATOR
KG0AP657-00-00 (1.71 m Dipper)
KG0AP666-00-00 (2.12 m Dipper)
KG0AP839-00-00 (Mono boom and upperstructure)
GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

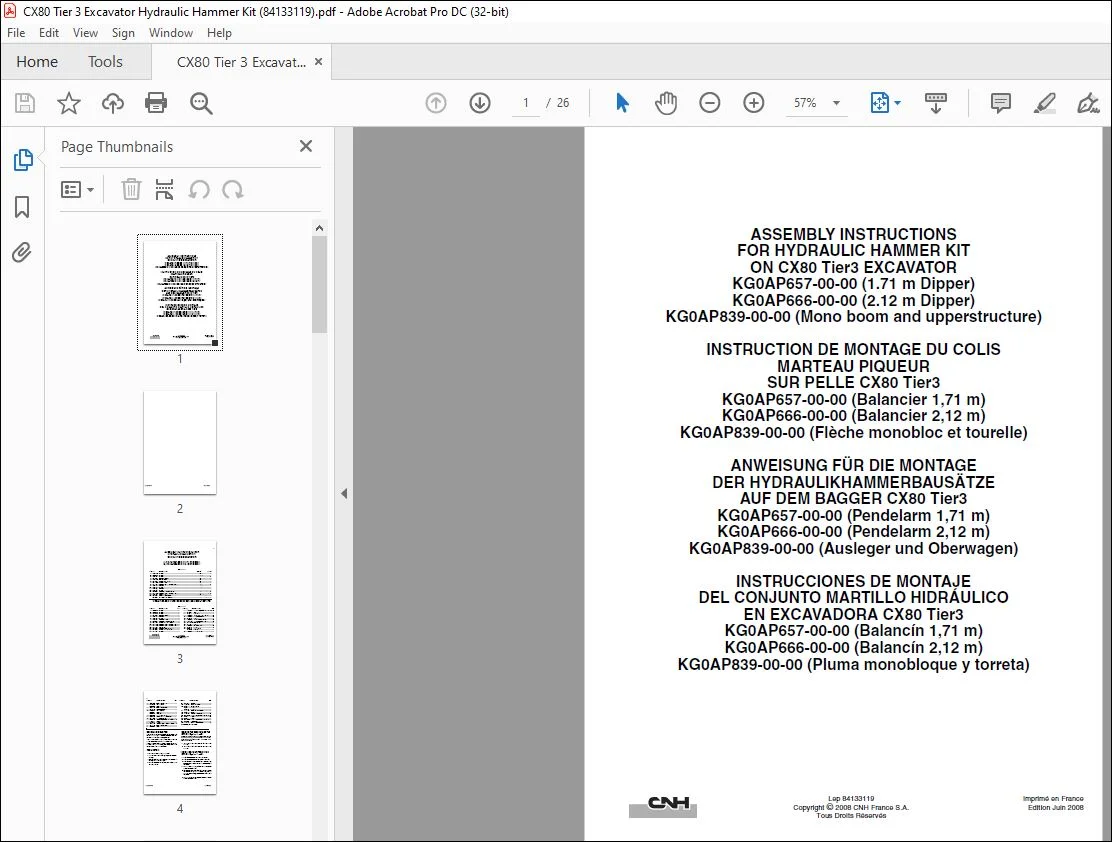

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
CNH CX80 Tier3 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133119 – PDF DOWNLOAD
ITEMP/N DESCRIPTION Qty (a) Qty (b)
1. KNV1158 Bracket………………………………………………………………………………………………2 ……………………. 2
2. KHB0268 Bracket………………………………………………………………………………………………4 …………………….. –
3. KAV1655 Bracket……………………………………………………………………………………………….- ……………………. 4
4. 152924A1 Plug (BRJ1286) ………………………………………………………………………………….2 ……………………. 2
5. KHV10680 Shut-off valve……………………………………………………………………………………..2 ……………………. 2
6. 167248A1 Adaptor (KAJ3910) ……………………………………………………………………………..2 ……………………. 2
7. 183-112VR Washer SW12…………………………………………………………………………………….8 ……………………. 8
8. 827-12070 Screw M12x70 (102R012Y070R) ………………………………………………………….4 ……………………. 4
9. KAV12880 RH pipe……………………………………………………………………………………………..1 …………………….. –
10. KAV12890 LH pipe ……………………………………………………………………………………………..1 …………………….. –
11. KAV2557 RH pipe………………………………………………………………………………………………- ……………………. 1
12. KAV2558 LH pipe ………………………………………………………………………………………………- ……………………. 1
13. 166401A1 Retaining clamp (KAV0792)………………………………………………………………….4 ……………………. 4
14. 827-12060 Screw M12x60 (102R012Y060R) ………………………………………………………….4 ……………………. 4
15. KAV2642 Hose L=920 ……………………………………………………………………………………….2 …………………….. –
16. 167831A1 Hose L=900 (KAV1464) ………………………………………………………………………..- ……………………. 2
153591A1 Loctite 262 (KRC5007) ………………………………………………………………………..1 ……………………. 1
KG0AP839-00-00 (Monobloc boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KHB0268 Bracket…………………………………….. 2
2. KHB0269 Bracket…………………………………….. 2
3. KHV0338 Bracket…………………………………….. 2
4. 152924A1 Plug (BRJ1286) ………………………… 2
5. KAV10410 RH pipe……………………………………. 1
6. KAV10420 LH pipe ……………………………………. 1
7. KAV1583 Retaining clamp ………………………… 2
8. 166401A1 Retaining clamp (KAV0792)………… 4
9. 150811A1 Washer W12 (KHN0296) ……………. 7
10. 827-12060 Screw M12x60 (102R012Y060R) … 4
11. 827-12055 Screw M12x55 (102R012Y055R) … 2
12. KHJ1994 Control pedal ……………………………. 1
13. 150548A1 Screw M10x20 (KHJ0161) ………….. 2
14. 150604A1 Washer W10 (KHJ0183) …………….. 2
15. KHJ2568 Bracket…………………………………….. 1
16. 166346A1 Screw M10x16 (105R010Y016R)….2
17. KHJ2571 Cover ………………………………………..1
18. KHJ2231 Pedal bolt…………………………………..1
19. 157558A1 Washer WW8 (KHN0518) ……………2
20. 157770A1 Nut M8 (KHR0086) ……………………..2
21. KHJ2229 Pedal ………………………………………..1
22. 159500A1 Washer W8 (KHN0420)……………….2
23. 162571A1 Screw M8x16 (KHN1642)…………….2
24. KHJ18750 Floor carpet ……………………………….1
25. KHP1940 Decal ………………………………………..1
26. 150913A1 Elbow (KHJ0341)………………………..2
27. KHJ2130 T-piece………………………………………3
28. KAJ5209 Set of 1 hose
KHJ2249 Hose D7 ……………………………………1
29. 159002A1 Plug (KHJ0363) ………………………….1
2
Lep 84133119 Issued 06-08
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
30. 150933A1 Adaptor (KHJ0348) ……………………. 1
31. KAJ5149 Set of 1 hose
KHJ2058 Hose Y1 …………………………………… 1
32. 152127A1 Adaptor (KNJ0758) ……………………. 1
33. 161841A1 Union (CNA0584)………………………. 1
34. KAJ4736 Set of 2 hoses
KHJ2084 Hose P5 …………………………………… 1
KHJ2238 Hose T5 …………………………………… 1
35. 163278A1 Oil filter (KHJ0778)…………………….. 1
36. 163275A1 Hydraulic clamp (KLJ0275)…………. 2
37. 154569A1 O-ring (LBQ0403) ……………………… 2
38. 862-8035 Screw M8x35 (108R008Y035R) ….. 8
39. UCJ0991 Elbow ………………………………………. 2
40. KAJ5145 Bracket …………………………………….. 1
41. 166351A1 Screw M10x20 (105R010Y020R) … 5
42. 151654A1 Adaptor (KNJ0605) ……………………. 1
43. KRJ5666 Hose………………………………………… 1
44. KHJ1070 Adaptor ……………………………………..1
45. 163005A1 Elbow (KHJ0607)………………………..1
46. KAJ5148 Set of 2 hoses
KAJ5139 Hose Y1…………………………………….1
KAJ5147 Hose Y2…………………………………….1
47. 162189A1 Protection (KRJ4674) ………………….1
48. KAJ5199 Clamp ……………………………………….1
49. 150409A1 Washer M10 (KEH0114)………………2
50. 827-10040 Screw M10x40 (102R010Y040R)….2
51. KAJ5183 Protective clip …………………………….2
52. KAJ5156 Plate …………………………………………1
53. 827-12065 Screw M12x65 (102R012Y065R)….1
54. KAJ4877 Secondary relief …………………………1
55. 150498A1 Clip L=300 (KHH0143) ……………… xx
xx According to requirement
