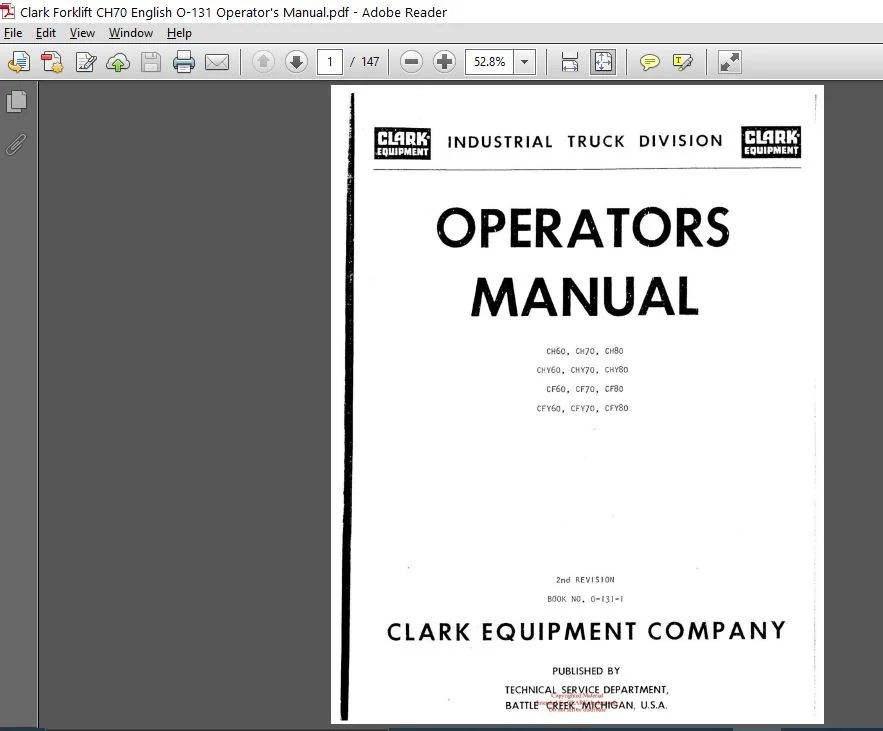

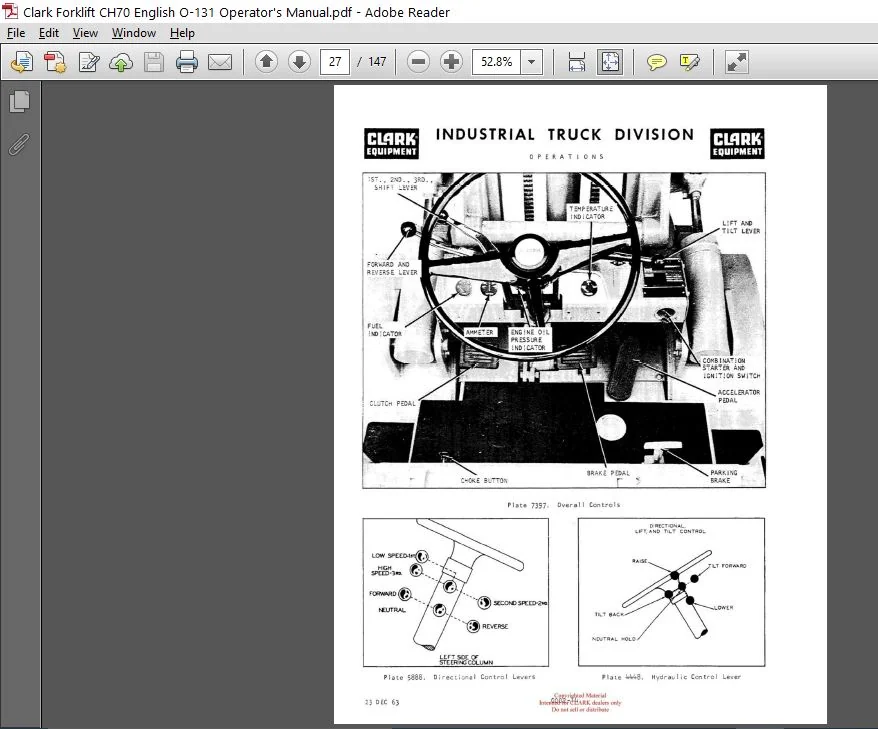

Clark Forklift CH70 English O-131 Operator’s Manual
- SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided.
- Maintenance and inspection of all powered industrial trucks should be performed in conformance with the recommendation in this manual and the following practices. 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed.
- 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. J. Before Leaving The Truck: A. Stop truck. B. Fully lower the load engaging means
- c. Place directional controls in neutral. D. Apply the parking brake. E. Stop the engine or F. Lock the control or G. Block the wheels if 4. Before Working On Truck: turn off ignition truck is power. circuit. on a ramp, or being worked on. A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices.
- C. Block load engaging means, innermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed. Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system is depleted and engine stops running.
- Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area. S. Before Starting To Operate The Truck; A. Be in operating position.
- B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of 1 ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.
Table Of Contents:
Clark Forklift CH70 English O-131 Operator’s Manual

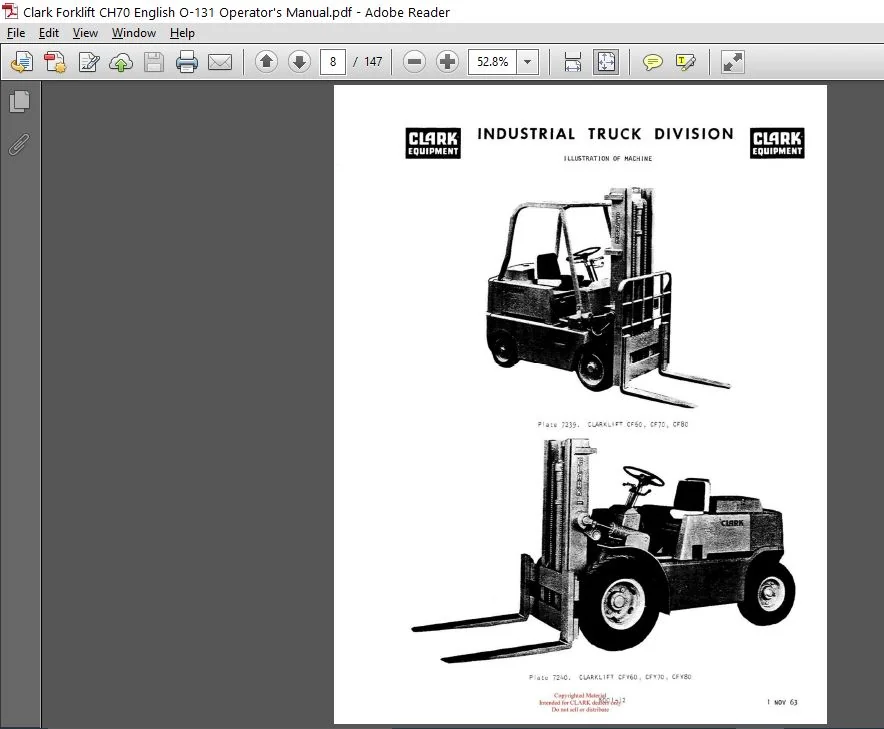

1000 Hour Lubrication & Pr?ventive Maintenance Illustration
Engine Tune Up; Air Cleaner, Fuel Pump
Engine Tune Up; Cylinder Head Stud Nuts Intake and Exhaust Manifolds,
Crankcase Ventilation; Intake and Exhaust Valve Clearance adjust1:1ents
Engine Tune Up; Intake and Exhaust ValveC learance adjustments
Engine Tune Up; Compression test, Spark Plugs
Engine Tune Up; Distributor
Engine Tune Up; Tach Dwell Meter
Engine Tune Up; Contact Point adjustment; Ignition Ti?ing
Engine Tune Up; Vacuu:n Test and Carburetor adjustment
Engine Tune Up; Governor adjustment
Starting Motor ;nspect
Generator inspect
?heel Beari ngs clean and repack; adjust
Axle Ends clean and repack
Bleeding Brake System
Brake adjustment
Hand Brake adjustment
Cooling System inspect and c l ean
Transmission, Axle Adaptor drain and ref:11
Main Hydraulic System P?essu?e checks
Upright Roller lubrication and adjus??ents
T R 0 U B L E
S H O O T I N G G U I D
Description
Engine
Fuel Sys tern
Cl utcr.
Coo I i ng System
Ignition System
Starter
Generator
Battery & Horn
Transmission
Drive Axle
Steering Ax 1 e
Brake Syste.-n
Hydraulic Syste
