CLARK FORKLIFT C500 OH 370 OVERHAUL MANUAL – PDF DOWNLOAD
Video Preview:

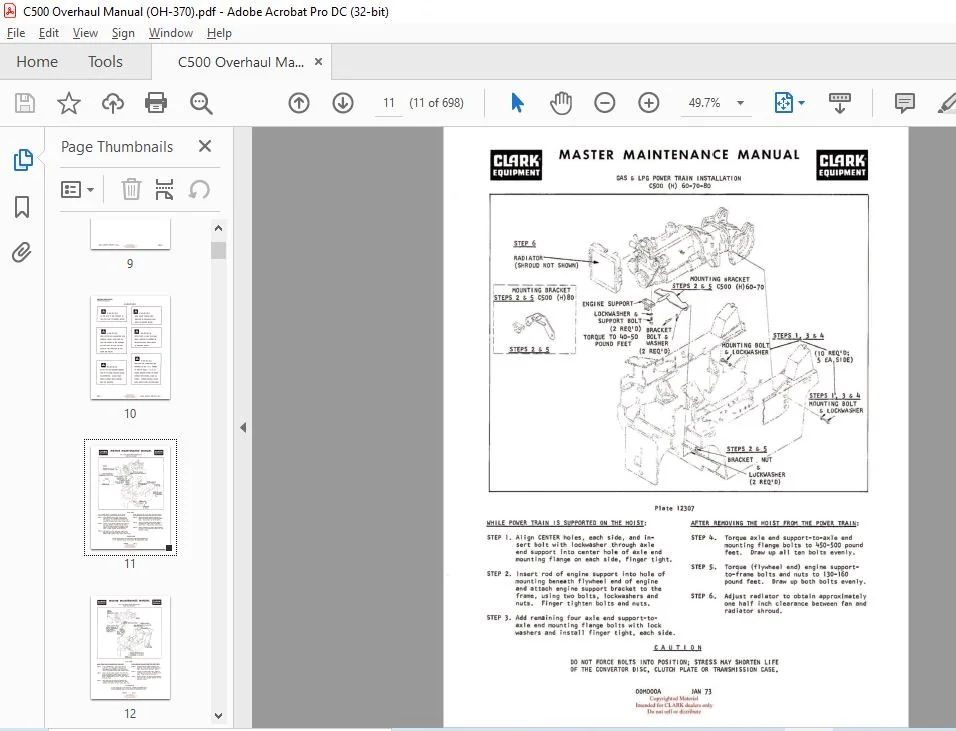

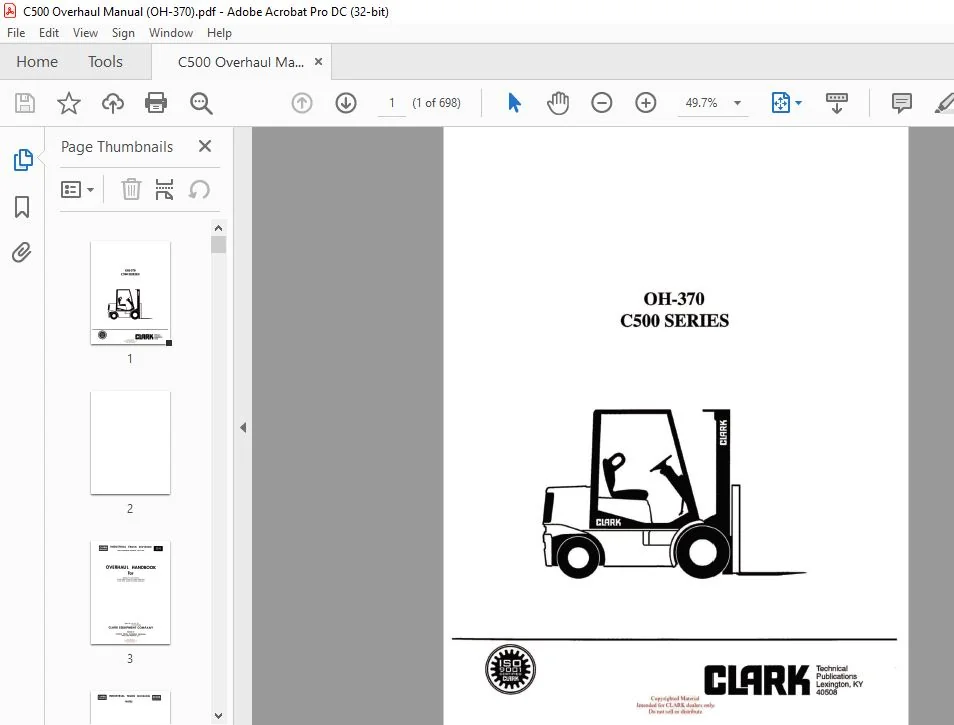

Image Preview:
Description:
CLARK FORKLIFT C500 OH 370 OVERHAUL MANUAL – PDF DOWNLOAD
- Powered industrial trucks may become hazardous if adequate maintenance is not done. Therefore, maintenance facilities, personnel and procedures must be provided. Maintenance and inspection of all powered industrial trucks should be done in agreement with the recOOllllendation in this manual and the following practices. 1. A scheduled preventive maintenance, lubrication, and inspection system must be followed.
- 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. 3. Before Leaving The Truck: A. Stop Truck. B. Fully lower the load engaging means. C. Put directional controls in neutral. D. Apply the parking br alee • E. Stop the engine or turn off power. F. Lock the control or ignition circuit. G. Put blocks at the wheels if truck is on a ramp, or being worked on. 4. Before Working On Truck: A. Raise wheels free of floor or disconnect power source. B. Use blocks or other positive truck positioning devices.
- C. Put blocks under the load engaging means, innermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, make sure fuel shutoff valve is closed. Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until there is no more fuel in the system and engine st ops running .
- Operation to check performance of the truck or attachments must be done in a clear, authorized, safe area. 5. Before Starting To Operate The Truck A. Be in operating position. B. Push clutch (or brake pedal on automatic transmission and electric trucks) . C. Put. the directional controls in neutral. D. Start engine or turn on power. E . Before operating truck, check functioning of lift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.

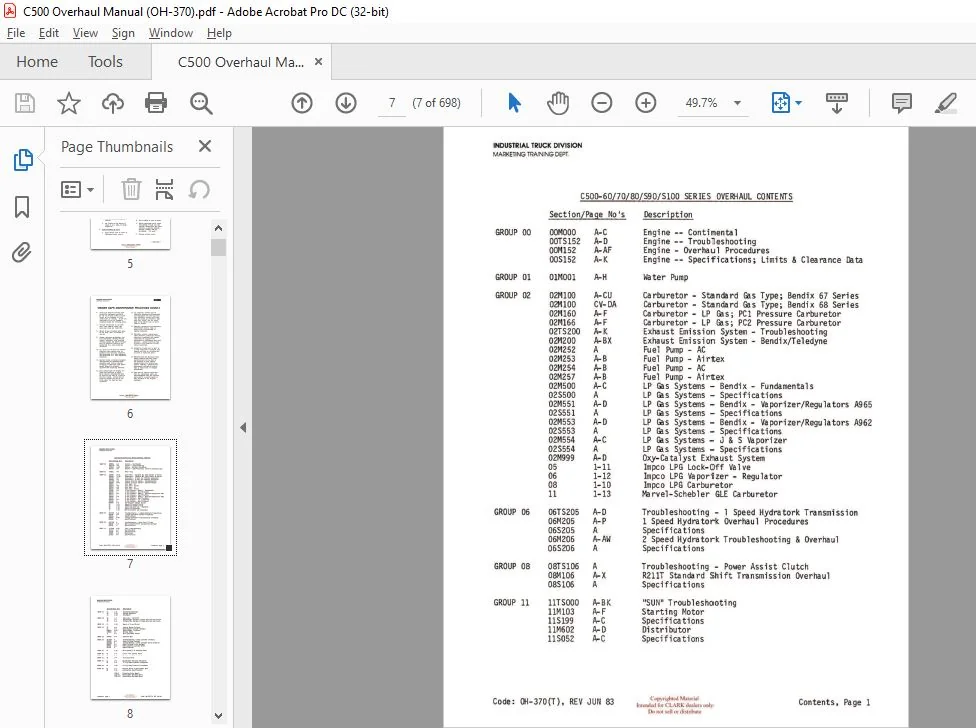

Table Of Contents:
CLARK FORKLIFT C500 OH 370 OVERHAUL MANUAL – PDF DOWNLOAD
Engine — Continental
Engine — Troubleshooting
Engine – Overhaul Procedures
Engine — Specifications; Limits & Clearance Data
Water Pump
Carburetor – Standard Gas Type; Bendix 67 Series
Carburetor – Standard Gas Type; Bendix 68 Series
Carburetor – LP Gas; PCl Pressure Carburetor
Ca rbu re tor – LP Gas; PC2 Pressure Ca rbu re tor
Exhaust Emission System – Troubleshooting
Exhaust Emission System – Bendix/Teledyne
Fuel Pump – AC
Fuel Pump – Ai rtex
Fuel Pump – AC
Fuel Pump – Airtex
LP Gas Systems – Bendix – Fundamentals
LP Gas Sys terns – Spec i fi cations
LP Gas Systems – Bendix – Vaporizer/Regulators A965
LP Gas Systems – Specifications
LP Gas Systems – Bendix – Vaporizer/Regulators A962
LP Gas Systems – Specifications
LP Gas Systems – J & S Vaporizer
LP Gas Systems – Specifications
Oxy-Catalyst Exhaust System
Impco LPG Lock-Off Va 1 ve
Impco LPG Vaporizer – Regulator
Impco LPG Carburetor
Marvel-Schebler GLE Carburetor
Troubleshooting – l Speed Hydratork Transmission
1 Speed Hydratork Overhaul Procedures
Specif i cations
2 Speed Hydratork Troubleshooting & Overhaul
Spec if i cations
Troubleshooting – Power Assist Clutch
R211T Standard Shift Transmission Overhaul
Specifications
11SUN11 Troubleshooting
Starting Motor
Specifi cations
Distributor
Specifications
Please Note:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
