CAT C-10 & C-12 Truck Engines System Operation Testing & Adjusting Manual – PDF DOWNLOAD

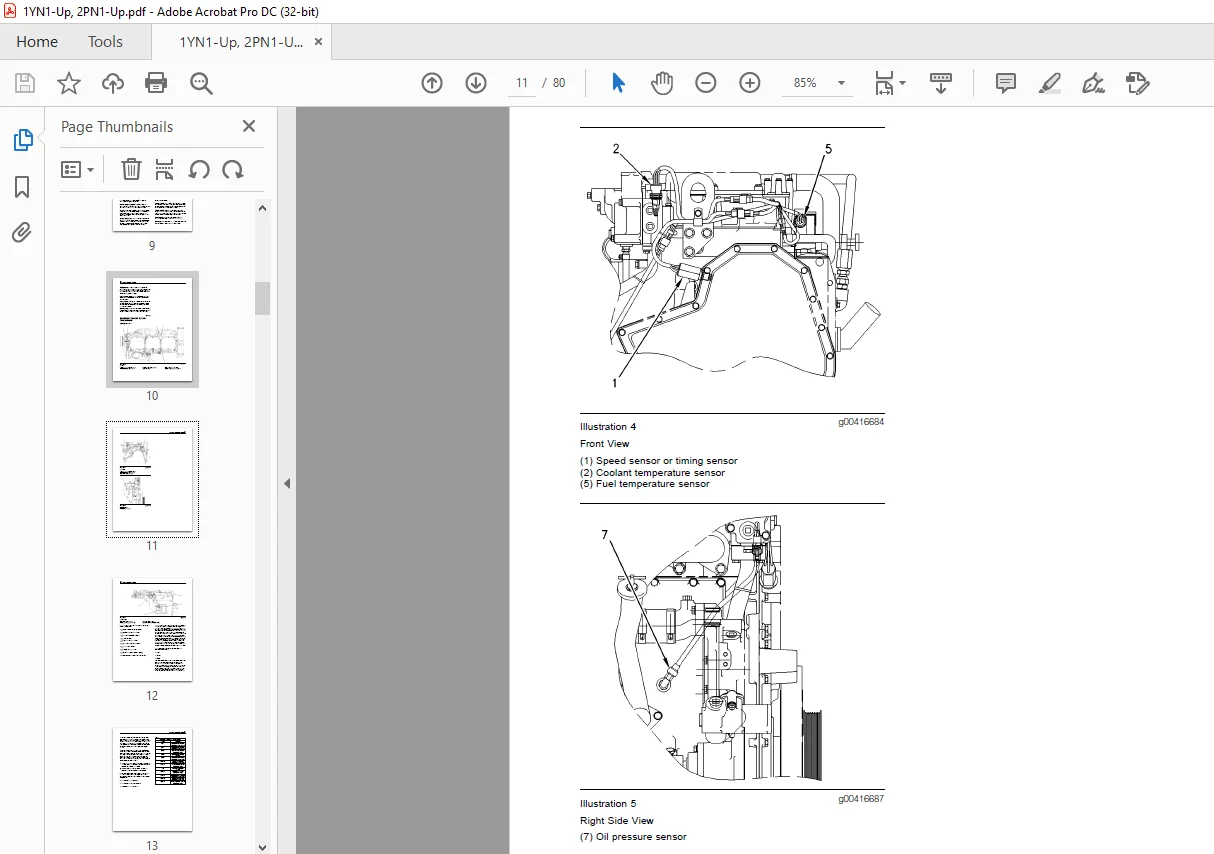

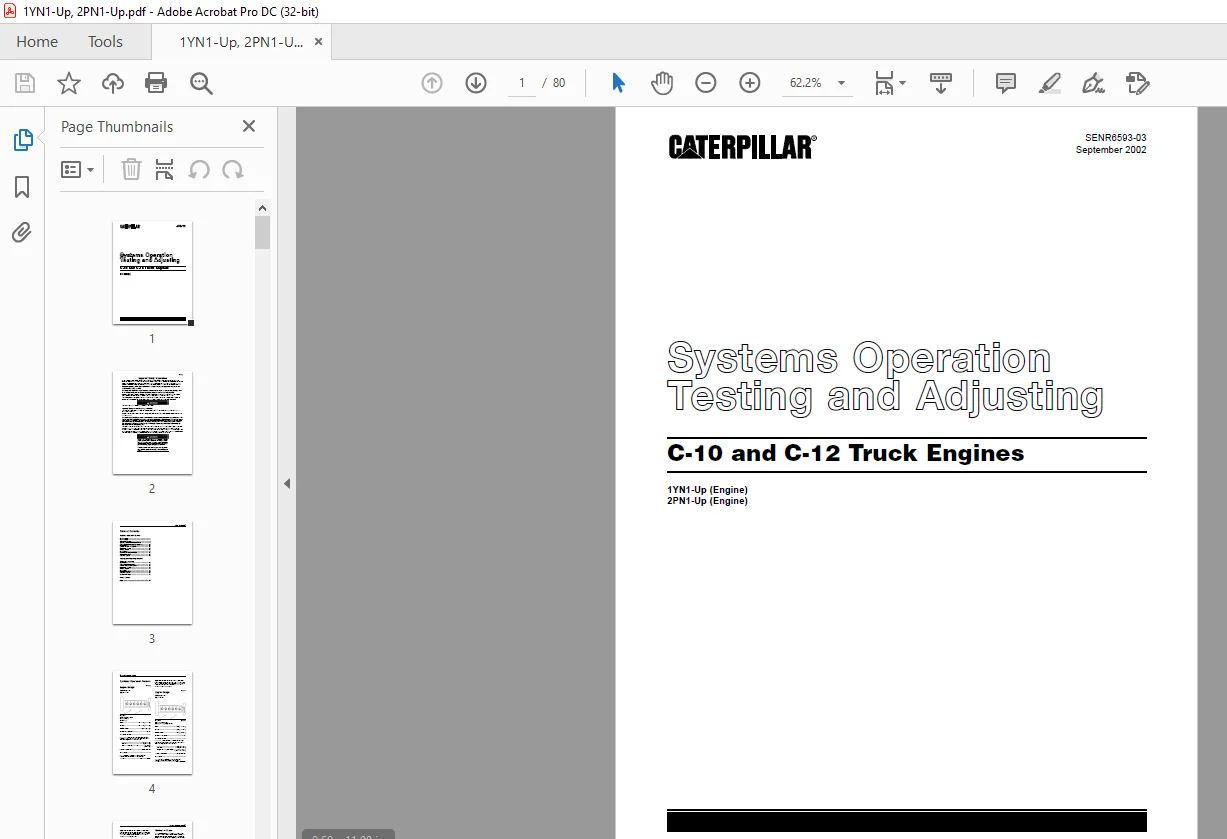

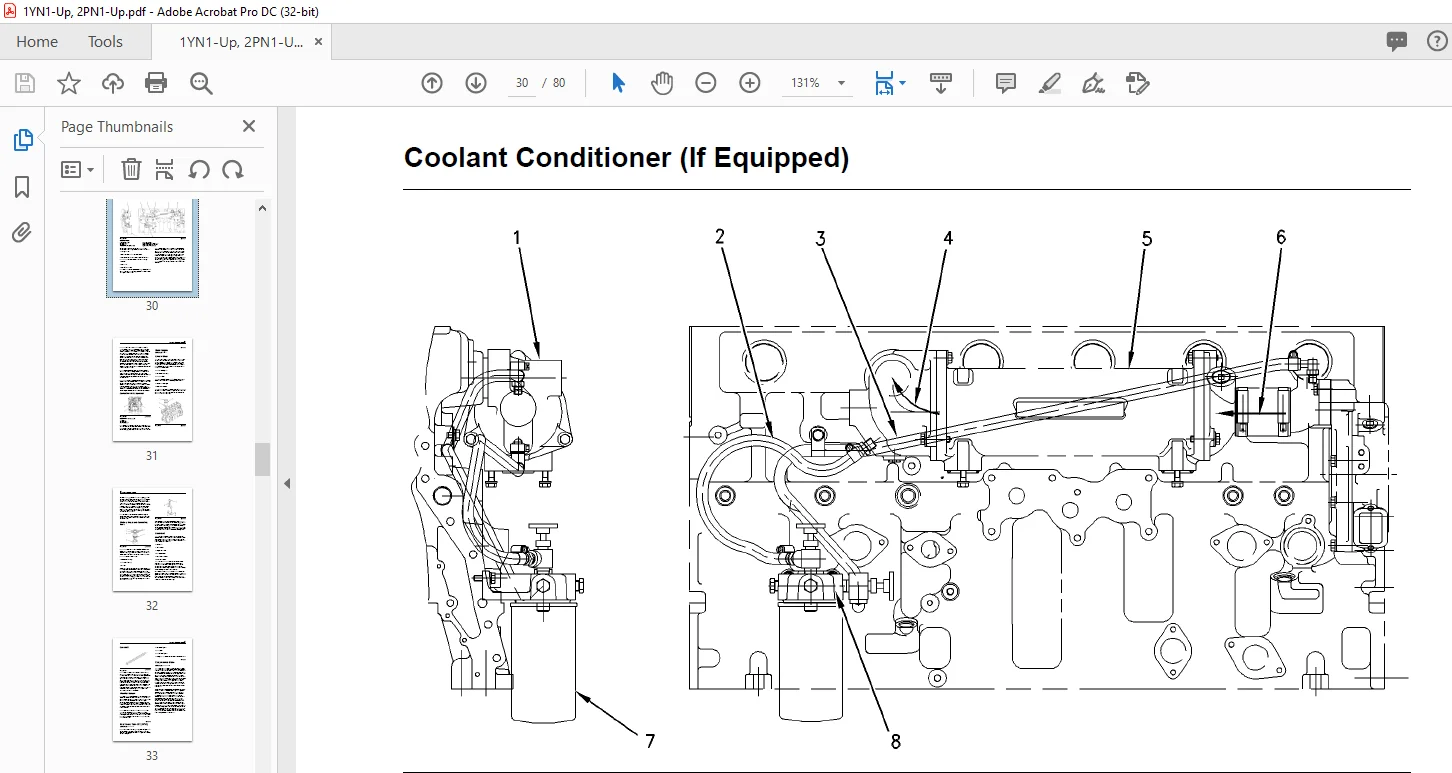

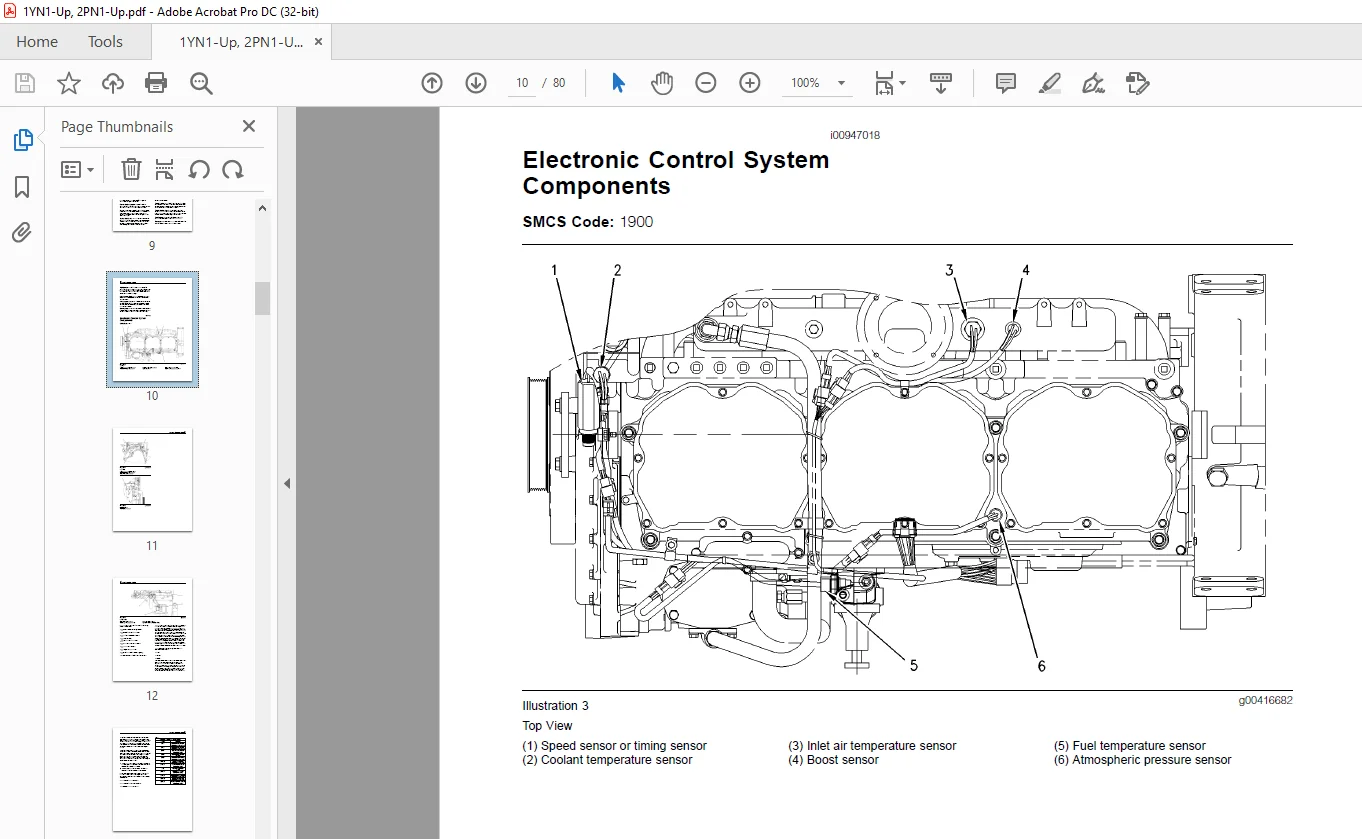

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
CAT C-10 & C-12 Truck Engines System Operation Testing & Adjusting Manual – PDF DOWNLOAD
1YN1-Up (Engine)
2PN1-Up (Engine)
Important Safety Information :
Most accidents that involve product operation, maintenance and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. A person must be alert to potential hazards. This person should also have the necessary training, skills and tools to perform these functions properly.
- Improper operation, lubrication, maintenance or repair of this product can be dangerous and couldresult in injury or death. Do not operate or perform any lubrication, maintenance or repair on this product, until you have readand understoodthe operation, lubrication, maintenance and repair information.
- Safety precautions and warnings are provided in this manual and on the product. If these hazard warnings are not heeded, bodily injury or death could occur to you or to other persons. The hazards are identified by the “Safety Alert Symbol” and followed by a “Signal Word” such as “DANGER”, “WARNING” or “CAUTION”. The Safety Alert “WARNING” label is shown below.
General Information:
SMCS Code: 1000 C-10 Truck Engines and C-12 Truck Engines are in-line six cylinder arrangements. C-10 Truck Engines have a bore of 125.0 mm (4.92 inch) and a stroke of 140.0 mm (5.51 inch). The displacement is 10.3 L (629 in3). C-12 Truck Engines have a bore of 130.0 mm (5.12 inch) and a stroke of 150.0 mm (5.91 inch). The displacement is 12 L (732 in3). Both engines have a firing order sequence:1, 5, 3, 6, 2, and 4. The rotation of these engines is counterclockwise when the engine is viewed from the flywheel end of the engine.
- These engines utilize a turbocharger and an air-to-air aftercooler. The Electronic Unit Injector system (EUI) eliminates many of the mechanical components that are traditionally used in the fuel injector assembly. The EUI also provides increased control of the timing and increased control of the fuel air mixture. The timing advance is achieved by precise control of the fuel injection timing.
- Engine rpm is controlled by adjusting the injection duration. Engines (S/N: 3CS1-11999) and (S/N: 2KS1-39999) have a special pulse wheel, which is mounted to the crankshaft gear. The special pulse wheel provides information to the Engine Control Module (ECM) for detection of cylinder position and engine rpm. Engines (S/N: 3CS12000-UP), (S/N: 2KS40000-UP), and (S/N: CPD1-UP) have a special crankshaft gear that provides information to the Engine Control Module (ECM) for detection of cylinder position and engine rpm.
- The engine has built-in diagnostics in order to ensure that all of the components are operating properly. In the event of a system component failure, the operator will be alerted to the condition by a check engine light. The check engine light is located on the dashboard. An electronic service tool can be used to read the numerical code of the faulty component or condition. Also, the cruise control switches can be used to flash the code on the check engine light. Intermittent faults are logged and stored in memory.

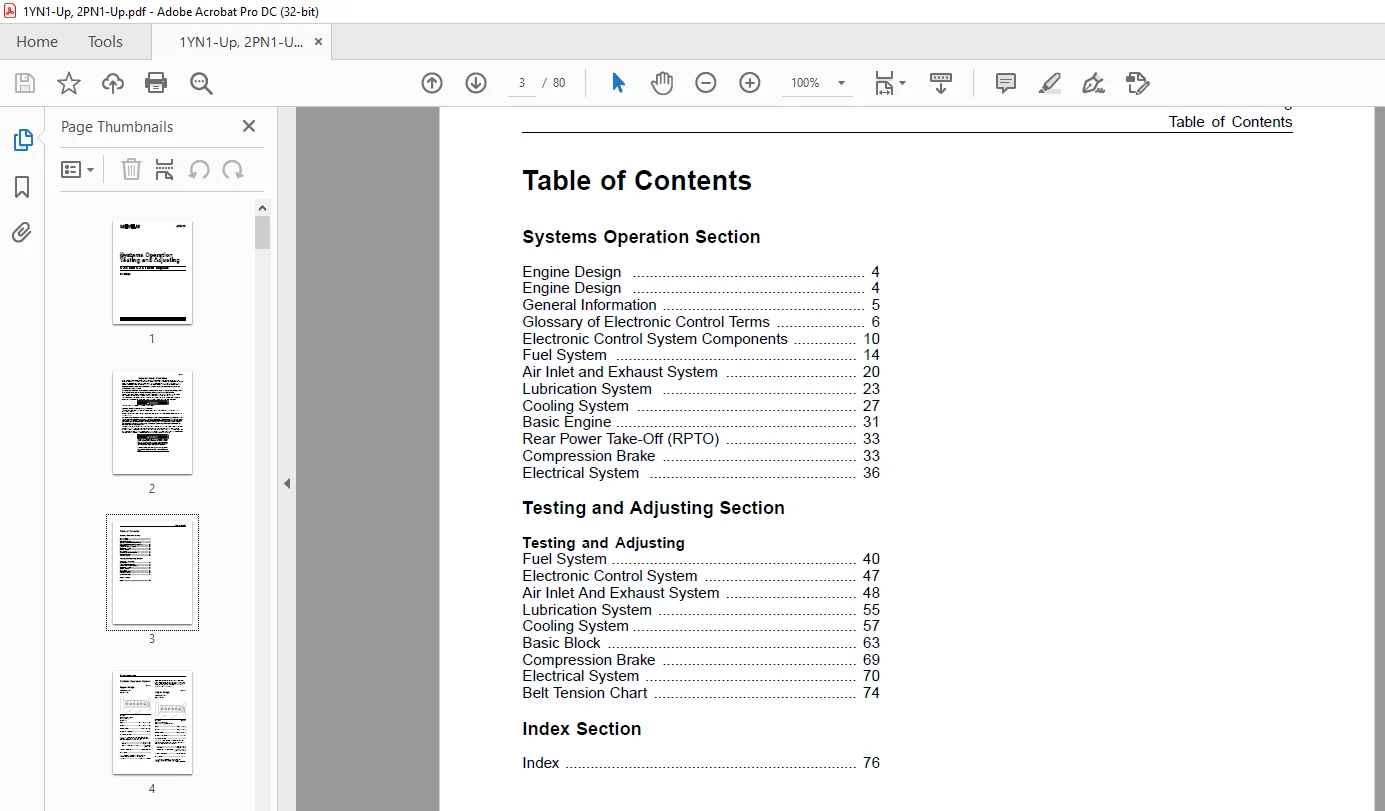

TABLE OF CONTENTS:
CAT C-10 & C-12 Truck Engines System Operation Testing & Adjusting Manual – PDF DOWNLOAD
Systems Operation Section
Engine Design 4
Engine Design 4
General Information 5
Glossary of Electronic Control Terms 6
Electronic Control System Components 10
Fuel System 14
Air Inlet and Exhaust System 20
Lubrication System 23
Cooling System 27
Basic Engine 31
Rear Power Take-Off (RPTO) 33
Compression Brake 33
Electrical System 36
Testing andAd justing Section
Testing andAd justing
Fuel System 40
Electronic Control System 47
Air Inlet And Exhaust System 48
Lubrication System 55
Cooling System 57
Basic Block 63
Compression Brake 69
Electrical System 70
Belt Tension Chart 74
Index Section
Index 76
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.V
