Case Wheel Loader W14C Service Manual
FILE DETAILS:
Case Wheel Loader W14C Service Manual
Size : 61 MB
Format : PDF
Language : English
Brand: Case
Number off page: 1201 page
Type of machine: Case Wheel Loader
Type of document: Service Manual
Model: Case Wheel Loader W14C
Part No: 8-11771R0
VIDEO PREVIEW OF THE MANUAL:

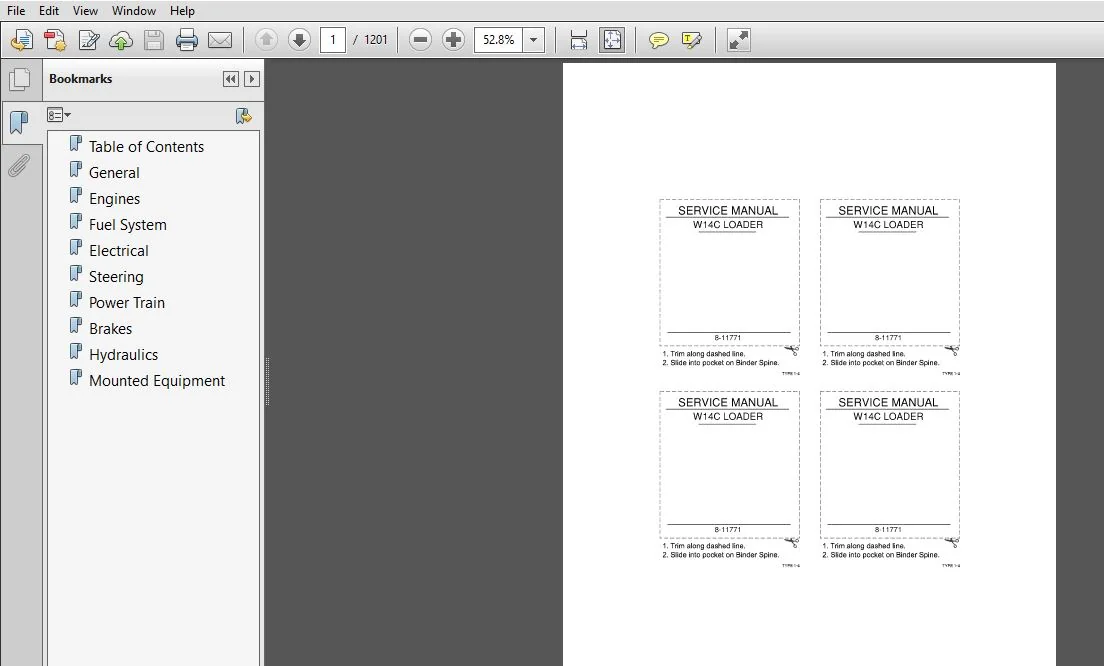

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Case Wheel Loader W14C Service Manual
SAMPLE PAGES FROM THE MANUAL:
If you keep fuel in storage for a period of time. you can get foreign material or water in the fuel storage tank. Many engine problems are caused by water in the fuel, Keep the fuel storage tank outside and keep the fuel as cool as possible. Remove water from the storage container at regular periods of time. Fill the fuel tank at the end of the daily operating period to prevent condensation in the fuel tank.
Procedure to Heat the Oil
Torque Converter
1. Start the engine.
2. Make sure the parking brake is released.
3. Push down and hold the brake pedal for the remainder of this procedure.
4. Make sure the clutch cutout switch is in DRIVE.
5. Move the range control lever to 3 and the direction control lever to F.
6. increase the engine speed to 1900 to 2100 rpm (r/min) and run the engine at this speed for three minutes.
7. Decrease the engine speed to low idle and move the direction control lever to the N position for 30 seconds.
8. Repeat steps 3 through 7 until the torque converter oil is at the correct temperature. The needle in the torque converter temperature gauge will be within 1/8 inch (3 mm) of the red zone when the torque converter oil is at the correct temperature.
Hydraulic System
1. Apply the parking brake.
2. Start the engine and run the engine at full throttle.
3. Hold the bucket control lever in the ROLLBACK position for 15 seconds. Then return the bucket control lever to neutral for 30 seconds.
TABLE OF CONTENTS:
Case Wheel Loader W14C Service Manual
GENERAL
Section Index – General
Standard Torque Specifications

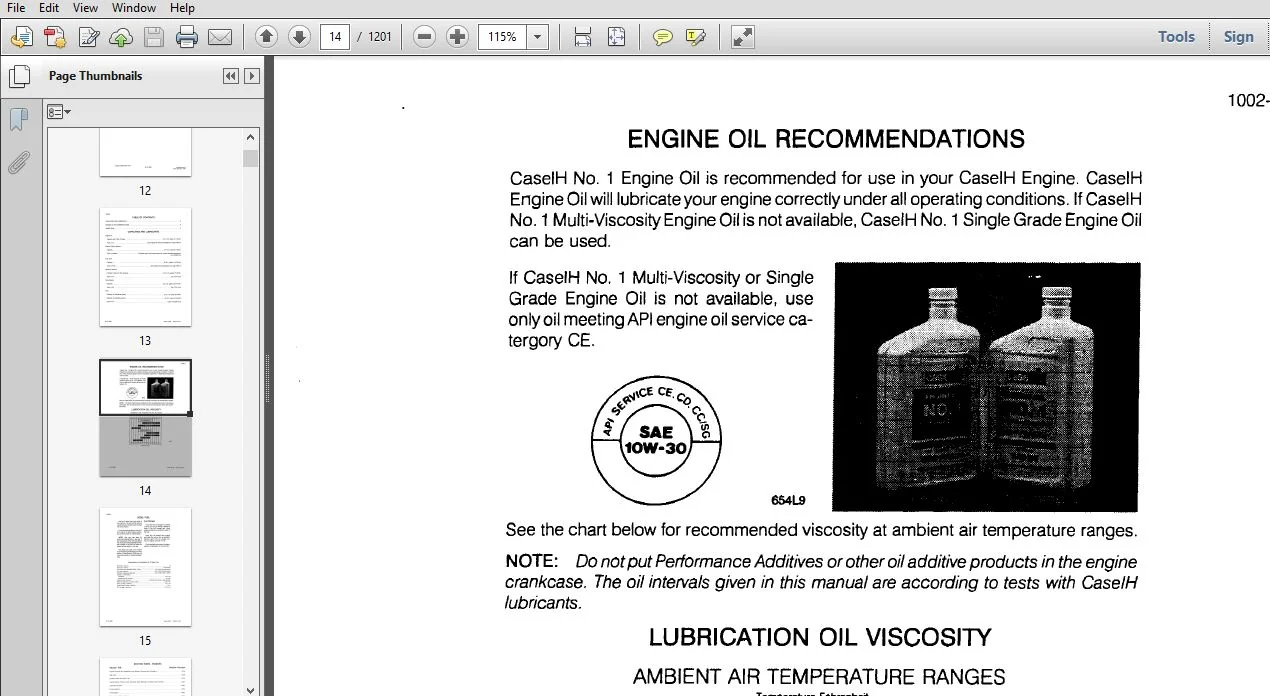

Fluids and Lubricants
ENGINES
Section Index – Engines

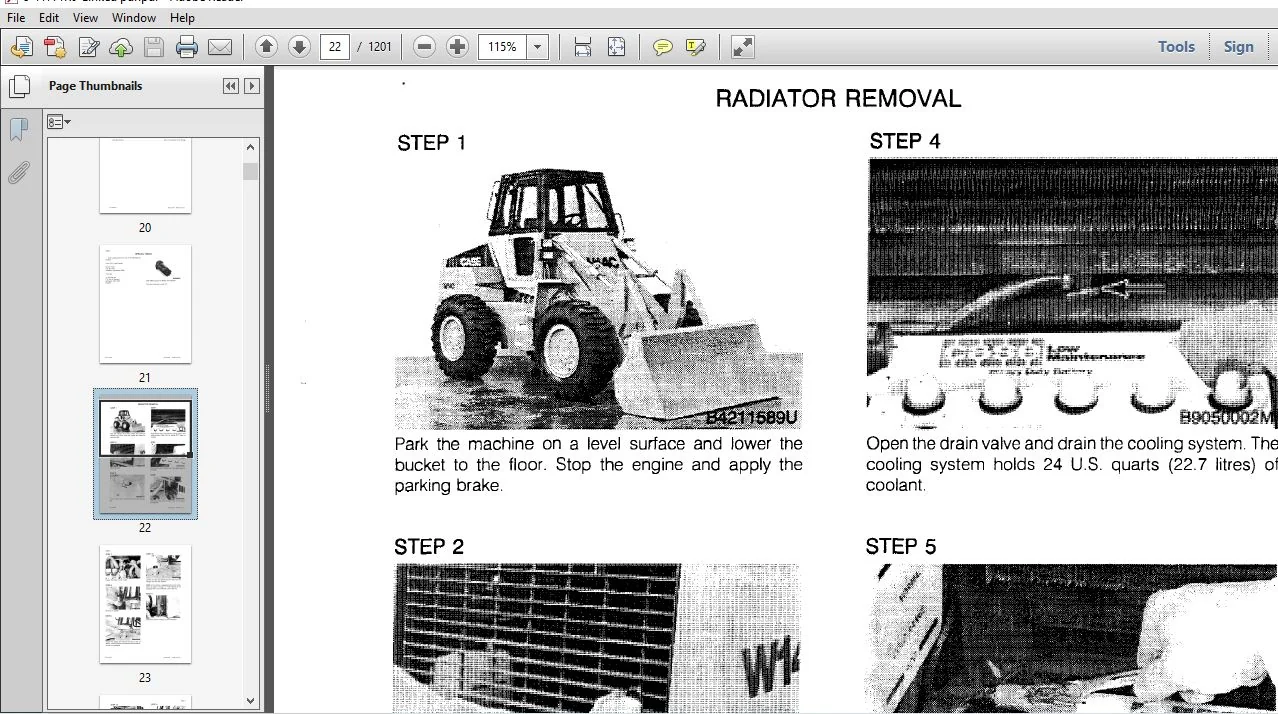

Engine Removal and Installation and Radiator Removal and Installation
Stall Tests
Detailed Engine Specifications
Cylinder Head and Valve Train
Cylinder Block, Pistons Rods, Camshaft Main Bearings Oil Seals and Flywheel
Lubrication System
Cooling System
Turbocharger
Turbocharger Failure Analysis
FUEL SYSTEM
Section index – Fuel System
Fuel System and Filters
Fuel Injection Pump and Drive Gear
Fuel Injectors
ELECTRICAL SYSTEM
Section Index – Electrical
Electrical Specifications Troubleshooting, and Schematics
Starter and Starter SolenOId
45 Amp Alternator A186124
Batteries
Instrument Cluster and Gauges
65 Ampere Alternator
45 Amp Alternator A187916
STEERING
Section Index – Steering
Removal and installation of Steering Components
Specifications Schematic and Troubleshooting
Steering Control Valve
Flow Control Valve
Center Pivot
Auxiliary Steering Pump and Check Valve
POWER TRAIN
Section Index – Power Train
Removal and Installation of Power Train Components
Transmission Specification and Troubleshooting,
Transmission Repair
Differential and Planetary
Drive Shafts Center Bearing, and Universal Joints
Wheels and Tires
BRAKES
Section index – Brakes
Removal and Installation of Brake Components
Specifications Schematics Pressure Checks and Adjustments
Brake Master Cylinder
Brake Valve
Parking Brake
Brakes
Brake Pump
NOTE: For parking brake and brake pedal adjustments see Section 9009
HYDRAULICS
Section index – Hydraulics
Removal and Installation of Hydraulic Components
Specifications Troubleshooting and Schematics
Cleaning the Hydraulic System
Loader Control Valve
Hydraulic Pump
Cylinders
MOUNTED EQUIPMENT
Section Index – Mounted Equment
Air Conditioning Troubleshooting
Discharging and Charging the Air Conditioning System
Removal and installation of Air Conditioning Components
Air Conditioning Compressor and Clutch
Loader
ROPS Cab and ROPS Canopy
Seat and Seat Belt
Suspension Seat
Pedals and Levers
